TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9401)

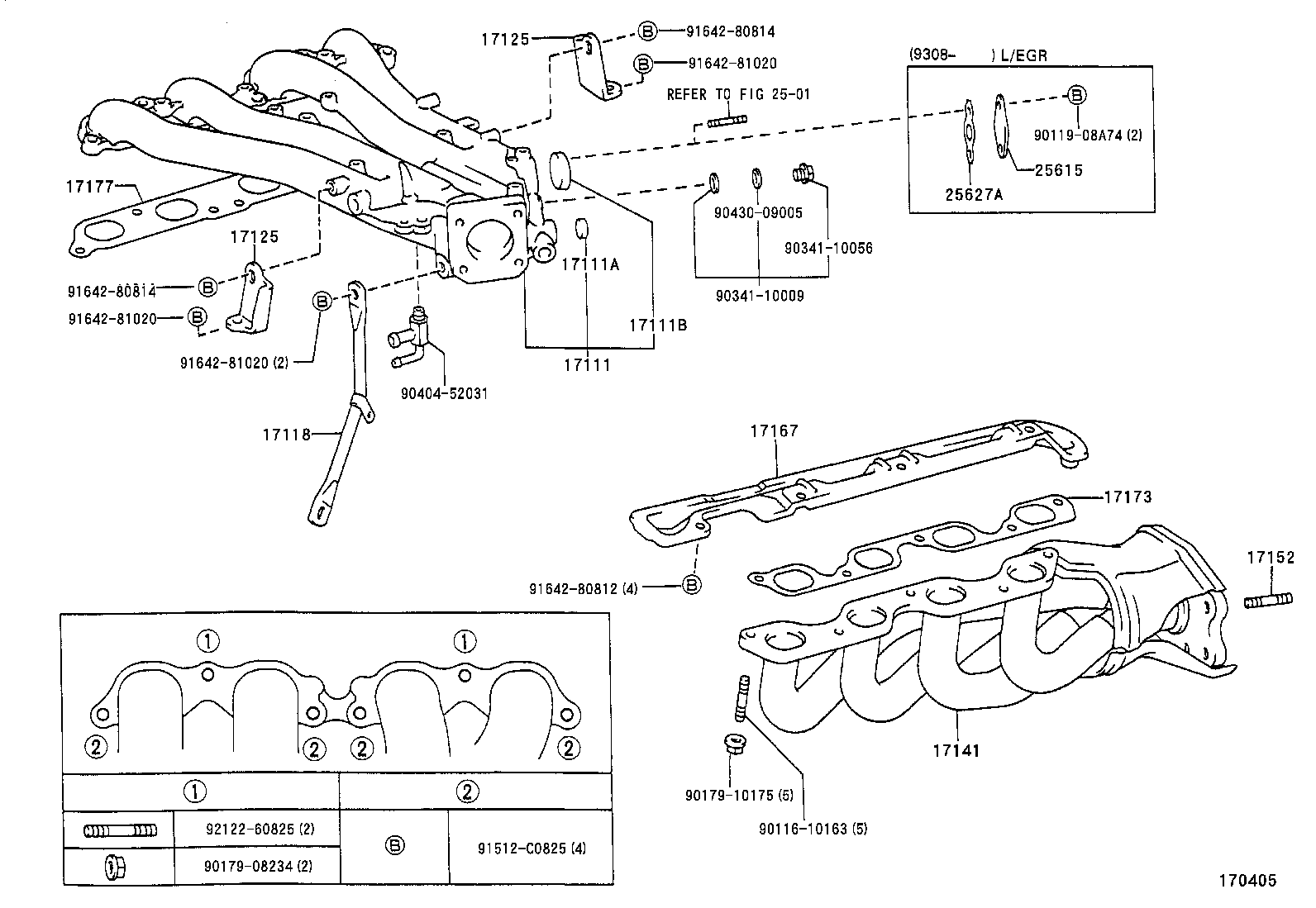

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17118 17125 17125 17141 17152 17167 17173 17177 2501 25615 25627A 9011610163 9011908A74 9017908234 9017910175 9034110009 9034110056 9040452031 9043009005 91512C0825 9164280812 9164280814 9164280814 9164281020 9164281020 9164281020 9212260825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-76010

2TZFE..TCR1#,2#

 1
17111A - PLUG, NO.1
90331-16001

2TZFE..TCR1#,2#

 2
17111B - PLUG, NO.2
96411-43500

2TZFE..TCR1#,2#

 1
17118 - STAY, MANIFOLD
17118-76010

2TZFE..TCR1#,2#

 1
17125 - STAY, SURGE TANK, NO.1
17125-76010

2TZFE..TCR1#,2#

 2
17125 - STAY, SURGE TANK, NO.1
17125-76010

2TZFE..TCR1#,2#

 2
17141 - MANIFOLD, EXHAUST
17141-76040

2TZFE..TCR1#,2#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2TZFE..TCR1#,2#

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-76010

2TZFE..TCR1#,2#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-76010

2TZFE..TCR1#,2#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-76011

2TZFE..TCR1#,2#

 1
Common parts
90116-10163
90119-08A74
90179-08234
90179-10175
90341-10009
90341-10056
90404-52031
90430-09005
91512-C0825
91642-80812
91642-80814
91642-81020
92122-60825
Linked diagrams
2501
