TCR20R-RFSDKQ (1990)
Toyota Previa

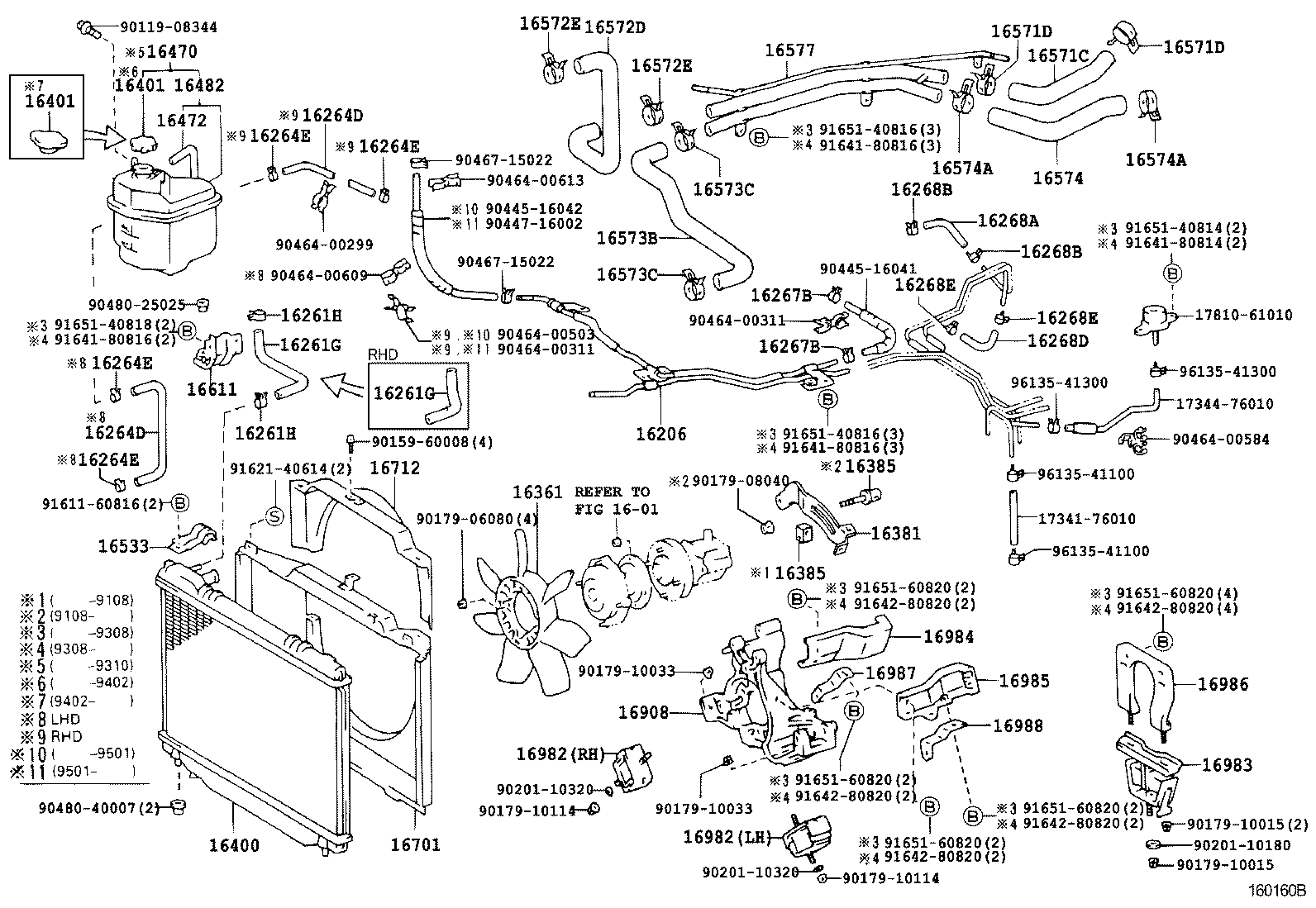

ILLUST NO. 1 OF 3(9005-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-76040 |
2TZFE..TCR1#,2#..RHD |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-76040 |
2TZFE..TCR1#,2#..RHD |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-76020 |
2TZFE..TCR1#,2#..RHD |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-76020 |
2TZFE..TCR1#,2#..RHD |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15016 |
2TZFE..TCR1#,2# |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 17342-76010 |
2TZFE..TCR1#,2# H=120 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41100 |
2TZFE..TCR1#,2# |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41100 |
2TZFE..TCR1#,2# |
2 | ||
| 16268D - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 17343-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16361 - FAN | ||||
| 16361-76050 |
2TZFE..TCR1#,2# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-76061 |
2TZFE..TCR1#,2#..ATM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-76020 |
2TZFE..TCR1#,2#..RHD |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-76011 |
2TZFE..TCR1#,2# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-76010 |
2TZFE..TCR1#,2# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-42001 |
2TZFE..TCR1#,2# PIPE SIDE |
1 | ||
| 90467-41001 |
2TZFE..TCR1#,2# ENGINE SIDE |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-42001 |
2TZFE..TCR1#,2# PIPE SIDE |
1 | ||
| 90467-41001 |
2TZFE..TCR1#,2# ENGINE SIDE |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-42001 |
2TZFE..TCR1#,2# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-42001 |
2TZFE..TCR1#,2# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-42001 |
2TZFE..TCR1#,2# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-42001 |
2TZFE..TCR1#,2# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-41001 |
2TZFE..TCR1#,2# ENGINE SIDE |
1 | ||
| 90467-42001 |
2TZFE..TCR1#,2# PIPE SIDE |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-41001 |
2TZFE..TCR1#,2# ENGINE SIDE |
1 | ||
| 90467-42001 |
2TZFE..TCR1#,2# PIPE SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-76050 |
2TZFE..TCR1#,2# |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-76081 |
2TZFE..TCR1#,2# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 16908 - HOUSING SUB-ASSY, EQUIPMENT DRIVE | ||||
| 16908-76012 |
2TZFE..TCR1#,2# |
1 | ||
| 16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16982-76011 |
2TZFE..TCR1#,2# RH |
1 | ||
| 16982-76020 |
2TZFE..TCR1#,2# LH |
1 | ||
| 16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16982-76011 |
2TZFE..TCR1#,2# RH |
1 | ||
| 16982-76020 |
2TZFE..TCR1#,2# LH |
1 | ||
| 16983 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2 | ||||
| 16983-76011 |
2TZFE..TCR1#,2# |
1 | ||
| 16984 - STAY, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16984-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16985 - STAY, EQUIPMENT DRIVE HOUSING, NO.2 | ||||
| 16985-76011 |
2TZFE..TCR1#,2# |
1 | ||
| 16986 - STAY, EQUIPMENT DRIVE HOUSING, NO.3 | ||||
| 16986-76011 |
2TZFE..TCR1#,2# |
1 | ||
| 16987 - STAY, EQUIPMENT DRIVE HOUSING, NO.4 | ||||
| 16987-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16988 - STAY, EQUIPMENT DRIVE HOUSING, NO.5 | ||||
| 16988-76010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 17341-76010 | ||||
| 17344-76010 | ||||
| 17810-61010 | ||||
| 90119-08344 | ||||
| 90159-60008 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90179-10015 | ||||
| 90179-10033 | ||||
| 90179-10114 | ||||
| 90201-10180 | ||||
| 90201-10320 | ||||
| 90445-16041 | ||||
| 90445-16042 | ||||
| 90447-16002 | ||||
| 90464-00299 | ||||
| 90464-00311 | ||||
| 90464-00503 | ||||
| 90464-00584 | ||||
| 90464-00609 | ||||
| 90464-00613 | ||||
| 90467-15022 | ||||
| 90480-25025 | ||||
| 90480-40007 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91641-80814 | ||||
| 91641-80816 | ||||
| 91642-80820 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
| 91651-60820 | ||||
| 96135-41100 | ||||
| 96135-41300 | ||||
| Linked diagrams | ||||
| 1601 | ||||

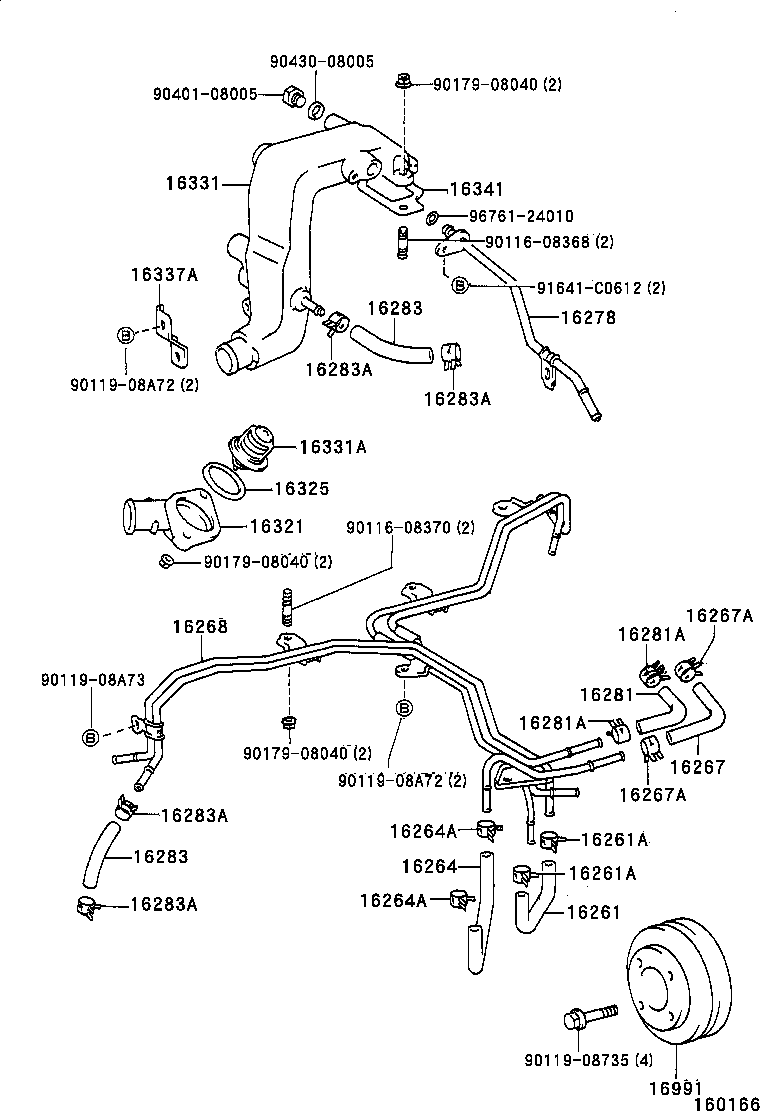

ILLUST NO. 2 OF 3(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-76010 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-76010 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
2TZFE..TCR1#,2#..ARL,W |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
2TZFE..TCR1#,2#..ARL,W |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 99555-10100 |
2TZFE..TCR1#,2# L=100 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 99555-10100 |
2TZFE..TCR1#,2# L=100 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
4 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
4 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
4 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96135-41300 |
2TZFE..TCR1#,2# |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2TZFE..TCR1#,2# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76040 |
2TZFE..TCR1#,2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03088 |
2TZFE..TCR1#,2# *WAX 82-95 |
1 | ||
| 16337A - STAY, WATER OUTLET | ||||
| 16337-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 16991 - PULLEY, EQUIPMENT DRIVE | ||||
| 16991-76020 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90116-08368 | ||||
| 90116-08370 | ||||
| 90119-08735 | ||||
| 90119-08A72 | ||||
| 90119-08A73 | ||||
| 90179-08040 | ||||
| 90401-08005 | ||||
| 90430-08005 | ||||
| 91641-C0612 | ||||
| 96761-24010 | ||||

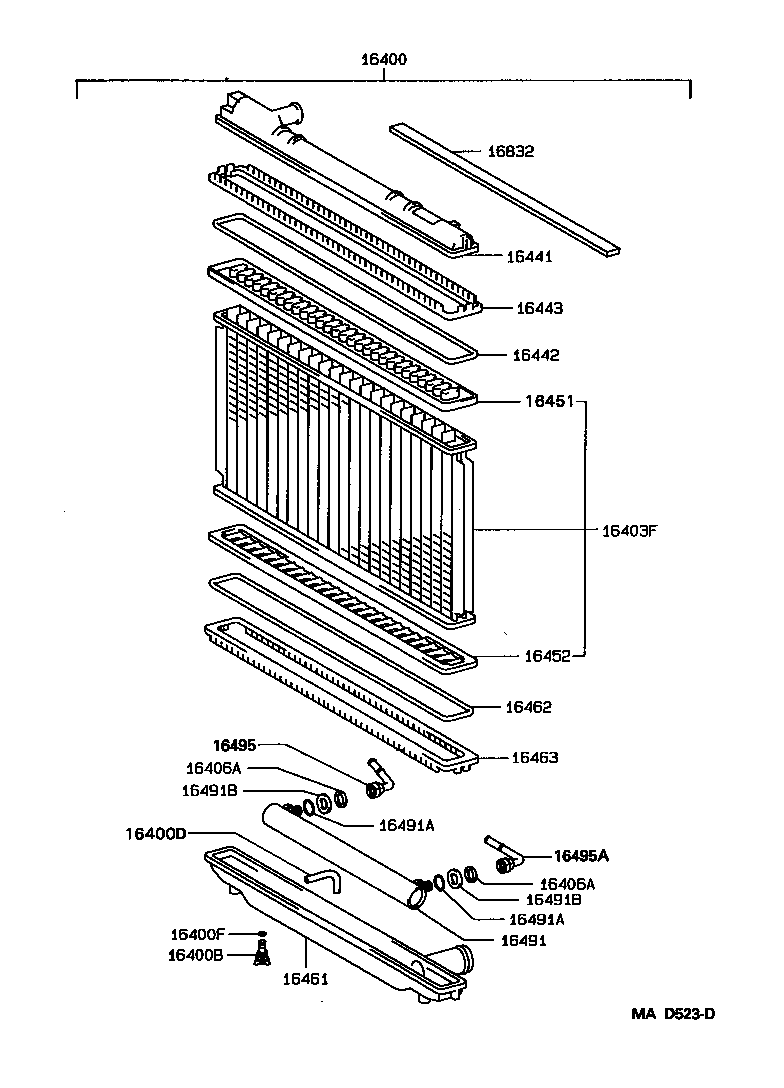

ILLUST NO. 3 OF 3(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-76061 |
2TZFE..TCR1#,2#..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09067 |
2TZFE..TCR1#,2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06030 |
2TZFE..TCR1#,2# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-43170 |
2TZFE..TCR1#,2#..ATM..(DX,GL) |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-76060 |
2TZFE..TCR1#,2#..W;2TZFE..TCR1#,2#..ATM..(ARL,GEN) |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
2TZFE..TCR1#,2#..W;2TZFE..TCR1#,2#..ATM..(ARL,GEN) |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
2TZFE..TCR1#,2#..W;2TZFE..TCR1#,2#..ATM..(ARL,GEN) |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
2TZFE..TCR1#,2#..W;2TZFE..TCR1#,2#..ATM..(ARL,GEN) |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
2TZFE..TCR1#,2#..W;2TZFE..TCR1#,2#..ATM..(ARL,GEN) |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-76060 |
2TZFE..TCR1#,2#..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
2TZFE..TCR1#,2# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
2TZFE..TCR1#,2# |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-76060 |
2TZFE..TCR1#,2#..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16495-54790 |
2TZFE..TCR1#,2#..ATM |
2 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-76010 |
2TZFE..TCR1#,2# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
