TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

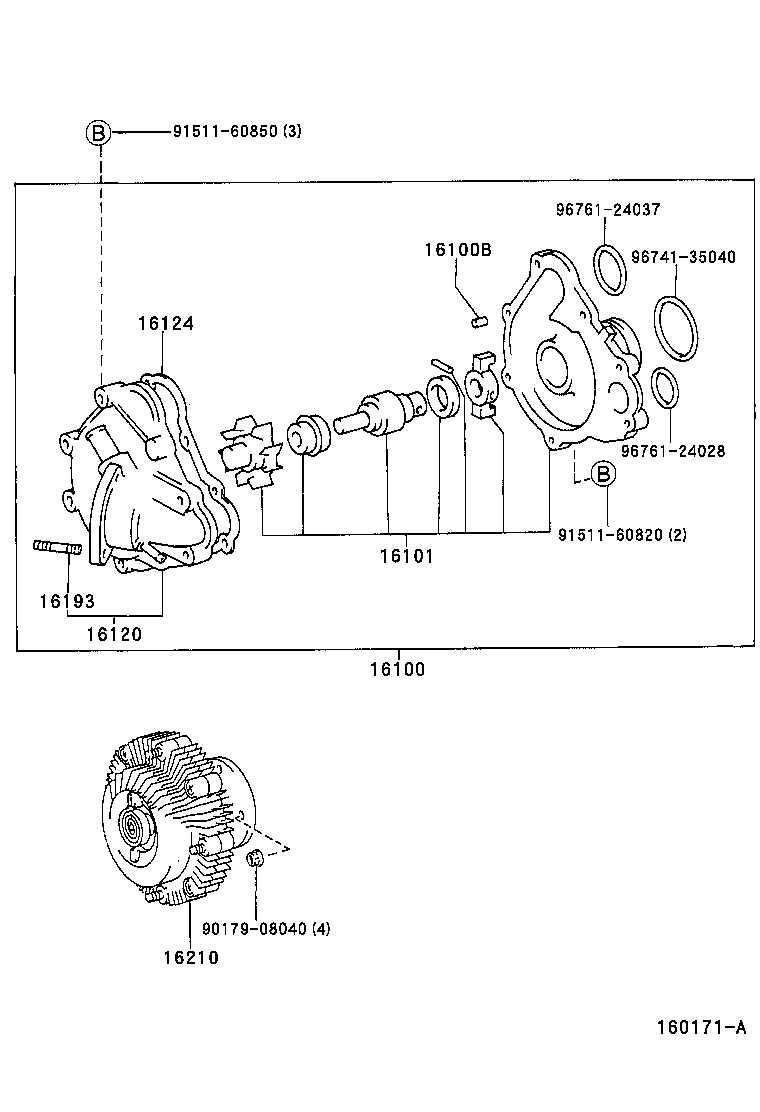

Click highlighted areas on diagram

diagram 16100 16100B 16101 16120 16124 16193 16210 9017908040 9151160820 9151160850 9674135040 9676124028 9676124037
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79165

2TZFE..TCR1#,2#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16159-71010

2TZFE..TCR1#,2#

 2
16101 - BODY SUB-ASSY, WATER PUMP
16101-76030

2TZFE..TCR1#,2#

 1
16120 - COVER ASSY, WATER PUMP
16120-76030

2TZFE..TCR1#,2#

 1
16124 - GASKET, WATER PUMP COVER
16124-76030

2TZFE..TCR1#,2#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-76010

2TZFE..TCR1#,2#

 2
16210 - COUPLING ASSY, FLUID
16210-76010

2TZFE..TCR1#,2#

 1
Common parts
90179-08040
91511-60820
91511-60850
96741-35040
96761-24028
96761-24037
