TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608)

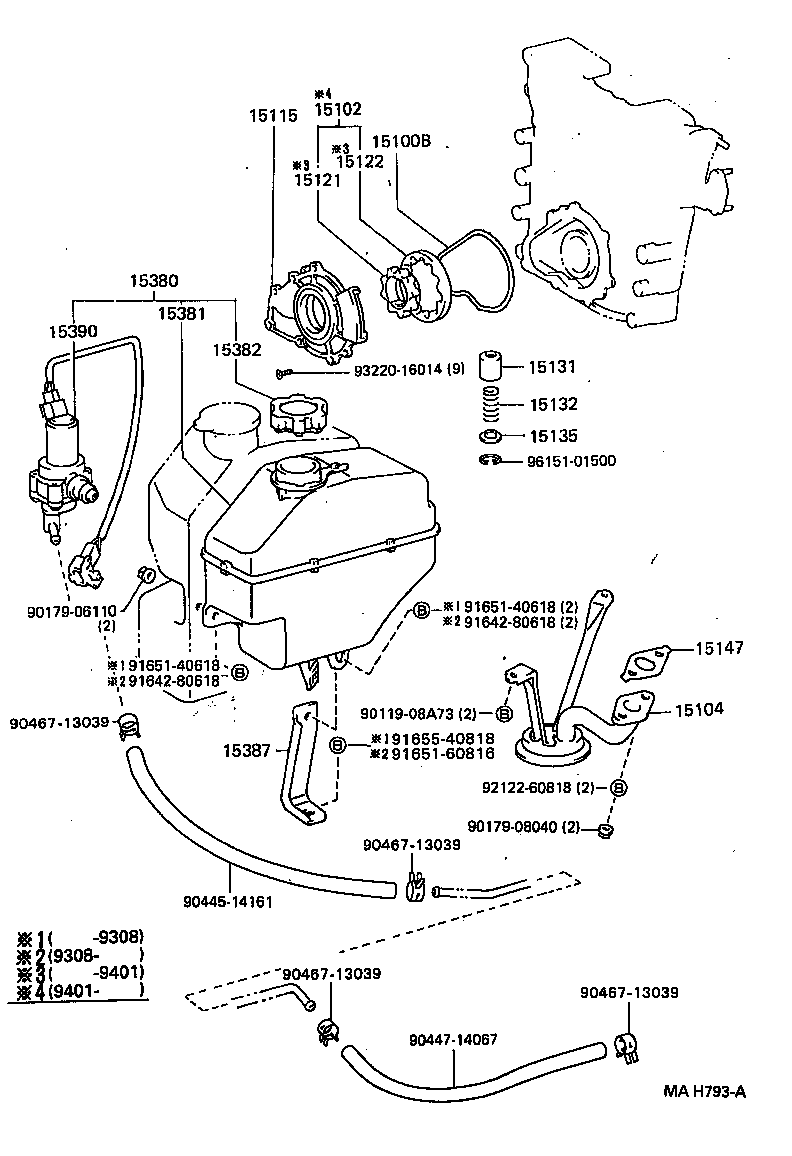

Click highlighted areas on diagram

diagram 15100B 15102 15104 15115 15121 15122 15131 15132 15135 15147 15380 15381 15382 15387 15390 9011908A73 9017906110 9017908040 9044514161 9044714067 9046713039 9046713039 9046713039 9046713039 9164280618 9164280618 9165140618 9165140618 9165160816 9165540818 9212260818 9322016014 9615101500
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
15188-76040

2TZFE..TCR1#,2#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-76040

2TZFE..TCR1#,2#

 1
15115 - COVER, OIL PUMP
15115-76040

2TZFE..TCR1#,2#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-75010

2TZFE..TCR1#,2#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-62010

2TZFE..TCR1#,2#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2TZFE..TCR1#,2#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-75010

2TZFE..TCR1#,2#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2TZFE..TCR1#,2#

 1
15147 - GASKET, OIL STRAINER
15147-76020

2TZFE..TCR1#,2#

 1
15380 - TANK & MOTOR ASSY, OIL
15380-76010

2TZFE..TCR1#,2#

 1
15381 - TANK, OIL
15381-76010

2TZFE..TCR1#,2#

 1
15382 - CAP, OIL TANK
15382-76010

2TZFE..TCR1#,2#

 1
15387 - BRACKET, OIL TANK
15387-76010

2TZFE..TCR1#,2#

 1
15390 - MOTOR & PUMP ASSY, OIL TANK
15390-76010

2TZFE..TCR1#,2#

 1
Common parts
90119-08A73
90179-06110
90179-08040
90445-14161
90447-14067
90467-13039
91642-80618
91651-40618
91651-60816
91655-40818
92122-60818
93220-16014
96151-01500
