TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

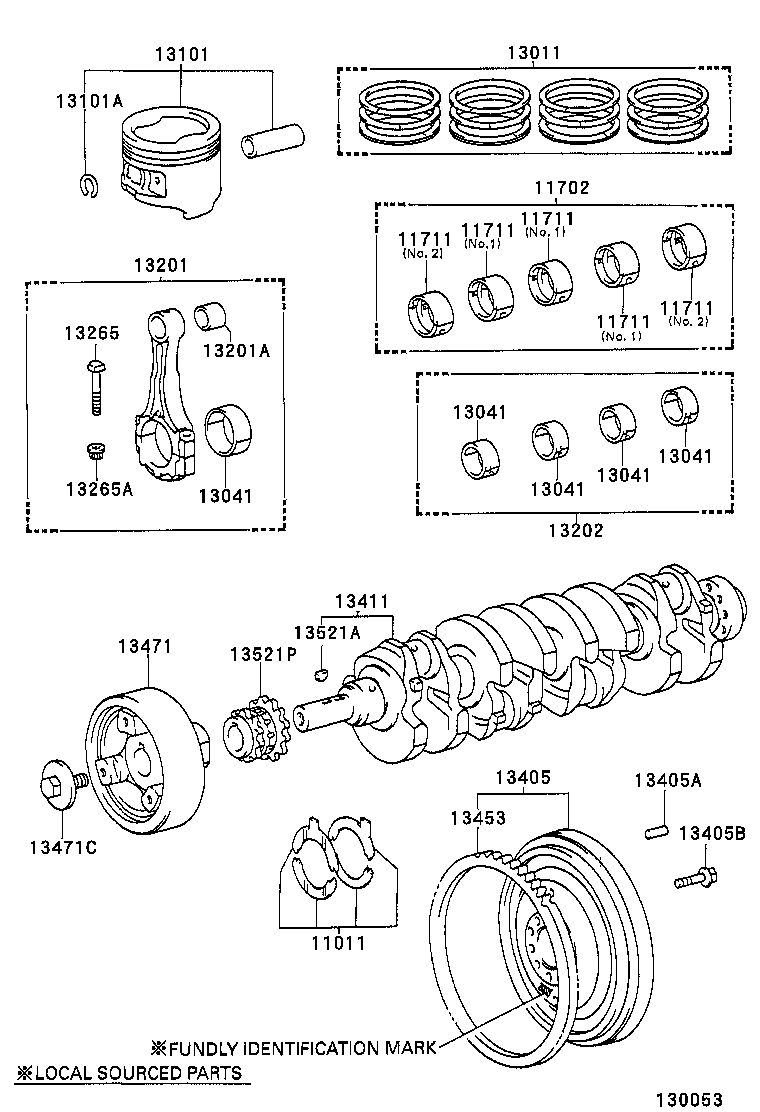

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13521A 13521P
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75010

2TZFE..TCR1#,2#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-75010

2TZFE..TCR1#,2#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11071-7501002

2TZFE..TCR1#,2#

MARK 2,NO.1

 3
11701-7501002

2TZFE..TCR1#,2#

MARK 2,NO.2

 2
11701-7501003

2TZFE..TCR1#,2#

MARK 3,NO.2

 2
11071-7501003

2TZFE..TCR1#,2#

MARK 3,NO.1

 3
11071-7501001

2TZFE..TCR1#,2#

MARK 1,NO.1

 3
11701-7501001

2TZFE..TCR1#,2#

MARK 1,NO.2

 2
11711 - BEARING, CRANKSHAFT
11071-7501002

2TZFE..TCR1#,2#

MARK 2,NO.1

 3
11701-7501002

2TZFE..TCR1#,2#

MARK 2,NO.2

 2
11701-7501003

2TZFE..TCR1#,2#

MARK 3,NO.2

 2
11071-7501003

2TZFE..TCR1#,2#

MARK 3,NO.1

 3
11071-7501001

2TZFE..TCR1#,2#

MARK 1,NO.1

 3
11701-7501001

2TZFE..TCR1#,2#

MARK 1,NO.2

 2
11711 - BEARING, CRANKSHAFT
11071-7501002

2TZFE..TCR1#,2#

MARK 2,NO.1

 3
11701-7501002

2TZFE..TCR1#,2#

MARK 2,NO.2

 2
11701-7501003

2TZFE..TCR1#,2#

MARK 3,NO.2

 2
11071-7501003

2TZFE..TCR1#,2#

MARK 3,NO.1

 3
11071-7501001

2TZFE..TCR1#,2#

MARK 1,NO.1

 3
11701-7501001

2TZFE..TCR1#,2#

MARK 1,NO.2

 2
11711 - BEARING, CRANKSHAFT
11071-7501002

2TZFE..TCR1#,2#

MARK 2,NO.1

 3
11701-7501002

2TZFE..TCR1#,2#

MARK 2,NO.2

 2
11701-7501003

2TZFE..TCR1#,2#

MARK 3,NO.2

 2
11071-7501003

2TZFE..TCR1#,2#

MARK 3,NO.1

 3
11071-7501001

2TZFE..TCR1#,2#

MARK 1,NO.1

 3
11701-7501001

2TZFE..TCR1#,2#

MARK 1,NO.2

 2
11711 - BEARING, CRANKSHAFT
11071-7501002

2TZFE..TCR1#,2#

MARK 2,NO.1

 3
11701-7501002

2TZFE..TCR1#,2#

MARK 2,NO.2

 2
11701-7501003

2TZFE..TCR1#,2#

MARK 3,NO.2

 2
11071-7501003

2TZFE..TCR1#,2#

MARK 3,NO.1

 3
11071-7501001

2TZFE..TCR1#,2#

MARK 1,NO.1

 3
11701-7501001

2TZFE..TCR1#,2#

MARK 1,NO.2

 2
13011 - RING SET, PISTON
13011-76050

2TZFE..TCR1#,2#..ARL,W

STD

 1
13013-76050

2TZFE..TCR1#,2#..ARL,W

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-7501001

2TZFE..TCR1#,2#

MARK 1

 4
13041-7501003

2TZFE..TCR1#,2#

MARK 3

 4
13041-7501002

2TZFE..TCR1#,2#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7501001

2TZFE..TCR1#,2#

MARK 1

 4
13041-7501003

2TZFE..TCR1#,2#

MARK 3

 4
13041-7501002

2TZFE..TCR1#,2#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7501001

2TZFE..TCR1#,2#

MARK 1

 4
13041-7501003

2TZFE..TCR1#,2#

MARK 3

 4
13041-7501002

2TZFE..TCR1#,2#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7501001

2TZFE..TCR1#,2#

MARK 1

 4
13041-7501003

2TZFE..TCR1#,2#

MARK 3

 4
13041-7501002

2TZFE..TCR1#,2#

MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-7501001

2TZFE..TCR1#,2#

MARK 1

 4
13041-7501003

2TZFE..TCR1#,2#

MARK 3

 4
13041-7501002

2TZFE..TCR1#,2#

MARK 2

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-76040

2TZFE..TCR1#,2#

O/S 0.50

 4
13101-76040

2TZFE..TCR1#,2#

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-28003

2TZFE..TCR1#,2#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-79165

2TZFE..TCR1#,2#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73129

2TZFE..TCR1#,2#

 4
13202 - BEARING SET, CONNECTING ROD
13204-75010

2TZFE..TCR1#,2#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-75010

2TZFE..TCR1#,2#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-09007

2TZFE..TCR1#,2#

 8
13411 - CRANKSHAFT
13411-75900

2TZFE..TCR1#,2#

 1
13471 - PULLEY, CRANKSHAFT
13408-76012

2TZFE..TCR1#,2#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16041

2TZFE..TCR1#,2#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20519

2TZFE..TCR1#,2#

 2
13521P - PULLEY, CRANKSHAFT TIMING
13521-76020

2TZFE..TCR1#,2#

 1
