TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9312)

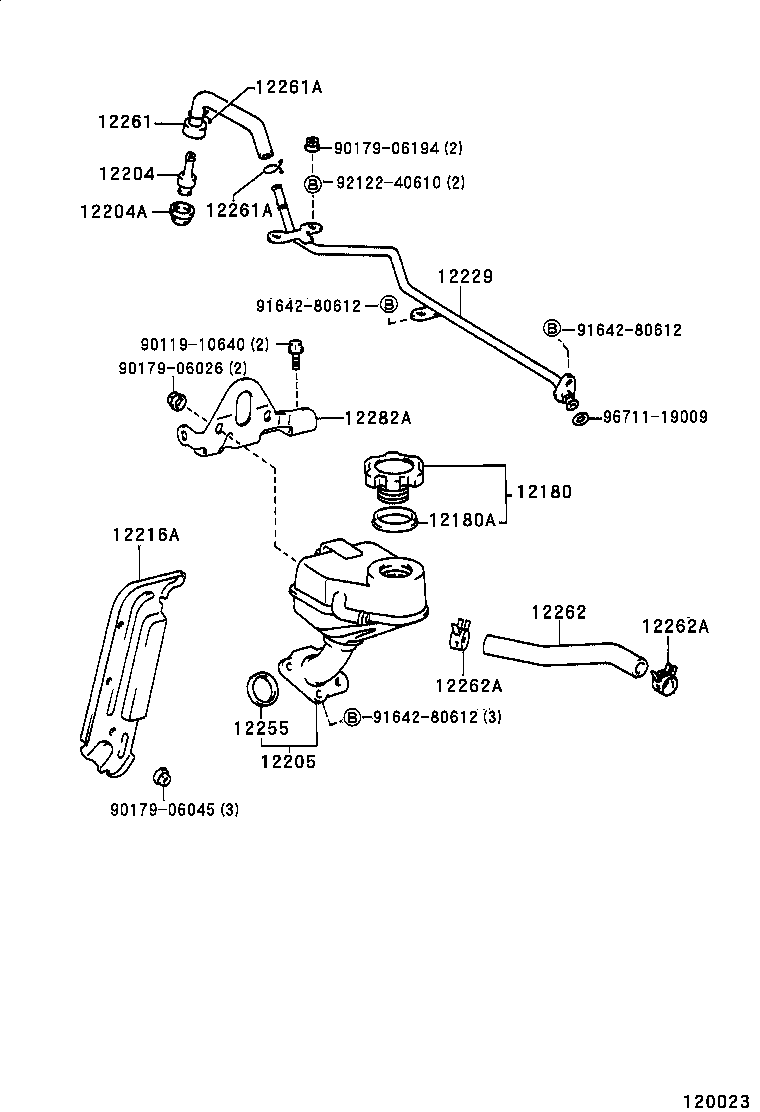

Click highlighted areas on diagram

diagram 12180 12180A 12204 12204A 12205 12216A 12229 12255 12261 12261A 12261A 12262 12262A 12262A 12282A 9011910640 9017906026 9017906045 9017906194 9164280612 9164280612 9164280612 9212240610 9671119009
Part # Description Qty Price
12180 - CAP ASSY, OIL FILLER
12180-75010

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-70010

2TZFE..TCR1#,2#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2TZFE..TCR1#,2#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2TZFE..TCR1#,2#

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-76010

2TZFE..TCR1#,2#

 1
12216A - PLATE, OIL BAFFLE
12216-76010

2TZFE..TCR1#,2#

 1
12229 - PIPE, VENTILATION
12229-76010

2TZFE..TCR1#,2#

 1
12255 - GASKET, VENTILATION
12255-76010

2TZFE..TCR1#,2#

 1
12261 - HOSE, VENTILATION
12261-76010

2TZFE..TCR1#,2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12262 - HOSE, VENTILATION, NO.2
12262-76010

2TZFE..TCR1#,2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
12282A - HANGER, ENGINE, NO.2
12282-76020

2TZFE..TCR1#,2#

 1
Common parts
90119-10640
90179-06026
90179-06045
90179-06194
91642-80612
92122-40610
96711-19009
