TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

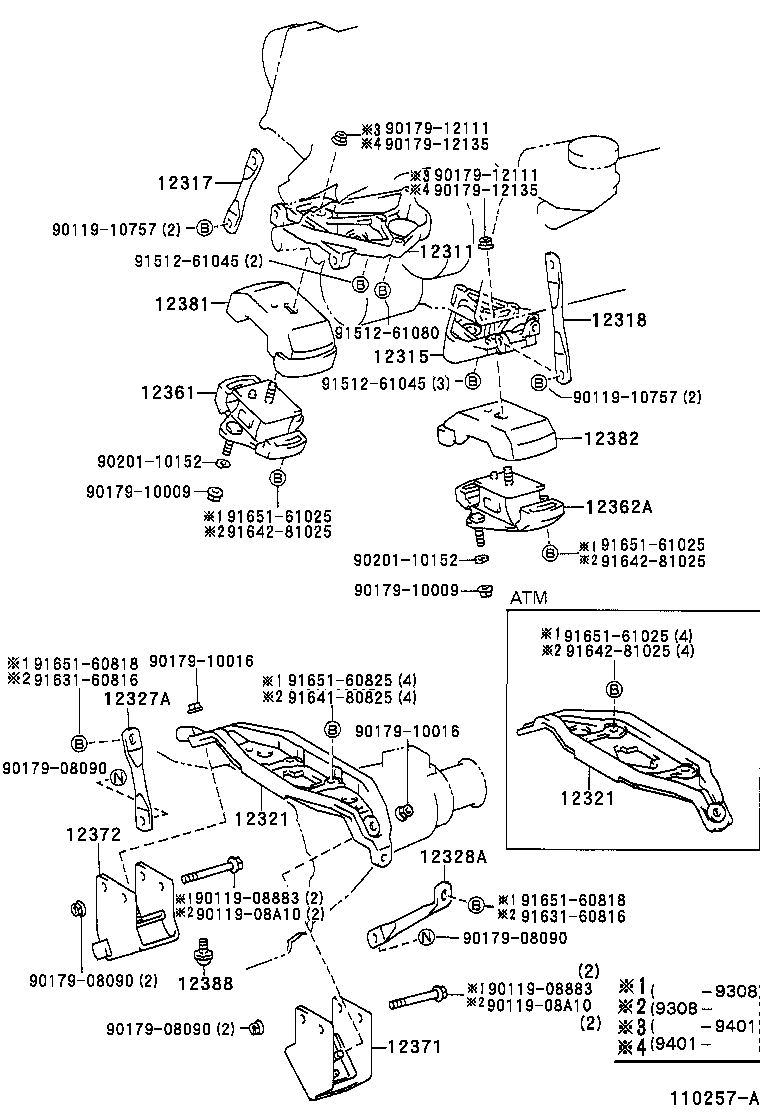

Click highlighted areas on diagram

diagram 12311 12315 12317 12318 12321 12321 12327A 12328A 12361 12362A 12371 12372 12381 12382 12388 9011908883 9011908883 9011908A10 9011908A10 9011910757 9011910757 9017908090 9017908090 9017908090 9017908090 9017910009 9017910009 9017910016 9017910016 9017912111 9017912111 9017912135 9017912135 9020110152 9020110152 9151261045 9151261045 9151261080 9163160816 9163160816 9164180825 9164281025 9164281025 9164281025 9165160818 9165160818 9165160825 9165161025 9165161025 9165161025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-76040

2TZFE..TCR1#,2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-76040

2TZFE..TCR1#,2#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-76010

2TZFE..TCR1#,2#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-76010

2TZFE..TCR1#,2#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-76040

2TZFE..TCR1#,2#..ATM

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-76040

2TZFE..TCR1#,2#..ATM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-76040

2TZFE..TCR1#,2#

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-76010

2TZFE..TCR1#,2#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-76040

2TZFE..TCR1#,2#

 1
12372 - INSULATOR, ENGINE MOUNTING, REAR NO.2
12372-76010

2TZFE..TCR1#,2#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-76020

2TZFE..TCR1#,2#

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-76010

2TZFE..TCR1#,2#

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-76010

2TZFE..TCR1#,2#

 2
Common parts
90119-08883
90119-08A10
90119-10757
90179-08090
90179-10009
90179-10016
90179-12111
90179-12135
90201-10152
91512-61045
91512-61080
91631-60816
91641-80825
91642-81025
91651-60818
91651-60825
91651-61025
