TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

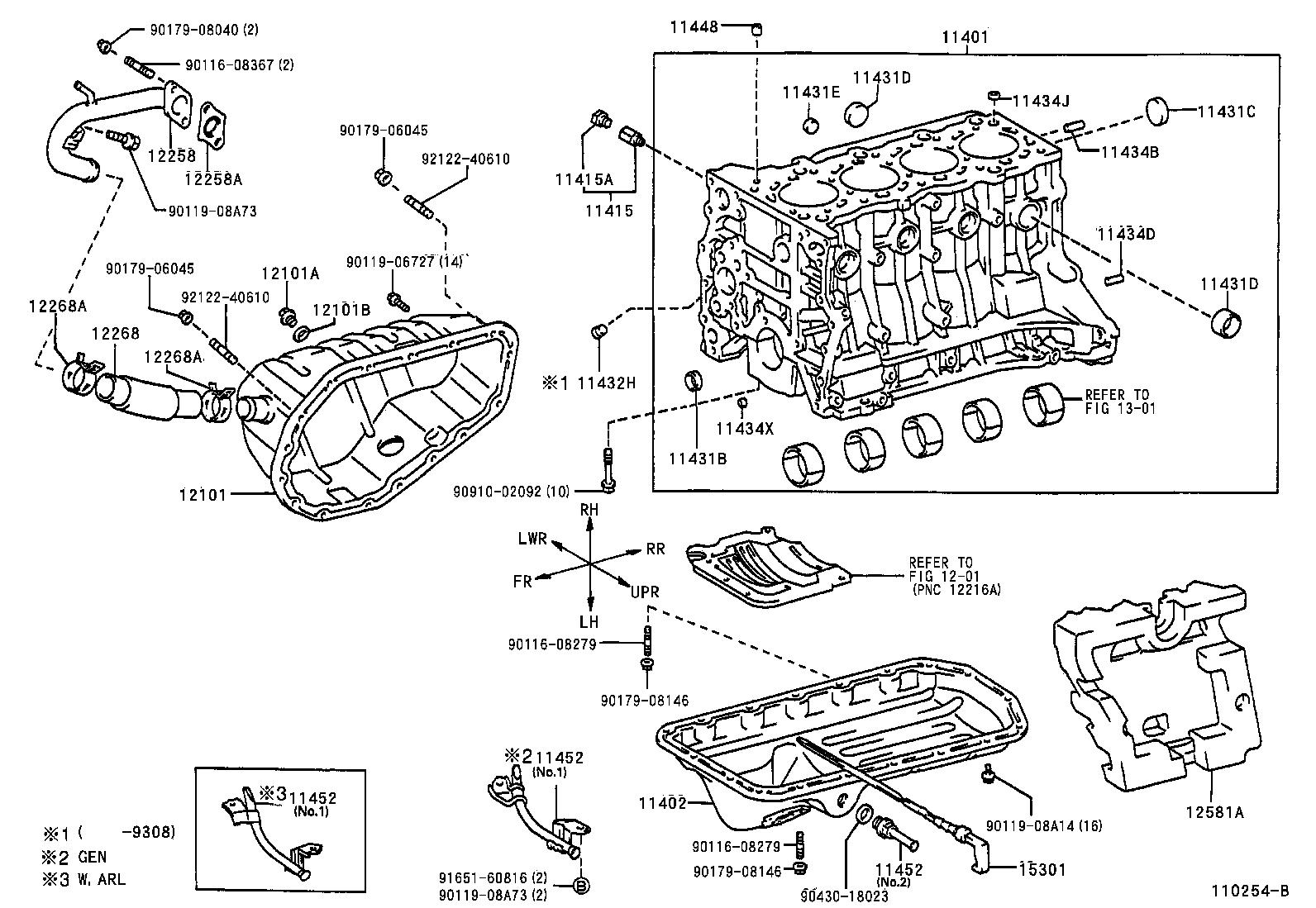

Click highlighted areas on diagram

diagram 11401 11401 11402 11415 11415A 11431B 11431C 11431D 11431D 11431D 11431E 11431E 11432H 11434B 11434D 11434J 11434X 11448 11448 11452 11452 11452 1201 12101 12101 12101A 12101A 12101B 12101B 12258 12258 12258A 12258A 12268 12268 12268A 12268A 12268A 12268A 12581A 1301 15301 9011608279 9011608279 9011608367 9011608367 9011906727 9011906727 9011908A14 9011908A73 9011908A73 9011908A73 9017906045 9017906045 9017906045 9017906045 9017908040 9017908040 9017908146 9017908146 9043018023 9091002092 9165160816 9212240610 9212240610 9212240610 9212240610
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79506

2TZFE..TCR1#,2#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79506

2TZFE..TCR1#,2#

 1
11402 - CRANKCASE SUB-ASSY
11402-76010

2TZFE..TCR1#,2#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09091

2TZFE..TCR1#,2#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2TZFE..TCR1#,2#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2TZFE..TCR1#,2#

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-44000

2TZFE..TCR1#,2#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

2TZFE..TCR1#,2#

 8
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

2TZFE..TCR1#,2#

 8
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

2TZFE..TCR1#,2#

 8
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-01800

2TZFE..TCR1#,2#

 1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-01800

2TZFE..TCR1#,2#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53005

2TZFE..TCR1#,2#

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2TZFE..TCR1#,2#

L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

2TZFE..TCR1#,2#

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

2TZFE..TCR1#,2#

 2
11434X - PIN, RING(FOR CHAIN CACE)
90253-11021

2TZFE..TCR1#,2#

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
90977-02011

2TZFE..TCR1#,2#

 1
11448 - ORIFICE, CYLINDER BLOCK OIL
90977-02011

2TZFE..TCR1#,2#

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-76010

2TZFE..TCR1#,2#

NO.1

 1
11452-76020

2TZFE..TCR1#,2#

NO.2

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-76010

2TZFE..TCR1#,2#

NO.1

 1
11452-76020

2TZFE..TCR1#,2#

NO.2

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-76010

2TZFE..TCR1#,2#

NO.1

 1
11452-76020

2TZFE..TCR1#,2#

NO.2

 1
12101 - PAN SUB-ASSY, OIL
12101-76050

2TZFE..TCR1#,2#

 1
12101 - PAN SUB-ASSY, OIL
12101-76050

2TZFE..TCR1#,2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2TZFE..TCR1#,2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2TZFE..TCR1#,2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

2TZFE..TCR1#,2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

2TZFE..TCR1#,2#

 1
12258 - PIPE, OIL RETURN
12258-76020

2TZFE..TCR1#,2#

 1
12258 - PIPE, OIL RETURN
12258-76020

2TZFE..TCR1#,2#

 1
12258A - GASKET, OIL RETURN PIPE
12269-76010

2TZFE..TCR1#,2#

 1
12258A - GASKET, OIL RETURN PIPE
12269-76010

2TZFE..TCR1#,2#

 1
12268 - HOSE, OIL RETURN
12268-76010

2TZFE..TCR1#,2#

 1
12268 - HOSE, OIL RETURN
12268-76010

2TZFE..TCR1#,2#

 1
12268A - CLIP(FOR OIL RETURN HOSE)
90467-34003

2TZFE..TCR1#,2#

 2
12268A - CLIP(FOR OIL RETURN HOSE)
90467-34003

2TZFE..TCR1#,2#

 2
12268A - CLIP(FOR OIL RETURN HOSE)
90467-34003

2TZFE..TCR1#,2#

 2
12268A - CLIP(FOR OIL RETURN HOSE)
90467-34003

2TZFE..TCR1#,2#

 2
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-76010

2TZFE..TCR1#,2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-76030

2TZFE..TCR1#,2#

 1
Common parts
90116-08279
90116-08367
90119-06727
90119-08A14
90119-08A73
90179-06045
90179-08040
90179-08146
90430-18023
90910-02092
91651-60816
92122-40610
Linked diagrams
1201
1301
