TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

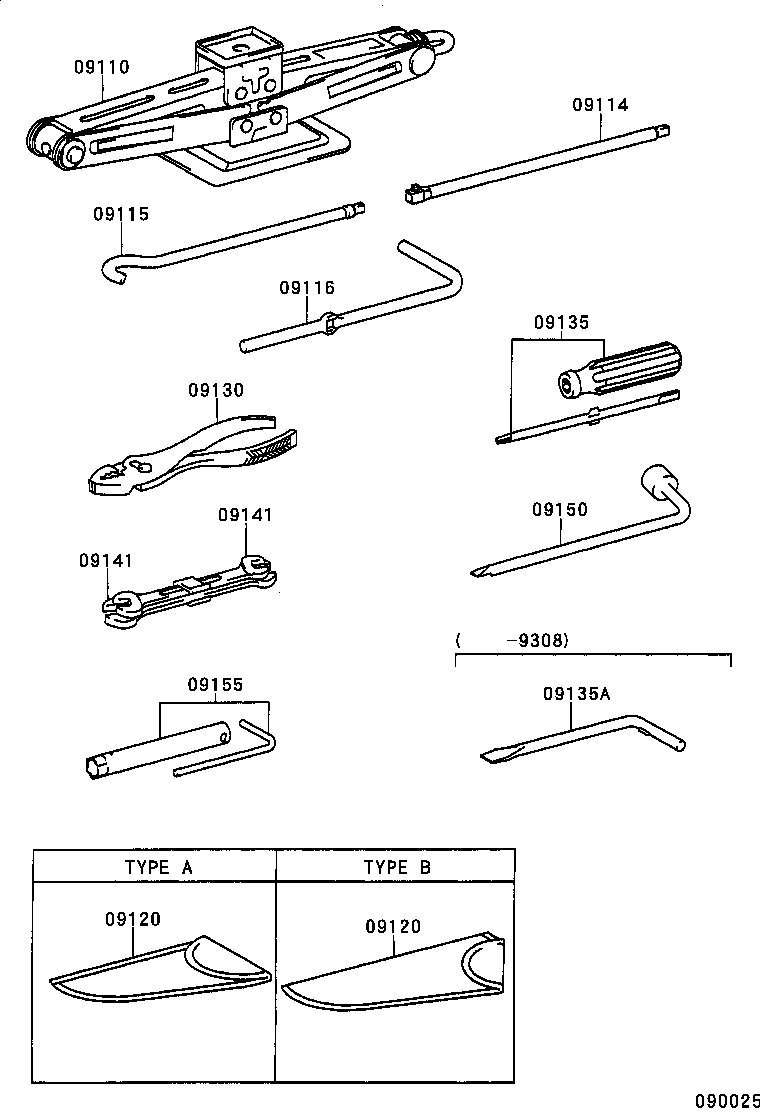

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09120 09130 09135 09135A 09141 09141 09150 09155
Part # Description Qty Price
09110 - JACK ASSY
09110-28060

TCR1#,2#..ARL

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

TCR1#,2#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-28030

TCR1#,2#

 1
09116 - LEVER, JACK HANDLE
09116-35041

TCR1#,2#

 1
09120 - BAG, TOOL
09120-28020

TCR1#,2#

TYPE A:REFER TO ILLUSTRATION

 1
09120 - BAG, TOOL
09120-28020

TCR1#,2#

TYPE A:REFER TO ILLUSTRATION

 1
09130 - PLIERS
99913-11500

TCR1#,2#

 1
09135 - DRIVER, SCREW
99915-10700

TCR1#,2#

 1
09141 - SPANNER
99914-11214

TCR1#,2#

12 X 14

 1
99914-10810

TCR1#,2#

8 X 10

 1
09141 - SPANNER
99914-11214

TCR1#,2#

12 X 14

 1
99914-10810

TCR1#,2#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

TCR1#,2#

 1
09155 - WRENCH, SPARK PLUG
09155-74010

TCR1#,2#

 1
