TCR20L-RFMDKW (1990)

Toyota Previa

Production May 1990 - Dec 1999
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )LHD

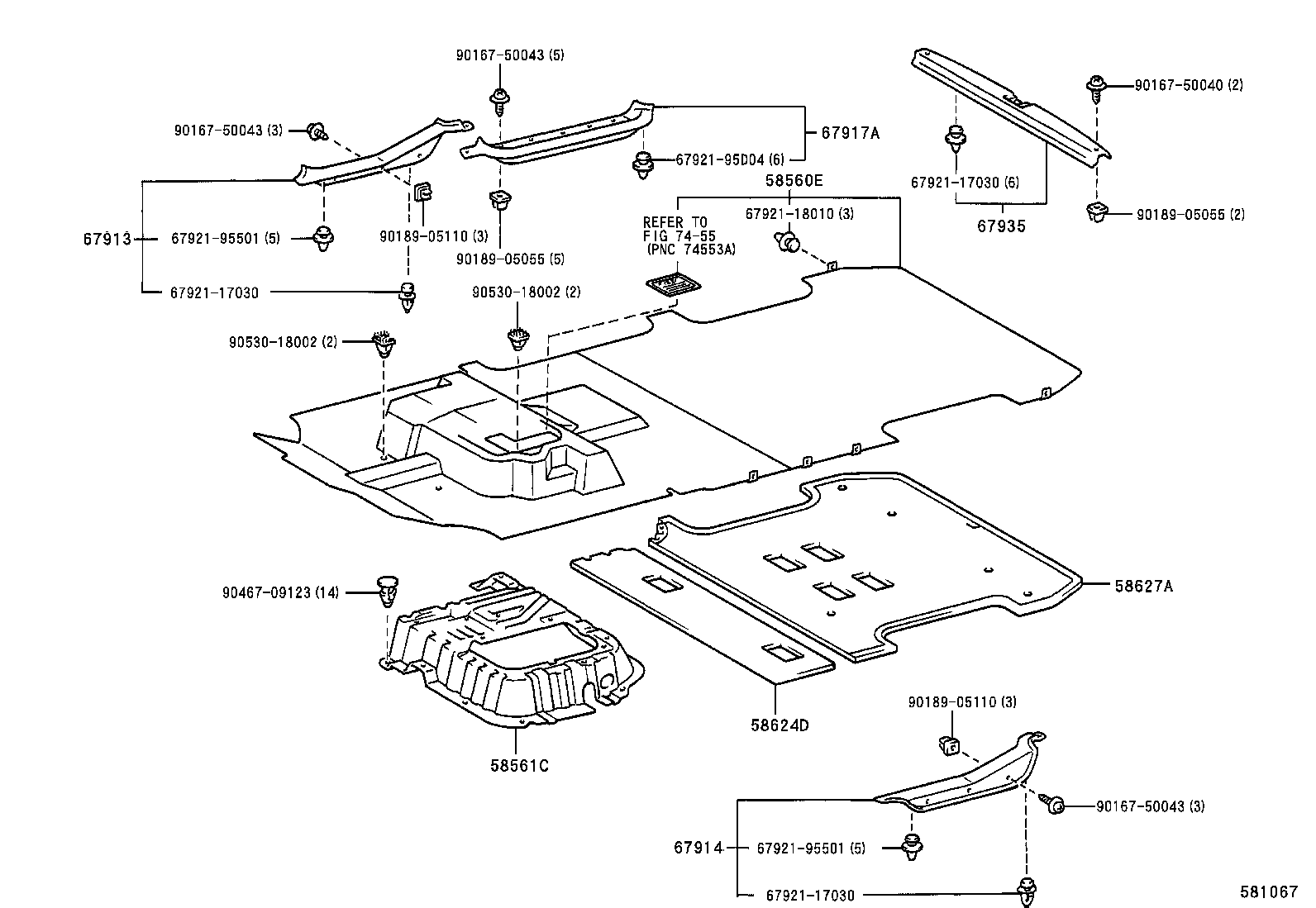

Click highlighted areas on diagram

diagram 58560E 58561C 58624D 58627A 67913 67914 67917A 6792117030 6792117030 6792117030 6792118010 6792195501 6792195501 6792195D04 67935 7455 9016750040 9016750043 9016750043 9016750043 9018905055 9018905055 9018905110 9018905110 9046709123 9053018002 9053018002
Part # Description Qty Price
58560E - CARPET ASSY, SEAT FLOOR
58560-95D3503

TCR20..W

LIGHT GRAY,TRIM1#

 1
58560-95D3403

TCR10,20..W

SWITZERLAND SPEC,LIGHT GRAY,TRIM1#

 1
58560-28650B0

TCR10,20..W

W(FRONT CONSOLE BOX),LIGHT GRAY,TRIM1#

 1
58560-28650B1

TCR10,20..W

LIGHT GRAY,TRIM1#

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-95D01

TCR1#,2#..MTM

 1
58624D - PAD, CENTER FLOOR SILENCER
58624-95D00

TCR2#

 1
58624-95D01

TCR20..W

SWITZERLAND SPEC

 1
58624-95D01

TCR21..W;TCR1#,20..ARL,W

 1
58624-95D01

TCR11..MTM;TCR11..ARL;TCR10,2#..ARL,W;TCR11..LHD..ATM

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-95D00

TCR1#,2#..LHD

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-95D0003

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67913-95D00B0

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95D0003

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67914-95D00B0

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-95D0103

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67917-95D0003

TCR2#..W

LIGHT GRAY,TRIM1#

 1
67917-95D01B0

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67917-95D0103

TCR1#,2#..LHD

GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
67935-95D00B0

TCR1#,2#

GRAY,TRIM1#

 1
Common parts
67921-17030
67921-18010
67921-95501
67921-95D04
90167-50040
90167-50043
90189-05055
90189-05110
90467-09123
90530-18002
Linked diagrams
7455
