TCR11R-RRMGKQ (1990)

Toyota Previa

Production May 1990 - Aug 1993
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR1#

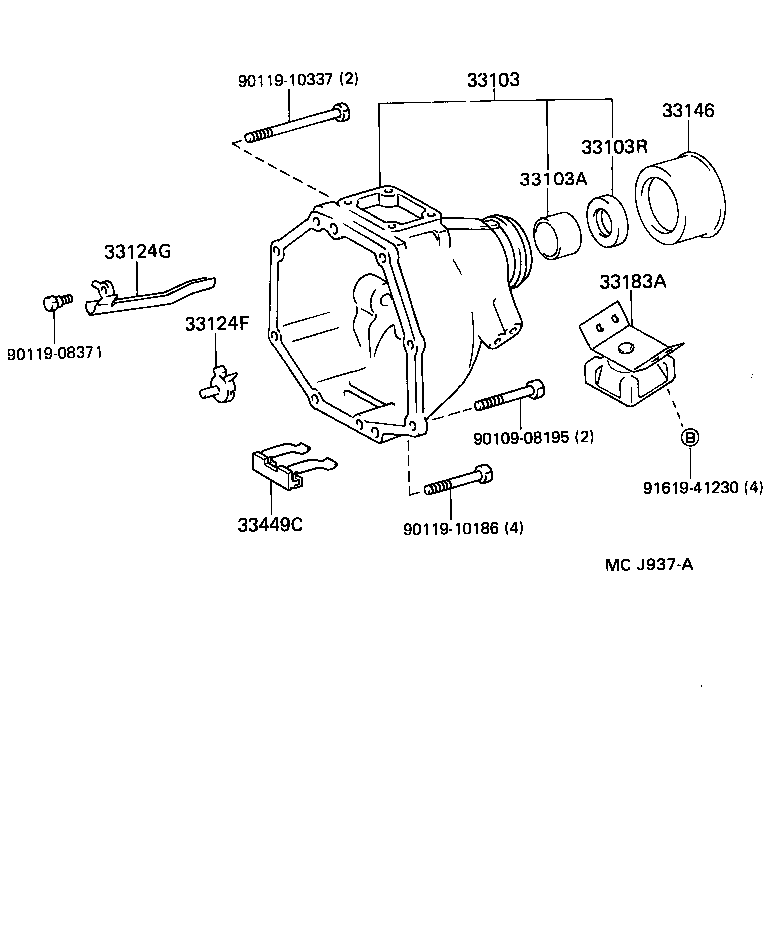

Click highlighted areas on diagram

G59

diagram 33103 33103A 33103R 33124F 33124G 33146 33183A 33449C 9010908195 9011908371 9011910186 9011910337 9161941230
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-28050

TCR1#..MTM

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73120

TCR1#..MTM

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

TCR1#..MTM

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-36010

TCR1#..MTM

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-28011

TCR1#..MTM

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

TCR1#..MTM

 1
33183A - DAMPER, EXTENSION HOUSING DYNAMIC(MTM)
33183-28020

TCR1#..MTM

 1
33449C - MAGNET, TRANSMISSION (MTM)
33449-26010

TCR1#,2#..MTM

 1
Common parts
90109-08195
90119-08371
90119-10186
90119-10337
91619-41230
