TCR10R-RRSDKQ (1990)
Toyota Previa

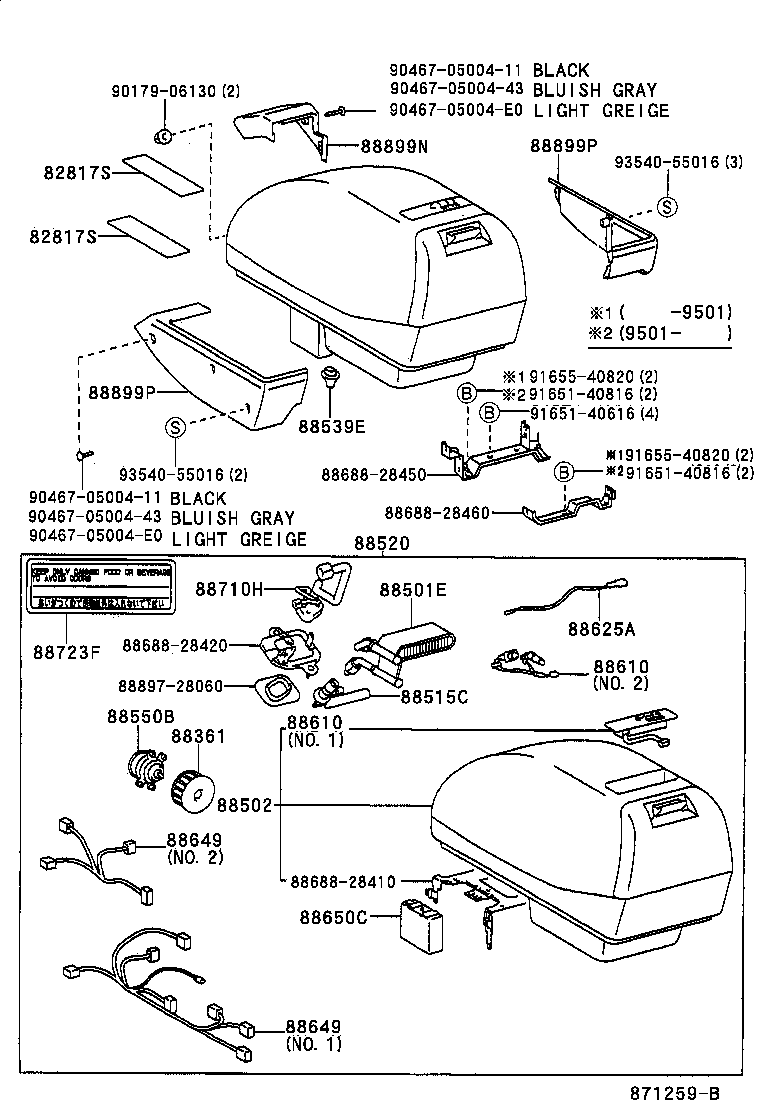

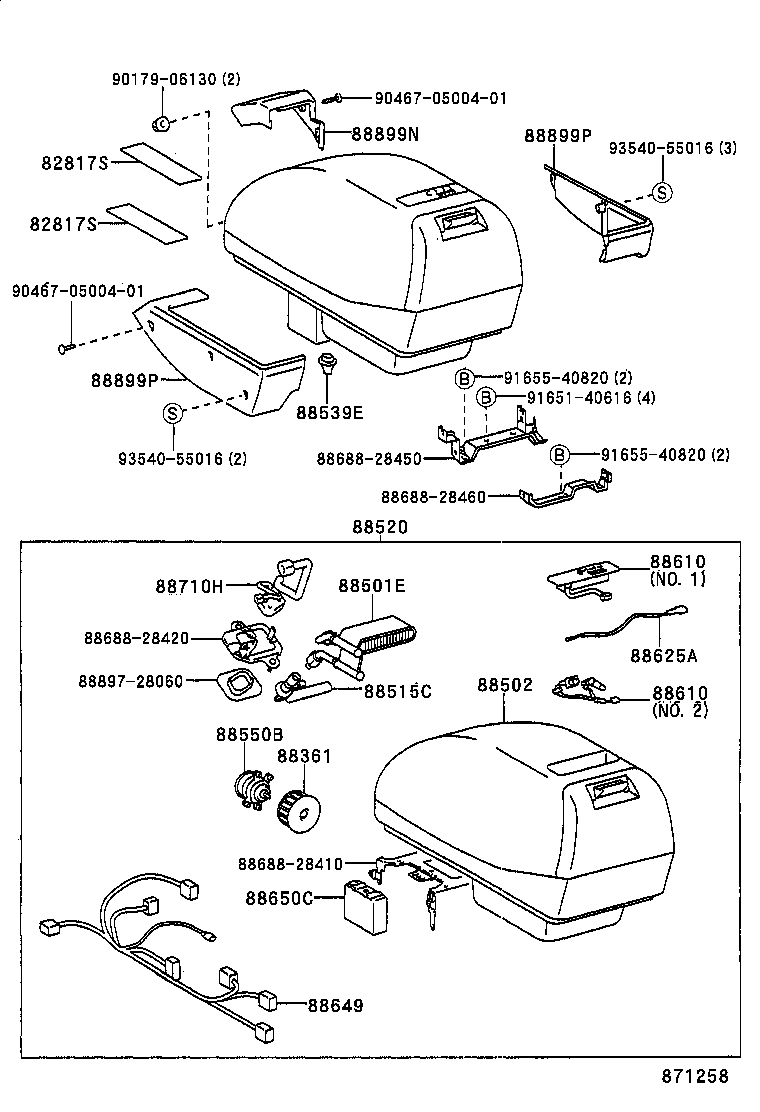

ILLUST NO. 3 OF 4(9005- )ARL,GEN,W
REAR, DENSO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D02 |
TCR10..ARL RH |
1 | ||
| 87105-95D03 |
TCR1#..ARL LH |
1 | ||
| 87105-95D02 |
TCR1#..ARL RH |
1 | ||
| 87105-95D03 |
TCR10..ARL LH |
1 | ||
| 87105-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87105-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D02 |
TCR10..ARL RH |
1 | ||
| 87105-95D03 |
TCR1#..ARL LH |
1 | ||
| 87105-95D02 |
TCR1#..ARL RH |
1 | ||
| 87105-95D03 |
TCR10..ARL LH |
1 | ||
| 87105-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87105-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D02 |
TCR11..W;TCR10..ARL,W |
1 | ||
| 87138-95D02 |
TCR11..W;TCR10..08S |
1 | ||
| 87138-95D02 |
TCR10..ARL |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR10..ARL LH |
1 | ||
| 87104-95D02 |
TCR1#..ARL RH |
1 | ||
| 87104-95D03 |
TCR1#..ARL LH |
1 | ||
| 87104-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87104-95D02 |
TCR10..ARL RH |
1 | ||
| 87104-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR10..ARL LH |
1 | ||
| 87104-95D02 |
TCR1#..ARL RH |
1 | ||
| 87104-95D03 |
TCR1#..ARL LH |
1 | ||
| 87104-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87104-95D02 |
TCR10..ARL RH |
1 | ||
| 87104-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-95D02 |
TCR1#,21..ARL |
1 | ||
| 88501-28120 |
TCR1#..ARL DUAL *AAC---DEALER OPT |
1 | ||
| 88501-28120 |
TCR10..ARL |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,21..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR1#,21..ARL RH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL LH |
1 | ||
| 88504-95D01 |
TCR1#..ARL LH |
1 | ||
| 88504-95D01 |
TCR10..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR1#..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL RH |
1 | ||
| 88504-95D03 |
TCR10..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM LH |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,21..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR1#,21..ARL RH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL LH |
1 | ||
| 88504-95D01 |
TCR1#..ARL LH |
1 | ||
| 88504-95D01 |
TCR10..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR1#..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL RH |
1 | ||
| 88504-95D03 |
TCR10..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM LH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2818003 |
TCR1#,2#..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28430B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28431B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28431B1 |
TCR10..ARL LT.GRAY,TRIM1# |
1 | ||
| 88510-28250B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-28010 |
TCR10..ARL;TCR11..LHD..ATM |
1 | ||
| 82630-28010 |
TCR10..ARL |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28040 |
TCR1#,21..ARL |
1 | ||
| 88515-28020 |
TCR1#,21..ARL |
1 | ||
| 88515-28050 |
TCR10..ARL |
1 | ||
| 88515-28050 |
TCR1#..ARL DUAL *AAC---DEALER OPT |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28020B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28190B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28191B1 |
TCR10..ARL LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88521-28020B1 |
TCR1#..ARL LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28020B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28190B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28191B1 |
TCR10..ARL LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88521-28020B1 |
TCR1#..ARL LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR10..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88570-28111 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28111 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28101 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88570-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88570-28101 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR10..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88570-28111 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28111 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28101 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88570-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88570-28101 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-28220 |
TCR10..ARL |
2 | ||
| 88578-28220 |
TCR10..08S;TCR11..LHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28370 |
TCR10..ARL |
1 | ||
| 88605-2J790 |
TCR10..ARL,GEN;TCR11..LHD..ATM NIPPONDENSO |
1 | ||
| 88605-2J260 |
TCR1#..ARL MATSUSHITA |
1 | ||
| 88605-2J790 |
TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J790 |
TCR11..LHD;TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J790 |
TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J260 |
TCR10..ARL MATSUSHITA |
1 | ||
| 88605-2J260 |
TCR11..RHD..W;TCR10,2#..ARL,W;TCR11..LHD..MTM |
1 | ||
| 88605-2J790 |
TCR10..ARL NIPPONDENSO |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28750 |
TCR10..ARL,GEN |
1 | ||
| 88710-28750 |
TCR11..LHD;TCR10..ARL,GEN |
1 | ||
| 88710-28750 |
TCR10..ARL,GEN;TCR11..LHD..ATM |
1 | ||
| 88710-28750 |
TCR1#..ARL DUAL *AAC---DEALER OPT |
1 | ||
| 88710-28070 |
TCR1#,21..ARL |
1 | ||
| 88710-28070 |
TCR1#,21..ARL;TCR11..LHD..ATM |
1 | ||
| Common parts | ||||
| 88688-28210 | ||||
| 90094-90414 | ||||
| 90099-00930 | ||||
| 90099-01340 | ||||
| 90099-04381 | ||||
| 93540-14012 | ||||
ILLUST NO. 2 OF 4(9005-9108)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2R210 |
TCR1#..ARL |
1 | ||
| Common parts | ||||
| 88688-28150 | ||||
| 88688-28720 | ||||
| 88897-28030 | ||||
| 90179-06130 | ||||
| 90467-0500401 | ||||
| 90950-01112 | ||||
| 93540-55016 | ||||
ILLUST NO. 2 OF 4(9108-9308)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2R210 |
TCR1#..ARL |
1 | ||
| Common parts | ||||
| 88688-28410 | ||||
| 88688-28420 | ||||
| 88688-28450 | ||||
| 88688-28460 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500401 | ||||
| 91651-40616 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
ILLUST NO. 2 OF 4(9308- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2R210 |
TCR1#..ARL |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2R210 |
TCR1#..ARL |
1 | ||
| Common parts | ||||
| 88688-28410 | ||||
| 88688-28420 | ||||
| 88688-28450 | ||||
| 88688-28460 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500411 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
ILLUST NO. 4 OF 4(9005- )
W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 4 OF 4(9005- )
W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 3 OF 4(9005- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95D31 |
TCR1#,2#..ARL |
1 | ||
| 88688-95D31 |
TCR10..ARL |
1 | ||
| 88688-95D31 |
TCR1#..ARL |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95D33 |
TCR1#,2#..ARL |
1 | ||
| 88688-95D33 |
TCR1#..ARL |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-95D41 |
TCR1#,2#..ARL |
1 | ||
| 88688-95D41 |
TCR1#..ARL DUAL *AAC---DEALER OPT |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95D00 |
TCR1#,2#..ARL |
1 | ||
| 88539-95D00 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN |
1 | ||
| 88539-95D00 |
TCR11..LHD;TCR1#..ARL,GEN |
1 | ||
| 88539-95D00 |
TCR11..W;TCR10..08S |
1 | ||
| 88539-95D00 |
TCR1#..08S |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-28070 |
TCR1#..ARL |
1 | ||
| 88539-28030 |
TCR1#,2#..ARL |
1 | ||
| 88539-28070 |
TCR1#..RHD |
1 | ||
| 88539-28070 |
TCR1#..ARL |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95D02 |
TCR11..LHD;TCR1#..ARL,GEN,V |
1 | ||
| 88539-95D02 |
TCR1# |
1 | ||
| 88539-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN |
1 | ||
| 88539-95D02 |
TCR1#,2#..ARL |
1 | ||
| 88539-95D02 |
TCR1#..ARL |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-95D03 |
TCR1#,2#..ARL LH |
1 | ||
| 88561-95D01 |
TCR10,21..ARL RH |
1 | ||
| 88561-95D01 |
TCR1#,2#..ARL RH |
1 | ||
| 88561-95D03 |
TCR1#..ARL LH |
1 | ||
| 88561-95D01 |
TCR10..ARL RH,NIPPONDENSO |
1 | ||
| 88561-95D03 |
TCR10..ARL LH,NIPPONDENSO |
1 | ||
| 88561-28100 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88561-28100 |
TCR1#..08S RH |
1 | ||
| 88561-95D01 |
TCR1#..ARL RH |
1 | ||
| 88561-28110 |
TCR11..W;TCR10..ARL,W LH |
1 | ||
| 88561-28110 |
TCR1#..ARL,W LH |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-95D03 |
TCR1#,2#..ARL LH |
1 | ||
| 88561-95D01 |
TCR10,21..ARL RH |
1 | ||
| 88561-95D01 |
TCR1#,2#..ARL RH |
1 | ||
| 88561-95D03 |
TCR1#..ARL LH |
1 | ||
| 88561-95D01 |
TCR10..ARL RH,NIPPONDENSO |
1 | ||
| 88561-95D03 |
TCR10..ARL LH,NIPPONDENSO |
1 | ||
| 88561-28100 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88561-28100 |
TCR1#..08S RH |
1 | ||
| 88561-95D01 |
TCR1#..ARL RH |
1 | ||
| 88561-28110 |
TCR11..W;TCR10..ARL,W LH |
1 | ||
| 88561-28110 |
TCR1#..ARL,W LH |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-95D01 |
TCR1#,2#..ARL RH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#,2#..ARL LH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR1#..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88571-28080 |
TCR1#..ARL LH |
1 | ||
| 88571-95D01 |
TCR1#..ARL RH,NIPPONDENSO |
1 | ||
| 88571-28070 |
TCR1#..ARL RH |
1 | ||
| 88571-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#..ARL LH,NIPPONDENSO |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-95D01 |
TCR1#,2#..ARL RH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#,2#..ARL LH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR1#..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88571-28080 |
TCR1#..ARL LH |
1 | ||
| 88571-95D01 |
TCR1#..ARL RH,NIPPONDENSO |
1 | ||
| 88571-28070 |
TCR1#..ARL RH |
1 | ||
| 88571-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR1#..ARL LH,NIPPONDENSO |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95D28 |
TCR10..ARL SINGLE TYPE---DEALER OPT |
1 | ||
| 88605-95D29 |
TCR1#,2#..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88605-95D29 |
TCR10..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88605-95D28 |
TCR11,2#..ARL SINGLE TYPE---MAKER OPT |
1 | ||
| 88605-2J330 |
TCR10..08S;TCR11..LHD DUAL TYPE---MAKER OPT |
1 | ||
| 88605-2J420 |
TCR11..RHD..W;TCR10,2#..ARL,W;TCR11..LHD..MTM SINGLE TYPE---MAKER OPT |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-28060 |
TCR10..ARL |
1 | ||
| 88630-28060 |
TCR1#,2#..ARL |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95D04 |
TCR11..LHD;TCR10,2#..ARL,W SINGLE TYPE---DEALER OPT |
1 | ||
| 88630-95D07 |
TCR10..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88630-95D04 |
TCR10..ARL SINGLE TYPE---DEALER OPT |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95D02 |
TCR11..LHD;TCR10..ARL,GEN,V |
1 | ||
| 88630-95D02 |
TCR10..ARL,GEN;TCR11..LHD..ATM |
1 | ||
| 88630-95D02 |
TCR1#,2#..ARL |
1 | ||
| 88630-95D02 |
TCR10..ARL |
1 | ||
| 88630-95D02 |
TCR10;TCR11..W |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-95D04 |
TCR11,2#..ARL SINGLE TYPE---MAKER OPT |
1 | ||
| 88630-95D07 |
TCR11,2#..ARL DUAL TYPE |
1 | ||
| 88630-95D04 |
TCR10..ARL SINGLE AIR CONDITI NER |
1 | ||
| 88630-95D07 |
TCR10..ARL DUAL AIR CONDITIONER |
1 | ||
| 88630-14030 |
TCR11..W;TCR10,2#..ARL,W |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28110 |
TCR1#,2#..ARL |
1 | ||
| 88650-28110 |
TCR10..ARL DUAL TYPE |
1 | ||
| 88650-28140 |
TCR10..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88650-28110 |
TCR11,2#..RHD |
1 | ||
| 88650-28370 |
TCR1#..RHD |
1 | ||
| 88650-28580 |
TCR1#..RHD |
1 | ||
| 88650-28580 |
TCR10..ARL;TCR11..RHD..W |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28110 |
TCR1#,2#..ARL |
1 | ||
| 88650-28110 |
TCR10..ARL DUAL TYPE |
1 | ||
| 88650-28140 |
TCR10..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88650-28110 |
TCR11,2#..RHD |
1 | ||
| 88650-28370 |
TCR1#..RHD |
1 | ||
| 88650-28580 |
TCR1#..RHD |
1 | ||
| 88650-28580 |
TCR10..ARL;TCR11..RHD..W |
1 | ||
| 88895 - HOLDER, FUSE | ||||
| 88895-95J00 |
TCR1#..ARL,GEN |
1 | ||
| 88895-95J00 |
TCR1#,2#..ARL |
1 | ||
| 88895-95J00 |
TCR10..08S;TCR11..ARL;TCR11..LHD |
1 | ||
| 88895-95J00 |
TCR1#..ARL,GEN;TCR11..LHD..ATM |
1 | ||
| 88895-95J00 |
TCR1#..08S |
1 | ||
| 88895-95J00 |
TCR11..LHD;TCR1#..ARL,GEN |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28110 |
TCR1#,2#..ARL |
4 | ||
| 88899-28110 |
TCR1#..ARL |
4 | ||
| 88899-28110 |
TCR1#,21..RHD;TCR11..LHD..ATM |
4 | ||
| 88899-28110 |
TCR1#..ARL |
4 | ||
| 88899-28110 |
TCR10..ARL |
4 | ||
| 88899-28110 |
TCR10;TCR11..W |
2 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28110 |
TCR1#,2#..ARL |
4 | ||
| 88899-28110 |
TCR1#..ARL |
4 | ||
| 88899-28110 |
TCR1#,21..RHD;TCR11..LHD..ATM |
4 | ||
| 88899-28110 |
TCR1#..ARL |
4 | ||
| 88899-28110 |
TCR10..ARL |
4 | ||
| 88899-28110 |
TCR10;TCR11..W |
2 | ||
| 88899K - PLATE, COVER | ||||
| 88899-95D0705 |
TCR10,20..ARL;TCR21..MTM..ARL LIGHT GRAIGE,TRIM4#,LH |
1 | ||
| 88899-95D0703 |
TCR10,20..ARL;TCR21..MTM..ARL LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-95D0705 |
TCR1#,21..ARL LIGHT GRAIGE,TRIM4#,LH |
1 | ||
| 88899-95D0703 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-95D07B1 |
TCR1#..ARL LT.GRAY,TRIM1#,LH |
1 | ||
| 88899-95D06B1 |
TCR1#..ARL LT.GRAY,TRIM1#,RH |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-95D0705 |
TCR10,20..ARL;TCR21..MTM..ARL LIGHT GRAIGE,TRIM4#,LH |
1 | ||
| 88899-95D0703 |
TCR10,20..ARL;TCR21..MTM..ARL LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-95D0705 |
TCR1#,21..ARL LIGHT GRAIGE,TRIM4#,LH |
1 | ||
| 88899-95D0703 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-95D07B1 |
TCR1#..ARL LT.GRAY,TRIM1#,LH |
1 | ||
| 88899-95D06B1 |
TCR1#..ARL LT.GRAY,TRIM1#,RH |
1 | ||
| Common parts | ||||
| 82715-28630 | ||||
| 88578-28100 | ||||
| 88578-28140 | ||||
| 88688-28230 | ||||
| 88688-28240 | ||||
| 88718-95D27 | ||||
| 88894-28020 | ||||
| 90099-00930 | ||||
| 90119-06159 | ||||
| 90119-06700 | ||||
| 90179-06032 | ||||
| 90179-06069 | ||||
| 90179-06115 | ||||
| 90189-05037 | ||||
| 90468-04134 | ||||
| 90480-25024 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(9208- )ARL,GEN,W
REAR, MATSUSHITA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D02 |
TCR10..ARL RH |
1 | ||
| 87105-95D03 |
TCR1#..ARL LH |
1 | ||
| 87105-95D02 |
TCR1#..ARL RH |
1 | ||
| 87105-95D03 |
TCR10..ARL LH |
1 | ||
| 87105-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87105-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D02 |
TCR10..ARL RH |
1 | ||
| 87105-95D03 |
TCR1#..ARL LH |
1 | ||
| 87105-95D02 |
TCR1#..ARL RH |
1 | ||
| 87105-95D03 |
TCR10..ARL LH |
1 | ||
| 87105-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87105-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D02 |
TCR11..W;TCR10..ARL,W |
1 | ||
| 87138-95D02 |
TCR11..W;TCR10..08S |
1 | ||
| 87138-95D02 |
TCR10..ARL |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR10..ARL LH |
1 | ||
| 87104-95D02 |
TCR1#..ARL RH |
1 | ||
| 87104-95D03 |
TCR1#..ARL LH |
1 | ||
| 87104-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87104-95D02 |
TCR10..ARL RH |
1 | ||
| 87104-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR10..ARL LH |
1 | ||
| 87104-95D02 |
TCR1#..ARL RH |
1 | ||
| 87104-95D03 |
TCR1#..ARL LH |
1 | ||
| 87104-95D02 |
TCR11..RHD;TCR10..ARL,W RH |
1 | ||
| 87104-95D02 |
TCR10..ARL RH |
1 | ||
| 87104-95D03 |
TCR11..RHD;TCR10..ARL,W LH |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-95D02 |
TCR1#,21..ARL |
1 | ||
| 88501-28120 |
TCR1#..ARL DUAL *AAC---DEALER OPT |
1 | ||
| 88501-28120 |
TCR10..ARL |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,21..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR1#,21..ARL RH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL LH |
1 | ||
| 88504-95D01 |
TCR1#..ARL LH |
1 | ||
| 88504-95D01 |
TCR10..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR1#..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL RH |
1 | ||
| 88504-95D03 |
TCR10..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM LH |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,21..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR1#,21..ARL RH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D01 |
TCR1#,21..ARL LH |
1 | ||
| 88504-95D01 |
TCR1#..ARL LH |
1 | ||
| 88504-95D01 |
TCR10..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR1#..ARL;TCR11..LHD..ATM LH |
1 | ||
| 88504-95D03 |
TCR1#..ARL RH |
1 | ||
| 88504-95D03 |
TCR10..ARL;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D03 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM RH |
1 | ||
| 88504-95D01 |
TCR11..RHD;TCR10..ARL,W;TCR11..LHD..ATM LH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2818003 |
TCR1#,2#..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28430B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28431B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28431B1 |
TCR10..ARL LT.GRAY,TRIM1# |
1 | ||
| 88510-28250B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28040 |
TCR1#,21..ARL |
1 | ||
| 88515-28020 |
TCR1#,21..ARL |
1 | ||
| 88515-28050 |
TCR10..ARL |
1 | ||
| 88515-28050 |
TCR1#..ARL DUAL *AAC---DEALER OPT |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28020B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28190B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28191B1 |
TCR10..ARL LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88521-28020B1 |
TCR1#..ARL LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28020B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28190B0 |
TCR1#,21..ARL LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28191B1 |
TCR10..ARL LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88521-28020B1 |
TCR1#..ARL LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10..ARL,GEN;TCR11..LHD..ATM LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN;TCR11..LHD..ATM RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR10..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88570-28111 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28111 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28101 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88570-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88570-28101 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,21..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#,21..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD..ATM;TCR1#,21..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR10..ARL RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10..ARL LH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR1#..ARL DUAL *AAC---DEALER OPT,RH,NIPPONDENSO |
1 | ||
| 88570-28111 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28111 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,LH |
1 | ||
| 88570-28101 |
TCR10..ARL;TCR11..LHD..ATM W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88570-95D03 |
TCR1#..ARL DUAL *AAC---DEALER OPT,LH,NIPPONDENSO |
1 | ||
| 88570-28101 |
TCR10..ARL W(DUAL AIR CONDITIONER);ISRAEL SPEC,RH |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28370 |
TCR10..ARL |
1 | ||
| 88605-2J790 |
TCR10..ARL,GEN;TCR11..LHD..ATM NIPPONDENSO |
1 | ||
| 88605-2J260 |
TCR1#..ARL MATSUSHITA |
1 | ||
| 88605-2J790 |
TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J790 |
TCR11..LHD;TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J790 |
TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J260 |
TCR10..ARL MATSUSHITA |
1 | ||
| 88605-2J260 |
TCR11..RHD..W;TCR10,2#..ARL,W;TCR11..LHD..MTM |
1 | ||
| 88605-2J790 |
TCR10..ARL NIPPONDENSO |
1 | ||
| Common parts | ||||
| 88899-28410 | ||||
| 88899-28420 | ||||
ILLUST NO. 1 OF 4(9108- )
AUTO TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR1#,2# |
1 | ||
| 88326-28040 |
TCR1#,2# |
1 | ||
| 88326-95D01 |
TCR10,20;TCR11,21..W |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28110 |
TCR1#,2# |
1 | ||
| 88501-95D03 |
TCR1#,2# |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88511-28041 |
TCR10..ARL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33010 |
TCR1#,2# |
1 | ||
| 88515-14062 |
TCR20;TCR11..RHD;TCR10,21..DX,GL;TCR11..LHD..MTM |
1 | ||
| 88515-20100 |
TCR1#,2#..ARL,GEN,W |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28060 |
TCR1#..RHD |
1 | ||
| 88539-95D03 |
TCR1#,2#..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
TCR10,2#;TCR11..ARL;TCR11..LHD |
1 | ||
| 88625-60050 |
TCR10,20;TCR11,21..LHD |
1 | ||
| 88625-16210 |
TCR10,2#;TCR11..W |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28870 |
TCR1#,2# |
1 | ||
| 88710-28720 |
TCR1#,2# |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28100 |
TCR10..ARL MAKER OPT OR DEALER OPT |
1 | ||
| 88723-20040 |
TCR10,2#;TCR11..RHD;TCR11..LHD..MTM |
1 | ||
| 88723-28130 |
TCR10..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88723-20040 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 88578-28110 | ||||
| 88626-28010 | ||||
| 88718-95D32 | ||||
| 88718-95D33 | ||||
| 90099-04381 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||
ILLUST NO. 1 OF 4(9005- )
MANUAL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR1#,2# |
1 | ||
| 88326-28040 |
TCR1#,2# |
1 | ||
| 88326-95D01 |
TCR10,20;TCR11,21..W |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28110 |
TCR1#,2# |
1 | ||
| 88501-95D03 |
TCR1#,2# |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88511-28041 |
TCR10..ARL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33010 |
TCR1#,2# |
1 | ||
| 88515-14062 |
TCR20;TCR11..RHD;TCR10,21..DX,GL;TCR11..LHD..MTM |
1 | ||
| 88515-20100 |
TCR1#,2#..ARL,GEN,W |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28060 |
TCR1#..RHD |
1 | ||
| 88539-95D03 |
TCR1#,2#..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
TCR10,2#;TCR11..ARL;TCR11..LHD |
1 | ||
| 88625-60050 |
TCR10,20;TCR11,21..LHD |
1 | ||
| 88625-16210 |
TCR10,2#;TCR11..W |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28870 |
TCR1#,2# |
1 | ||
| 88710-28720 |
TCR1#,2# |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28100 |
TCR10..ARL MAKER OPT OR DEALER OPT |
1 | ||
| 88723-20040 |
TCR10,2#;TCR11..RHD;TCR11..LHD..MTM |
1 | ||
| 88723-28130 |
TCR10..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88723-20040 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 88626-28010 | ||||
| 88718-95D32 | ||||
| 88718-95D33 | ||||
| 88897-28140 | ||||
| 90099-04381 | ||||
| 90119-08632 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
