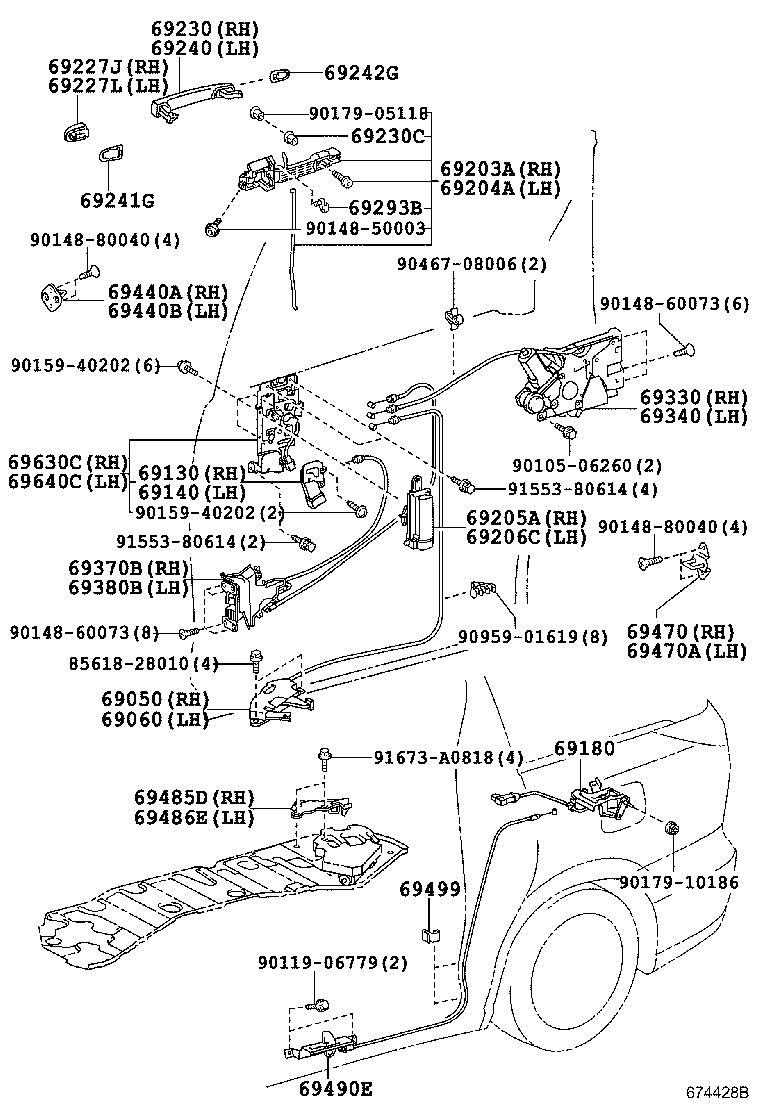

Toyota Previa AHR20 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69050-28041	AHR20	04/2013 - 12/2999	1
69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69060-28071	AHR20	04/2013 - 12/2999	1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-58020	AHR20	04/2013 - 12/2999	1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-58020	AHR20	04/2013 - 12/2999	1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-28080	AHR20	04/2013 - 12/2999	1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-28020	AHR20	04/2013 - 12/2999	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-28020	AHR20	04/2013 - 12/2999	1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69207-58010E3	AHR20 DK. BROWN,TRIM0#	04/2013 - 05/2016	1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69208-58010E3	AHR20 DK. BROWN,TRIM0#	04/2013 - 05/2016	1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69250-58010D2	AHR20 DEEP RED M.M.,3R9	04/2013 - 05/2016	1
69250-58010C1	AHR20 BLACK,202	04/2013 - 05/2016	1
69250-58010A2	AHR20 WHITE PEARL CS.,070	04/2013 - 05/2016	1
69250-58010B9	AHR20 ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	1
69250-58010B1	AHR20 SILVER ME.,1F7	04/2013 - 05/2016	1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69250-58010B1	AHR20 SILVER ME.,1F7	04/2013 - 05/2016	1
69250-58010B9	AHR20 ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	1
69250-58010C1	AHR20 BLACK,202	04/2013 - 05/2016	1
69250-58010D2	AHR20 DEEP RED M.M.,3R9	04/2013 - 05/2016	1
69250-58010A2	AHR20 WHITE PEARL CS.,070	04/2013 - 05/2016	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-28080D0	AHR20 DEEP RED M.M.,3R9	04/2013 - 05/2016	1
69230-28080B5	AHR20 ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	1
69230-28080A0	AHR20 WHITE PEARL CS.,070	04/2013 - 05/2016	1
69230-28080B0	AHR20 SILVER ME.,1F7	04/2013 - 05/2016	1
69230-28080C0	AHR20 BLACK,202	04/2013 - 05/2016	1
69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE)
90386-08066	AHR20	04/2013 - 12/2999	2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69230-28080B5	AHR20 ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	1
69230-28080B0	AHR20 SILVER ME.,1F7	04/2013 - 05/2016	1
69230-28080A0	AHR20 WHITE PEARL CS.,070	04/2013 - 05/2016	1
69230-28080C0	AHR20 BLACK,202	04/2013 - 05/2016	1
69230-28080D0	AHR20 DEEP RED M.M.,3R9	04/2013 - 05/2016	1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242-60030	AHR20	04/2013 - 12/2999	2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69241-28060	AHR20	04/2013 - 12/2999	2
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12030	AHR20 LH	04/2013 - 12/2999	1
69293-12040	AHR20 RH	04/2013 - 12/2999	1
69330 - LOCK ASSY, REAR DOOR, RH
69200-28043	AHR20	04/2013 - 12/2999	1
69340 - LOCK ASSY, REAR DOOR, LH
69300-28083	AHR20	04/2013 - 12/2999	1
69370B - LOCK ASSY, SLIDE DOOR, FRONT RH
69370-28101	AHR20	04/2013 - 12/2999	1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-28111	AHR20	04/2013 - 12/2999	1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-58011	AHR20	04/2013 - 12/2999	1
69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-58011	AHR20	04/2013 - 12/2999	1
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-28120	AHR20	04/2013 - 12/2999	1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-28120	AHR20	04/2013 - 12/2999	1
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-28040	AHR20	04/2013 - 12/2999	1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-28060	AHR20	04/2013 - 12/2999	1
69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN
69490-28040	AHR20	04/2013 - 12/2999	1
69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
69499-28020	AHR20	04/2013 - 12/2999	2
69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69630-28160	AHR20	04/2013 - 12/2999	1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-28240	AHR20	04/2013 - 12/2999	1
Common parts
85618-28010
90105-06260
90119-06779
90148-50003
90148-60073
90148-80040
90159-40202
90179-05118
90179-10186
90467-08006
90959-01619
91553-80614
91673-A0818

AHR20R-GFXDB (2013)

(1304- )
