AHR20R-GFXDB (2013)
Toyota Previa
Production
Apr 2013
-
May 2016
Engine
2AZFXE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

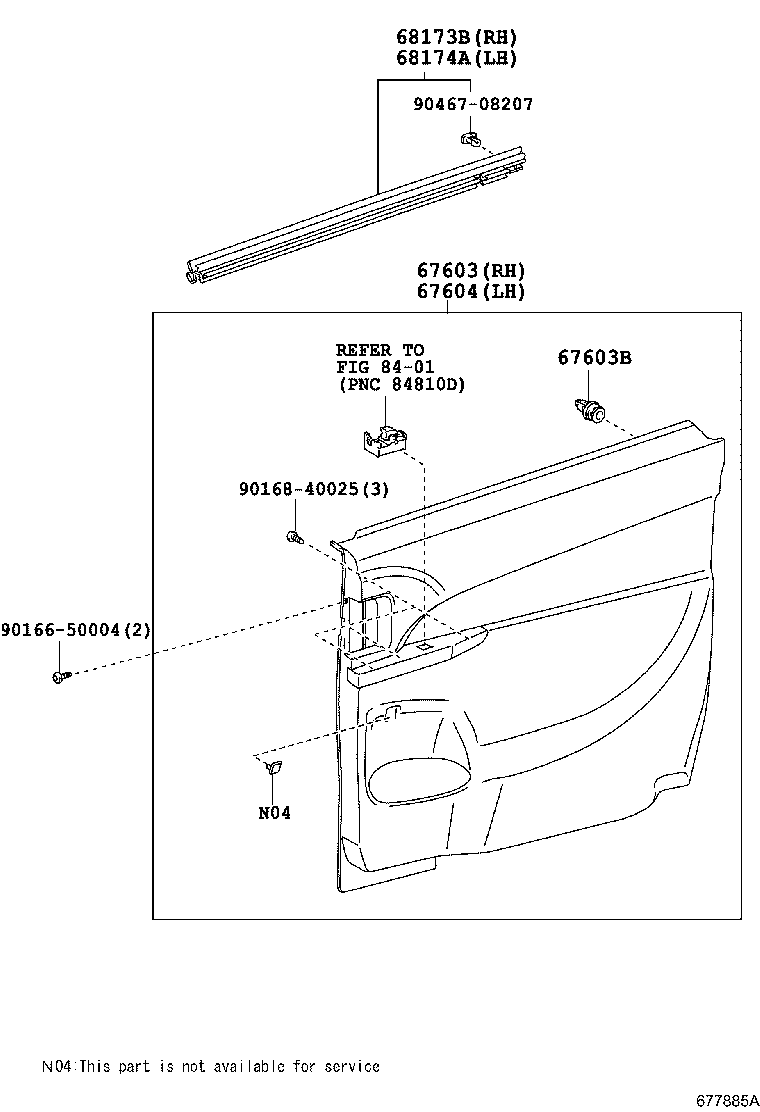

ILLUST NO. 2 OF 2(1304- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-28362A0 |
AHR20 SHELL,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AHR20 |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-28682A0 |
AHR20 SHELL,TRIM0# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-28030 |
AHR20 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-28040 |
AHR20 |
1 | ||
| Common parts | ||||
| 90166-50004 | ||||
| 90168-40025 | ||||
| 90467-08207 | ||||
| Linked diagrams | ||||
| 8401 | ||||

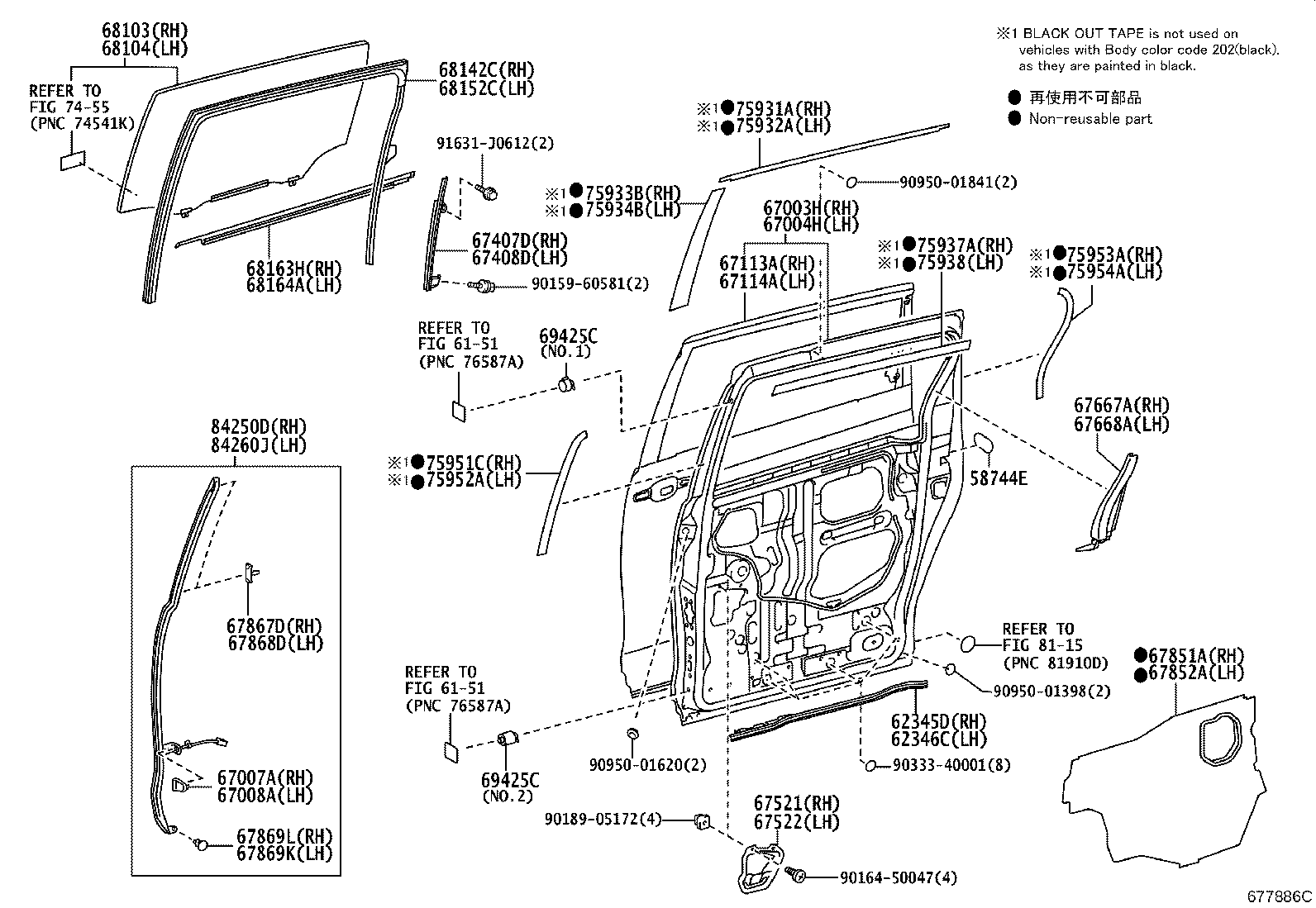

ILLUST NO. 1 OF 2(1304- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58744E - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58743-28010 |
AHR20 |
1 | ||
| 62345D - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 62345-28030 |
AHR20 |
1 | ||
| 62346C - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 62346-28040 |
AHR20 |
1 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-28620 |
AHR20 |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-28580 |
AHR20 |
1 | ||
| 67007A - COVER SUB-ASSY, SLIDE DOOR PANEL LOWER, RH | ||||
| 67525-28040 |
AHR20 |
1 | ||
| 67008A - COVER SUB-ASSY, SLIDE DOOR PANEL LOWER, LH | ||||
| 67526-28040 |
AHR20 |
1 | ||
| 67113A - PANEL, SLIDE DOOR, OUTER RH | ||||
| 67113-28170 |
AHR20 |
1 | ||
| 67114A - PANEL, SLIDE DOOR, OUTER LH | ||||
| 67114-28160 |
AHR20 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-28030 |
AHR20 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-28060 |
AHR20 |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-28040 |
AHR20 |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-28030 |
AHR20 |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-28040 |
AHR20 |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-28040 |
AHR20 |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28100 |
AHR20 |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28110 |
AHR20 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67869-28010 |
AHR20 UPPER SIDE |
1 | ||
| 67869-28050 |
AHR20 LOWER SIDE |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67869-28050 |
AHR20 LOWER SIDE |
1 | ||
| 67869-28010 |
AHR20 UPPER SIDE |
1 | ||
| 67869K - CLIP, DOOR WEATHERSTRIP, LH | ||||
| 67869-28020 |
AHR20 |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-28020 |
AHR20 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-28290 |
AHR20 *UVCT,T=3.5,GREEN |
1 | ||
| 68103-28291 |
AHR20 *UVCT,T=3.5,GREEN |
1 | ||
| 68103-28292 |
AHR20 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-28302 |
AHR20 |
1 | ||
| 68104-28300 |
AHR20 *UVCT,T=3.5,GREEN |
1 | ||
| 68104-28301 |
AHR20 *UVCT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-28130 |
AHR20 |
1 | ||
| 68142-28110 |
AHR20 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-28080 |
AHR20 |
1 | ||
| 68152-28100 |
AHR20 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-28040 |
AHR20 |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-28040 |
AHR20 |
1 | ||
| 69425C - CUSHION, SLIDE DOOR STOP | ||||
| 69425-28010 |
AHR20 NO.1 |
2 | ||
| 69425-28020 |
AHR20 NO.2 |
2 | ||
| 69425C - CUSHION, SLIDE DOOR STOP | ||||
| 69425-28010 |
AHR20 NO.1 |
2 | ||
| 69425-28020 |
AHR20 NO.2 |
2 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-28030 |
AHR20 |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-28030 |
AHR20 |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-28030 |
AHR20 |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-28030 |
AHR20 |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-28021 |
AHR20 |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-28021 |
AHR20 |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-28031 |
AHR20 |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-28031 |
AHR20 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-28031 |
AHR20 |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-28021 |
AHR20 |
1 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-28280 |
AHR20 |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-28090 |
AHR20 |
1 | ||
| Common parts | ||||
| 90159-60581 | ||||
| 90164-50047 | ||||
| 90189-05172 | ||||
| 90333-40001 | ||||
| 90950-01398 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 7455 | ||||
