AHR20R-GFXDB (2013)
Toyota Previa
Production
Apr 2013
-
May 2016
Engine
2AZFXE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1304- )

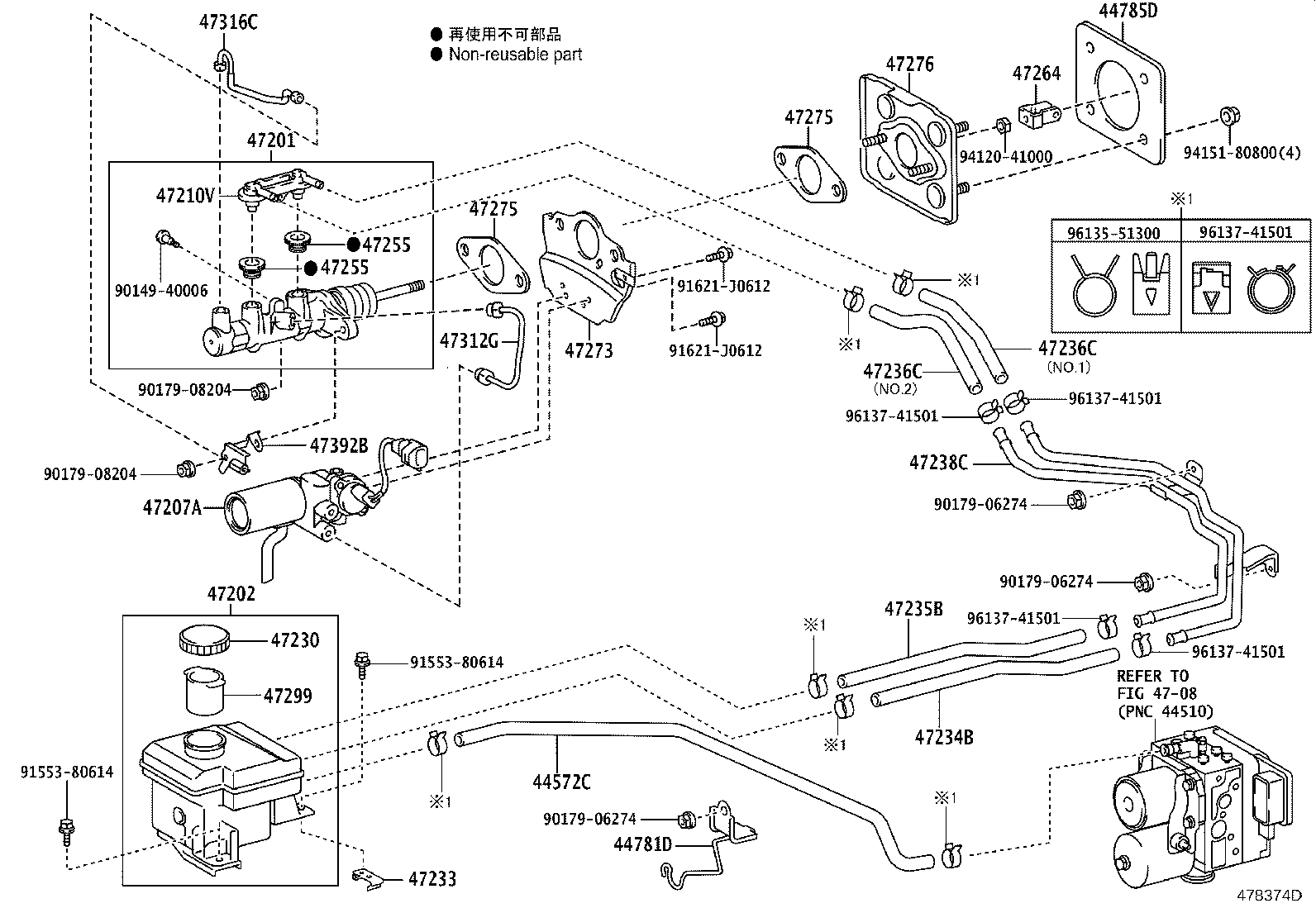

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-28040 |
AHR20 |
1 | ||
| 44781D - BRACKET, RESERVOIR HOSE | ||||
| 44781-28040 |
AHR20 |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-47010 |
AHR20 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-28720 |
AHR20 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-28310 |
AHR20 |
1 | ||
| 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR | ||||
| 47207-28080 |
AHR20 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AM004 |
AHR20 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-58010 |
AHR20 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-28140 |
AHR20 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-28180 |
AHR20 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-28190 |
AHR20 |
1 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 47236-28010 |
AHR20 NO.1 |
1 | ||
| 47236-28020 |
AHR20 NO.2 |
1 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 47236-28010 |
AHR20 NO.1 |
1 | ||
| 47236-28020 |
AHR20 NO.2 |
1 | ||
| 47238C - TUBE, RESERVOIR | ||||
| 47238-28010 |
AHR20 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AHR20 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AHR20 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-63010 |
AHR20 |
1 | ||
| 47273 - BRACKET, BRAKE STROKE SIMULATOR | ||||
| 47273-30030 |
AHR20 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
AHR20 |
2 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
AHR20 |
2 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-30060 |
AHR20 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-30190 |
AHR20 |
1 | ||
| 47312G - TUBE, BRAKE STROKE SIMULATOR | ||||
| 44255-58010 |
AHR20 |
1 | ||
| 47316C - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-58040 |
AHR20 |
1 | ||
| 47392B - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-58010 |
AHR20 |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 91553-80614 | ||||
| 91621-J0612 | ||||
| 94120-41000 | ||||
| 94151-80800 | ||||
| 96135-51300 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 4708 | ||||
