AHR20R-GFXDB (2013)
Toyota Previa
Production
Apr 2013
-
May 2016
Engine
2AZFXE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1304- )

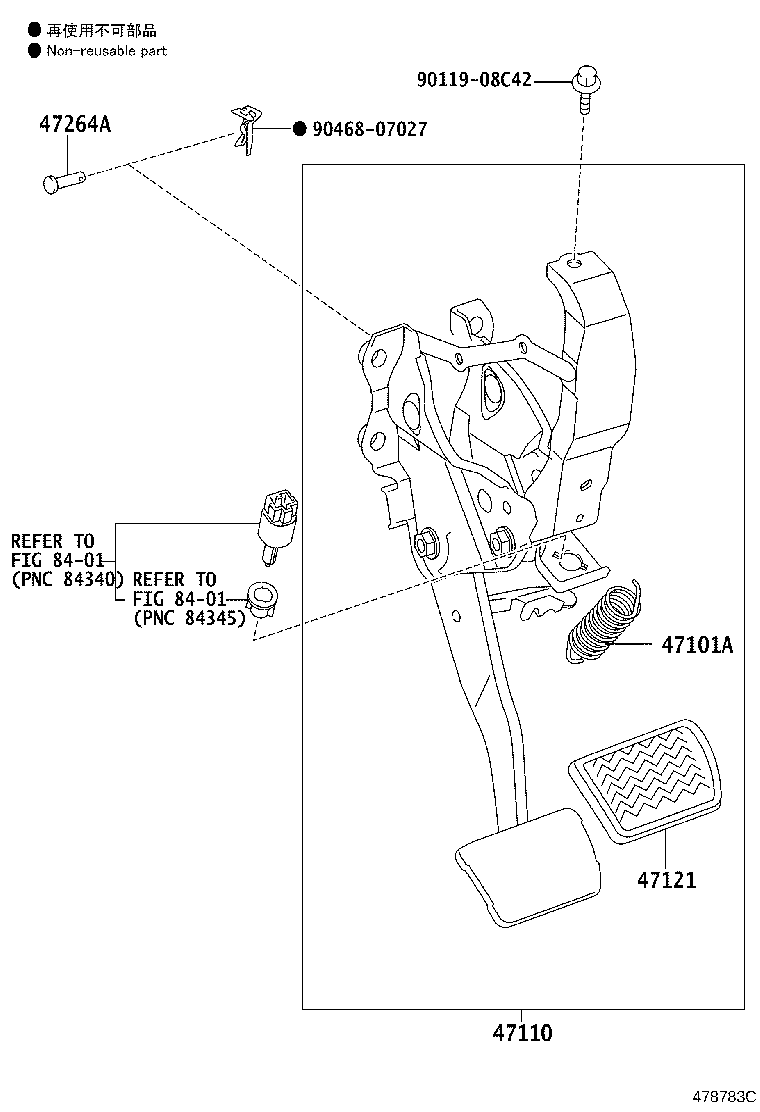

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 47146-28011 |
AHR20 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-28204 |
AHR20 |
1 | ||
| 47110-28203 |
AHR20 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42010 |
AHR20 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-08078 |
AHR20 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 8401 | ||||
