GSR50R-GRTDKQ (2012)

Toyota Previa/Tarago

Production May 2012 - May 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

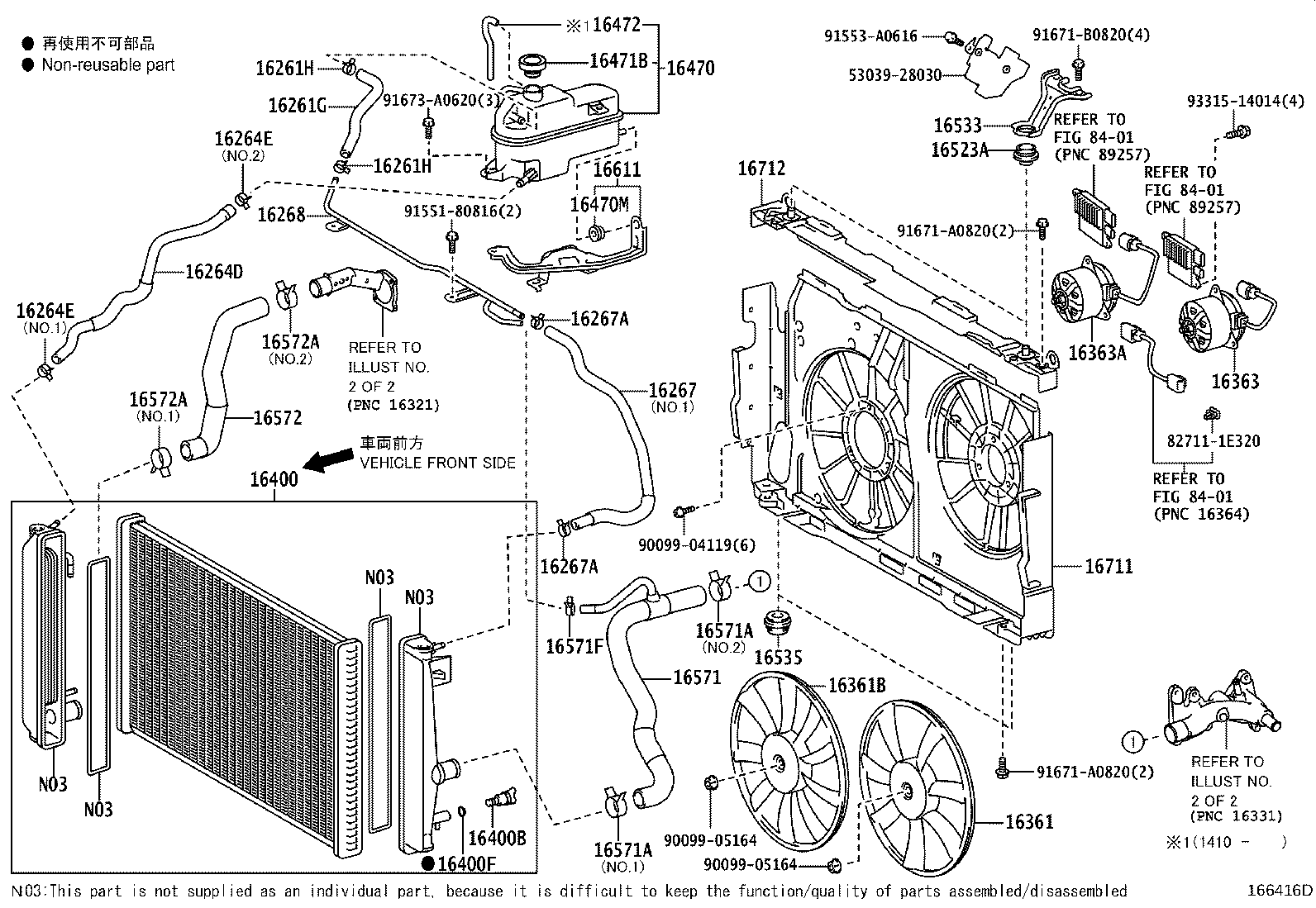

ILLUST NO. 1 OF 2(1409-1605)2GRFE..ARL

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16264D 16264E 16264E 16267 16267A 16267A 16268 16361 16361B 16363 16363A 16400 16400B 16400F 16470 16470M 16471B 16472 16523A 16533 16535 16571 16571A 16571A 16571F 16572 16572A 16572A 16611 16711 16712 5303928030 827111E320 8401 8401 8401 9009904119 9009905164 9009905164 9155180816 91553A0616 91671A0820 91671A0820 91671B0820 91673A0620 9331514014
Part # Description Qty Price
16361 - FAN
16361-31160

2GRFE..GSR50..ARL

 1
16361-31160

2GRFE..GSR50..ARL

TOWING PACKAGE-WITH

 1
16361B - FAN, NO.2
16361-31170

2GRFE..GSR50..ARL

 1
16361-31170

2GRFE..GSR50..ARL

TOWING PACKAGE-WITH

 1
16400 - RADIATOR ASSY
16400-28600

2GRFE..GSR50..ARL

TOWING PACKAGE-WITH

 1
16400-28600

2GRFE..GSR50..ARL

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-28121

2GRFE..GSR50

 1
16471B - CAP, RESERVE TANK
16475-51011

2GRFE..GSR50

 1
16472 - HOSE, BREATHER
85338-20030

2GRFE..GSR50

 1
16711 - SHROUD, FAN
16711-31300

2GRFE..GSR50..ARL

TOWING PACKAGE-WITH

 1
16711-31300

2GRFE..GSR50..ARL

 1
16712 - SHROUD, FAN, NO.2
16712-31061

2GRFE..GSR50..ARL

TOWING PACKAGE-WITH

 1
16712-31061

2GRFE..GSR50..ARL

 1
Common parts
53039-28030
82711-1E320
90099-04119
90099-05164
91551-80816
91553-A0616
91671-A0820
91671-B0820
91673-A0620
93315-14014
Linked diagrams
8401
