GSR50R-GRTDKQ (2006)

Toyota Previa/Tarago

Production Nov 2006 - Dec 2008
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

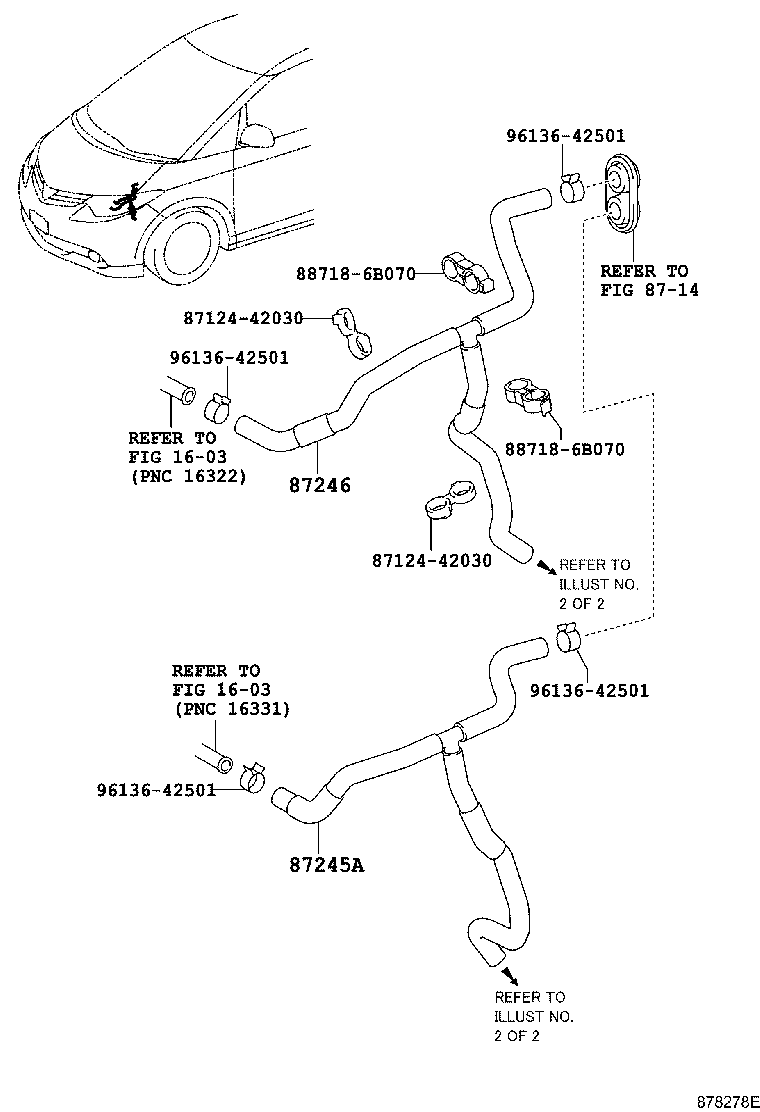

ILLUST NO. 1 OF 2(0611- )GSR50

Click highlighted areas on diagram

FRONT,W(REAR HEATER)

diagram 1603 1603 8712442030 8712442030 8714 87245A 87246 887186B070 887186B070 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-28B40

GSR50..RHD

 1
87209-28A30

GSR50..RHD

COLD SPEC(BATTERY SIZE:80D26L)

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-28A20

GSR50..RHD

COLD SPEC(BATTERY SIZE:80D26L)

 1
87245-28B30

GSR50..RHD

 1
Common parts
87124-42030
88718-6B070
96136-42501
Linked diagrams
1603
8714

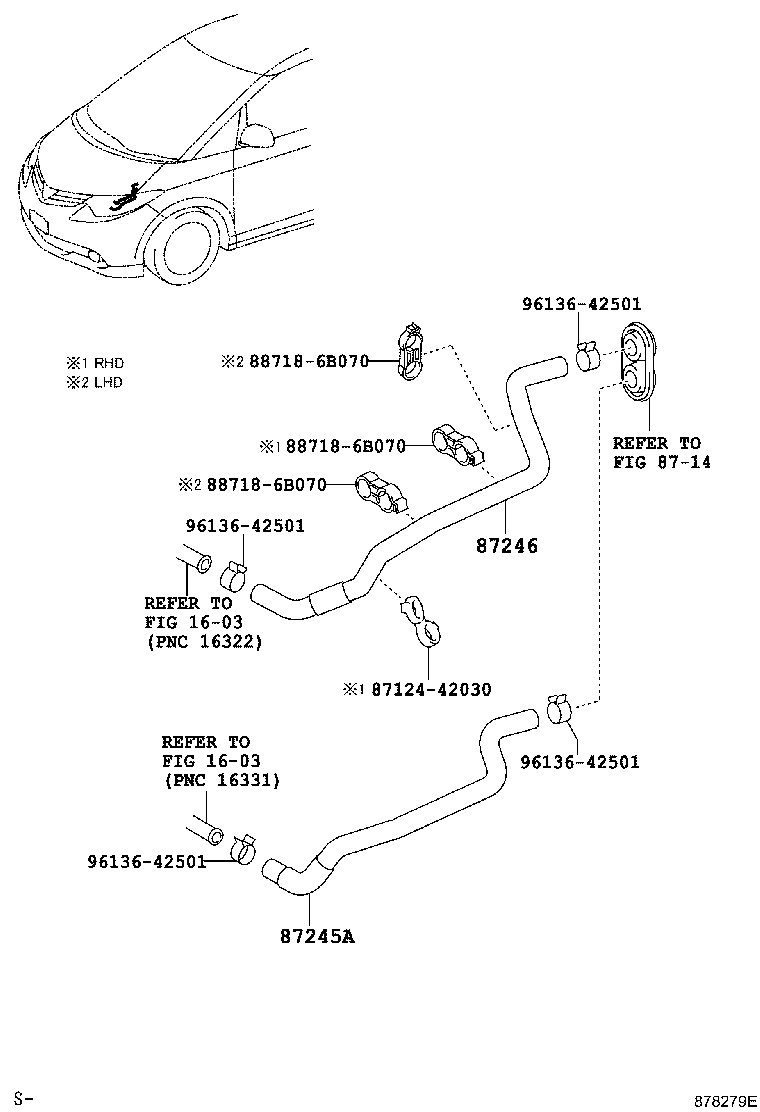

ILLUST NO. 1 OF 2(0611- )GSR50

Click highlighted areas on diagram

FRONT,W/O(REAR HEATER)

diagram 1603 1603 8712442030 8714 87245A 87246 887186B070 887186B070 887186B070 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-28B40

GSR50..RHD

 1
87209-28A30

GSR50..RHD

COLD SPEC(BATTERY SIZE:80D26L)

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-28A20

GSR50..RHD

COLD SPEC(BATTERY SIZE:80D26L)

 1
87245-28B30

GSR50..RHD

 1
Common parts
87124-42030
88718-6B070
96136-42501
Linked diagrams
1603
8714
