GSR50R-GFTGKQ (2012)
Toyota Previa/Tarago
Production
May 2012
-
May 2016
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1504- )2GRFE

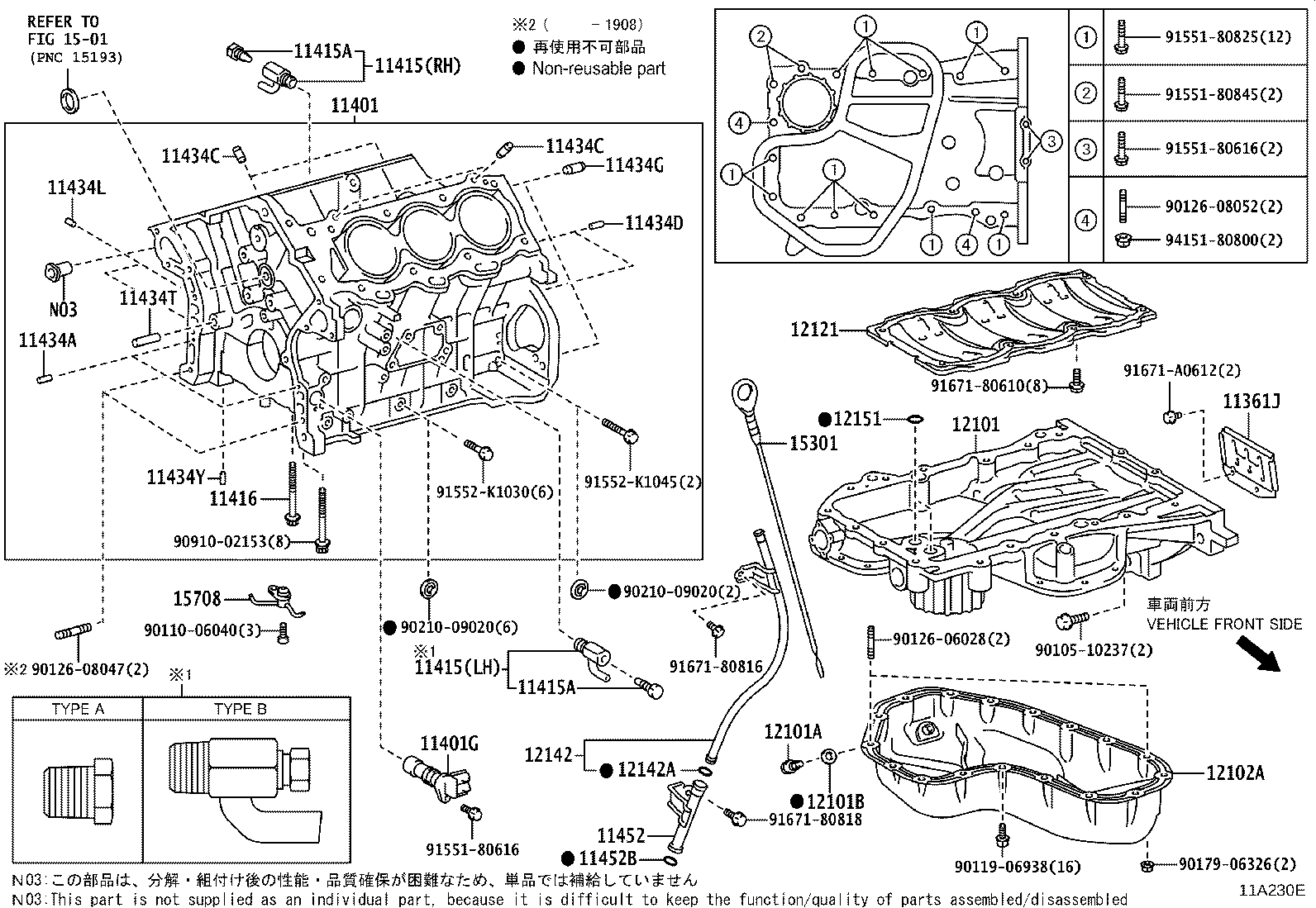

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-80800 |
2GRFE..GSR50 |
1 | ||
| 11401-80814 |
2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN |
1 | ||
| 11401-80826 |
2GRFE..GSR50 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN RH |
1 | ||
| 90345-52001 |
2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN LH,TYPE A:REF.ILL. |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN RH |
1 | ||
| 90345-52001 |
2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN LH,TYPE A:REF.ILL. |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-31120 |
2GRFE..GSR50 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-31050 |
2GRFE..GSR50 |
3 | ||
| Common parts | ||||
| 90105-10237 | ||||
| 90110-06040 | ||||
| 90119-06938 | ||||
| 90126-06028 | ||||
| 90126-08047 | ||||
| 90126-08052 | ||||
| 90179-06326 | ||||
| 90210-09020 | ||||
| 90910-02153 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80845 | ||||
| 91552-K1030 | ||||
| 91552-K1045 | ||||
| 91671-80610 | ||||
| 91671-80816 | ||||
| 91671-80818 | ||||
| 91671-A0612 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1501 | ||||
