GSR50R-GFTGK (2006)

Toyota Previa/Tarago

Production Nov 2006 - Dec 2008
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

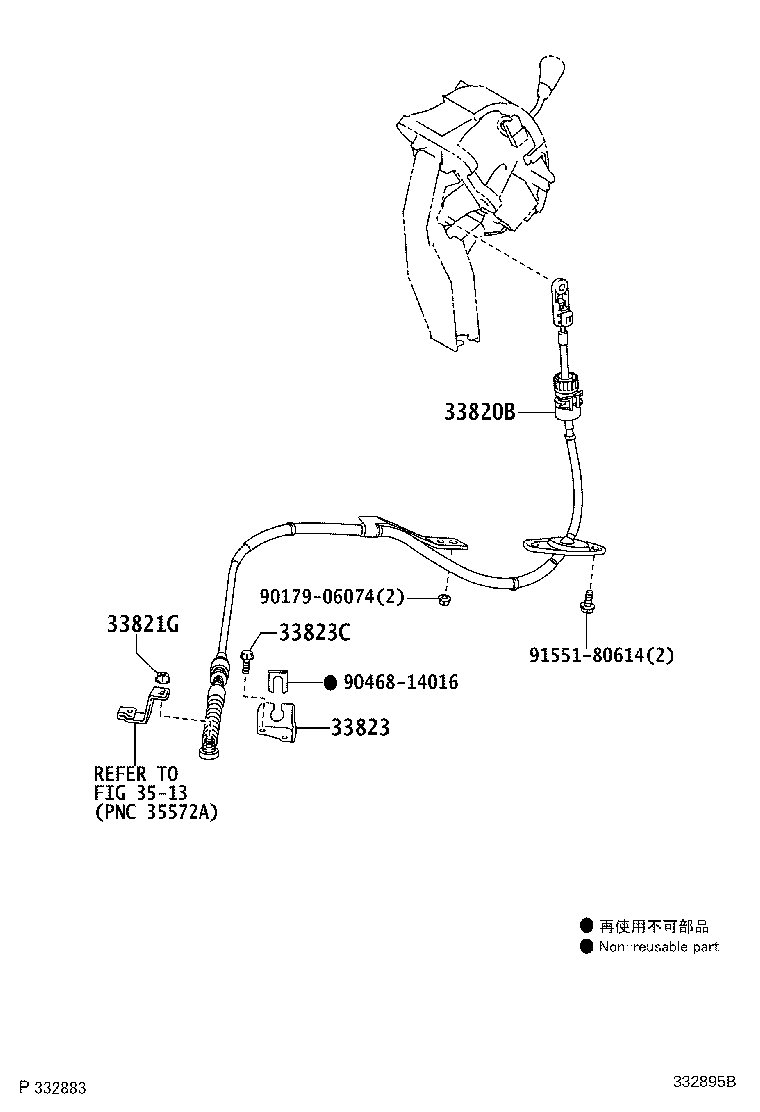

ILLUST NO. 2 OF 2(0611- )GSR50

Click highlighted areas on diagram

diagram 33820B 33821G 33823 33823C 3513 9017906074 9046814016 9155180614
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-28440

GSR50

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ACR50,GSR50

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28290

GSR50

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

ACR50,GSR50

 2
Common parts
90179-06074
90468-14016
91551-80614
Linked diagrams
3513
