GSR50R-GFTGK (2006)

Toyota Previa/Tarago

Production Nov 2006 - Dec 2008
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

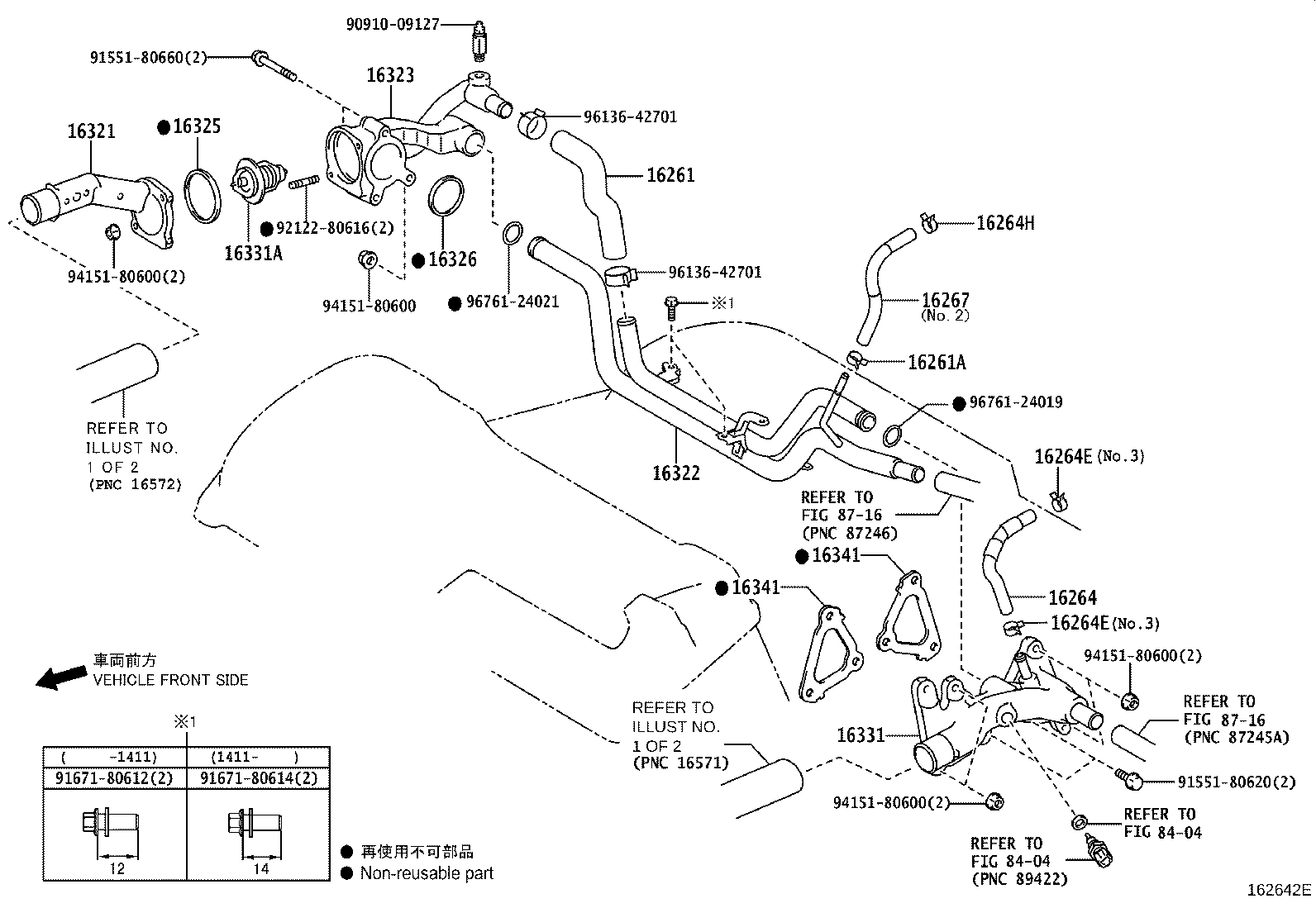

ILLUST NO. 2 OF 2(0611- )2GRFE

Click highlighted areas on diagram

diagram 16261 16261A 16264 16264E 16264E 16264H 16267 16321 16322 16323 16325 16326 16331 16331A 16341 16341 8404 8404 8716 8716 9091009127 9155180620 9155180660 9167180612 9167180614 9212280616 9415180600 9415180600 9415180600 9415180600 9613642701 9613642701 9676124019 9676124021
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-31050

2GRFE..GSR50

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

2GRFE..GSR50

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-31081

2GRFE..GSR50

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96134-51700

2GRFE..GSR50

NO.2

 1
90467-15022

2GRFE..GSR50

NO.1

 1
96137-41501

2GRFE..GSR50

NO.3

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96134-51700

2GRFE..GSR50

NO.2

 1
90467-15022

2GRFE..GSR50

NO.1

 1
96137-41501

2GRFE..GSR50

NO.3

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96137-41501

2GRFE..GSR50

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-28070

2GRFE..GSR50

NO.1

 1
16267-31040

2GRFE..GSR50

NO.2

 1
16321 - INLET, WATER
16321-31011

2GRFE..GSR50

 1
16322 - PIPE, WATER INLET
16322-31020

2GRFE..GSR50

 1
16323 - HOUSING, WATER INLET
16323-31040

2GRFE..GSR50

 1
16323-0W011

2GRFE..GSR50

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

2GRFE..GSR50

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-31010

2GRFE..GSR50

 1
16331 - OUTLET, WATER
16331-31140

2GRFE..GSR50

 1
16331A - THERMOSTAT
90916-03140

2GRFE..GSR50

*WAX 82-95

 1
90916-03133

2GRFE..GSR50

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-31010

2GRFE..GSR50

 2
16341 - GASKET, WATER OUTLET
16341-31010

2GRFE..GSR50

 2
Common parts
90910-09127
91551-80620
91551-80660
91671-80612
91671-80614
92122-80616
94151-80600
96136-42701
96761-24019
96761-24021
Linked diagrams
8404
8716
