GSR50L-GFTGK (2006)
Toyota Previa/Tarago
Production
Nov 2006
-
Dec 2008
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

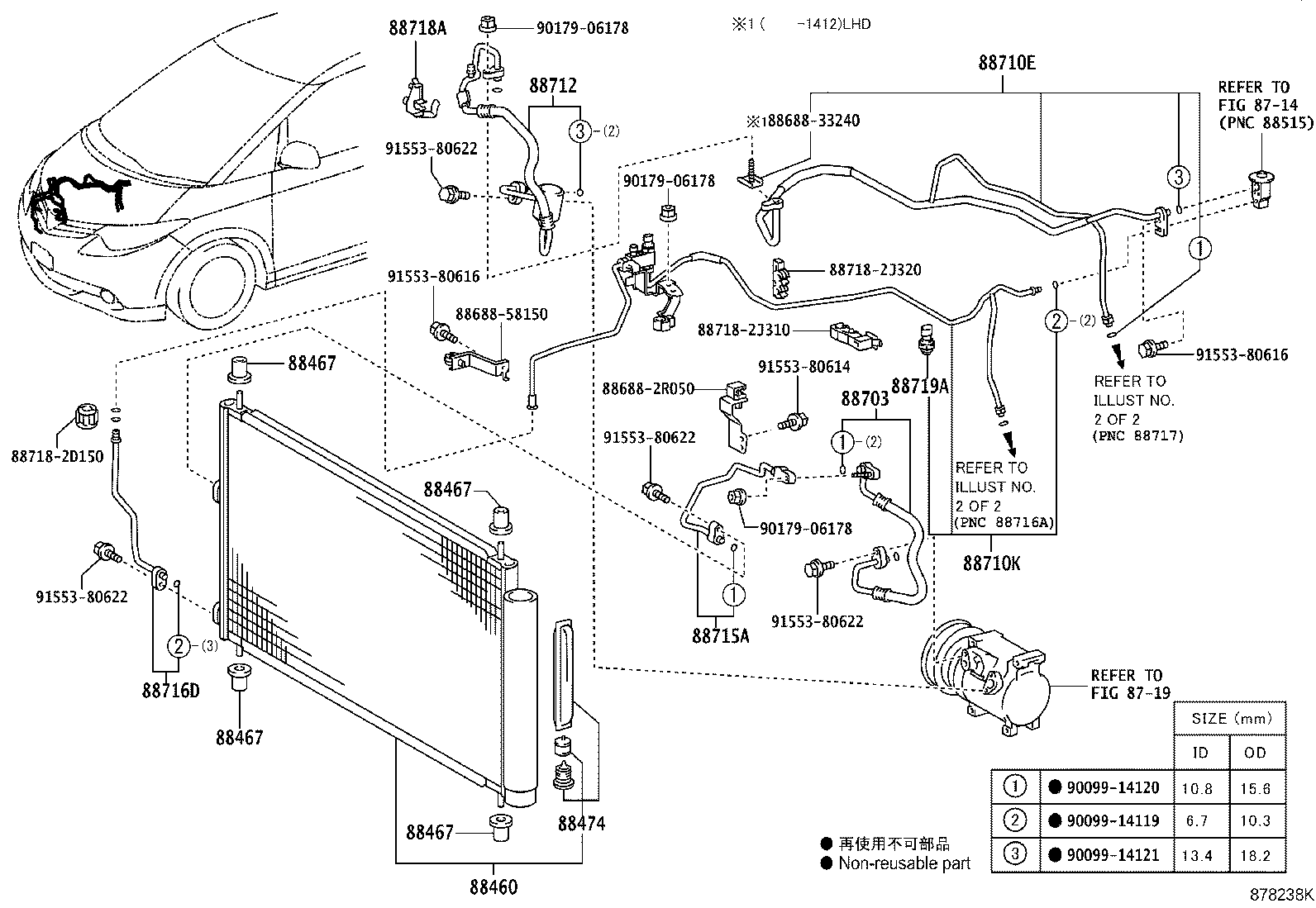

ILLUST NO. 1 OF 2(0611- )GSR50
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-42100 |
ACR50;GSR50..ARL,GEN |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ACR50,GSR50 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ACR50,GSR50 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ACR50,GSR50 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ACR50,GSR50 |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
ACR50,GSR50 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-28151 |
GSR50 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2X220 |
ACR50,GSR50..LHD |
1 | ||
| 88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 | ||||
| 88710-2X260 |
ACR50,GSR50..LHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28891 |
GSR50 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-28580 |
GSR50..ARL,GEN |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-2X510 |
ACR50;GSR50..ARL,GEN |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2J340 |
GSR50 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
ACR50,GSR50 |
1 | ||
| 88719-33020 |
ACR50,GSR50 |
1 | ||
| Common parts | ||||
| 88688-2R050 | ||||
| 88688-33240 | ||||
| 88688-58150 | ||||
| 88718-2D150 | ||||
| 88718-2J310 | ||||
| 88718-2J320 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06178 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
