GSR50L-GFTGK (2006)
Toyota Previa/Tarago
Production
Nov 2006
-
Dec 2008
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-0812)GSR50..ARL,GEN

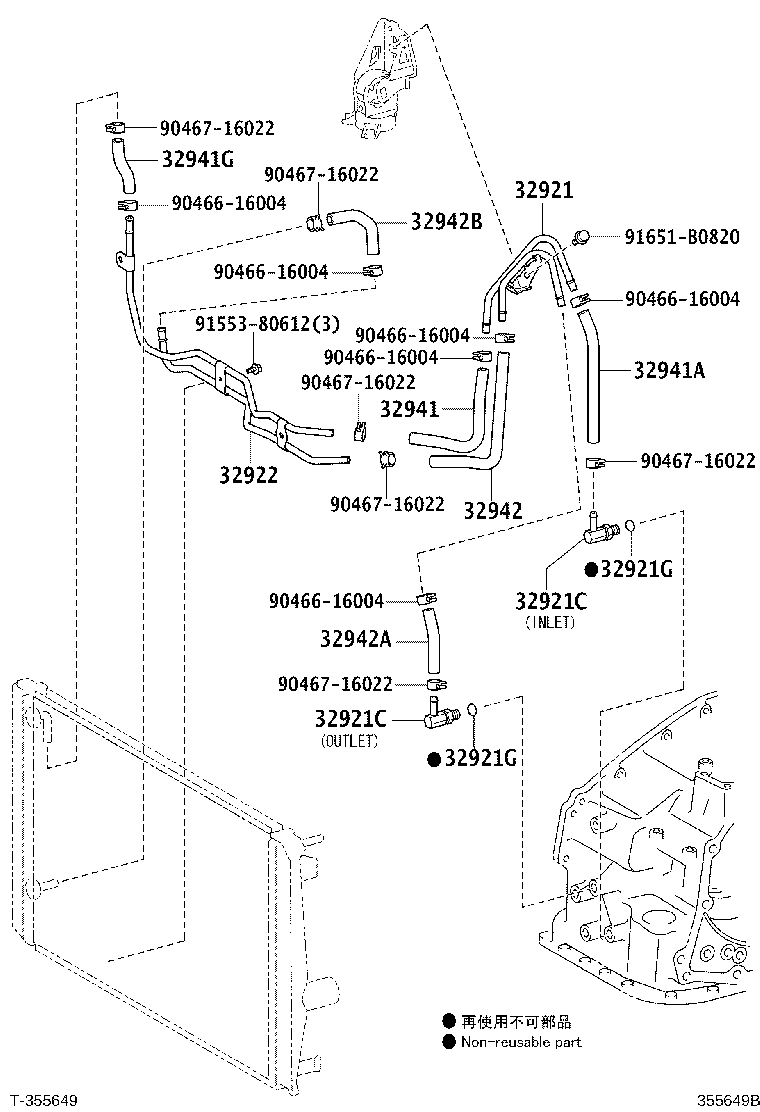

Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32907-28030 |
GSR50 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14032 |
GSR50 |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14032 |
GSR50 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GSR50 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GSR50 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32907-28050 |
ACR50,GSR50 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-28260 |
GSR50 |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 90445-17100 |
GSR50 |
1 | ||
| 32941G - HOSE, OIL COOLER INLET, NO.3 | ||||
| 90445-17179 |
ACR50,GSR50 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-28280 |
GSR50..ARL,GEN |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 90445-17179 |
GSR50 |
1 | ||
| 32942B - HOSE, OIL COOLER OUTLET, NO.3 | ||||
| 32942-28270 |
ACR50,GSR50 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 90467-16022 | ||||
| 91553-80612 | ||||
| 91651-B0820 | ||||
