Toyota Previa/tarago CLR30 BRAKE MASTER CYLINDER

CLR30R-MFMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Jan 2006

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

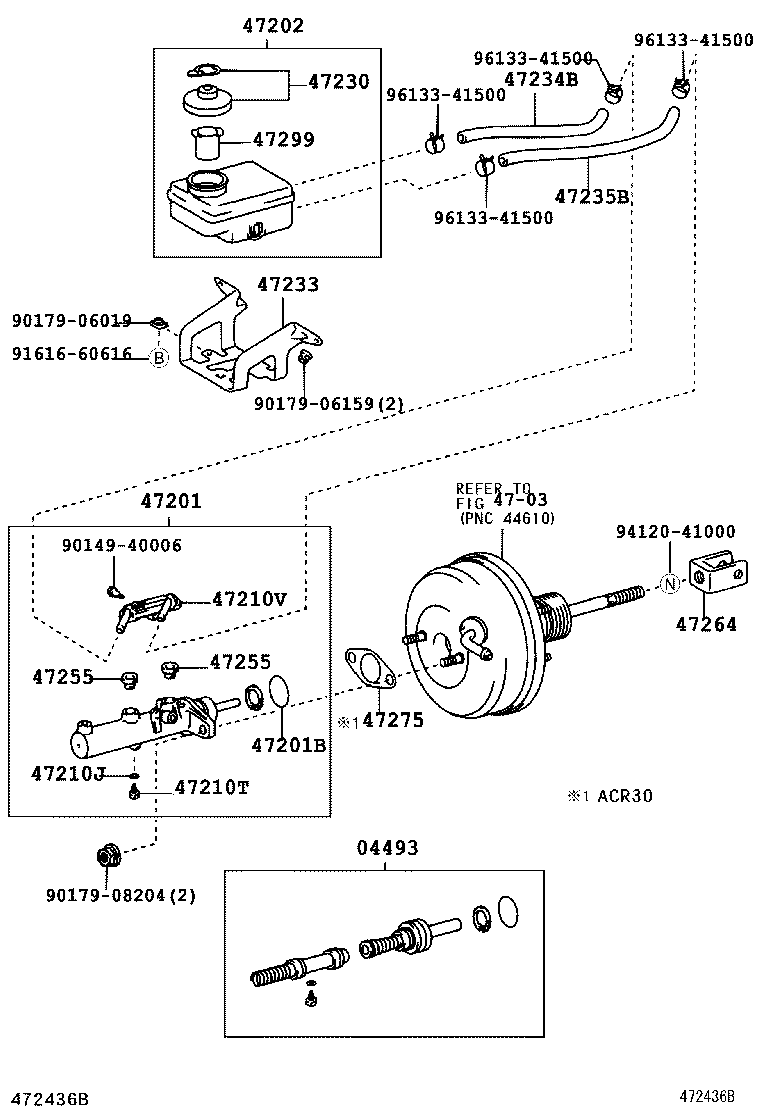

(0002-0304)RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-28160	ACR30,CLR30	02/2000 - 04/2003	1
04493-28180	ACR30,CLR30	04/2003 - 12/2999	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-28591	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47201-28620	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059	ACR30,CLR30	02/2000 - 04/2003	1
90015-EH001	ACR30,CLR30	04/2003 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-28280	ACR30,CLR30..MTM W(VSC)	04/2003 - 12/2999	1
47220-28250	ACR30,CLR30..MTM	02/2000 - 04/2003	1
47220-28250	ACR30,CLR30..MTM	04/2003 - 12/2999	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	ACR30,CLR30	02/2000 - 12/2001	1
90029-43001	ACR30,CLR30	12/2001 - 04/2003	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	ACR30,CLR30	02/2000 - 04/2003	1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40402	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	1
47230-28240	ACR30,CLR30	04/2003 - 12/2999	1
47230-28240	ACR30,CLR30	02/2000 - 04/2003	1
47233 - BRACKET, RESERVOIR
47233-28080	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47233-28080	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47234B - TUBE, RESERVOIR, NO.1
47234-28050	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47234-28120	ACR30,CLR30..RHD	04/2003 - 11/2003	1
47234-28121	ACR30,CLR30..RHD	11/2003 - 12/2999	1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-28050	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47235-28130	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47235-28120	ACR30,CLR30..RHD..EUR W(VSC)	04/2003 - 12/2999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-28620	ACR30,CLR30	04/2003 - 12/2999	2
47255-52010	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	2
47255-16010	ACR30,CLR30	02/2000 - 04/2003	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-28620	ACR30,CLR30	04/2003 - 12/2999	2
47255-52010	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	2
47255-16010	ACR30,CLR30	02/2000 - 04/2003	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020	ACR30,CLR30	02/2000 - 04/2003	1
47264-60020	ACR30,CLR30	04/2003 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	ACR30,CLR30	04/2003 - 12/2999	1
47299-24010	ACR30,CLR30	02/2000 - 04/2003	1
Common parts
90149-40006
90179-06019
90179-06159
90179-08204
91616-60616
94120-41000
96133-41500
Linked diagrams
4703

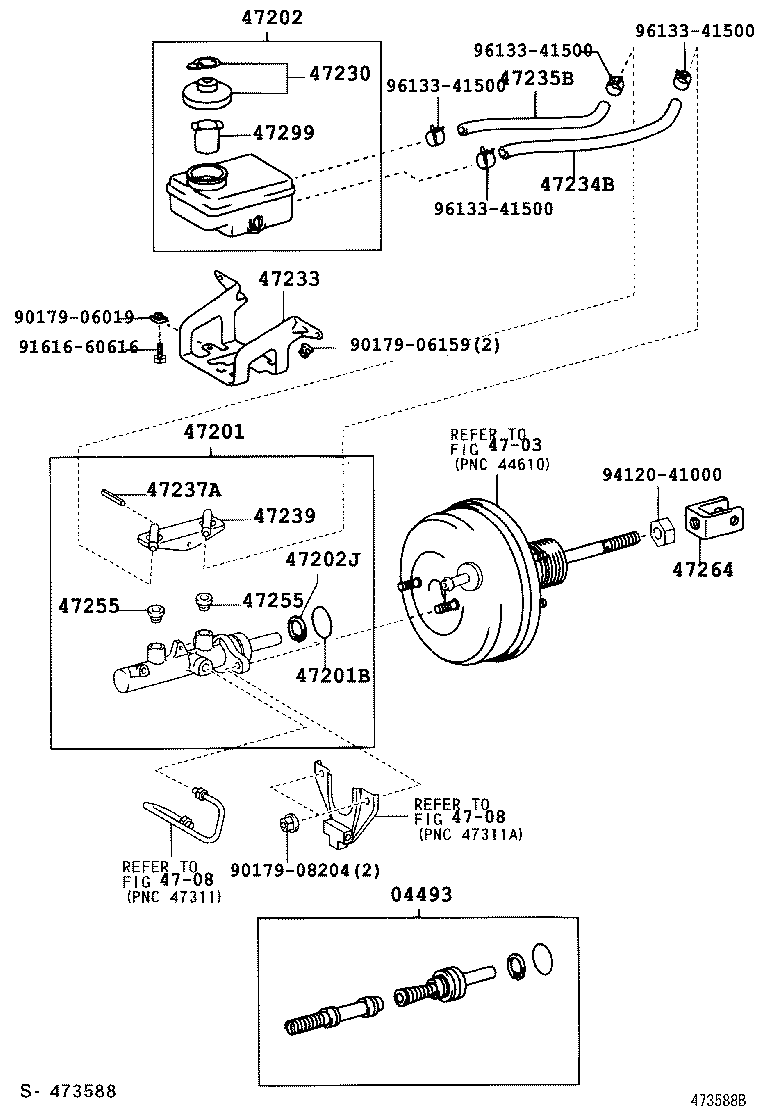

(0304- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-28160	ACR30,CLR30	02/2000 - 04/2003	1
04493-28180	ACR30,CLR30	04/2003 - 12/2999	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-28591	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47201-28620	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059	ACR30,CLR30	02/2000 - 04/2003	1
90015-EH001	ACR30,CLR30	04/2003 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-28280	ACR30,CLR30..MTM W(VSC)	04/2003 - 12/2999	1
47220-28250	ACR30,CLR30..MTM	02/2000 - 04/2003	1
47220-28250	ACR30,CLR30..MTM	04/2003 - 12/2999	1
47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
90015-EU001	ACR30..08S..ATM;ACR30,CLR30..06S,07S	04/2003 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	1
47230-28240	ACR30,CLR30	04/2003 - 12/2999	1
47230-28240	ACR30,CLR30	02/2000 - 04/2003	1
47233 - BRACKET, RESERVOIR
47233-28080	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47233-28080	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47234B - TUBE, RESERVOIR, NO.1
47234-28050	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47234-28120	ACR30,CLR30..RHD	04/2003 - 11/2003	1
47234-28121	ACR30,CLR30..RHD	11/2003 - 12/2999	1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-28050	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47235-28130	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47235-28120	ACR30,CLR30..RHD..EUR W(VSC)	04/2003 - 12/2999	1
47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK
47237-28620	ACR30,CLR30	04/2003 - 12/2999	1
47237-20020	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	1
47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR
47239-28610	ACR30,CLR30..RHD..EUR W(VSC)	04/2003 - 12/2999	1
47239-28620	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-28620	ACR30,CLR30	04/2003 - 12/2999	2
47255-52010	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	2
47255-16010	ACR30,CLR30	02/2000 - 04/2003	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-28620	ACR30,CLR30	04/2003 - 12/2999	2
47255-52010	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	2
47255-16010	ACR30,CLR30	02/2000 - 04/2003	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020	ACR30,CLR30	02/2000 - 04/2003	1
47264-60020	ACR30,CLR30	04/2003 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	ACR30,CLR30	04/2003 - 12/2999	1
47299-24010	ACR30,CLR30	02/2000 - 04/2003	1
Common parts
90179-06019
90179-06159
90179-08204
91616-60616
94120-41000
96133-41500
Linked diagrams
4703
4708

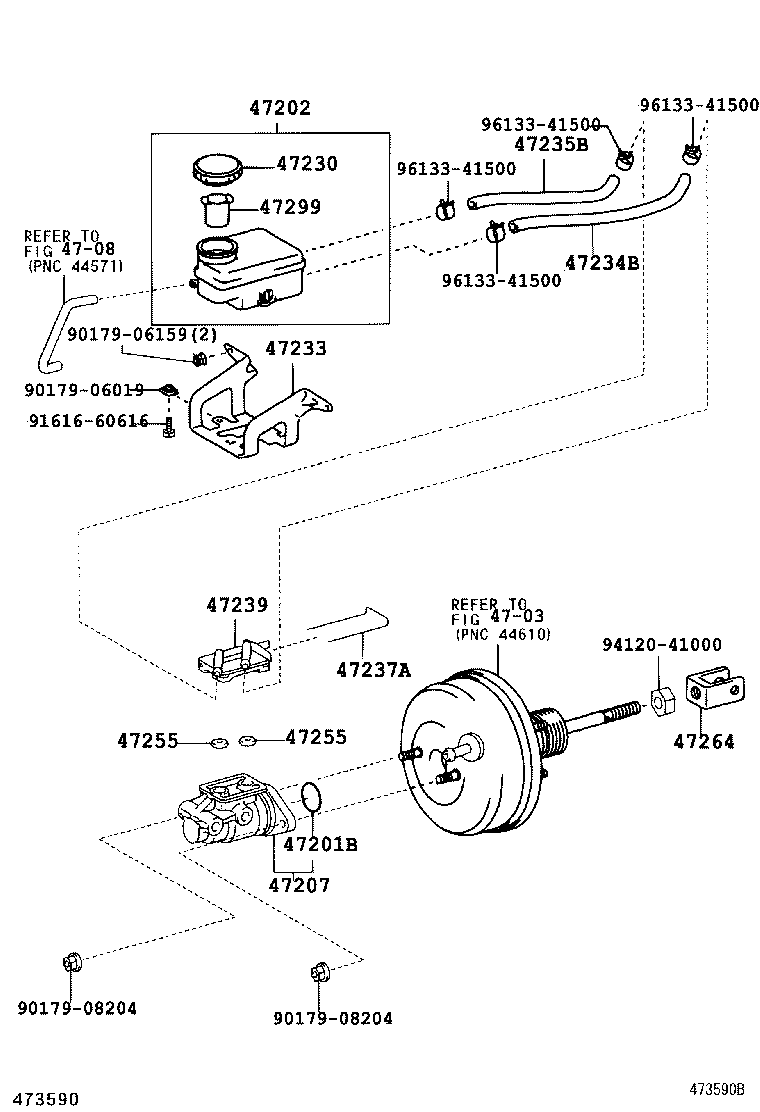

(0304- )RHD..EUR

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059	ACR30,CLR30	02/2000 - 04/2003	1
90015-EH001	ACR30,CLR30	04/2003 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-28280	ACR30,CLR30..MTM W(VSC)	04/2003 - 12/2999	1
47220-28250	ACR30,CLR30..MTM	02/2000 - 04/2003	1
47220-28250	ACR30,CLR30..MTM	04/2003 - 12/2999	1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	1
47230-28240	ACR30,CLR30	04/2003 - 12/2999	1
47230-28240	ACR30,CLR30	02/2000 - 04/2003	1
47233 - BRACKET, RESERVOIR
47233-28080	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47233-28080	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47234B - TUBE, RESERVOIR, NO.1
47234-28050	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47234-28120	ACR30,CLR30..RHD	04/2003 - 11/2003	1
47234-28121	ACR30,CLR30..RHD	11/2003 - 12/2999	1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-28050	ACR30,CLR30..RHD	02/2000 - 04/2003	1
47235-28130	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47235-28120	ACR30,CLR30..RHD..EUR W(VSC)	04/2003 - 12/2999	1
47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK
47237-28620	ACR30,CLR30	04/2003 - 12/2999	1
47237-20020	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	1
47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR
47239-28610	ACR30,CLR30..RHD..EUR W(VSC)	04/2003 - 12/2999	1
47239-28620	ACR30,CLR30..RHD	04/2003 - 12/2999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-28620	ACR30,CLR30	04/2003 - 12/2999	2
47255-52010	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	2
47255-16010	ACR30,CLR30	02/2000 - 04/2003	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-28620	ACR30,CLR30	04/2003 - 12/2999	2
47255-52010	ACR30,CLR30..EUR W(VSC)	04/2003 - 12/2999	2
47255-16010	ACR30,CLR30	02/2000 - 04/2003	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020	ACR30,CLR30	02/2000 - 04/2003	1
47264-60020	ACR30,CLR30	04/2003 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	ACR30,CLR30	04/2003 - 12/2999	1
47299-24010	ACR30,CLR30	02/2000 - 04/2003	1
Common parts
90179-06019
90179-06159
90179-08204
91616-60616
94120-41000
96133-41500
Linked diagrams
4703
4708

CLR30R-MFMDTW (2001)

(0002-0304)RHD

(0304- )RHD

(0304- )RHD..EUR
