CLR30L-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0102- )1CDFTV

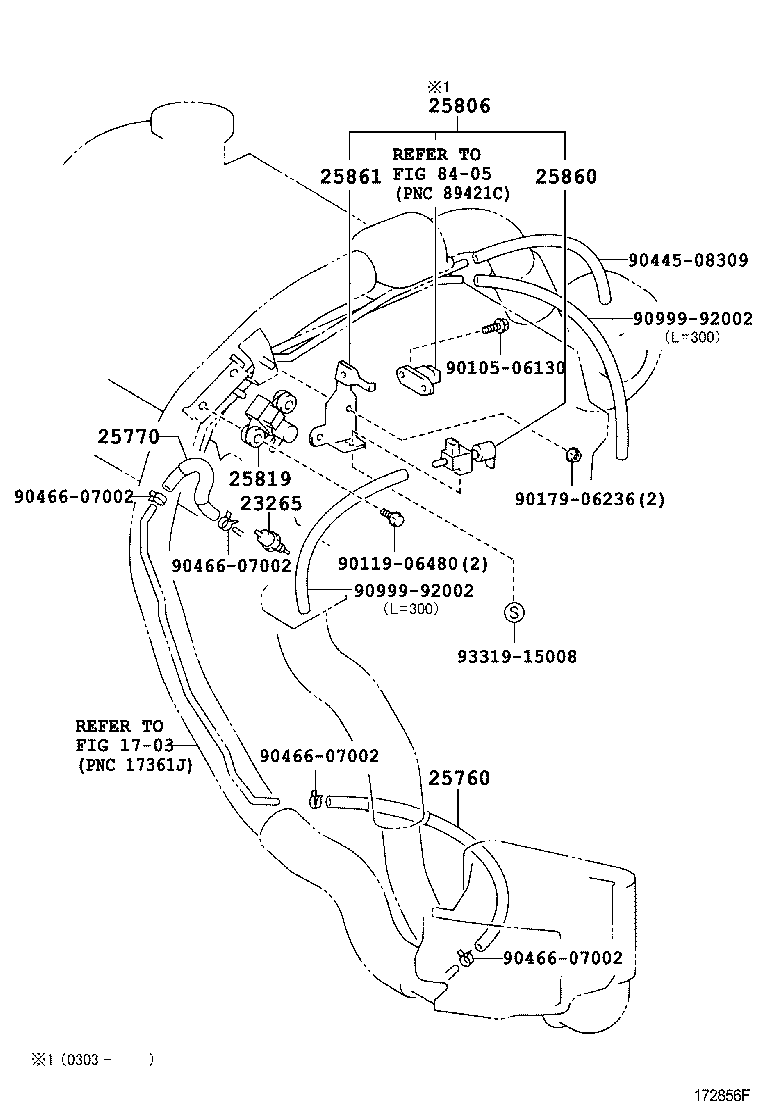

Click highlighted areas on diagram

diagram 1703 23265 25760 25770 25806 25819 25860 25861 8405 9010506130 9011906480 9017906236 9044508309 9046607002 9046607002 9046607002 9046607002 9099992002 9099992002 9331915008
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11037

1CDFTV..CLR30

 1
90917-11037

1CDFTV..CLR30..08S

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-27070

1CDFTV..CLR30..08S

 1
25760-27070

1CDFTV..CLR30

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-27040

1CDFTV..CLR30

 1
25770-27040

1CDFTV..CLR30..08S

 1
25806 - VALVE SET, PRESSURE CONTROL
25806-27030

1CDFTV..CLR30..07S,08S;1CDFTV..CLR30..LHD..06S

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-27030

1CDFTV..CLR30

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-27010

1CDFTV..CLR30

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-27040

1CDFTV..CLR30

 1
Common parts
90105-06130
90119-06480
90179-06236
90445-08309
90466-07002
90999-92002
93319-15008
Linked diagrams
1703
8405
