CLR30L-MFMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Jan 2006
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

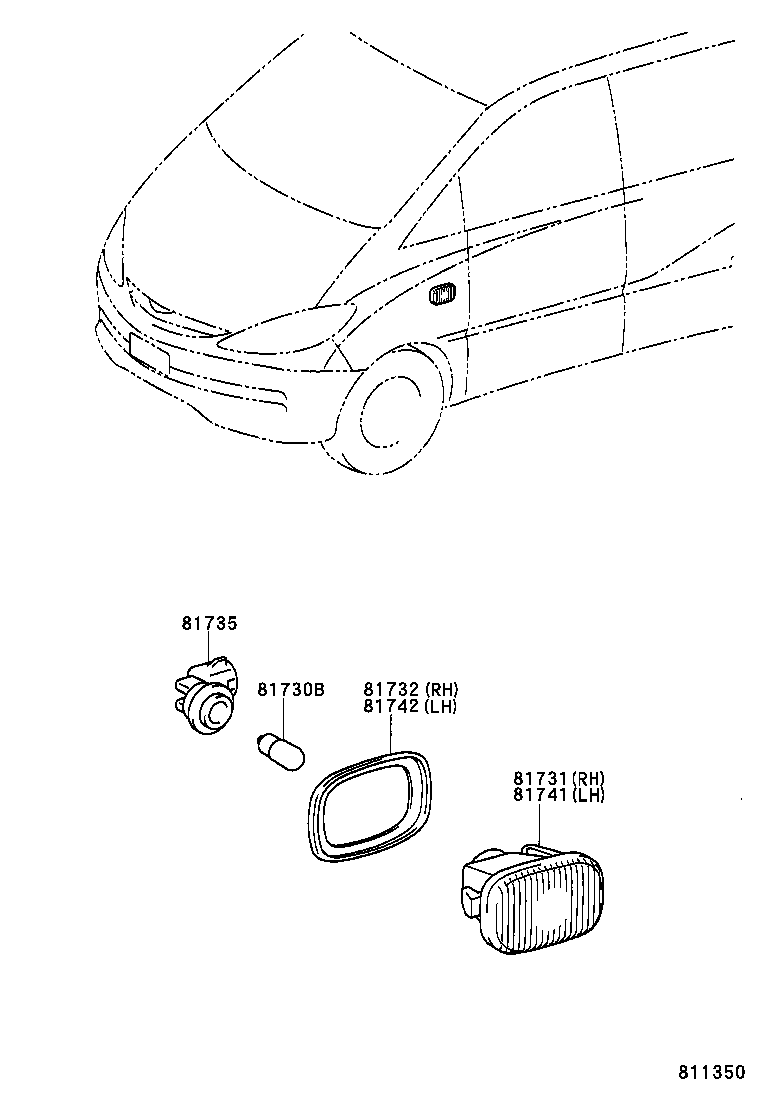

(0002-0304)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-12050 |
ACR30,CLR30 12V 5W |
2 | ||
| 90981-15012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-20220 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81732-17050 |
ACR30,CLR30 |
1 | ||
| 81732-20220 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90075-99012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 90075-99012 |
ACR30,CLR30 |
2 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81732-17050 |
ACR30,CLR30 |
1 | ||

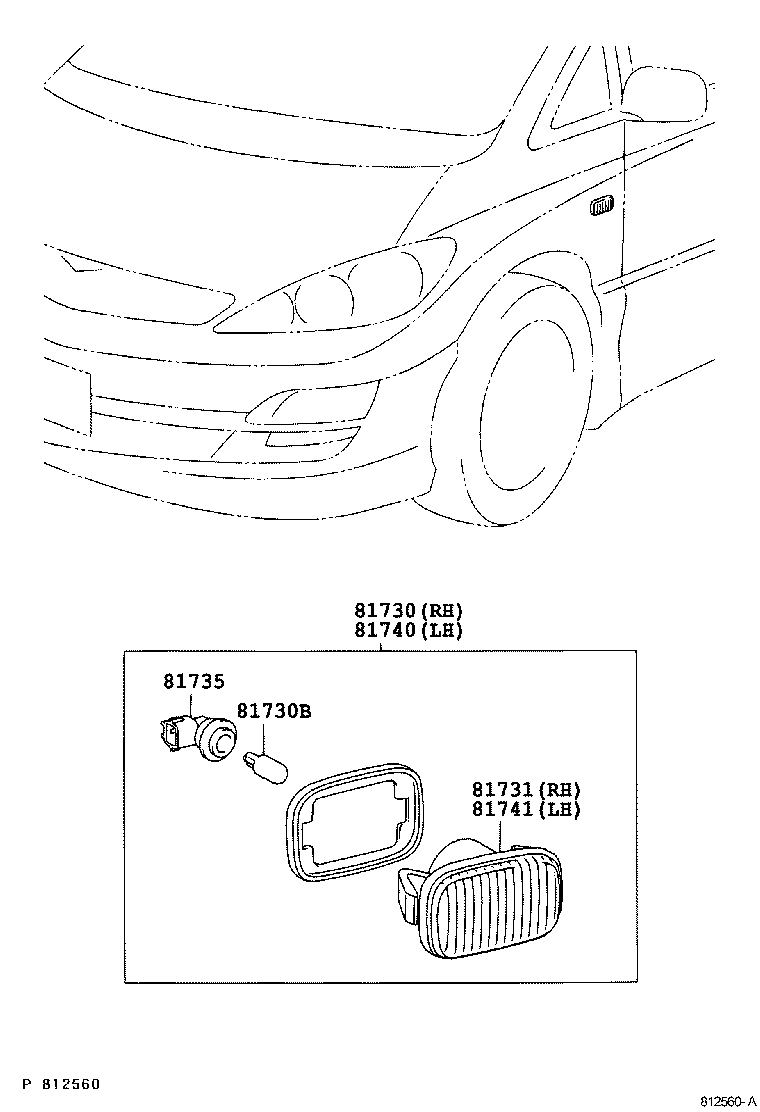

(0304- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-20220 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-12050 |
ACR30,CLR30 12V 5W |
2 | ||
| 90981-15012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-20220 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90075-99012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 90075-99012 |
ACR30,CLR30 |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-20220 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
