Toyota Previa/tarago CLR30 SLIDE ROLLER & RAIL

CLR30L-MFMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Jan 2006

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0002-0304)

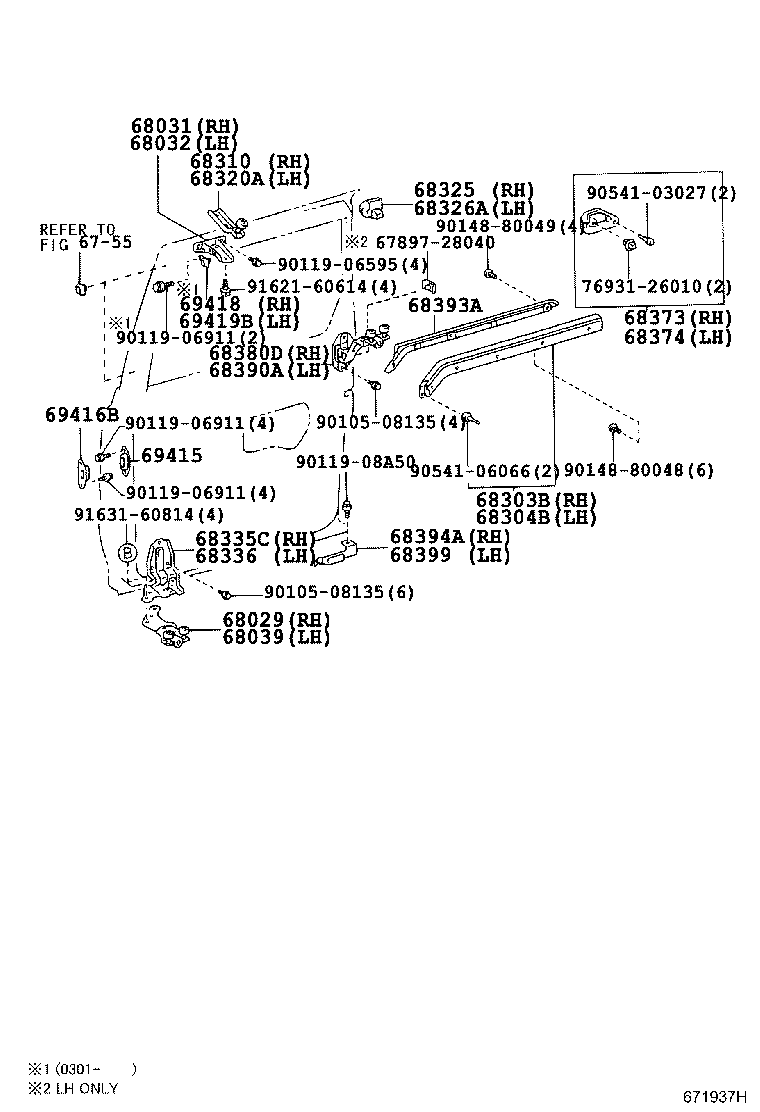

Click highlighted areas on diagram

Part #	Description	Period	Qty
68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029-28030	ACR30,CLR30	02/2000 - 04/2003	1
68029-28030	ACR30,CLR30	04/2003 - 12/2999	1
68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH
68031-28010	ACR30,CLR30	02/2000 - 01/2003	1
68031-28011	ACR30,CLR30	04/2003 - 12/2999	1
68031-28011	ACR30,CLR30	01/2003 - 04/2003	1
68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH
68032-28011	ACR30,CLR30	01/2003 - 04/2003	1
68032-28010	ACR30,CLR30	02/2000 - 01/2003	1
68032-28011	ACR30,CLR30	04/2003 - 12/2999	1
68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68039-28040	ACR30,CLR30	02/2000 - 04/2003	1
68039-28040	ACR30,CLR30	04/2003 - 12/2999	1
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-28050	ACR30,CLR30	02/2000 - 04/2003	1
68303-28050	ACR30,CLR30	04/2003 - 12/2999	1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-28080	ACR30,CLR30	02/2000 - 04/2003	1
68304-28080	ACR30,CLR30	04/2003 - 12/2999	1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68301-28020	ACR30,CLR30	02/2000 - 01/2003	1
68301-28021	ACR30,CLR30	04/2003 - 12/2999	1
68301-28021	ACR30,CLR30	01/2003 - 04/2003	1
68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68302-28011	ACR30,CLR30	01/2003 - 04/2003	1
68302-28010	ACR30,CLR30	02/2000 - 01/2003	1
68302-28011	ACR30,CLR30	04/2003 - 12/2999	1
68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH
68325-28010	ACR30,CLR30	02/2000 - 04/2003	1
68325-28011	ACR30,CLR30	08/2003 - 12/2999	1
68325-28010	ACR30,CLR30	04/2003 - 08/2003	1
68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH
68326-28010	ACR30,CLR30	04/2003 - 08/2003	1
68326-28010	ACR30,CLR30	02/2000 - 04/2003	1
68326-28011	ACR30,CLR30	08/2003 - 12/2999	1
68335C - ARM, SLIDE DOOR LOWER ROLLER, RH
68335-28020	ACR30,CLR30	02/2000 - 04/2003	1
68335-28020	ACR30,CLR30	04/2003 - 12/2999	1
68336 - ARM, SLIDE DOOR LOWER ROLLER, LH
68336-28040	ACR30,CLR30	04/2003 - 12/2999	1
68336-28040	ACR30,CLR30	02/2000 - 04/2003	1
68373 - MOULDING, SLIDE RAIL END, RH
68373-28040	ACR30,CLR30	02/2000 - 04/2003	1
68373-28040	ACR30,CLR30	04/2003 - 12/2999	1
68374 - MOULDING, SLIDE RAIL END, LH
68374-28100	ACR30,CLR30	04/2003 - 12/2999	1
68374-28100	ACR30,CLR30	02/2000 - 04/2003	1
68380D - HINGE ASSY, SLIDE DOOR, CENTER RH
68380-28010	ACR30,CLR30	04/2003 - 12/2999	1
68380-28010	ACR30,CLR30	02/2000 - 04/2003	1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-28020	ACR30,CLR30	02/2000 - 04/2003	1
68390-28020	ACR30,CLR30	04/2003 - 12/2999	1
68393A - PROTECTOR, SLIDE DOOR CENTER RAIL
61057-28010	ACR30,CLR30 RH	04/2003 - 12/2999	1
61067-28020	ACR30,CLR30 LH	02/2000 - 04/2003	1
61057-28010	ACR30,CLR30 RH	02/2000 - 04/2003	1
61067-28020	ACR30,CLR30 LH	04/2003 - 12/2999	1
68394A - PLATE, SLIDE DOOR LOWER RAIL, RH
68394-28010	ACR30,CLR30	04/2003 - 12/2999	1
68394-28010	ACR30,CLR30	02/2000 - 04/2003	1
68399 - PLATE, SLIDE DOOR LOWER RAIL, LH
68399-28020	ACR30,CLR30	02/2000 - 04/2003	1
68399-28020	ACR30,CLR30	04/2003 - 12/2999	1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-26010	ACR30,CLR30	02/2000 - 09/2001	2
69415-28030	ACR30,CLR30	04/2003 - 12/2999	2
69405-28010	ACR30,CLR30	09/2001 - 04/2003	2
69416B - STOPPER, SLIDE DOOR DOWN MALE
69416-28050	ACR30,CLR30	04/2003 - 10/2005	2
69416-26010	ACR30,CLR30	02/2000 - 04/2003	2
69416-28110	ACR30,CLR30	10/2005 - 12/2999	2
69418 - STOP, SLIDE DOOR OPEN
69418-28050	ACR30,CLR30	04/2003 - 12/2999	1
69418-28050	ACR30,CLR30	01/2003 - 04/2003	1
69419B - STOP, SLIDE DOOR OPEN, LH
69419-28030	ACR30,CLR30	04/2003 - 12/2999	1
69419-28030	ACR30,CLR30	01/2003 - 04/2003	1
Common parts
67897-28040
76931-26010
90105-08135
90119-06595
90119-06911
90119-08A50
90148-80048
90148-80049
90541-03027
90541-06066
91621-60614
91631-60814
Linked diagrams
6755

(0304- )

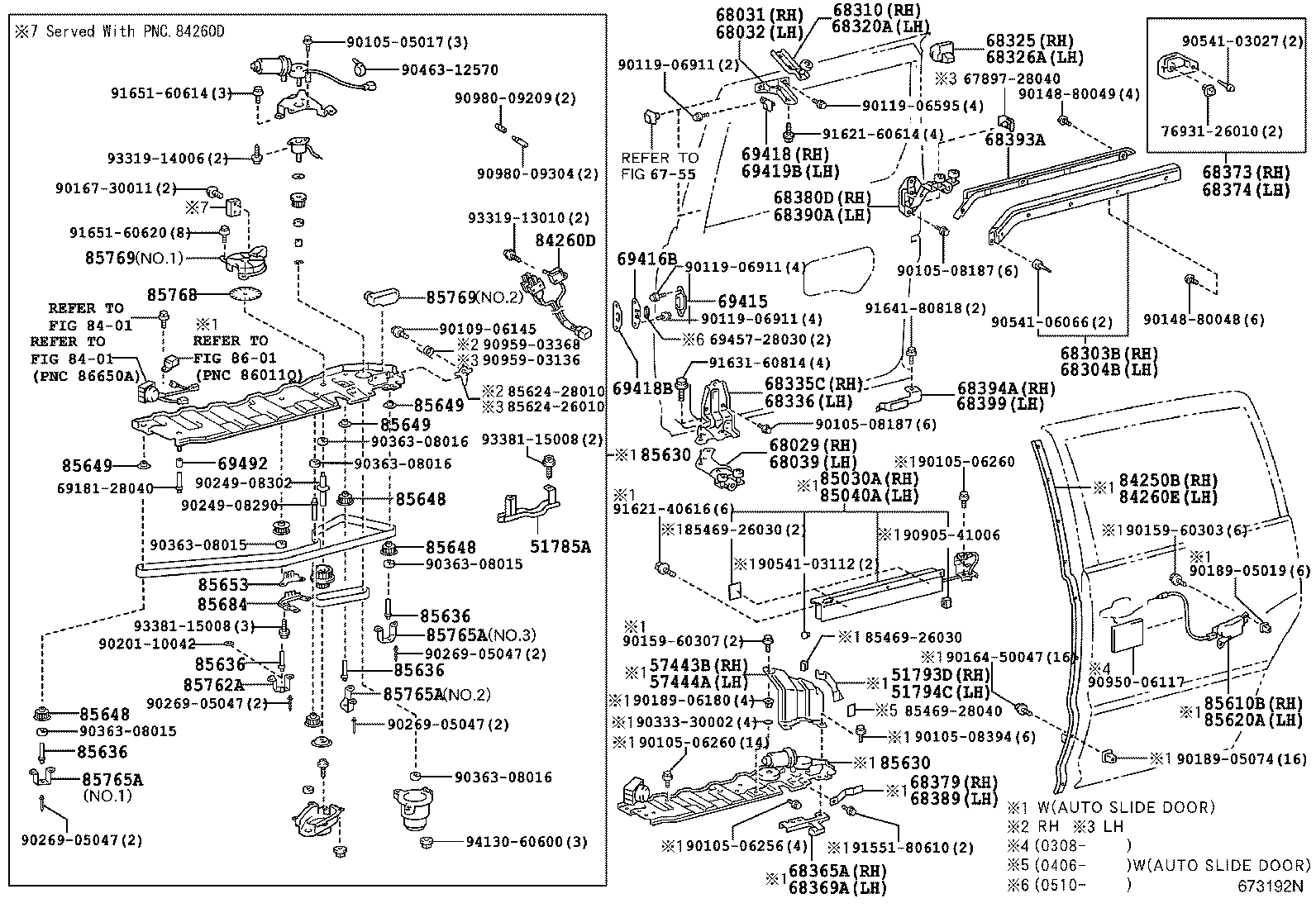

Click highlighted areas on diagram

Part #	Description	Period	Qty
68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029-28030	ACR30,CLR30	02/2000 - 04/2003	1
68029-28030	ACR30,CLR30	04/2003 - 12/2999	1
68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH
68031-28010	ACR30,CLR30	02/2000 - 01/2003	1
68031-28011	ACR30,CLR30	04/2003 - 12/2999	1
68031-28011	ACR30,CLR30	01/2003 - 04/2003	1
68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH
68032-28011	ACR30,CLR30	01/2003 - 04/2003	1
68032-28010	ACR30,CLR30	02/2000 - 01/2003	1
68032-28011	ACR30,CLR30	04/2003 - 12/2999	1
68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68039-28040	ACR30,CLR30	02/2000 - 04/2003	1
68039-28040	ACR30,CLR30	04/2003 - 12/2999	1
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-28050	ACR30,CLR30	02/2000 - 04/2003	1
68303-28050	ACR30,CLR30	04/2003 - 12/2999	1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-28080	ACR30,CLR30	02/2000 - 04/2003	1
68304-28080	ACR30,CLR30	04/2003 - 12/2999	1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68301-28020	ACR30,CLR30	02/2000 - 01/2003	1
68301-28021	ACR30,CLR30	04/2003 - 12/2999	1
68301-28021	ACR30,CLR30	01/2003 - 04/2003	1
68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68302-28011	ACR30,CLR30	01/2003 - 04/2003	1
68302-28010	ACR30,CLR30	02/2000 - 01/2003	1
68302-28011	ACR30,CLR30	04/2003 - 12/2999	1
68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH
68325-28010	ACR30,CLR30	02/2000 - 04/2003	1
68325-28011	ACR30,CLR30	08/2003 - 12/2999	1
68325-28010	ACR30,CLR30	04/2003 - 08/2003	1
68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH
68326-28010	ACR30,CLR30	04/2003 - 08/2003	1
68326-28010	ACR30,CLR30	02/2000 - 04/2003	1
68326-28011	ACR30,CLR30	08/2003 - 12/2999	1
68335C - ARM, SLIDE DOOR LOWER ROLLER, RH
68335-28020	ACR30,CLR30	02/2000 - 04/2003	1
68335-28020	ACR30,CLR30	04/2003 - 12/2999	1
68336 - ARM, SLIDE DOOR LOWER ROLLER, LH
68336-28040	ACR30,CLR30	04/2003 - 12/2999	1
68336-28040	ACR30,CLR30	02/2000 - 04/2003	1
68373 - MOULDING, SLIDE RAIL END, RH
68373-28040	ACR30,CLR30	02/2000 - 04/2003	1
68373-28040	ACR30,CLR30	04/2003 - 12/2999	1
68374 - MOULDING, SLIDE RAIL END, LH
68374-28100	ACR30,CLR30	04/2003 - 12/2999	1
68374-28100	ACR30,CLR30	02/2000 - 04/2003	1
68380D - HINGE ASSY, SLIDE DOOR, CENTER RH
68380-28010	ACR30,CLR30	04/2003 - 12/2999	1
68380-28010	ACR30,CLR30	02/2000 - 04/2003	1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-28020	ACR30,CLR30	02/2000 - 04/2003	1
68390-28020	ACR30,CLR30	04/2003 - 12/2999	1
68393A - PROTECTOR, SLIDE DOOR CENTER RAIL
61057-28010	ACR30,CLR30 RH	04/2003 - 12/2999	1
61067-28020	ACR30,CLR30 LH	02/2000 - 04/2003	1
61057-28010	ACR30,CLR30 RH	02/2000 - 04/2003	1
61067-28020	ACR30,CLR30 LH	04/2003 - 12/2999	1
68394A - PLATE, SLIDE DOOR LOWER RAIL, RH
68394-28010	ACR30,CLR30	04/2003 - 12/2999	1
68394-28010	ACR30,CLR30	02/2000 - 04/2003	1
68399 - PLATE, SLIDE DOOR LOWER RAIL, LH
68399-28020	ACR30,CLR30	02/2000 - 04/2003	1
68399-28020	ACR30,CLR30	04/2003 - 12/2999	1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-26010	ACR30,CLR30	02/2000 - 09/2001	2
69415-28030	ACR30,CLR30	04/2003 - 12/2999	2
69405-28010	ACR30,CLR30	09/2001 - 04/2003	2
69416B - STOPPER, SLIDE DOOR DOWN MALE
69416-28050	ACR30,CLR30	04/2003 - 10/2005	2
69416-26010	ACR30,CLR30	02/2000 - 04/2003	2
69416-28110	ACR30,CLR30	10/2005 - 12/2999	2
69418 - STOP, SLIDE DOOR OPEN
69418-28050	ACR30,CLR30	04/2003 - 12/2999	1
69418-28050	ACR30,CLR30	01/2003 - 04/2003	1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-28070	ACR30,CLR30	04/2003 - 12/2999	1
69419B - STOP, SLIDE DOOR OPEN, LH
69419-28030	ACR30,CLR30	04/2003 - 12/2999	1
69419-28030	ACR30,CLR30	01/2003 - 04/2003	1
Common parts
67897-28040
69181-28040
69457-28030
76931-26010
85469-26030
85469-28040
85624-26010
85624-28010
90105-05017
90105-06256
90105-06260
90105-08187
90105-08394
90109-06145
90119-06595
90119-06911
90148-80048
90148-80049
90159-60303
90159-60307
90164-50047
90167-30011
90189-05019
90189-05074
90189-06180
90201-10042
90249-08290
90249-08302
90269-05047
90333-30002
90363-08015
90363-08016
90463-12570
90541-03027
90541-03112
90541-06066
90905-41006
90950-06117
90959-03136
90959-03368
90980-09209
90980-09304
91551-80610
91621-40616
91621-60614
91631-60814
91641-80818
91651-60614
91651-60620
93319-13010
93319-14006
93381-15008
94130-60600
Linked diagrams
6755
8401
8601

CLR30L-MFMDTW (2001)

(0002-0304)

(0304- )
