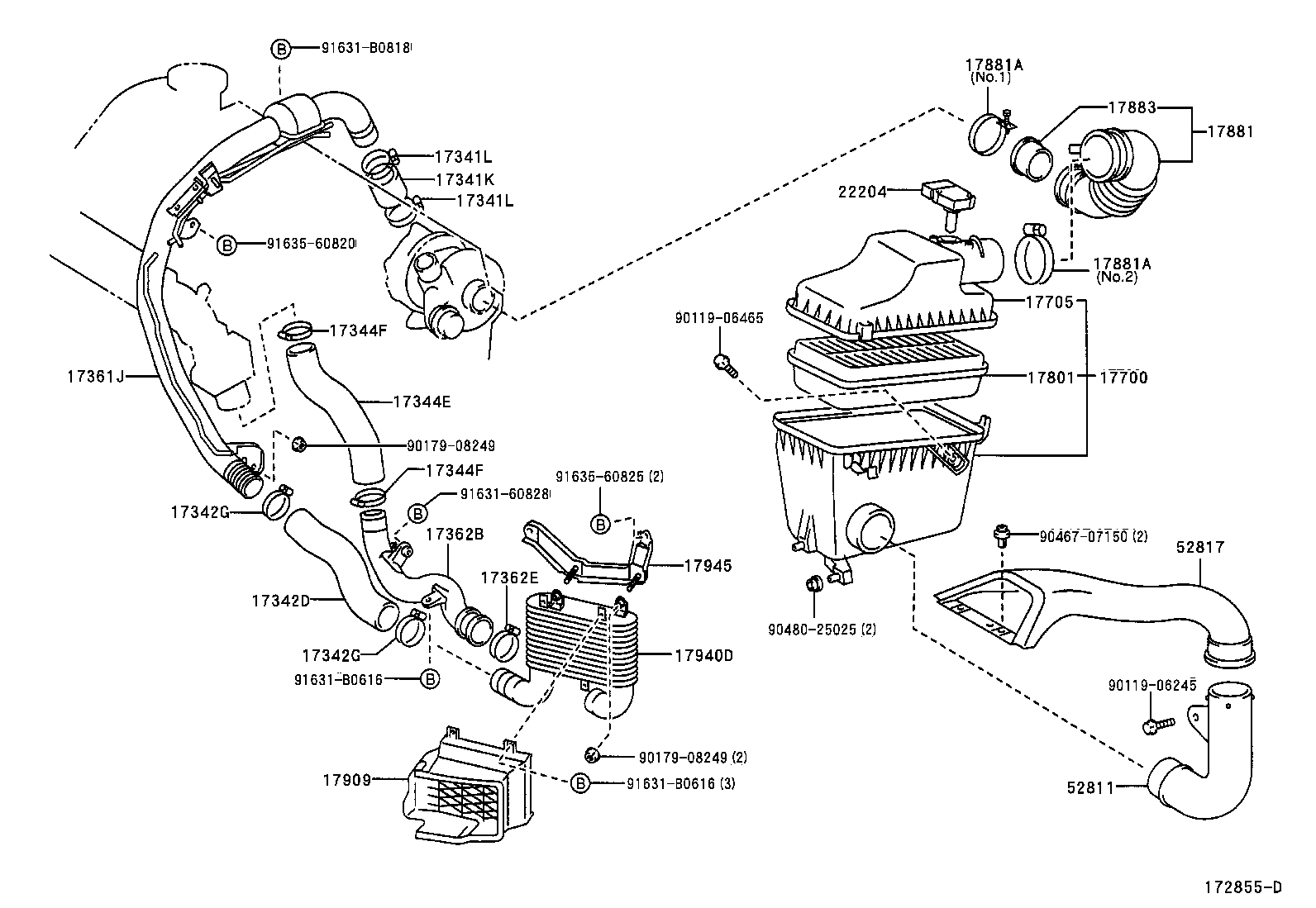

CLR30L-MFMDTW (2001)
Toyota Previa/Tarago
(0102- )1CDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17341-27030 |
1CDFTV..CLR30 |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90460-60006 |
1CDFTV..CLR30 |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90460-60006 |
1CDFTV..CLR30 |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-27030 |
1CDFTV..CLR30 |
1 | ||
| 17342-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-70009 |
1CDFTV..CLR30 |
2 | ||
| 90460-70003 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-70009 |
1CDFTV..CLR30 |
2 | ||
| 90460-70003 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-27020 |
1CDFTV..CLR30 |
1 | ||
| 17344-27020 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-70009 |
1CDFTV..CLR30 |
2 | ||
| 90460-70003 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-70009 |
1CDFTV..CLR30 |
2 | ||
| 90460-70003 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-27050 |
1CDFTV..CLR30 |
1 | ||
| 17361-27050 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-27030 |
1CDFTV..CLR30 |
1 | ||
| 17362-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90460-70003 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 90460-70009 |
1CDFTV..CLR30 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-27160 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17700-27160 |
1CDFTV..CLR30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17705-27030 |
1CDFTV..CLR30 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17801-27010 |
1CDFTV..CLR30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17880-27030 |
1CDFTV..CLR30 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-51002 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 90466-62002 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 90466-62001 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 90466-51002 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-51002 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 90466-62002 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 90466-62001 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 90466-51002 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-27010 |
1CDFTV..CLR30 |
1 | ||
| 17883-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-27040 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17909-27010 |
1CDFTV..CLR30 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-27020 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 17940-27020 |
1CDFTV..CLR30 |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-27010 |
1CDFTV..CLR30 |
1 | ||
| 17945-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 22204-27010 |
1CDFTV..CLR30 |
1 | ||
| 52811 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52811-28110 |
CLR30 |
1 | ||
| 52811-28110 |
CLR30..06S,07S |
1 | ||
| 52817 - DUCT, COOL AIR INTAKE, NO.7 | ||||
| 52817-28050 |
CLR30 |
1 | ||
| 52817-28050 |
CLR30..06S,07S |
1 | ||
| Common parts | ||||
| 90119-06245 | ||||
| 90119-06465 | ||||
| 90179-08249 | ||||
| 90467-07150 | ||||
| 90480-25025 | ||||
| 91631-60828 | ||||
| 91631-B0616 | ||||
| 91631-B0818 | ||||
| 91635-60820 | ||||
| 91635-60825 | ||||
