CLR30L-MDMDTW (2001)
Toyota Previa/Tarago

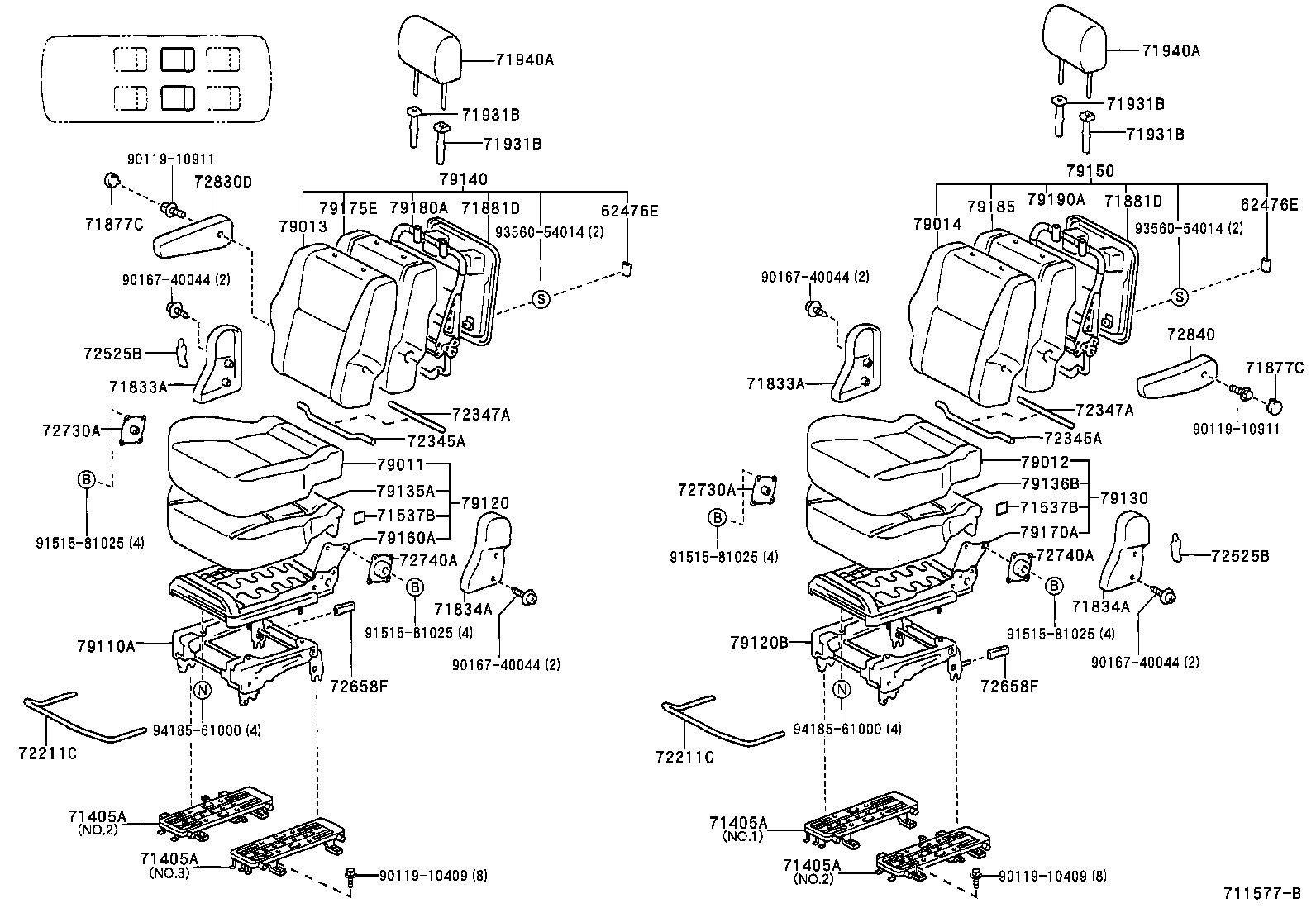

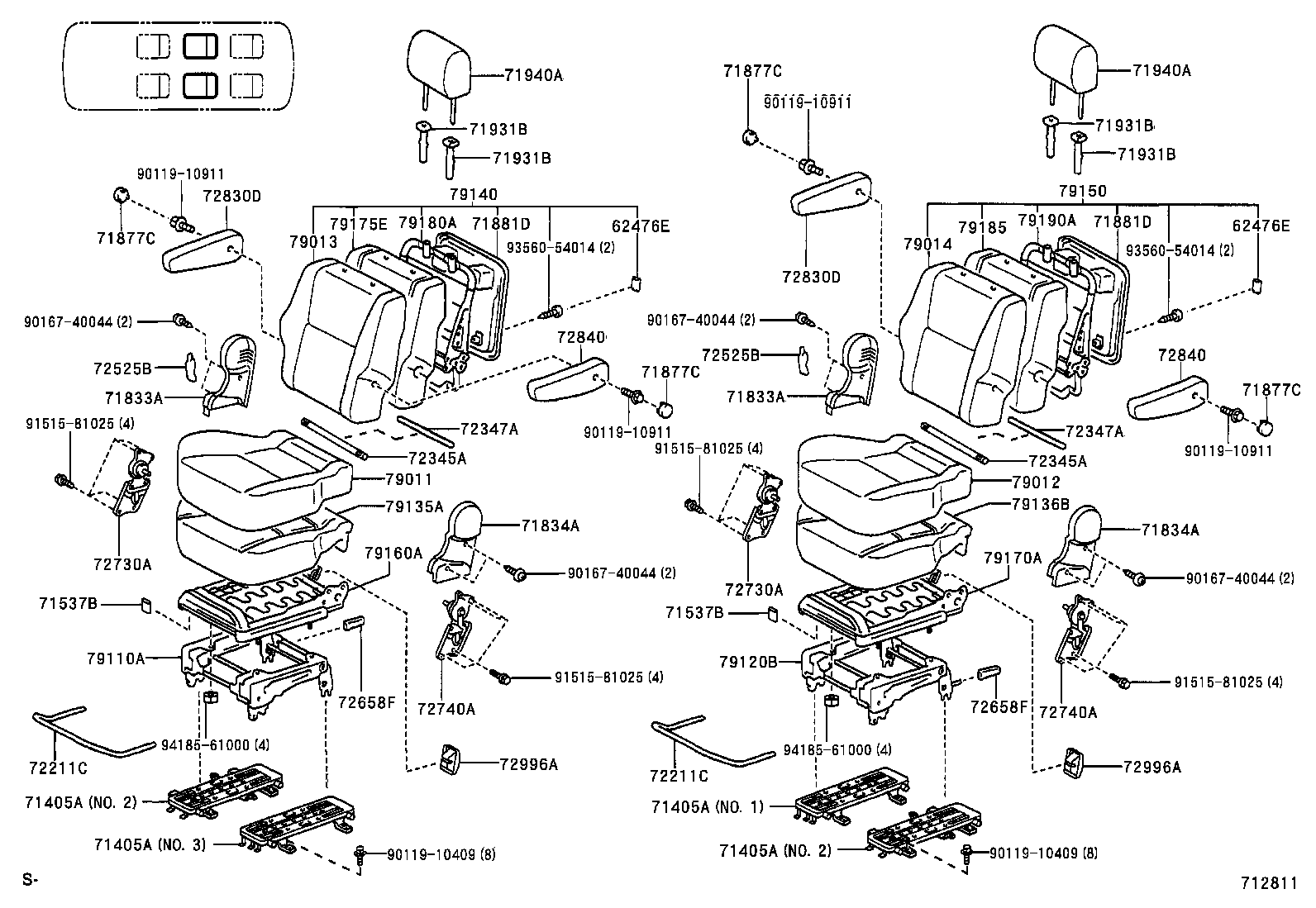

ILLUST NO. 2 OF 4(0002-0304)06S
DTACHBL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476E - CAP, REAR SEAT | ||||
| 62476-26010B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
4 | ||
| 62476-26010B1 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
4 | ||
| 62476-26010B5 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
4 | ||
| 62476E - CAP, REAR SEAT | ||||
| 62476-26010B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
4 | ||
| 62476-26010B1 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
4 | ||
| 62476-26010B5 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
4 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT |
8 | ||
| 71537-26010 |
ACR30,CLR30..06S DTACHBL SEAT |
8 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT |
8 | ||
| 71537-26010 |
ACR30,CLR30..06S DTACHBL SEAT |
8 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-28180B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28181B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28180B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-28180B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28181B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28180B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-28170B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28170B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28171B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-28170B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28170B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28171B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030B6 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
4 | ||
| 72848-28030B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
2 | ||
| 72848-28030B2 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030B6 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
4 | ||
| 72848-28030B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
2 | ||
| 72848-28030B2 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-28040B3 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 71881-28040B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
2 | ||
| 71881-28040B2 |
ACR30,CLR30..(06S,07S)..EUR MD.CHARCOAL,TRIM12 |
2 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-28040B3 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 71881-28040B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
2 | ||
| 71881-28040B2 |
ACR30,CLR30..(06S,07S)..EUR MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-2J070B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J071B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J070B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J071B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30..DX..ARL;ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71940-28A20B0 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-2J070B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J071B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J070B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J071B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30..DX..ARL;ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71940-28A20B0 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347A - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347A - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28030B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 72525-28030B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72525-28030B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28030B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 72525-28030B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72525-28030B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 72658F - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM11,12 |
4 | ||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM1# |
4 | ||
| 72658F - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM11,12 |
4 | ||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM1# |
4 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-28650B0 |
CLR30..06S SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72830-28610B2 |
CLR30..06S MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72830-28610B5 |
CLR30..06S BLUISH GRAY,TRIM11 |
1 | ||
| 72830-28611B5 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72830-28611B2 |
ACR30,CLR30..06S MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72830-28651B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72830-28651B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM1# |
2 | ||
| 72830-28611B6 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-28400B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72840-28310B0 |
ACR30,CLR30..06S SEAT = TYPE H-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72840-28400B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11 |
2 | ||
| 72840-28311B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM1# |
2 | ||
| 72840-28401B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72840-28311B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72840-28401B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11 |
2 | ||
| 72840-28401B5 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28700B1 |
CLR30..06S,07S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79011-28700B4 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79011-28A50B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(DETACHABLE SEAT),GRAY,TRIM1# |
2 | ||
| 79011-28A20B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79011-28760B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-28700B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79011-28A20B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79011-28700B4 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79011-28A50B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(DETACHABLE SEAT),GRAY,TRIM1# |
1 | ||
| 79011-28760B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-2J010B0 |
ACR30,CLR30..06S SEAT = TYPE G-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-2J040B1 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79013-2J040B4 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-28A10B0 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-2J040B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79013-2J010B0 |
ACR30,CLR30..06S SEAT = TYPE H-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-2J040B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-28A10B0 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79013-2J010B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 79110A - LEG ASSY, NO.1 SEAT, RH | ||||
| 79110-2J360B2 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 79110-2J360B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 79110-2J360B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-2J470B0 |
CLR30..06S,07S;ACR30..LHD..06S..ATM;ACR30..LHD..(06S,07S)..MTM;ACR30..RHD..(06S,07S)..EUR SEAT = TYPE H-*104,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79110-2J360B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 79110-2J360B2 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 79110-2J360B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-2J470B0 |
CLR30..06S,07S;ACR30..LHD..06S..ATM;ACR30..LHD..(06S,07S)..MTM;ACR30..RHD..(06S,07S)..EUR SEAT = TYPE H-*104,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28170 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79135-28150 |
CLR30..06S,07S |
1 | ||
| 79135-28320 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT & LEATHER SEAT) |
1 | ||
| 79135-28290 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-28170 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79135-28150 |
CLR30..06S,07S |
1 | ||
| 79135-28320 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT & LEATHER SEAT) |
1 | ||
| 79135-28290 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-2J720B2 |
ACR30,CLR30..06S DARK GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-2J720B2 |
ACR30,CLR30..06S DARK GRAY,TRIM1# |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79160-28240 |
CLR30..06S,07S |
1 | ||
| 79160-28280 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79160-28280 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79160-28240 |
CLR30..06S,07S |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28190 |
ACR30,CLR30..06S LEATHER SEAT |
1 | ||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28190 |
CLR30..06S;ACR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| 79180-28470 |
ACR30,CLR30..06S DTACHBL SEAT & W(ARMREST) |
1 | ||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28190 |
CLR30..06S;ACR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28190 |
ACR30,CLR30..06S LEATHER SEAT |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79180-28470 |
ACR30,CLR30..06S DTACHBL SEAT & W(ARMREST) |
1 | ||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| 90119-10911 | ||||
| 90167-40044 | ||||
| 91515-81025 | ||||
| 93560-54014 | ||||
| 94185-61000 | ||||
ILLUST NO. 1 OF 4(0002-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28070 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28070 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J660B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J540B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2R150B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J540B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J670B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J560B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R190B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R200B1 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R170B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-2R180B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R160B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J580B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J550B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J580B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71072-2J660B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J650B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-2J690B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J640B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2J700B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J640B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J630B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J670B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J670B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J680B1 |
ACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J660B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-2J680B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J620B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J620B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J870B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J890B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2R400B0 |
ACR30,CLR30..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R480B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R440B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R410B0 |
CLR30..LHD..08S;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R490B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R410B0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R470B1 |
ACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R440B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R470B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R490B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J820B5 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J810B5 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2R040B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2R030B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J810B9 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J820B9 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,BLUISH GRAY,TRIM11 |
1 | ||
| 71074-2J780B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074-2J800B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R020B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2J790B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R040B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R010B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2J790B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074-2J800B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71074-2R040B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2R020B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2J520B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J430B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J420B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 71410-2J420B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J430B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM12 |
1 | ||
| 71410-2J421B0 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J431B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J530B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J431B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),CHARCOAL,TRIM12 |
1 | ||
| 71410-2J421B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,CHARCOAL,TRIM12 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2J410B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM12 |
1 | ||
| 71420-2J400B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71420-2J400B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 71420-2J490B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71420-2J480B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71420-2J401B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,CHARCOAL,TRIM12 |
1 | ||
| 71420-2J410B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2R130B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71430-2R180B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE B-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71430-2R100B0 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71430-2R160B1 |
ACR30..GL..(ARL,GEN);ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2J620B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),MD.CHARCOAL,TRIM12 |
1 | ||
| 71440-2J610B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MD.CHARCOAL,TRIM12 |
1 | ||
| 71440-2R090B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440-2J620B4 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71440-2J610B4 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71440-2R210B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440-2R230B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440-2R220B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71052-28050 |
ACR30,CLR30..LHD..(06S,07S)..EUR LEATHER SEAT & W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71511-28220 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 71052-28030 |
ACR30,CLR30..LHD..EUR W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71511-28280 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 71511-28220 |
ACR30..ATM;ACR30,CLR30..LHD..MTM FABRIC SEAT |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28330 |
ACR30,CLR30..(06S,07S)..EUR W(ARMREST) & LEATHER SEAT |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28270 |
ACR30,CLR30..LHD..(06S,07S)..EUR W(ARMREST) |
1 | ||
| 71551-28450 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28480 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71551-28480 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT & W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28450 |
ACR30,CLR30..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28290 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR |
1 | ||
| 71551-28460 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28490 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT & W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28360 |
ACR30,CLR30..(06S,07S)..EUR W(ARMREST) & LEATHER SEAT |
1 | ||
| 71551-28460 |
ACR30,CLR30..EUR |
1 | ||
| 71551-28490 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28330 |
ACR30,CLR30..EUR W(ARMREST) |
1 | ||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71013-28340 |
ACR30,CLR30..EUR W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2J070B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J070B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J190B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-2J270B0 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J270B0 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
4 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2J070B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J070B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J190B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-2J270B0 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J270B0 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B6 |
ACR30,CLR30..EUR MD.GRAY,TRIM1# |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B6 |
ACR30,CLR30..EUR MD.GRAY,TRIM1# |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28740B0 |
CLR30..06S,07S;ACR30..LHD..06S..ATM;ACR30..LHD..(06S,07S)..MTM;ACR30..RHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28741B2 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 72890-28701B9 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 72890-28741B2 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
2 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28741B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28870B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28871B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28871B2 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 72880-28841P0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 72880-28871B2 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
| 93530-55016 | ||||
ILLUST NO. 2 OF 4(0304- )06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476E - CAP, REAR SEAT | ||||
| 62476-26010B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
4 | ||
| 62476-26010B1 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
4 | ||
| 62476-26010B5 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
4 | ||
| 62476E - CAP, REAR SEAT | ||||
| 62476-26010B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
4 | ||
| 62476-26010B1 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
4 | ||
| 62476-26010B5 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
4 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-28030 |
ACR30,CLR30..(06S,07S)..EUR NO.1 |
1 | ||
| 71405-28050 |
ACR30,CLR30..(06S,07S)..EUR NO.3 |
1 | ||
| 71405-28040 |
ACR30,CLR30..(06S,07S)..EUR NO.2 |
2 | ||
| 71405-28040 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28050 |
ACR30,CLR30..06S NO.3 |
1 | ||
| 71405-28041 |
ACR30,CLR30..06S NO.2 |
2 | ||
| 71405-28030 |
ACR30,CLR30..06S NO.1 |
1 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT |
8 | ||
| 71537-26010 |
ACR30,CLR30..06S DTACHBL SEAT |
8 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT |
8 | ||
| 71537-26010 |
ACR30,CLR30..06S DTACHBL SEAT |
8 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-28180B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28181B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28180B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-28180B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28181B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71811-28180B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71811-28181B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-28170B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28170B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28171B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-28170B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28170B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 71812-28171B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71812-28171B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030B6 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
4 | ||
| 72848-28030B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
2 | ||
| 72848-28030B2 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030B6 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
4 | ||
| 72848-28030B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
2 | ||
| 72848-28030B2 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030B6 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
4 | ||
| 72848-28030B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
2 | ||
| 72848-28030B2 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030B6 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
4 | ||
| 72848-28030B4 |
ACR30,CLR30..06S MD.CHARCOAL,TRIM12 |
2 | ||
| 72848-28030B2 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-28040B3 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 71881-28040B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
2 | ||
| 71881-28040B2 |
ACR30,CLR30..(06S,07S)..EUR MD.CHARCOAL,TRIM12 |
2 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-28040B3 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 71881-28040B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
2 | ||
| 71881-28040B2 |
ACR30,CLR30..(06S,07S)..EUR MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B1 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B2 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B8 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.GRAY,TRIM1#,RH & LH SEAT |
2 | ||
| 71931-30030B1 |
ACR30,CLR30..(06S,07S)..EUR W/O(LOCK),DTACHBL SEAT,MD.CHARCOAL,TRIM12 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-2J070B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J071B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J070B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J071B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30..DX..ARL;ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71940-28A20B0 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-2J070B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J071B3 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J070B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J071B8 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30..DX..ARL;ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71940-28A20B0 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72211-28110 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72345-28100 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347A - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347A - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72347-28050 |
ACR30,CLR30..(06S,07S)..EUR |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28030B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 72525-28030B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72525-28030B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28030B1 |
ACR30,CLR30..06S DK.CHARCOAL,TRIM12 |
2 | ||
| 72525-28030B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72525-28030B2 |
ACR30,CLR30..06S MD.GRAY,TRIM1# |
2 | ||
| 72658F - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM11,12 |
4 | ||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM1# |
4 | ||
| 72658F - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM11,12 |
4 | ||
| 72658-95701D0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,ORANGE,TRIM1# |
4 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72730-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72740-28620 |
ACR30,CLR30..06S |
2 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-28650B0 |
CLR30..06S SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72830-28610B2 |
CLR30..06S MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72830-28610B5 |
CLR30..06S BLUISH GRAY,TRIM11 |
1 | ||
| 72830-28611B5 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72830-28611B2 |
ACR30,CLR30..06S MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72830-28651B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72830-28651B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM1# |
2 | ||
| 72830-28611B6 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-28650B0 |
CLR30..06S SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72830-28610B2 |
CLR30..06S MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72830-28610B5 |
CLR30..06S BLUISH GRAY,TRIM11 |
1 | ||
| 72830-28611B5 |
ACR30,CLR30..06S BLUISH GRAY,TRIM11 |
2 | ||
| 72830-28611B2 |
ACR30,CLR30..06S MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72830-28651B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72830-28651B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM1# |
2 | ||
| 72830-28611B6 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-28400B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72840-28310B0 |
ACR30,CLR30..06S SEAT = TYPE H-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72840-28400B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11 |
2 | ||
| 72840-28311B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM1# |
2 | ||
| 72840-28401B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72840-28311B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72840-28401B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11 |
2 | ||
| 72840-28401B5 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-28400B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72840-28310B0 |
ACR30,CLR30..06S SEAT = TYPE H-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72840-28400B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11 |
2 | ||
| 72840-28311B0 |
ACR30,CLR30..06S BLUISH GRAY,TRIM1# |
2 | ||
| 72840-28401B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 72840-28311B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 72840-28401B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11 |
2 | ||
| 72840-28401B5 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-28160B0 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-28160B0 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28700B1 |
CLR30..06S,07S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79011-28700B4 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79011-28A50B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(DETACHABLE SEAT),GRAY,TRIM1# |
2 | ||
| 79011-28A20B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79011-28760B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-28700B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79011-28A20B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79011-28700B4 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79011-28A50B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(DETACHABLE SEAT),GRAY,TRIM1# |
1 | ||
| 79011-28760B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-2J010B0 |
ACR30,CLR30..06S SEAT = TYPE G-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-2J040B1 |
ACR30,CLR30..06S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79013-2J040B4 |
ACR30,CLR30..06S SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-28A10B0 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-2J040B1 |
ACR30,CLR30..06S SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79013-2J010B0 |
ACR30,CLR30..06S SEAT = TYPE H-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-2J040B4 |
ACR30,CLR30..06S SEAT = TYPE E-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-28A10B0 |
ACR30,CLR30..06S SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 79013-2J010B2 |
ACR30,CLR30..06S SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 79110A - LEG ASSY, NO.1 SEAT, RH | ||||
| 79110-2J360B2 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 79110-2J360B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 79110-2J360B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79110-2J360B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 79110-2J360B2 |
ACR30,CLR30..(06S,07S)..EUR MD.GRAY,TRIM1# |
2 | ||
| 79110-2J360B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28170 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79135-28150 |
CLR30..06S,07S |
1 | ||
| 79135-28320 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT & LEATHER SEAT) |
1 | ||
| 79135-28290 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-28170 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79135-28150 |
CLR30..06S,07S |
1 | ||
| 79135-28320 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT & LEATHER SEAT) |
1 | ||
| 79135-28290 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-2J720B2 |
ACR30,CLR30..06S DARK GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-2J720B2 |
ACR30,CLR30..06S DARK GRAY,TRIM1# |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79160-28240 |
CLR30..06S,07S |
1 | ||
| 79160-28280 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79160-28280 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT) |
1 | ||
| 79160-28240 |
CLR30..06S,07S |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28190 |
ACR30,CLR30..06S LEATHER SEAT |
1 | ||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28190 |
CLR30..06S;ACR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| 79180-28470 |
ACR30,CLR30..06S DTACHBL SEAT & W(ARMREST) |
1 | ||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28190 |
CLR30..06S;ACR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 79175-28200 |
ACR30,CLR30..06S |
1 | ||
| 79175-28190 |
ACR30,CLR30..06S LEATHER SEAT |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79180-28470 |
ACR30,CLR30..06S DTACHBL SEAT & W(ARMREST) |
1 | ||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| 79180-28510 |
ACR30,CLR30..06S DTACHBL SEAT |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| 90119-10911 | ||||
| 90167-40044 | ||||
| 91515-81025 | ||||
| 93560-54014 | ||||
| 94185-61000 | ||||
ILLUST NO. 1 OF 4(0304- )
W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28070 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28070 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J660B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J540B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2R150B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J540B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J670B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J560B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R190B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R200B1 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R170B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-2R180B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R160B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J580B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J550B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J580B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71072-2J660B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J650B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-2J690B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J640B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2J700B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J640B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J630B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J670B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J670B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J680B1 |
ACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J660B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-2J680B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J620B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J620B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J870B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J890B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2R400B0 |
ACR30,CLR30..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R480B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R440B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R410B0 |
CLR30..LHD..08S;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R490B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R410B0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R470B1 |
ACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R440B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R470B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R490B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J820B5 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J810B5 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2R040B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2R030B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J810B9 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J820B9 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,BLUISH GRAY,TRIM11 |
1 | ||
| 71074-2J780B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074-2J800B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R020B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2J790B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R040B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R010B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2J790B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074-2J800B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71074-2R040B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2R020B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2R130B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71430-2R180B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE B-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71430-2R100B0 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71430-2R160B1 |
ACR30..GL..(ARL,GEN);ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2J620B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),MD.CHARCOAL,TRIM12 |
1 | ||
| 71440-2J610B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MD.CHARCOAL,TRIM12 |
1 | ||
| 71440-2R090B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440-2J620B4 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71440-2J610B4 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71440-2R210B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440-2R230B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71440-2R220B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71052-28050 |
ACR30,CLR30..LHD..(06S,07S)..EUR LEATHER SEAT & W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71511-28220 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 71052-28030 |
ACR30,CLR30..LHD..EUR W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71511-28280 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 71511-28220 |
ACR30..ATM;ACR30,CLR30..LHD..MTM FABRIC SEAT |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28330 |
ACR30,CLR30..(06S,07S)..EUR W(ARMREST) & LEATHER SEAT |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28270 |
ACR30,CLR30..LHD..(06S,07S)..EUR W(ARMREST) |
1 | ||
| 71551-28450 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28480 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71551-28480 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT & W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28450 |
ACR30,CLR30..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28290 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR |
1 | ||
| 71551-28460 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28490 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT & W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28360 |
ACR30,CLR30..(06S,07S)..EUR W(ARMREST) & LEATHER SEAT |
1 | ||
| 71551-28460 |
ACR30,CLR30..EUR |
1 | ||
| 71551-28490 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71557 - CLOTH, FRONT SEAT BACK UNDER | ||||
| 71557-28010 |
ACR30,CLR30 |
2 | ||
| 71557 - CLOTH, FRONT SEAT BACK UNDER | ||||
| 71557-28010 |
ACR30,CLR30 |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28330 |
ACR30,CLR30..EUR W(ARMREST) |
1 | ||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71013-28340 |
ACR30,CLR30..EUR W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2J070B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J070B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J190B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-2J270B0 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J270B0 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
4 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2J070B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J070B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J190B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-2J270B0 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J270B0 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B6 |
ACR30,CLR30..EUR MD.GRAY,TRIM1# |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B6 |
ACR30,CLR30..EUR MD.GRAY,TRIM1# |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28740B0 |
CLR30..06S,07S;ACR30..LHD..06S..ATM;ACR30..LHD..(06S,07S)..MTM;ACR30..RHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28741B2 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 72890-28701B9 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 72890-28741B2 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
2 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28741B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28870B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28871B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28871B2 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 72880-28841P0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 72880-28871B2 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
ILLUST NO. 1 OF 4(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28070 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28070 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J660B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J540B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2R150B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J540B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J670B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J560B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R190B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R200B1 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R170B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-2R180B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2R160B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J580B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J550B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J580B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71072-2J660B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J650B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71071-2J690B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J640B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71071-2J700B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J640B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J630B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J670B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J670B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71072-2J680B1 |
ACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072-2J660B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-2J680B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J620B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J620B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J870B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J890B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2R400B0 |
ACR30,CLR30..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R480B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R440B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R410B0 |
CLR30..LHD..08S;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R490B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R410B0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R470B1 |
ACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R440B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71073-2R470B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71073-2R490B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J820B5 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J810B5 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2R040B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2R030B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J810B9 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J820B9 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,BLUISH GRAY,TRIM11 |
1 | ||
| 71074-2J780B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074-2J800B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R020B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2J790B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R040B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2R010B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2J790B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074-2J800B1 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 71074-2R040B1 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2R020B0 |
ACR30,CLR30..LHD..(06S,07S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71052-28050 |
ACR30,CLR30..LHD..(06S,07S)..EUR LEATHER SEAT & W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71511-28220 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 71052-28030 |
ACR30,CLR30..LHD..EUR W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71052-28050 |
ACR30,CLR30..LHD..(06S,07S)..EUR LEATHER SEAT & W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71511-28220 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 71052-28030 |
ACR30,CLR30..LHD..EUR W(PASSENGER SEAT BELT WARNING) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71511-28280 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 71511-28220 |
ACR30..ATM;ACR30,CLR30..LHD..MTM FABRIC SEAT |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28230 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71511-28280 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 71511-28220 |
ACR30..ATM;ACR30,CLR30..LHD..MTM FABRIC SEAT |
1 | ||
| 71511-28280 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-28060 |
ACR30,CLR30 NO.2 |
4 | ||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537-26010 |
ACR30,CLR30 NO.1 |
6 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28330 |
ACR30,CLR30..(06S,07S)..EUR W(ARMREST) & LEATHER SEAT |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28270 |
ACR30,CLR30..LHD..(06S,07S)..EUR W(ARMREST) |
1 | ||
| 71551-28450 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28480 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71551-28480 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT & W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28450 |
ACR30,CLR30..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28290 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR |
1 | ||
| 71551-28460 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28490 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR LEATHER SEAT & W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28360 |
ACR30,CLR30..(06S,07S)..EUR W(ARMREST) & LEATHER SEAT |
1 | ||
| 71551-28460 |
ACR30,CLR30..EUR |
1 | ||
| 71551-28490 |
ACR30,CLR30..(06S,07S)..EUR LEATHER SEAT |
1 | ||
| 71557 - CLOTH, FRONT SEAT BACK UNDER | ||||
| 71557-28010 |
ACR30,CLR30 |
2 | ||
| 71557 - CLOTH, FRONT SEAT BACK UNDER | ||||
| 71557-28010 |
ACR30,CLR30 |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28330 |
ACR30,CLR30..EUR W(ARMREST) |
1 | ||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71013-28340 |
ACR30,CLR30..EUR W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2J070B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J070B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J190B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-2J270B0 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J270B0 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
4 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2J070B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J070B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J190B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-2J270B0 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B8 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71910-2J310B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
2 | ||
| 71910-2J071B3 |
ACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910-2J270B0 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B8 |
ACR30,CLR30..EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B9 |
ACR30,CLR30..EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30..06S..ATM;ACR30,CLR30..(06S,07S)..MTM |
2 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B6 |
ACR30,CLR30..EUR MD.GRAY,TRIM1# |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B6 |
ACR30,CLR30..EUR MD.GRAY,TRIM1# |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28740B0 |
CLR30..06S,07S;ACR30..LHD..06S..ATM;ACR30..LHD..(06S,07S)..MTM;ACR30..RHD..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28741B2 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 72890-28701B9 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 72890-28741B2 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
2 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28741B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28870B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28871B0 |
ACR30,CLR30..(06S,07S)..EUR SEAT = TYPE G-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28871B2 |
CLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR SEAT = TYPE D-*104,GRAY,TRIM1# |
1 | ||
| 72880-28841P0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 72880-28871B2 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
