ACR50R-GRPDKQ (2008)

Toyota Previa/Tarago

Production Dec 2008 - May 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

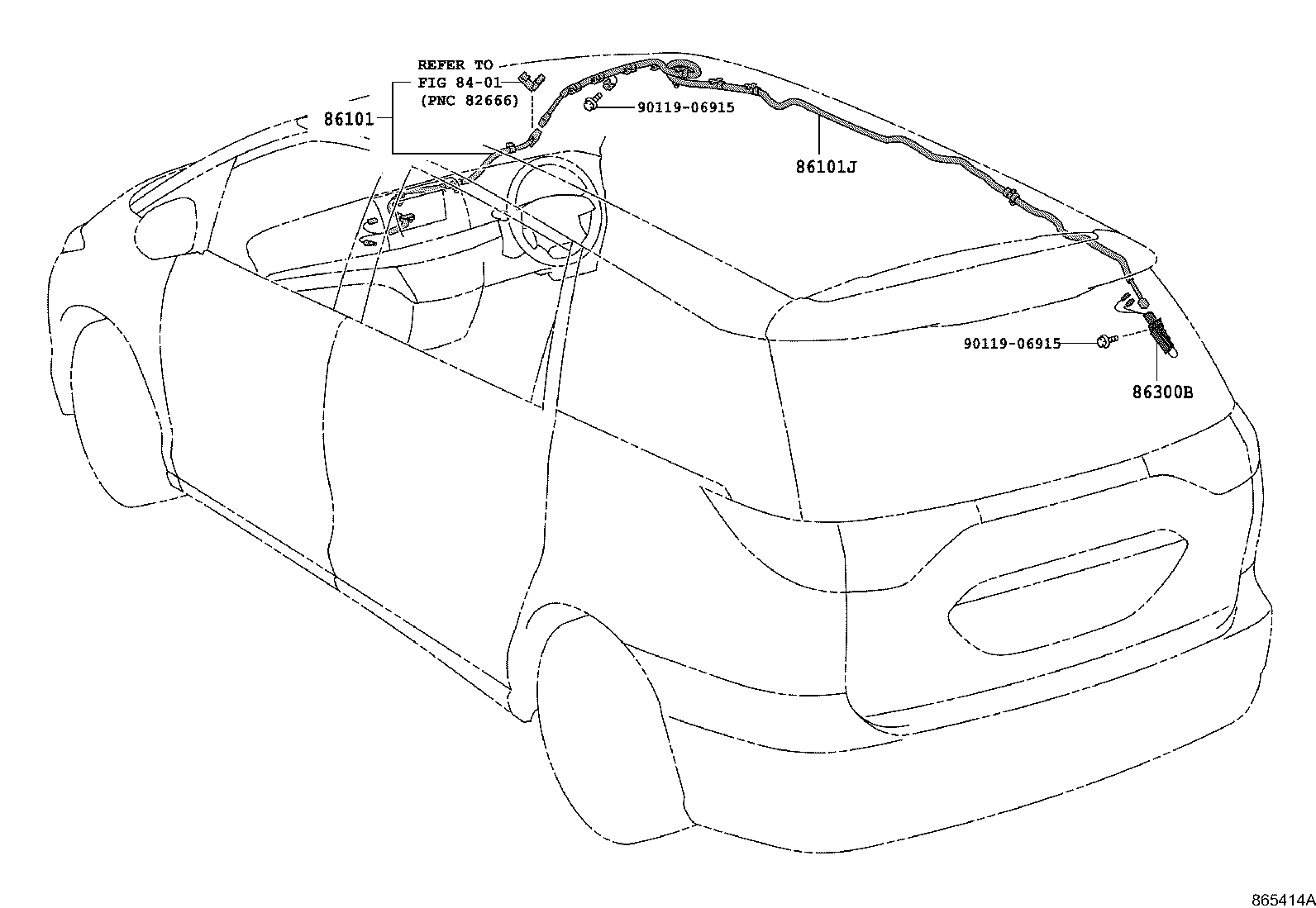

Click highlighted areas on diagram

diagram 8401 86101 86101J 86300B 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-28660

ACR50..RHD

 1
86101-28662

ACR50..ARL;GSR50..RHD

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-28670

ACR50,GSR50..ARL,GEN

 1
86101-28670

ACR50..ARL;GSR50..RHD

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-28480

ACR50,GSR50

 1
86300-28481

ACR50..ARL;GSR50..RHD

 1
Common parts
90119-06915
Linked diagrams
8401
