ACR50R-GRPDKQ (2008)
Toyota Previa/Tarago
Production
Dec 2008
-
May 2012
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

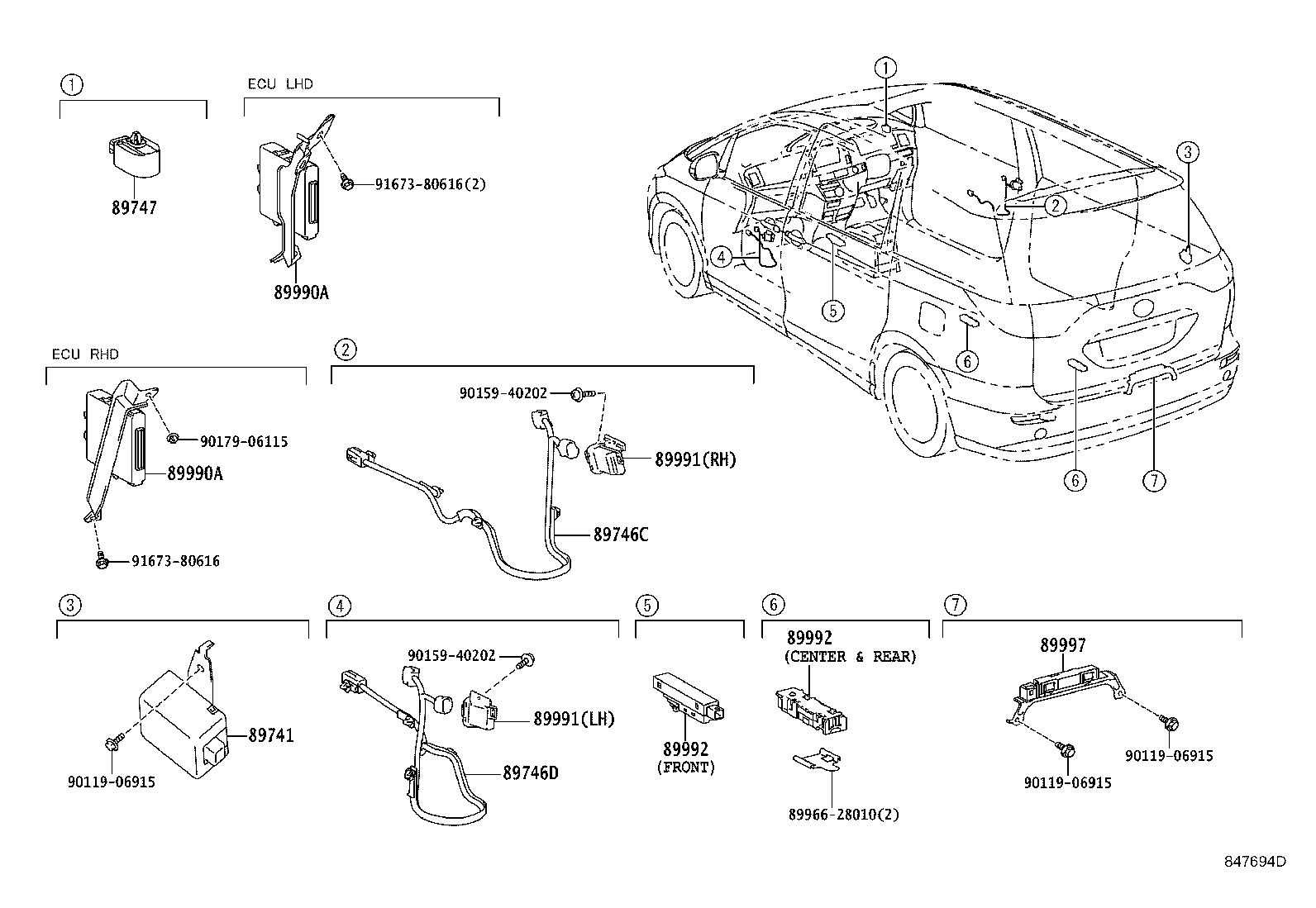

Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-28250 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 89741-28270 |
ACR50,GSR50..ARL |
1 | ||
| 89741-28271 |
ACR50,GSR50..ARL |
1 | ||
| Common parts | ||||
| 89966-28010 | ||||
| 90119-06915 | ||||
| 90159-40202 | ||||
| 90179-06115 | ||||
| 91673-80616 | ||||
(0601-1204)
Click highlighted areas on diagram
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-28250 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 89741-28270 |
ACR50,GSR50..ARL |
1 | ||
| 89741-28271 |
ACR50,GSR50..ARL |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
