ACR50R-GRPDKQ (2008)
Toyota Previa/Tarago

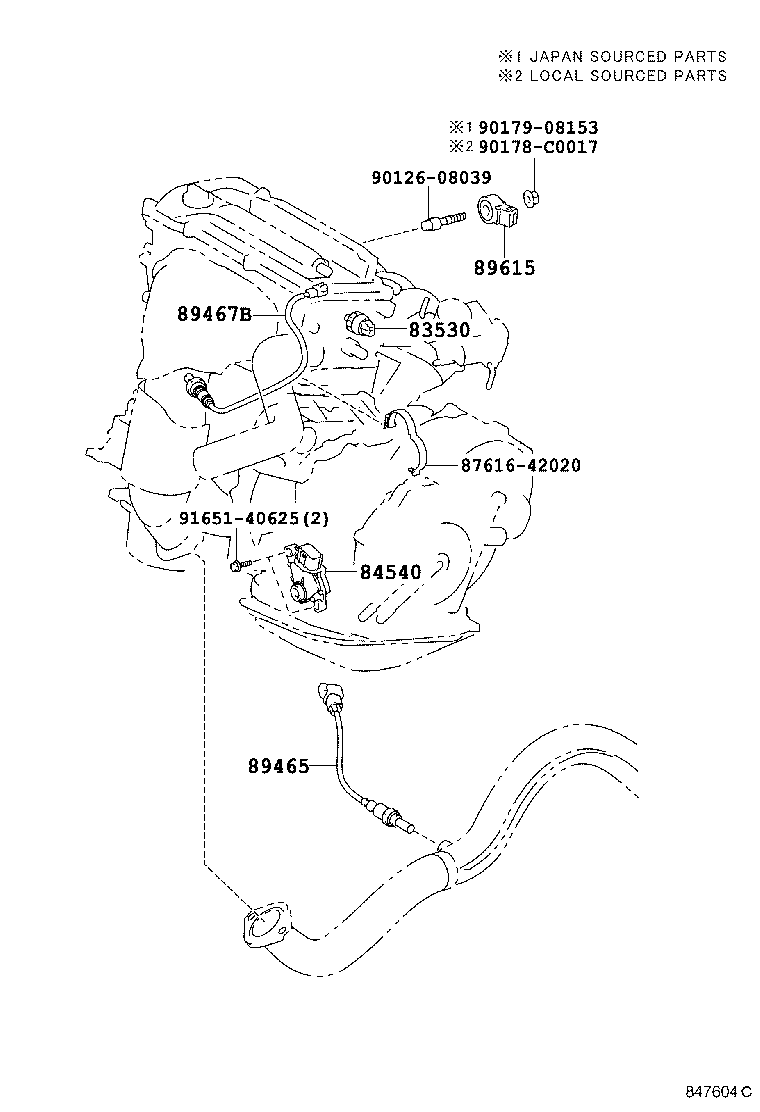

ILLUST NO. 1 OF 8(0601- )ACR50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACR50,GSR50 |
1 | ||
| 83530-28020 |
ACR50..ARL;GSR50..RHD DENSO |
1 | ||
| 83530-60020 |
ACR50..ARL;GSR50..RHD YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-48010 |
ACR50 |
1 | ||
| 84540-48010 |
ACR50..ARL |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28400 |
ACR50 |
1 | ||
| 89465-28400 |
ACR50..RHD;ACR50..LHD..4FC |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28010 |
ACR50..4FC |
1 | ||
| 89467-28010 |
ACR50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ACR50 |
1 | ||
| 89615-20090 |
ACR50..ARL |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90126-08039 | ||||
| 90178-C0017 | ||||
| 90179-08153 | ||||
| 91651-40625 | ||||

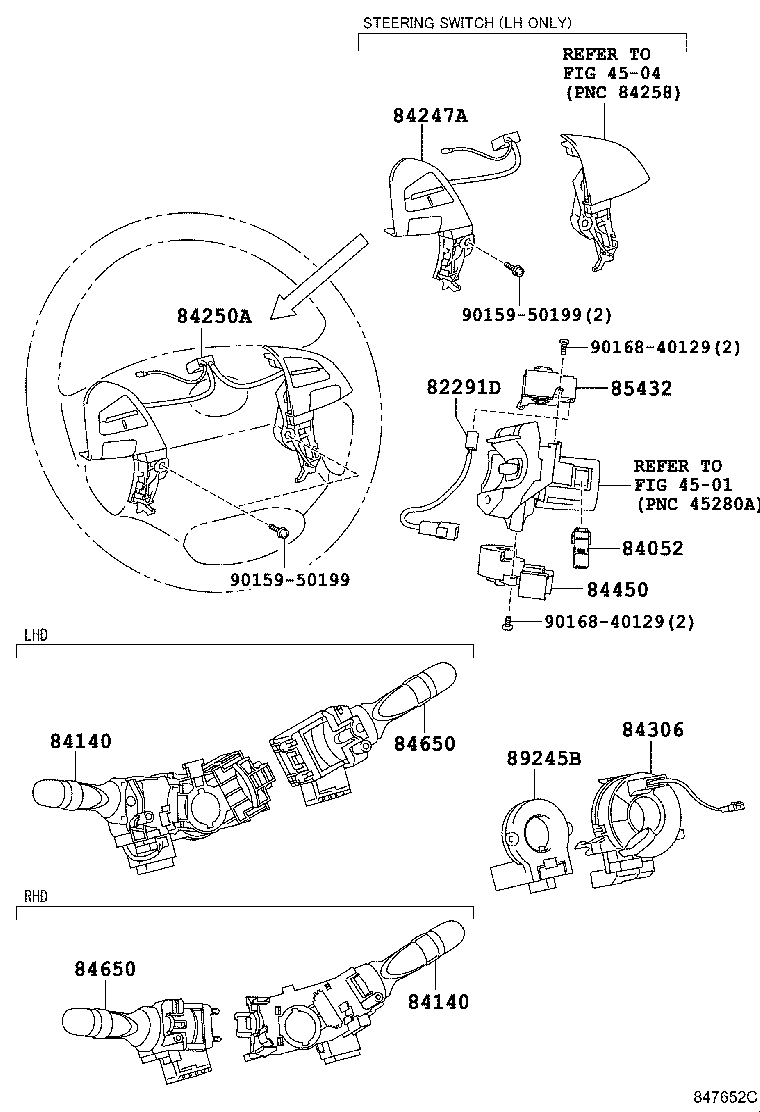

ILLUST NO. 6 OF 8(0601-1605)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-42010 |
ACR50,GSR50..ARL |
1 | ||
| 82291-42010 |
ACR50,GSR50 |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ACR50,GSR50 |
1 | ||
| 84052-71010 |
ACR50,GSR50..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
ACR50,GSR50..RHD |
1 | ||
| 84140-42070 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
ACR50,GSR50..RHD |
1 | ||
| 84140-42070 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-28010 |
ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84247-28010 |
ACR50,GSR50..DLX..ARL STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84247-28040 |
ACR50,GSR50..DLX..ARL STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84247-28040 |
ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE&VSC-WITH |
1 | ||
| 84306-52090 |
ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE&VSC-WITH |
1 | ||
| 84306-52090 |
ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84306-52090 |
ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84306-52090 |
ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84306-52090 |
ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) STEERING WHEEL-4-SPOKE & URETHANE&VSC-WITH |
1 | ||
| 84306-52100 |
ACR50,GSR50 |
1 | ||
| 84306-52090 |
ACR50..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE&VSC-WITH |
1 | ||
| 84306-52090 |
ACR50..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE&VSC-WITH |
1 | ||
| 84306-52090 |
ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84306-52090 |
ACR50,GSR50..DLX..ARL STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84306-52090 |
ACR50..ARL STEERING WHEEL-4-SPOKE & URETHANE&VSC-WITH |
1 | ||
| 84306-52100 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84306-52090 |
ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ACR50,GSR50 |
1 | ||
| 84450-12200 |
ACR50,GSR50..ARL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
ACR50,GSR50..RHD |
1 | ||
| 84652-42130 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
ACR50,GSR50..RHD |
1 | ||
| 84652-42130 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
ACR50,GSR50 |
1 | ||
| 85432-71010 |
ACR50,GSR50..ARL |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-33040 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
1 | ||
| 89245-33040 |
ACR50..ARL VSC-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||

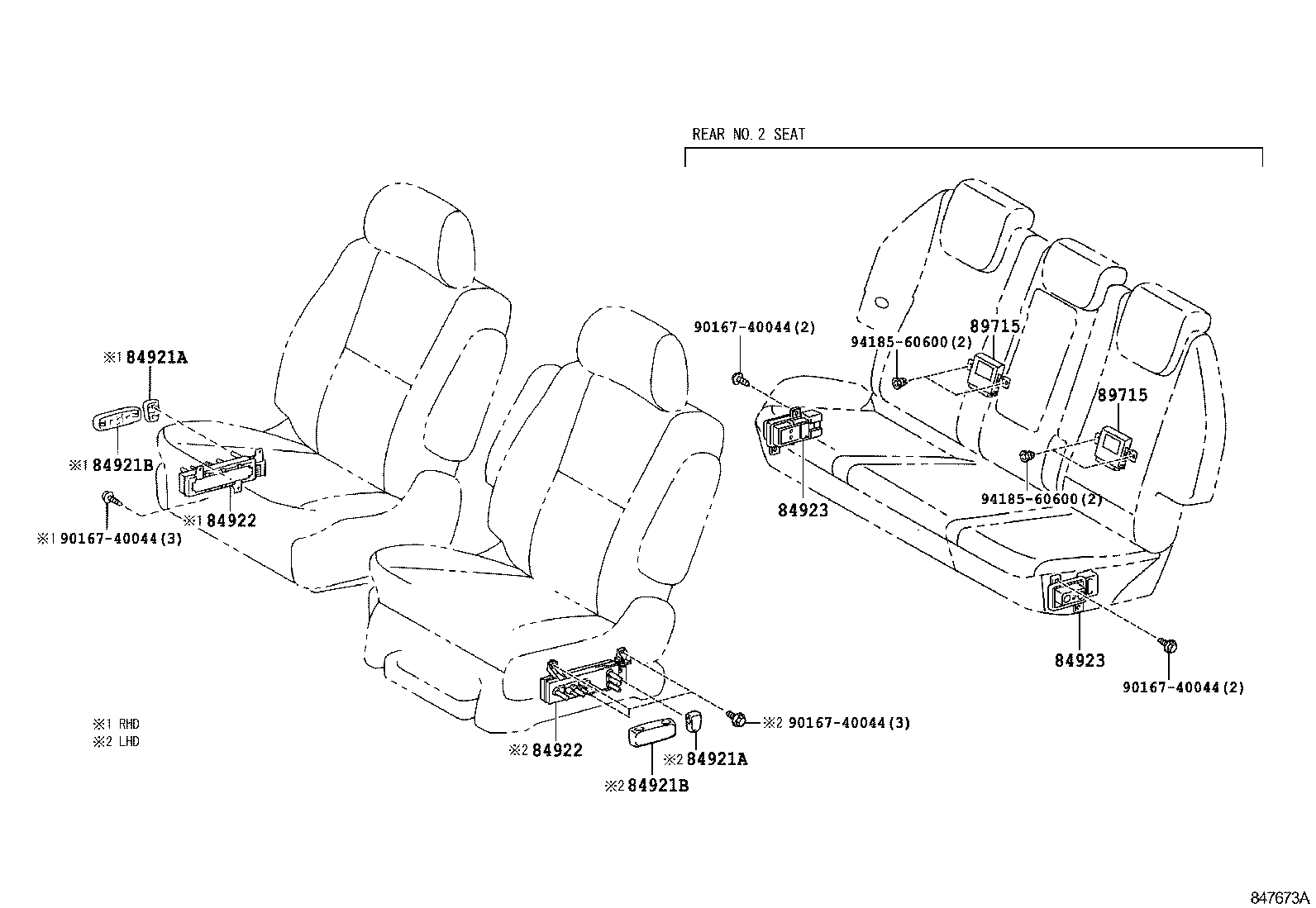

ILLUST NO. 7 OF 8(0601- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-40044 | ||||
| 94185-60600 | ||||

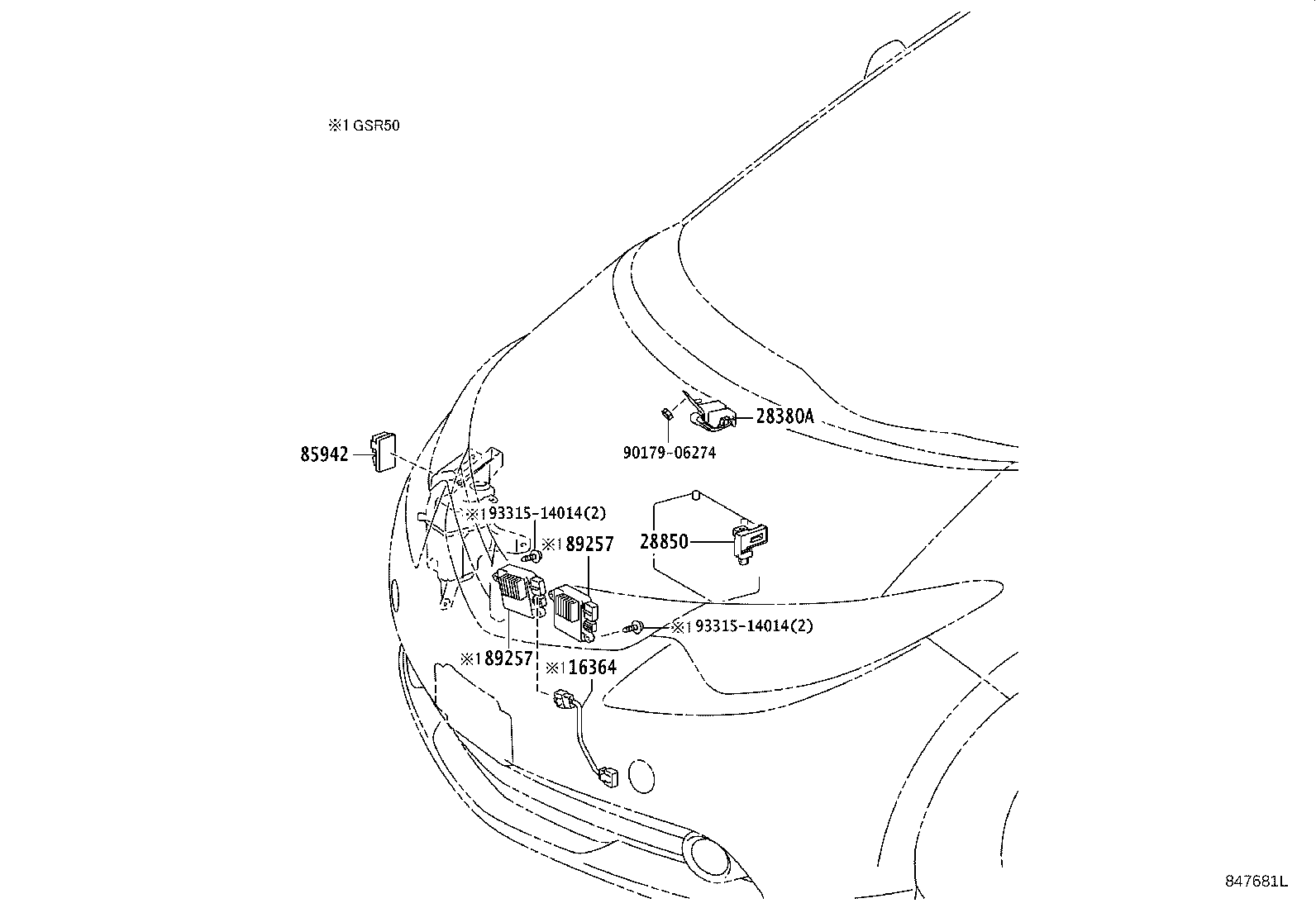

ILLUST NO. 2 OF 8(0601- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE..ACR50..ARL;2GRFE..GSR50..RHD |
1 | ||
| 28850-28040 |
2AZFE,2GRFE..ACR50,GSR50 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 93315-14014 | ||||

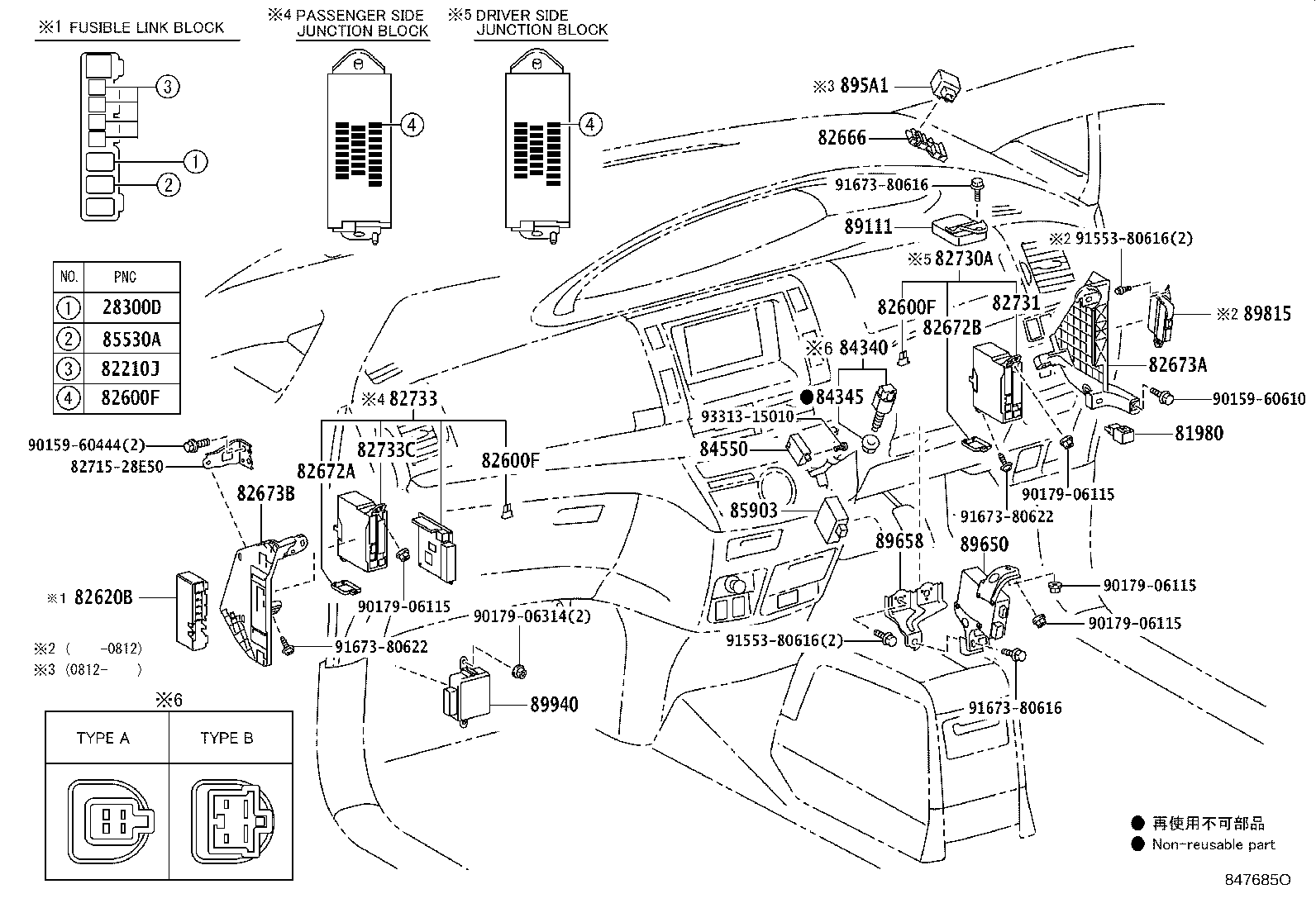

ILLUST NO. 4 OF 8(0601-1605)RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 81980-50030 |
ACR50,GSR50 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
ACR50..ARL;GSR50..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ACR50..ARL;GSR50..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ACR50..ARL;GSR50..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ACR50..ARL;GSR50..RHD 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ACR50..ARL;GSR50..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ACR50..ARL;GSR50..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ACR50..ARL;GSR50..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ACR50..ARL;GSR50..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50..ARL;GSR50..RHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ACR50..ARL;GSR50..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ACR50..ARL;GSR50..RHD 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ACR50..ARL;GSR50..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ACR50..ARL;GSR50..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ACR50..ARL;GSR50..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ACR50..ARL;GSR50..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50..ARL;GSR50..RHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ACR50..ARL;GSR50..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ACR50..ARL;GSR50..RHD 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ACR50..ARL;GSR50..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ACR50..ARL;GSR50..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ACR50..ARL;GSR50..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ACR50..ARL;GSR50..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50..ARL;GSR50..RHD 25A,MINI FUSE |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28290 |
ACR50,GSR50 |
1 | ||
| 82620-28290 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-28780 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-28110 |
ACR50,GSR50..RHD |
1 | ||
| 82672-28110 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-28120 |
ACR50,GSR50..RHD |
1 | ||
| 82672-28120 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28050 |
ACR50,GSR50..RHD |
1 | ||
| 82673-28050 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-28060 |
ACR50,GSR50..RHD |
1 | ||
| 82673-28060 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-28160 |
ACR50,GSR50..RHD |
1 | ||
| 82730-28160 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82733-28190 |
ACR50,GSR50..RHD |
1 | ||
| 82733-28190 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-28280 |
ACR50,GSR50..ARL |
1 | ||
| 82730-28280 |
ACR50,GSR50..ARL |
1 | ||
| 82730-28540 |
ACR50,GSR50..ARL |
1 | ||
| 82733C - BLOCK, PASSENGER SIDE JUNCTION, W/O BODY COMPUTER | ||||
| 82731-28050 |
ACR50,GSR50..RHD |
1 | ||
| 82731-28050 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84340-69025 |
ACR50,GSR50 TYPE B:REFER ILLUST. |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84345-51010 |
ACR50,GSR50 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ACR50,GSR50 |
1 | ||
| 84550-30080 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACR50,GSR50 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
ACR50,GSR50 |
1 | ||
| 85903-52010 |
ACR50,GSR50..ARL |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-28040 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
1 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-68010 |
ACR50,GSR50..RHD |
1 | ||
| 895A1-46020 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-28140 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 89650-28020 |
ACR50,GSR50..RHD |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-28010 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 89658-28010 |
ACR50,GSR50..RHD |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-28010 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
1 | ||
| Common parts | ||||
| 82715-28E50 | ||||
| 90159-60444 | ||||
| 90159-60610 | ||||
| 90179-06115 | ||||
| 90179-06314 | ||||
| 91553-80616 | ||||
| 91673-80616 | ||||
| 91673-80622 | ||||
| 93313-15010 | ||||

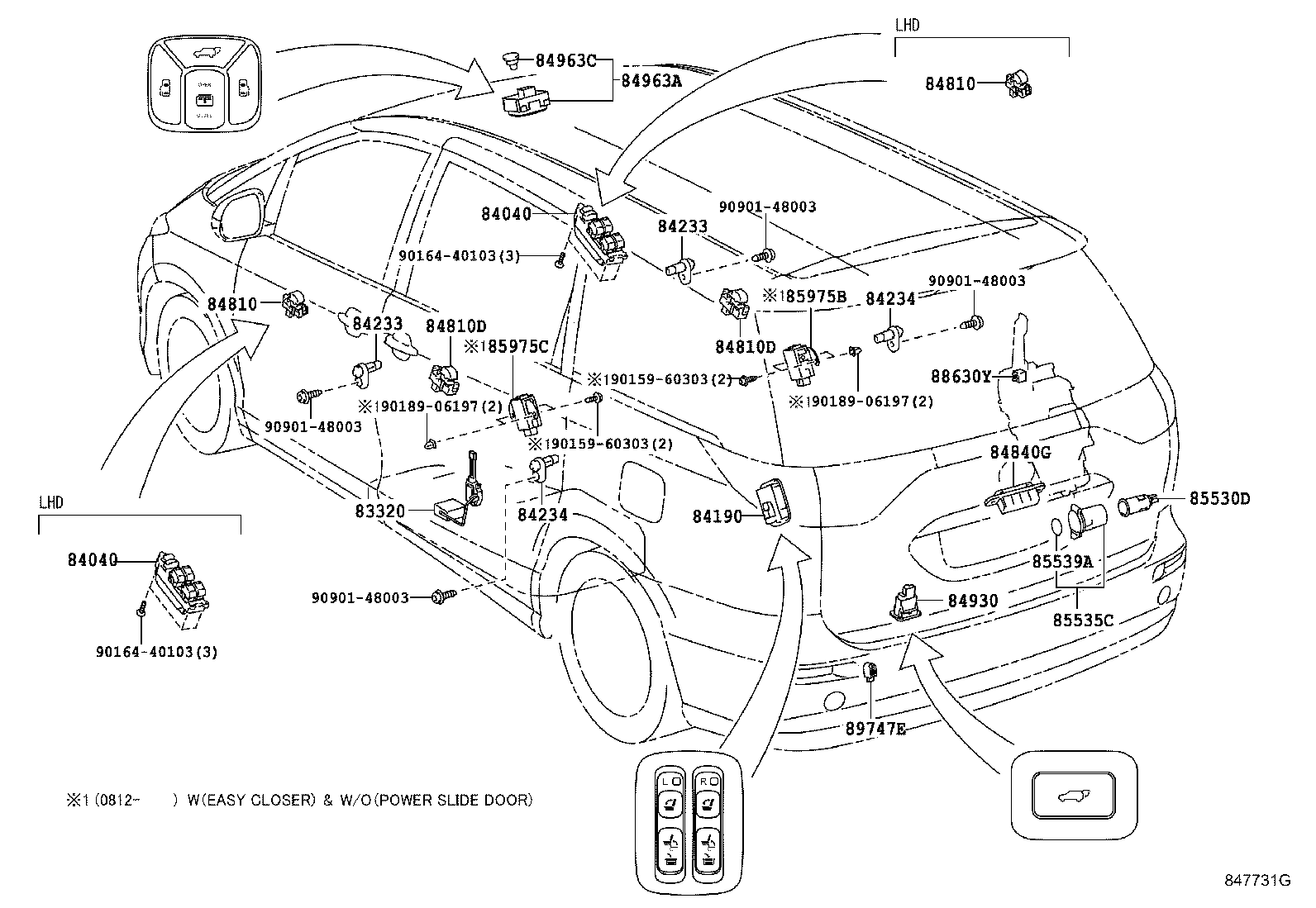

ILLUST NO. 8 OF 8(0601- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28520 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 83320-28520 |
ACR50,GSR50 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33060 |
ACR50,GSR50..RHD |
1 | ||
| 84040-33080 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33060 |
ACR50,GSR50..RHD |
1 | ||
| 84040-33080 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACR50,GSR50 |
2 | ||
| 84231-60070 |
ACR50..ARL;GSR50..RHD |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACR50,GSR50 |
2 | ||
| 84231-60070 |
ACR50..ARL;GSR50..RHD |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACR50,GSR50 |
2 | ||
| 84231-60070 |
ACR50..ARL;GSR50..RHD |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACR50,GSR50 |
2 | ||
| 84231-60070 |
ACR50..ARL;GSR50..RHD |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84810-33120 |
ACR50,GSR50 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 84810-33120 |
ACR50,GSR50 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ACR50,GSR50 |
2 | ||
| 84810-33120 |
ACR50..ARL;GSR50..RHD |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ACR50,GSR50 |
2 | ||
| 84810-33120 |
ACR50..ARL;GSR50..RHD |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ACR50,GSR50 |
1 | ||
| 84840-28030 |
ACR50,GSR50..ARL |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
ACR50,GSR50 |
1 | ||
| 85530-42010 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080B1 |
ACR50,GSR50..RHD..DLX GRAY,TRIM1# |
1 | ||
| 85535-35080E1 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN GREGE,TRIM4# |
1 | ||
| 85535-35080B2 |
ACR50..ARL MD.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 85539-60020 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-58020 |
GSR50..RHD..GEN;ACR50,GSR50..DLX..ARL |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-58020 |
ACR50,GSR50..DLX..ARL |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 90987-04010 |
ACR50,GSR50..ARL |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90189-06197 | ||||
| 90901-48003 | ||||
ILLUST NO. 3 OF 8(0601- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE..ACR50..ARL;2GRFE..GSR50..RHD |
1 | ||
| 28300-28010 |
2AZFE,2GRFE..ACR50,GSR50 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE,2GRFE..ACR50,GSR50 |
1 | ||
| 90987-02027 |
2AZFE..ACR50..ARL;2GRFE..GSR50..RHD |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ACR50,GSR50 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ACR50,GSR50 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08296 |
ACR50..ARL;GSR50..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ACR50..ARL;GSR50..RHD 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ACR50..ARL;GSR50..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08203 |
ACR50,GSR50 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08203 |
ACR50..ARL;GSR50..RHD 80A,TERM.:MALE,BLK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ACR50..ARL;GSR50..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ACR50..ARL;GSR50..RHD 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ACR50..ARL;GSR50..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ACR50..ARL;GSR50..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ACR50..ARL;GSR50..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ACR50..ARL;GSR50..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50..ARL;GSR50..RHD 25A,MINI FUSE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-28080 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82610-28080 |
ACR50,GSR50 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28270 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82620-28270 |
ACR50,GSR50 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28270 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82620-28270 |
ACR50,GSR50 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-28250 |
ACR50,GSR50 |
1 | ||
| 82660-28250 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-28110 |
ACR50..ARL COLD SPEC(BATTERY SIZE:80D26L)&TOWING PACKAGE-WITH |
1 | ||
| 82662-28090 |
ACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 82662-28110 |
ACR50..ARL TOWING PACKAGE-WITH |
1 | ||
| 82662-28091 |
ACR50..ARL |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-28100 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 82662-28101 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-28140 |
ACR50..ARL COLD SPEC(BATTERY SIZE:80D26L)&TOWING PACKAGE-WITH |
1 | ||
| 82662-28140 |
ACR50,GSR50..ARL COLD SPEC(BATTERY SIZE:80D26L) |
1 | ||
| 82662-28140 |
ACR50,GSR50..ARL COLD AREA SPEC |
1 | ||
| 82662-28140 |
ACR50..ARL COLD AREA SPEC&TOWING PACKAGE-WITH |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-28040 |
ACR50,GSR50 |
1 | ||
| 82663-28040 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-28050 |
ACR50,GSR50 |
1 | ||
| 82663-28050 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-28060 |
ACR50..ARL COLD AREA SPEC&VSC-WITH |
1 | ||
| 82663-28060 |
ACR50,GSR50..ARL COLD SPEC(BATTERY SIZE:80D26L) |
1 | ||
| 82663-28060 |
ACR50,GSR50..ARL COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-28020 |
ACR50,GSR50 |
1 | ||
| 82741-28020 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-28010 |
ACR50,GSR50 |
1 | ||
| 82742-28010 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82742A - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82742-28020 |
ACR50,GSR50..ARL COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH |
1 | ||
| 82742-28020 |
ACR50..ARL COLD AREA SPEC&VSC-WITH |
1 | ||
| 82742-28020 |
ACR50,GSR50..ARL COLD SPEC(BATTERY SIZE:80D26L) |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-28010 |
ACR50 |
1 | ||
| 82743-28010 |
ACR50..ARL |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACR50,GSR50 |
1 | ||
| 82824-20140 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 82824-20140 |
ACR50,GSR50 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 90987-04004 |
ACR50,GSR50 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ACR50,GSR50 |
1 | ||
| 90987-02027 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GSR50;ACR50..RHD;ACR50..LHD..4FC |
1 | ||
| 90987-02025 |
ACR50,GSR50 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ACR50,GSR50 |
1 | ||
| 90987-02025 |
GSR50;ACR50..RHD;ACR50..LHD..4FC |
1 | ||
| 90987-04010 |
ACR50,GSR50 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ACR50 |
1 | ||
| 90987-02027 |
ACR50..ARL |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACR50 |
1 | ||
| 90987-04004 |
ACR50..ARL |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ACR50 |
1 | ||
| 90987-02027 |
ACR50..ARL |
1 | ||
| 85931A - RELAY, BRAKE LAMP | ||||
| 90987-04004 |
ACR50..ARL VSC-WITH |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ACR50..ARL;GSR50..RHD |
1 | ||
| 90987-02027 |
ACR50,GSR50 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ACR50,GSR50..ARL COLD SPEC(BATTERY SIZE:80D26L) |
3 | ||
| 90987-02025 |
ACR50,GSR50..ARL COLD AREA SPEC |
3 | ||
| Common parts | ||||
| 82715-28J30 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
