ACR50R-GRPDKQ (2008)

Toyota Previa/Tarago

Production Dec 2008 - May 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

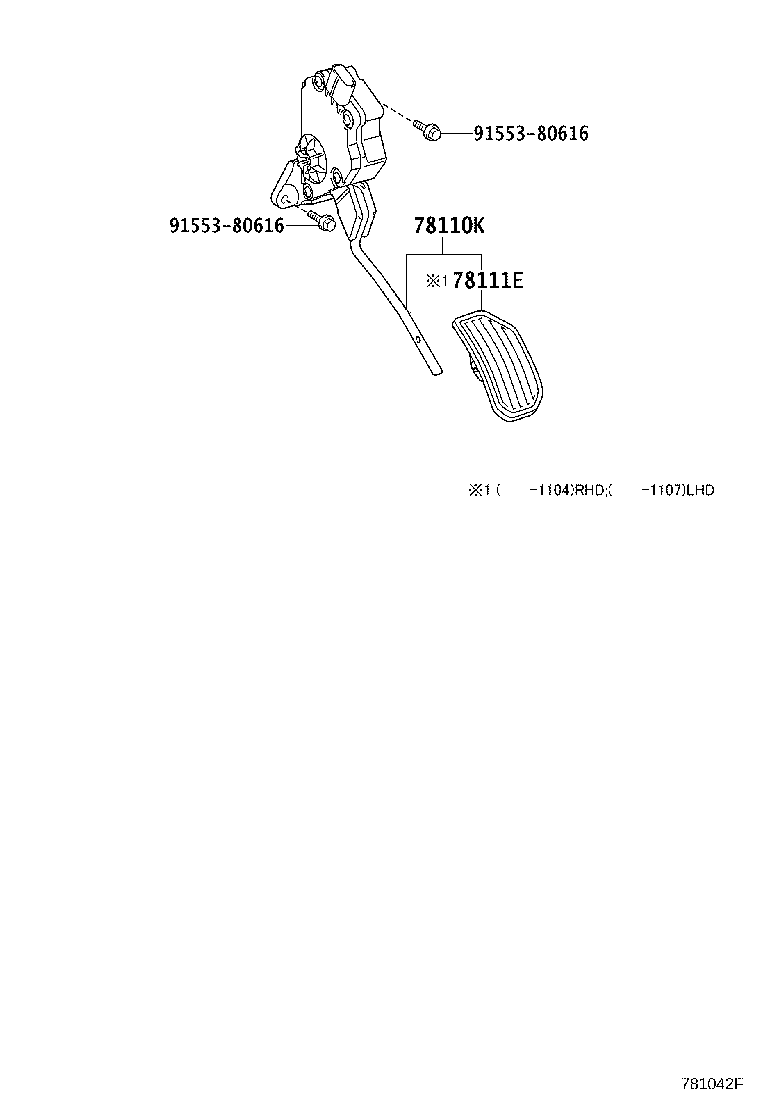

Click highlighted areas on diagram

diagram 78110K 78111E 9155380616 9155380616
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-28010

ACR50,GSR50..RHD

 1
78110-28010

ACR50,GSR50..RHD

 1
78110-28011

ACR50..ARL;GSR50..RHD

 1
78111E - PAD, ACCELERATOR PEDAL
78111-42010

ACR50,GSR50

 1
78111-42010

ACR50,GSR50..RHD

 1
Common parts
91553-80616
