ACR50R-GRPDKQ (2008)

Toyota Previa/Tarago

Production Dec 2008 - May 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )DLX,GL

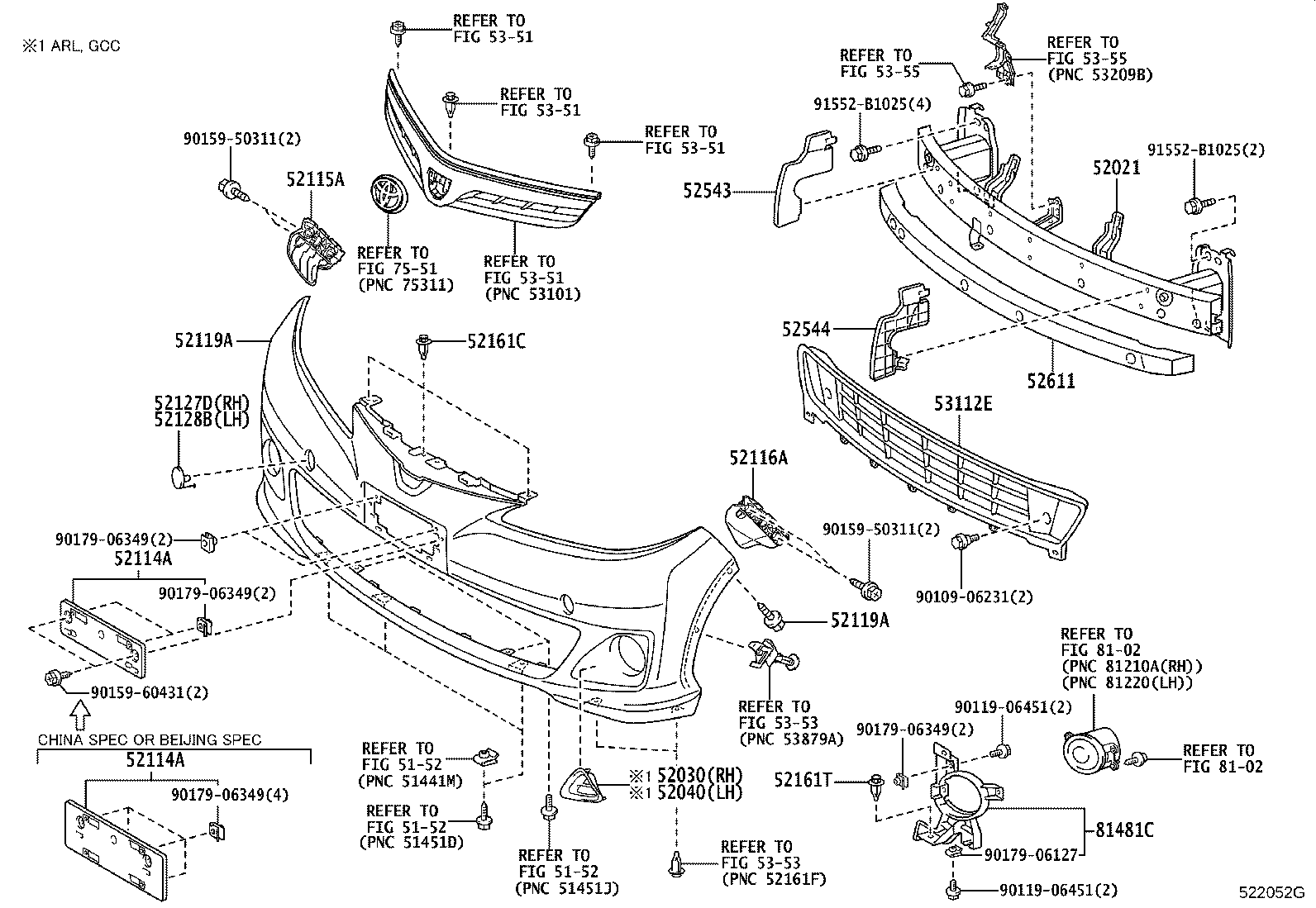

Click highlighted areas on diagram

diagram 5152 5152 5152 52021 52030 52040 52114A 52114A 52115A 52116A 52119A 52119A 52127D 52128B 52161C 52161T 52543 52544 52611 53112E 5351 5351 5351 5351 5353 5353 5355 5355 7551 8102 8102 81481C 9010906231 9011906451 9011906451 9015950311 9015950311 9015960431 9017906127 9017906349 9017906349 9017906349 9017906349 91552B1025 91552B1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-28220

ACR50,GSR50

 1
52021-28221

ACR50..ARL;GSR50..RHD

 1
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52127-28350

ACR50,GSR50..ARL

NO PAINT REQ.

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52128-28130

ACR50,GSR50..ARL

NO PAINT REQ.

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-28020

ACR50..ARL;GSR50..RHD

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-28020

ACR50..ARL;GSR50..RHD

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-28170

ACR50..ARL;GSR50..RHD

 1
52115-28120

ACR50,GSR50

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-28170

ACR50..ARL;GSR50..RHD

 1
52116-28060

ACR50,GSR50

 1
52119A - COVER, FRONT BUMPER
52119-28957

ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN

PAINT REQ.,CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR)

 1
52119-28956

ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN

PAINT REQ.

 1
52119-28978

ACR50,GSR50..ARL

PAINT REQ.,CLEARANCE SONAR-WITH

 1
52119-28976

ACR50,GSR50..ARL

PAINT REQ.

 1
52119A - COVER, FRONT BUMPER
52119-28957

ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN

PAINT REQ.,CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR)

 1
52119-28956

ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN

PAINT REQ.

 1
52119-28978

ACR50,GSR50..ARL

PAINT REQ.,CLEARANCE SONAR-WITH

 1
52119-28976

ACR50,GSR50..ARL

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-28900

GSR50;ACR50..RHD;ACR50..LHD..4FC

 1
52127-28180B0

ACR50,GSR50

SILVER ME.,1F7

 1
52127-28180B1

ACR50,GSR50

MEDIUM SILVER ME.,1F8

 1
52127-28180A0

ACR50,GSR50

SUPER WHITE 2,040

 1
52127-28180A1

ACR50,GSR50

WHITE PEARL CS.,070

 1
52127-28180J1

ACR50,GSR50

LT.BLUE M.M.,8S7

 1
52127-28180J0

ACR50,GSR50

DK.BLUE MC.,8S6

 1
52127-28180C0

ACR50,GSR50

BLACK,202

 1
52127-28180D0

ACR50,GSR50

DK. RED M.M.,3Q3

 1
52127-28180F0

ACR50,GSR50

SILKY GOLD M.M.,5A4

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52127-28180A0

ACR50,GSR50

SUPER WHITE 2,040

 1
52127-28180D0

ACR50,GSR50

DK. RED M.M.,3Q3

 1
52127-28180B1

ACR50,GSR50

MEDIUM SILVER ME.,1F8

 1
52127-28180A1

ACR50,GSR50

WHITE PEARL CS.,070

 1
52127-28180J1

ACR50,GSR50

LT.BLUE M.M.,8S7

 1
52127-28180B0

ACR50,GSR50

SILVER ME.,1F7

 1
52127-28180C0

ACR50,GSR50

BLACK,202

 1
52127-28180J0

ACR50,GSR50

DK.BLUE MC.,8S6

 1
52127-28900

GSR50;ACR50..RHD;ACR50..LHD..4FC

 1
52127-28180F0

ACR50,GSR50

SILKY GOLD M.M.,5A4

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACR50..ARL;GSR50..RHD

 3
52161-16010

ACR50,GSR50

 3
52161T - PIECE, FRONT BUMPER
52161-16010

ACR50..ARL;GSR50..RHD

 2
52543 - SEAL, FRONT BUMPER SIDE, RH
52545-28040

ACR50,GSR50

 1
52545-28051

ACR50..ARL;GSR50..RHD

 1
52545-28050

ACR50,GSR50

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52546-28051

ACR50..ARL;GSR50..RHD

 1
52546-28050

ACR50,GSR50

 1
52546-28030

ACR50,GSR50

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28080

ACR50,GSR50

 1
52611-28080

ACR50..ARL;GSR50..RHD

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-28110

ACR50..ARL;GSR50..RHD

NO PAINT REQ.

 1
53112-28010

ACR50,GSR50

NO PAINT REQ.

 1
81481C - BRACKET, FOG LAMP
81481-28260

ACR50..ARL;GSR50..RHD

RH

 1
81482-28260

ACR50..ARL;GSR50..RHD

LH

 1
Common parts
90109-06231
90119-06451
90159-50311
90159-60431
90179-06127
90179-06349
91552-B1025
Linked diagrams
5152
5351
5353
5355
7551
8102
