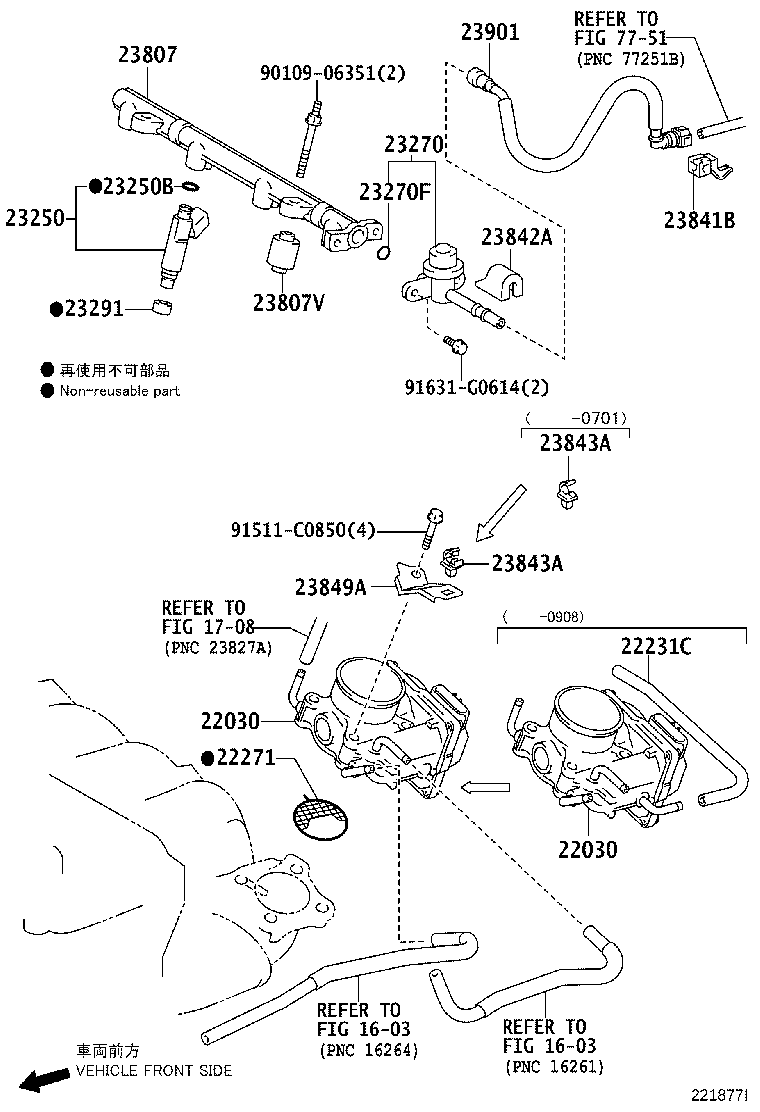

Toyota Previa/tarago ACR50 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-28070	2AZFE..ACR50	01/2006 - 12/2008	1
22030-28070	2AZFE..ACR50	12/2008 - 08/2009	1
22030-28071	2AZFE..ACR50..ARL	08/2009 - 05/2012	1
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-28070	2AZFE..ACR50	01/2006 - 12/2008	1
22030-28070	2AZFE..ACR50	12/2008 - 08/2009	1
22030-28071	2AZFE..ACR50..ARL	08/2009 - 05/2012	1
22231C - HOSE, THROTTLE BODY, NO.1
22231-28060	2AZFE..ACR50	12/2008 - 08/2009	1
22231-28060	2AZFE..ACR50	01/2006 - 12/2008	1
22271 - GASKET, THROTTLE BODY
22271-75031	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
22271-75031	2AZFE..ACR50	01/2006 - 12/2008	1
23250 - INJECTOR ASSY, FUEL
23209-28080	2AZFE..ACR50 *195	12/2008 - 04/2012	4
23209-28080	2AZFE..ACR50 *195	01/2006 - 12/2008	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	2AZFE..ACR50 *195	01/2006 - 07/2006	4
90301-07037	2AZFE..ACR50 *195	12/2008 - 04/2012	4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28050	2AZFE..ACR50 *195	01/2006 - 02/2007	1
23270-28052	2AZFE..ACR50 *195	12/2008 - 04/2012	1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037	2AZFE..ACR50 *195	01/2006 - 12/2008	1
90301-07037	2AZFE..ACR50 *195	12/2008 - 04/2012	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	2AZFE..ACR50 *195	12/2008 - 04/2012	4
23291-41010	2AZFE..ACR50 *195	01/2006 - 12/2008	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-28031	2AZFE..ACR50 *195	12/2008 - 04/2012	1
23814-28031	2AZFE..ACR50 *195	01/2006 - 12/2008	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053	2AZFE..ACR50 *195	12/2008 - 04/2012	2
90561-08053	2AZFE..ACR50 *195	01/2006 - 12/2008	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28020	2AZFE..ACR50	01/2006 - 12/2008	1
23841-28020	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	2AZFE..ACR50	01/2006 - 07/2007	1
23842-28010	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-28010	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
90469-12012	2AZFE..ACR50	01/2006 - 01/2007	1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-28010	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
90469-12012	2AZFE..ACR50	01/2006 - 01/2007	1
23849A - SUPPORT, FUEL PIPE
23849-28050	2AZFE..ACR50	01/2006 - 12/2008	1
23849-28050	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
23901 - TUBE SUB-ASSY, FUEL
23901-28360	2AZFE..ACR50	01/2006 - 12/2008	1
23901-28360	2AZFE..ACR50..ARL	12/2008 - 05/2012	1
Common parts
90109-06351
91511-C0850
91631-G0614
Linked diagrams
1603
1708
7751

ACR50R-GRPDKQ (2008)

(0601- )2AZFE
