ACR50R-GRPDKQ (2008)
Toyota Previa/Tarago
(0601-1605)2AZFE

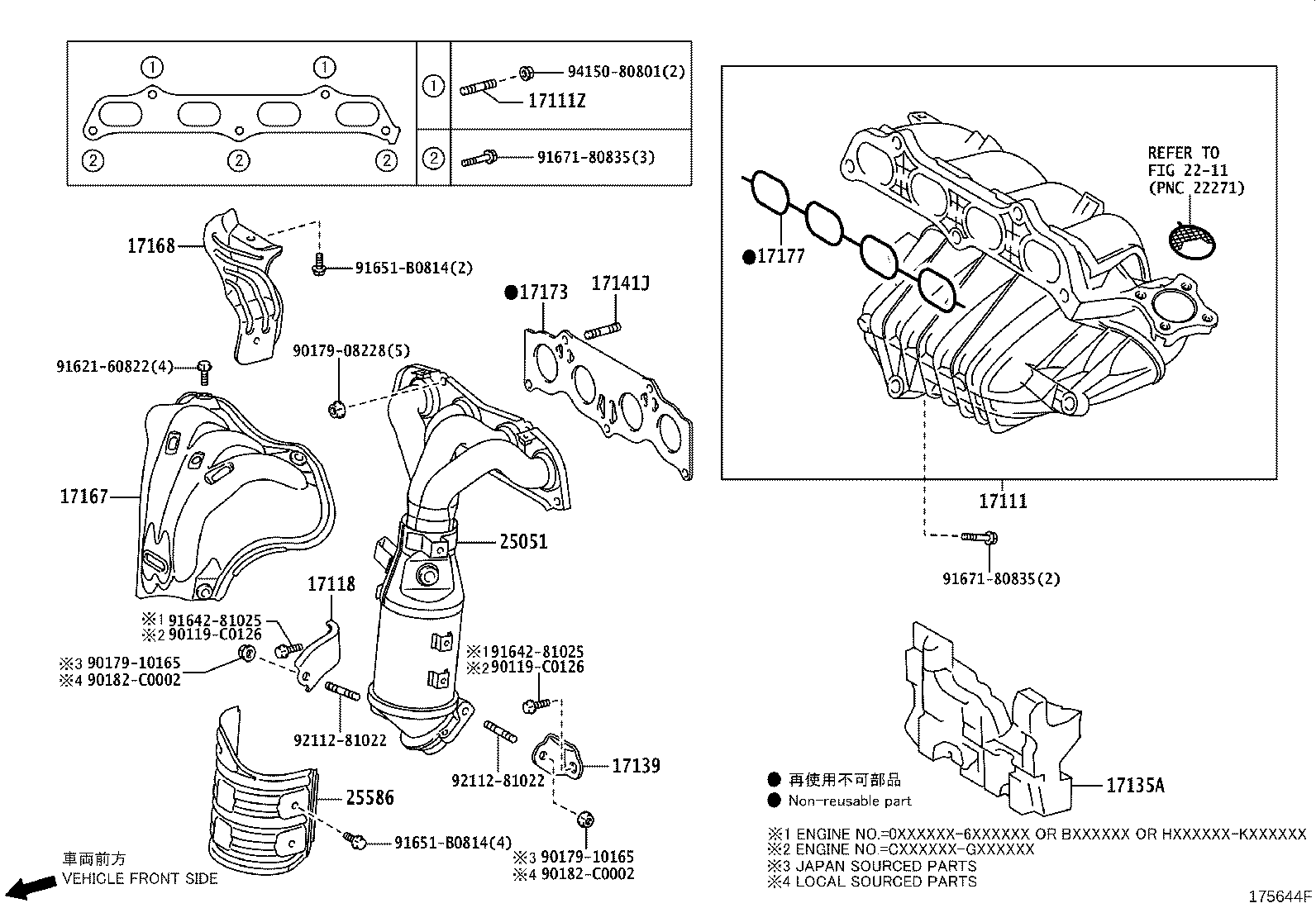

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-28170 |
2AZFE..ACR50 |
1 | ||
| 17120-28170 |
2AZFE..ACR50 |
1 | ||
| 17120-28171 |
2AZFE..ACR50..ARL |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
2AZFE..ACR50..ARL *195 |
2 | ||
| 90126-08026 |
2AZFE..ACR50 *195 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-28080 |
2AZFE..ACR50 *195 |
1 | ||
| 17118-28080 |
2AZFE..ACR50..ARL *195 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-28011 |
2AZFE..ACR50..ARL |
1 | ||
| 17135-28011 |
2AZFE..ACR50 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-28050 |
2AZFE..ACR50 *195 |
1 | ||
| 17139-28050 |
2AZFE..ACR50..ARL *195 |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-08037 |
2AZFE..ACR50 *195 |
5 | ||
| 90126-08037 |
2AZFE..ACR50..ARL *195 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-28060 |
2AZFE..ACR50 *195 |
1 | ||
| 17167-28060 |
2AZFE..ACR50..ARL *195 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-28030 |
2AZFE..ACR50 *195 |
1 | ||
| 17168-28030 |
2AZFE..ACR50..ARL *195 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-28010 |
2AZFE..ACR50..ARL *195 |
1 | ||
| 17173-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-28031 |
2AZFE..ACR50..ARL |
1 | ||
| 17177-28010 |
2AZFE..ACR50 |
1 | ||
| 17177-28010 |
2AZFE..ACR50 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-28340 |
2AZFE..ACR50 *114=TOYOTA/28340/Y,*195 |
1 | ||
| 25051-28360 |
2AZFE..ACR50 *114=TOYOTA/28360/Y,*195 |
1 | ||
| 25051-28340 |
2AZFE..ACR50 *114=TOYOTA/28340/Y,*195 |
1 | ||
| 25051-28360 |
2AZFE..ACR50 *114=TOYOTA/28360/Y,*195 |
1 | ||
| 25051-28340 |
2AZFE..ACR50..4FC *114=TOYOTA/28340/Y,*195 |
1 | ||
| 25051-28340 |
2AZFE..ACR50..ARL *114=TOYOTA/28340/Y,*195 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-28090 |
2AZFE..ACR50 *195 |
1 | ||
| 25586-28090 |
2AZFE..ACR50..ARL *195 |
1 | ||
| 25586-28090 |
2AZFE..ACR50..4FC *195 |
1 | ||
| Common parts | ||||
| 90119-C0126 | ||||
| 90179-08228 | ||||
| 90179-10165 | ||||
| 90182-C0002 | ||||
| 91621-60822 | ||||
| 91642-81025 | ||||
| 91651-B0814 | ||||
| 91671-80835 | ||||
| 92112-81022 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 2211 | ||||
