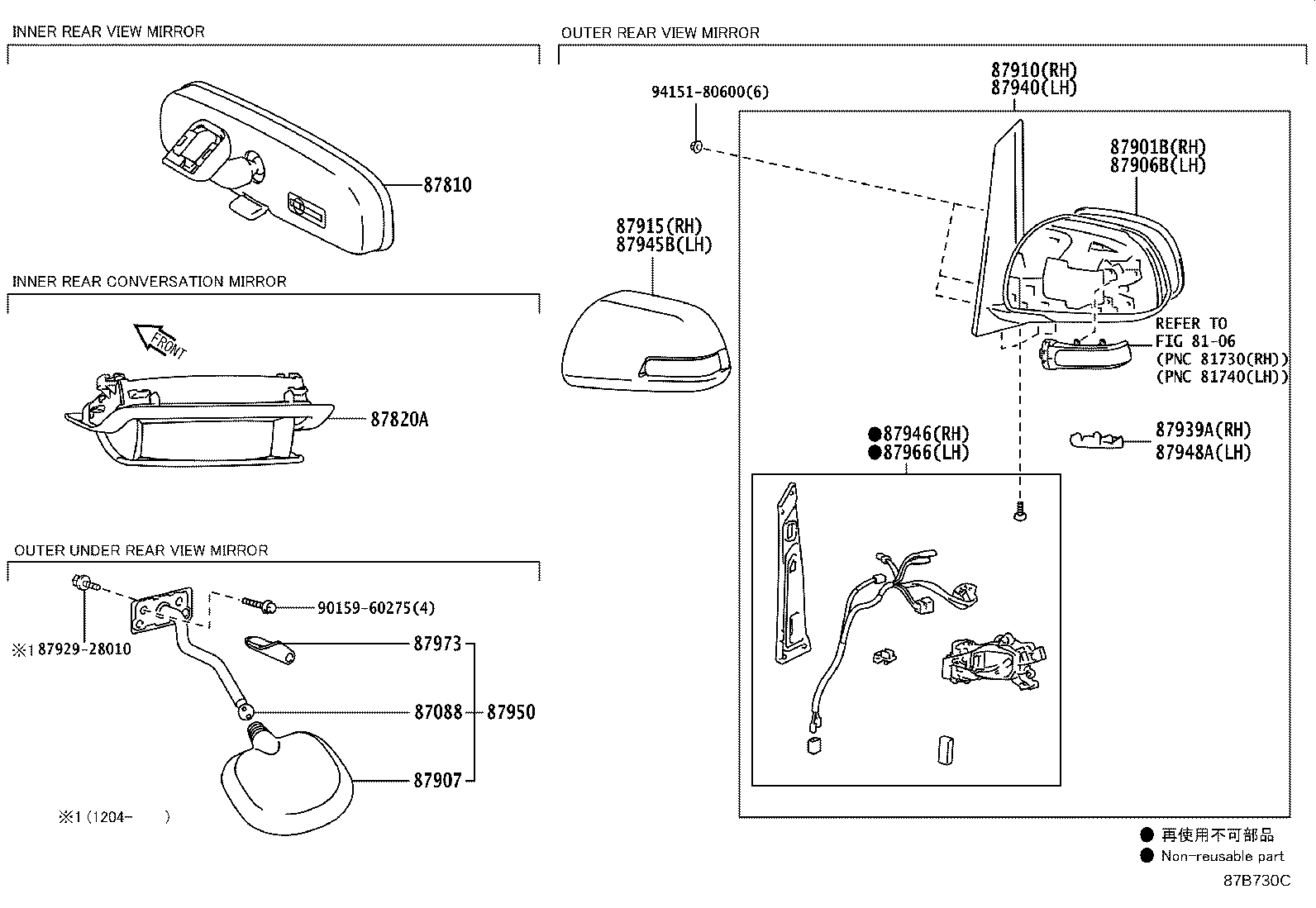

Toyota Previa/tarago ACR50 MIRROR

Part #	Description	Period	Qty
87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR
87088-28040	ACR50,GSR50..RHD..GEN REAR UNDER MIRROR-WITH	01/2006 - 12/2008	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52041	ACR50,GSR50	01/2007 - 12/2008	1
87810-52040	ACR50,GSR50	01/2006 - 12/2006	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-28A70	ACR50..RHD..DLX..GEN HONG KONG SPEC	01/2006 - 12/2008	1
87931-28A60	GSR50..ARL;ACR50..DLX..(ARL,GEN)	01/2006 - 12/2008	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-28A70	ACR50..RHD..DLX..GEN HONG KONG SPEC	01/2006 - 12/2008	1
87961-28A60	GSR50..ARL;ACR50..DLX..(ARL,GEN)	01/2006 - 12/2008	1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-28010	ACR50,GSR50..RHD..GEN REAR UNDER MIRROR-WITH	01/2006 - 12/2008	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28A70	ACR50..RHD..DLX..GEN NO PAINT REQ.,HONG KONG SPEC	01/2006 - 12/2008	1
87910-28A60	GSR50..ARL;ACR50..RHD..DLX NO PAINT REQ.	01/2006 - 12/2008	1
87915 - COVER, OUTER MIRROR, RH
87915-28060B0	ACR50,GSR50 SILVER ME.,1F7	01/2006 - 12/2008	1
87915-28060A1	ACR50,GSR50 WHITE PEARL CS.,070	01/2006 - 12/2008	1
87915-28060B1	ACR50,GSR50 MEDIUM SILVER ME.,1F8	01/2006 - 12/2008	1
87915-28060D0	ACR50,GSR50 DK. RED M.M.,3Q3	01/2006 - 12/2008	1
87915-28060C0	ACR50,GSR50 BLACK,202	01/2006 - 12/2008	1
87915-28060J0	ACR50,GSR50 DK.BLUE MC.,8S6	01/2006 - 12/2008	1
87915-28060A0	ACR50,GSR50 SUPER WHITE 2,040	01/2006 - 12/2008	1
87915-28060J1	ACR50,GSR50 LT.BLUE M.M.,8S7	01/2006 - 12/2008	1
87915-28060F0	ACR50,GSR50 SILKY GOLD M.M.,5A4	01/2006 - 12/2008	1
87939A - COVER, OUTER MIRROR HOLE, RH
87939-28A20	ACR50,GSR50..RHD	01/2006 - 12/2008	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28A60	GSR50..ARL;ACR50..RHD..DLX NO PAINT REQ.	01/2006 - 12/2008	1
87940-28A70	ACR50..RHD..DLX..GEN NO PAINT REQ.,HONG KONG SPEC	01/2006 - 12/2008	1
87945B - COVER, OUTER MIRROR, LH
87945-28060C0	ACR50,GSR50 BLACK,202	01/2006 - 12/2008	1
87945-28060B1	ACR50,GSR50 MEDIUM SILVER ME.,1F8	01/2006 - 12/2008	1
87945-28060A0	ACR50,GSR50 SUPER WHITE 2,040	01/2006 - 12/2008	1
87945-28060D0	ACR50,GSR50 DK. RED M.M.,3Q3	01/2006 - 12/2008	1
87945-28060A1	ACR50,GSR50 WHITE PEARL CS.,070	01/2006 - 12/2008	1
87945-28060J0	ACR50,GSR50 DK.BLUE MC.,8S6	01/2006 - 12/2008	1
87945-28060F0	ACR50,GSR50 SILKY GOLD M.M.,5A4	01/2006 - 12/2008	1
87945-28060B0	ACR50,GSR50 SILVER ME.,1F7	01/2006 - 12/2008	1
87945-28060J1	ACR50,GSR50 LT.BLUE M.M.,8S7	01/2006 - 12/2008	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-28A30	ACR50..RHD..DLX..GEN HONG KONG SPEC	01/2006 - 12/2008	1
87948A - COVER, OUTER MIRROR HOLE, LH
87948-28A20	ACR50,GSR50..RHD	01/2006 - 12/2008	1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28150	ACR50,GSR50..RHD..GEN REAR UNDER MIRROR-WITH	01/2006 - 12/2008	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-28A30	ACR50..RHD..DLX..GEN HONG KONG SPEC	01/2006 - 12/2008	1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-28070	ACR50,GSR50..RHD..GEN REAR UNDER MIRROR-WITH	01/2006 - 12/2008	1
Common parts
87929-28010
90159-60275
94151-80600
Linked diagrams
8106

ACR50R-GRPDK (2006)

(0601-1304)
