ACR50R-GRPDK (2006)

Toyota Previa/Tarago

Production Jan 2006 - Dec 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

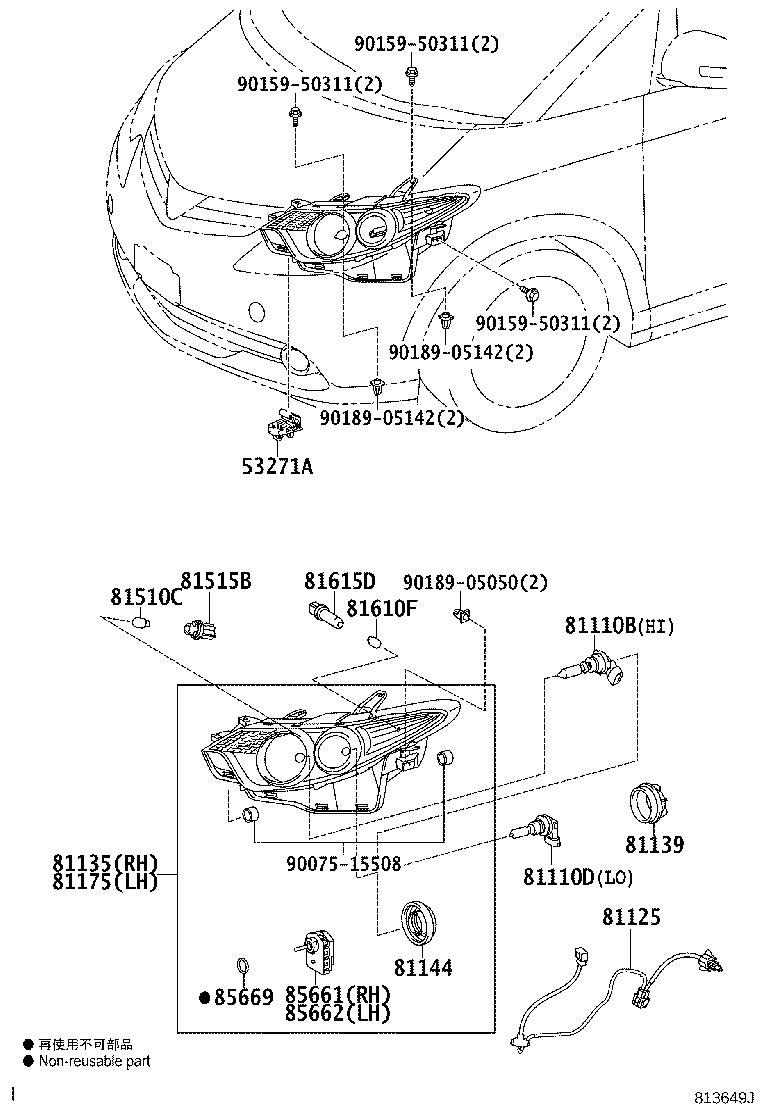

ILLUST NO. 1 OF 2(0601-0812)

Click highlighted areas on diagram

HALOGEN HEADLAMP

diagram 53271A 81110B 81110D 81125 81135 81139 81144 81175 81510C 81515B 81610F 81615D 85661 85662 85669 9007515508 9015950311 9015950311 9015950311 9018905050 9018905142 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

ACR50,GSR50

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ACR50,GSR50..GCC,GEN

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ACR50,GSR50

12V 55W,HALOGEN

 2
81125 - CORD, HEADLAMP
81125-28A00

GSR50;ACR50..RHD

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-28A00

ACR50,GSR50..RHD..GEN

 1
81139 - COVER, HEADLAMP SOCKET
81189-28A10

GSR50;ACR50..RHD

 2
81144 - COVER, HEADLAMP, NO.1
90075-65006

ACR50,GSR50

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-28A00

ACR50,GSR50..RHD..GEN

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

GSR50;ACR50..RHD

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ACR50,GSR50

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GSR50;ACR50..RHD

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

ACR50,GSR50

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12010

GSR50;ACR50..RHD

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12010

GSR50;ACR50..RHD

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

ACR50,GSR50

 2
Common parts
90075-15508
90159-50311
90189-05050
90189-05142

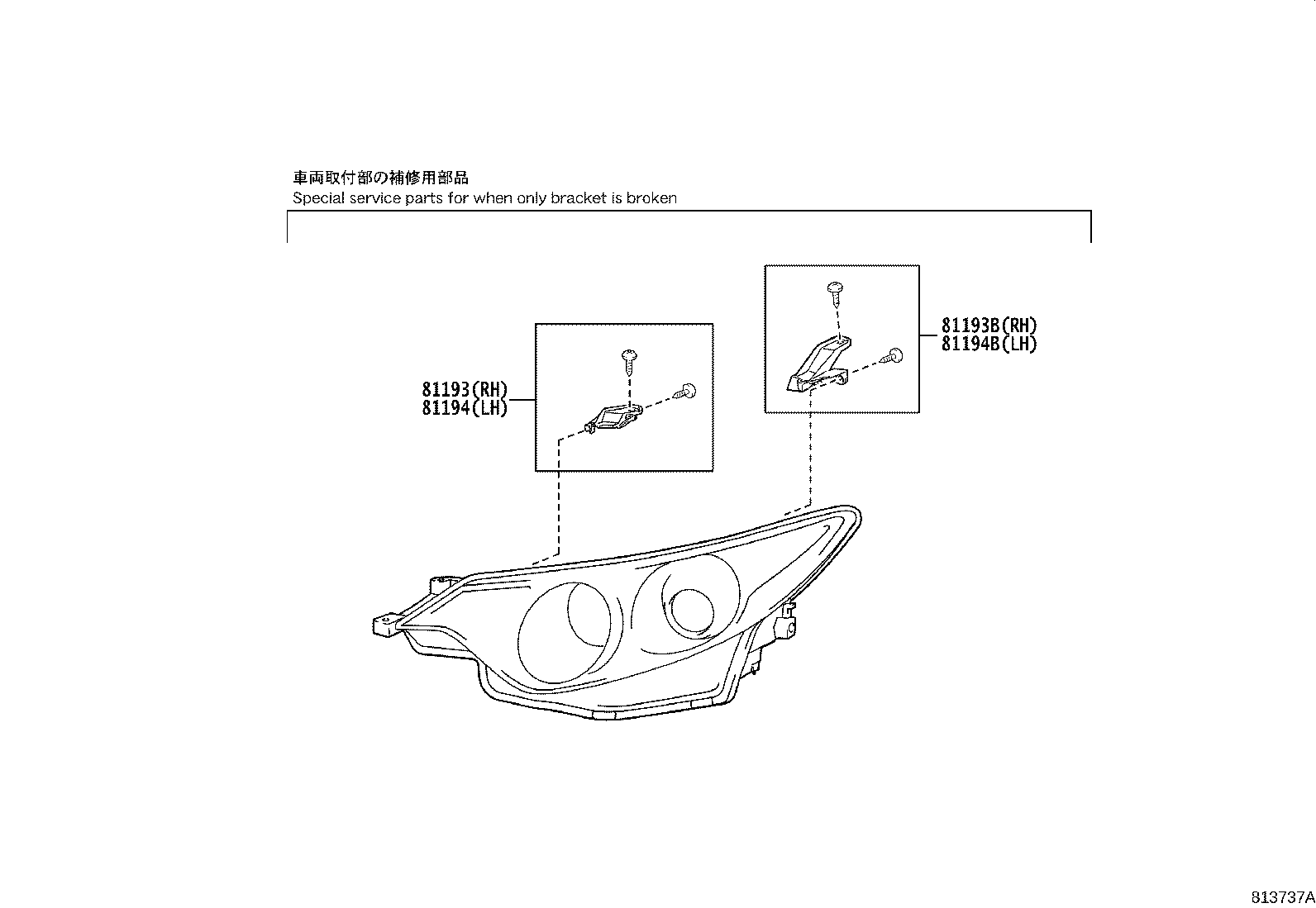

ILLUST NO. 2 OF 2(0601-0812)

Click highlighted areas on diagram

diagram 81193 81193B 81194 81194B
Part # Description Qty Price
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-28060

ACR50,GSR50

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-28070

ACR50,GSR50

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-28060

ACR50,GSR50

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-28070

ACR50,GSR50

 1
