ACR50R-GRPDK (2006)
Toyota Previa/Tarago
(0601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57443B - SUPPORT, SIDE STEP, REAR RH | ||||
| 51078-28020 |
ACR50,GSR50 |
1 | ||
| 57444A - SUPPORT, SIDE STEP, REAR LH | ||||
| 51079-28040 |
ACR50,GSR50 |
1 | ||
| 58747G - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-28040 |
ACR50,GSR50 |
1 | ||
| 58748D - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-28020 |
ACR50,GSR50 |
1 | ||
| 61057D - RAIL SUB-ASSY, REAR SIDE, RH | ||||
| 61057-28030 |
ACR50,GSR50 |
1 | ||
| 61067F - RAIL SUB-ASSY, REAR SIDE, LH | ||||
| 61067-28040 |
ACR50,GSR50 |
1 | ||
| 68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER | ||||
| 68029-28060 |
ACR50,GSR50 |
1 | ||
| 68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68031-28020 |
ACR50,GSR50 |
1 | ||
| 68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68032-28020 |
ACR50,GSR50 |
1 | ||
| 68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68039-28070 |
ACR50,GSR50 |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-28080 |
ACR50,GSR50 |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-28110 |
ACR50,GSR50 |
1 | ||
| 68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH | ||||
| 68310-28060 |
ACR50,GSR50 |
1 | ||
| 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68320-28070 |
ACR50,GSR50 |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-28030 |
ACR50,GSR50 |
1 | ||
| 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH | ||||
| 68326-28030 |
ACR50,GSR50 |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-28060 |
ACR50,GSR50 |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-28080 |
ACR50,GSR50 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-28050 |
ACR50,GSR50 |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-28070 |
ACR50,GSR50 |
1 | ||
| 68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
ACR50,GSR50 |
1 | ||
| 68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
ACR50,GSR50 |
1 | ||
| 68394A - PLATE, SLIDE DOOR LOWER RAIL, RH | ||||
| 68394-28030 |
ACR50,GSR50 |
1 | ||
| 68399 - PLATE, SLIDE DOOR LOWER RAIL, LH | ||||
| 68399-28040 |
ACR50,GSR50 |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-28021 |
ACR50,GSR50 |
2 | ||
| 69416B - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69046-28080 |
ACR50,GSR50 |
2 | ||
| 69046-58010 |
ACR50,GSR50 |
2 | ||
| 69417C - CUSHION, SLIDE DOOR OPEN STOPPER, RH | ||||
| 69417-44010 |
ACR50,GSR50 |
1 | ||
| 69418 - STOP, SLIDE DOOR OPEN | ||||
| 69418-28100 |
ACR50,GSR50 |
1 | ||
| 69418F - CUSHION, SLIDE DOOR OPEN STOPPER, LH | ||||
| 69417-44010 |
ACR50,GSR50 |
1 | ||
| 69419B - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-28040 |
ACR50,GSR50 |
1 | ||
| 85005A - MOTOR UNIT, SLIDE DOOR, RH | ||||
| 85005-28022 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85005-28020 |
ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85005-28021 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85006 - MOTOR UNIT, SLIDE DOOR, LH | ||||
| 85006-28050 |
ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85006-28051 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85006-28052 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85610B - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH | ||||
| 85610-28031 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85610-28030 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH | ||||
| 85620-28050 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 85620-28051 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| Common parts | ||||
| 68326-52060 | ||||
| 75396-28090 | ||||
| 89689-28020 | ||||
| 90105-06168 | ||||
| 90105-08187 | ||||
| 90119-06595 | ||||
| 90119-06779 | ||||
| 90119-06911 | ||||
| 90119-06A06 | ||||
| 90148-80049 | ||||
| 90159-60303 | ||||
| 90189-06197 | ||||
| 90541-10038 | ||||
| 90950-06089 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 91553-80610 | ||||
| 91621-J0814 | ||||
| 91641-80818 | ||||
| Linked diagrams | ||||

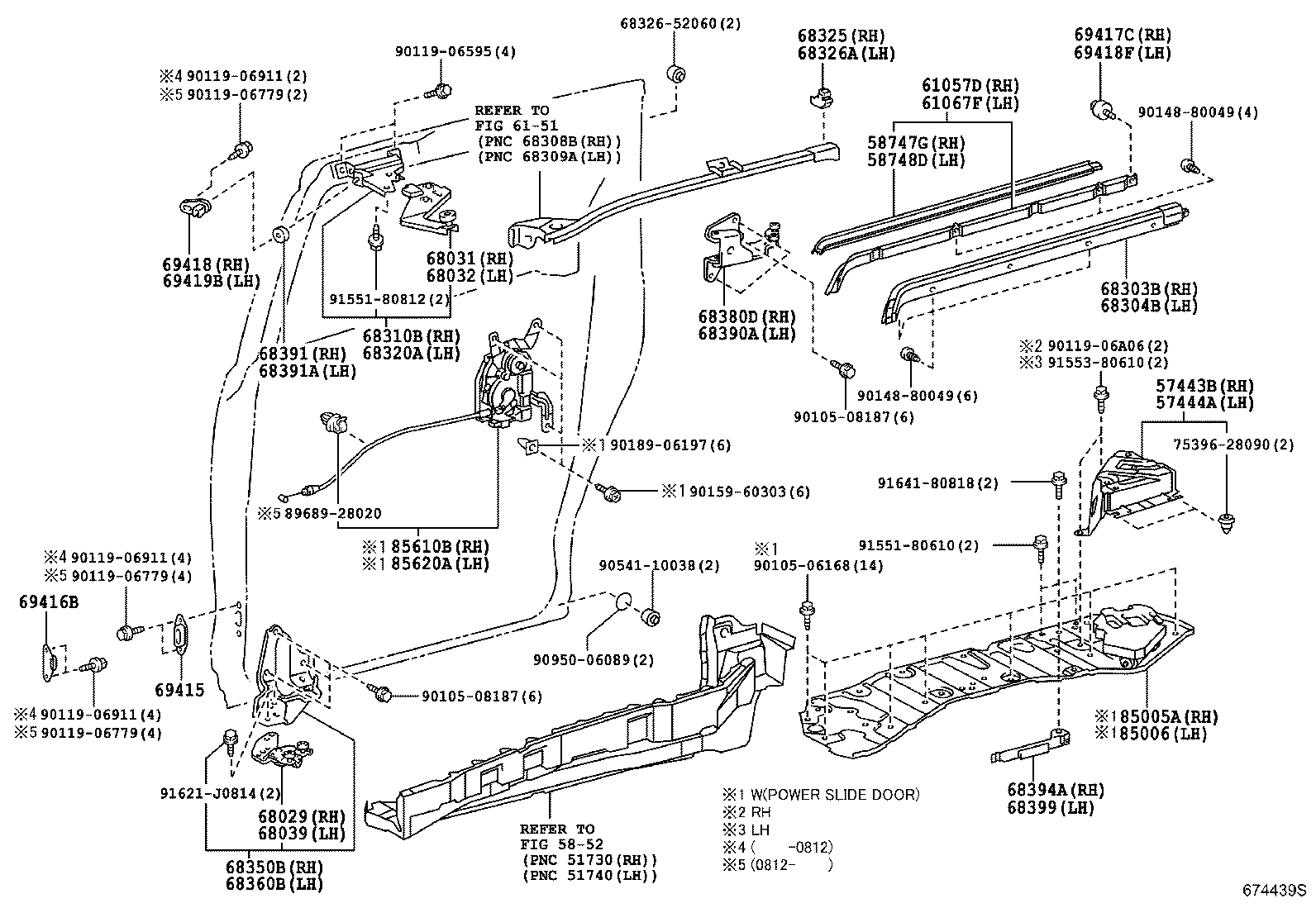

| 5852 | ||||
| 6151 | ||||
