ACR50R-GRPDK (2006)

Toyota Previa/Tarago

Production Jan 2006 - Dec 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605) ; (1605- )LHD

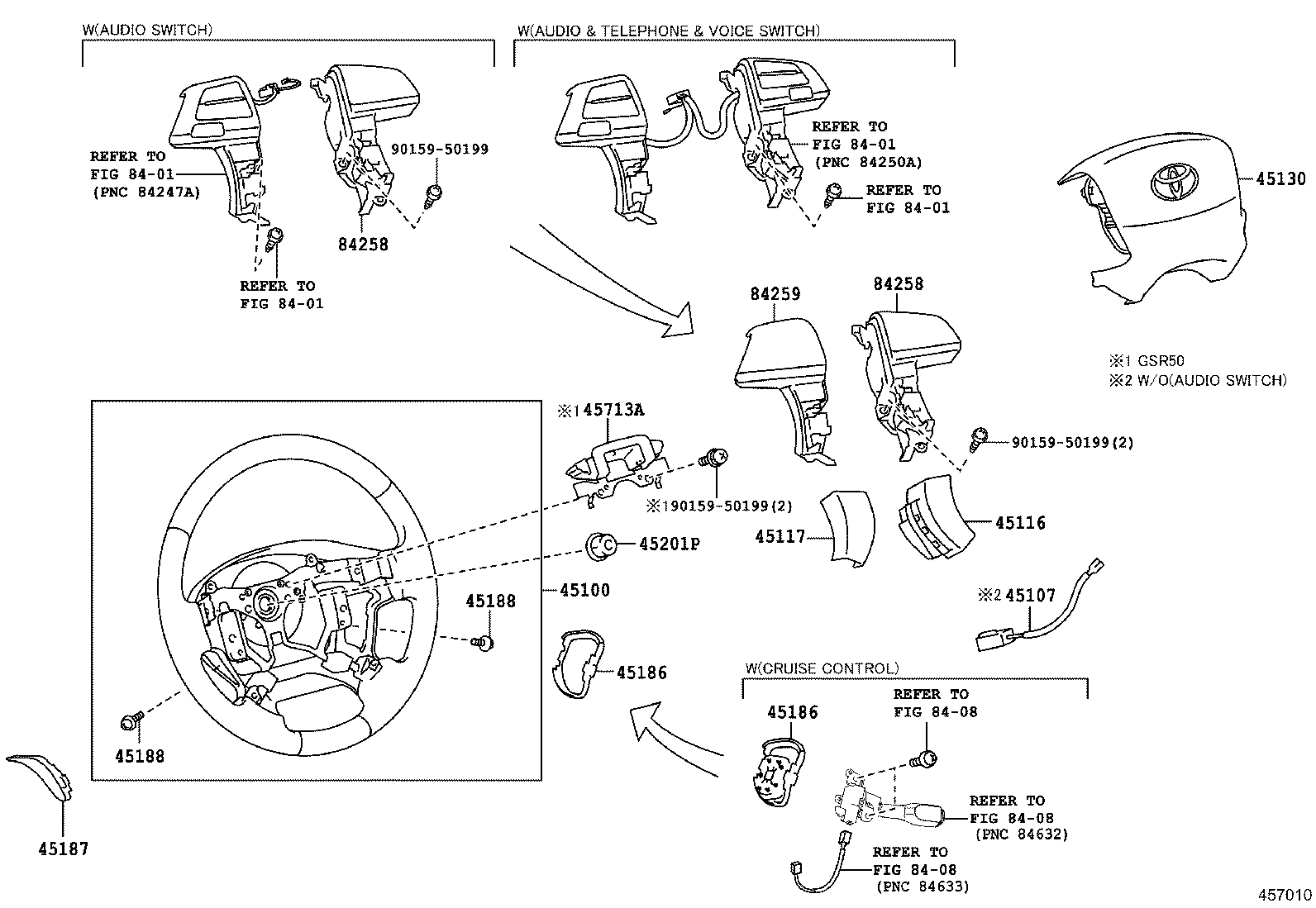

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45116 45117 45130 45186 45186 45187 45188 45188 45201P 45713A 8401 8401 8401 8401 8408 8408 8408 84258 84258 84259 9015950199 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-28390E0

ACR50,GSR50..DLX

4-SPOKE,URETHANE,GREGE,TRIM4#

 1
45100-28390B0

ACR50,GSR50..RHD..DLX

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-28030

ACR50,GSR50

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-28010E0

ACR50,GSR50

GREGE,TRIM4#

 1
45116-28010B0

ACR50,GSR50..RHD..DLX

DK.GRAY,TRIM1#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-28010B0

ACR50,GSR50..RHD..DLX

DK.GRAY,TRIM1#

 1
45117-28010E0

ACR50,GSR50

GREGE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-28550E0

ACR50,GSR50

GREGE,TRIM4#

 1
45130-28550B0

ACR50,GSR50..RHD..DLX

DK.GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28040B0

ACR50..RHD..DLX..GEN

CRUISE CONTROL-WITH,DK.GRAY,TRIM1#

 1
45186-28040E0

GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN

CRUISE CONTROL-WITH,GREGE,TRIM4#

 1
45186-28050E0

ACR50,GSR50

GREGE,TRIM4#

 1
45186-28050B0

ACR50,GSR50..RHD..DLX

DK.GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28040B0

ACR50..RHD..DLX..GEN

CRUISE CONTROL-WITH,DK.GRAY,TRIM1#

 1
45186-28040E0

GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN

CRUISE CONTROL-WITH,GREGE,TRIM4#

 1
45186-28050E0

ACR50,GSR50

GREGE,TRIM4#

 1
45186-28050B0

ACR50,GSR50..RHD..DLX

DK.GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-28020E0

ACR50,GSR50

GREGE,TRIM4#

 1
45187-28020B0

ACR50,GSR50..RHD..DLX

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ACR50,GSR50

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ACR50,GSR50

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ACR50,GSR50

 1
84258 - COVER, STEERING PAD, RH
84258-28020

ACR50,GSR50

 1
84258 - COVER, STEERING PAD, RH
84258-28020

ACR50,GSR50

 1
84259 - COVER, STEERING PAD, LH
84259-28020

ACR50,GSR50

 1
Common parts
90159-50199
Linked diagrams
8401
8408
