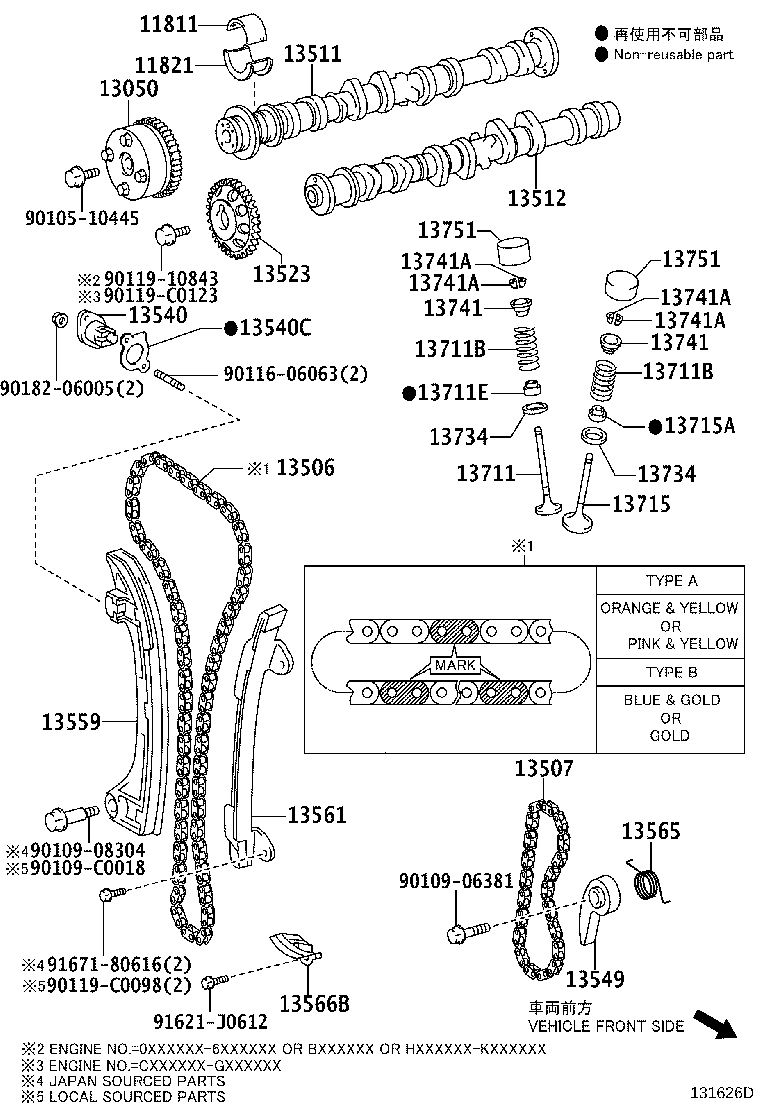

ACR50R-GRPDK (2006)
Toyota Previa/Tarago
(0601-1605)2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-2801001 |
2AZFE..ACR50 MARK 1,*195:REFER R/M |
1 | ||
| 11811-2801003 |
2AZFE..ACR50 MARK 3,*195:REFER R/M |
1 | ||
| 11811-2801002 |
2AZFE..ACR50 MARK 2,*195:REFER R/M |
1 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-2801003 |
2AZFE..ACR50 MARK 3,*195:REFER R/M |
1 | ||
| 11821-2801001 |
2AZFE..ACR50 MARK 1,*195:REFER R/M |
1 | ||
| 11821-2801002 |
2AZFE..ACR50 MARK 2,*195:REFER R/M |
1 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-28021 |
2AZFE..ACR50 *195 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-28020 |
2AZFE..ACR50 *195 TYPE B:REF ILL. |
1 | ||
| 13506-28011 |
2AZFE..ACR50 *195 TYPE A:REF ILL. |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-28060 |
2AZFE..ACR50 (J),*195 |
1 | ||
| 13501-0H040 |
2AZFE..ACR50 (L),*195 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-28030 |
2AZFE..ACR50 (J),*195 |
1 | ||
| 13502-0H030 |
2AZFE..ACR50 (L),*195 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
2AZFE..ACR50 *195 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-28012 |
2AZFE..ACR50 *195 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-28012 |
2AZFE..ACR50 *195 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-28010 |
2AZFE..ACR50 *195 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-28010 |
2AZFE..ACR50 *195 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-28038 |
2AZFE..ACR50 *195 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-28038 |
2AZFE..ACR50 *195 |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02101 |
2AZFE..ACR50 *195 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-28040 |
2AZFE..ACR50 *195 |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02112 |
2AZFE..ACR50 *195 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
2AZFE..ACR50 *195 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
2AZFE..ACR50 *195 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
2AZFE..ACR50 *195 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
2AZFE..ACR50 *195 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2AZFE..ACR50 *195 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2AZFE..ACR50 *195 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2AZFE..ACR50 *195 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2AZFE..ACR50 *195 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46030 |
2AZFE..ACR50 T=5.06,*195 |
16 | ||
| 13751-46050 |
2AZFE..ACR50 T=5.10,*195 |
16 | ||
| 13751-46100 |
2AZFE..ACR50 T=5.20,*195 |
16 | ||
| 13751-46080 |
2AZFE..ACR50 T=5.16,*195 |
16 | ||
| 13751-46090 |
2AZFE..ACR50 T=5.18,*195 |
16 | ||
| 13751-46070 |
2AZFE..ACR50 T=5.14,*195 |
16 | ||
| 13751-46150 |
2AZFE..ACR50 T=5.30,*195 |
16 | ||
| 13751-46060 |
2AZFE..ACR50 T=5.12,*195 |
16 | ||
| 13751-46120 |
2AZFE..ACR50 T=5.24,*195 |
16 | ||
| 13751-46180 |
2AZFE..ACR50 T=5.36,*195 |
16 | ||
| 13751-46040 |
2AZFE..ACR50 T=5.08,*195 |
16 | ||
| 13751-46130 |
2AZFE..ACR50 T=5.26,*195 |
16 | ||
| 13751-46190 |
2AZFE..ACR50 T=5.38,*195 |
16 | ||
| 13751-46240 |
2AZFE..ACR50 T=5.48,*195 |
16 | ||
| 13751-46160 |
2AZFE..ACR50 T=5.32,*195 |
16 | ||
| 13751-46110 |
2AZFE..ACR50 T=5.22,*195 |
16 | ||
| 13751-46170 |
2AZFE..ACR50 T=5.34,*195 |
16 | ||
| 13751-46140 |
2AZFE..ACR50 T=5.28,*195 |
16 | ||
| 13751-46260 |
2AZFE..ACR50 T=5.52,*195 |
16 | ||
| 13751-46200 |
2AZFE..ACR50 T=5.40,*195 |
16 | ||
| 13751-46280 |
2AZFE..ACR50 T=5.56,*195 |
16 | ||
| 13751-46310 |
2AZFE..ACR50 T=5.62,*195 |
16 | ||
| 13751-46220 |
2AZFE..ACR50 T=5.44,*195 |
16 | ||
| 13751-46210 |
2AZFE..ACR50 T=5.42,*195 |
16 | ||
| 13751-46320 |
2AZFE..ACR50 T=5.64,*195 |
16 | ||
| 13751-46340 |
2AZFE..ACR50 T=5.68,*195 |
16 | ||
| 13751-46290 |
2AZFE..ACR50 T=5.58,*195 |
16 | ||
| 13751-46270 |
2AZFE..ACR50 T=5.54,*195 |
16 | ||
| 13751-46350 |
2AZFE..ACR50 T=5.70,*195 |
16 | ||
| 13751-46250 |
2AZFE..ACR50 T=5.50,*195 |
16 | ||
| 13751-46330 |
2AZFE..ACR50 T=5.66,*195 |
16 | ||
| 13751-46300 |
2AZFE..ACR50 T=5.60,*195 |
16 | ||
| 13751-46370 |
2AZFE..ACR50 T=5.74,*195 |
16 | ||
| 13751-46360 |
2AZFE..ACR50 T=5.72,*195 |
16 | ||
| 13751-46230 |
2AZFE..ACR50 T=5.46,*195 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46030 |
2AZFE..ACR50 T=5.06,*195 |
16 | ||
| 13751-46050 |
2AZFE..ACR50 T=5.10,*195 |
16 | ||
| 13751-46100 |
2AZFE..ACR50 T=5.20,*195 |
16 | ||
| 13751-46080 |
2AZFE..ACR50 T=5.16,*195 |
16 | ||
| 13751-46090 |
2AZFE..ACR50 T=5.18,*195 |
16 | ||
| 13751-46070 |
2AZFE..ACR50 T=5.14,*195 |
16 | ||
| 13751-46150 |
2AZFE..ACR50 T=5.30,*195 |
16 | ||
| 13751-46060 |
2AZFE..ACR50 T=5.12,*195 |
16 | ||
| 13751-46120 |
2AZFE..ACR50 T=5.24,*195 |
16 | ||
| 13751-46180 |
2AZFE..ACR50 T=5.36,*195 |
16 | ||
| 13751-46040 |
2AZFE..ACR50 T=5.08,*195 |
16 | ||
| 13751-46130 |
2AZFE..ACR50 T=5.26,*195 |
16 | ||
| 13751-46190 |
2AZFE..ACR50 T=5.38,*195 |
16 | ||
| 13751-46240 |
2AZFE..ACR50 T=5.48,*195 |
16 | ||
| 13751-46160 |
2AZFE..ACR50 T=5.32,*195 |
16 | ||
| 13751-46110 |
2AZFE..ACR50 T=5.22,*195 |
16 | ||
| 13751-46170 |
2AZFE..ACR50 T=5.34,*195 |
16 | ||
| 13751-46140 |
2AZFE..ACR50 T=5.28,*195 |
16 | ||
| 13751-46260 |
2AZFE..ACR50 T=5.52,*195 |
16 | ||
| 13751-46200 |
2AZFE..ACR50 T=5.40,*195 |
16 | ||
| 13751-46280 |
2AZFE..ACR50 T=5.56,*195 |
16 | ||
| 13751-46310 |
2AZFE..ACR50 T=5.62,*195 |
16 | ||
| 13751-46220 |
2AZFE..ACR50 T=5.44,*195 |
16 | ||
| 13751-46210 |
2AZFE..ACR50 T=5.42,*195 |
16 | ||
| 13751-46320 |
2AZFE..ACR50 T=5.64,*195 |
16 | ||
| 13751-46340 |
2AZFE..ACR50 T=5.68,*195 |
16 | ||
| 13751-46290 |
2AZFE..ACR50 T=5.58,*195 |
16 | ||
| 13751-46270 |
2AZFE..ACR50 T=5.54,*195 |
16 | ||
| 13751-46350 |
2AZFE..ACR50 T=5.70,*195 |
16 | ||
| 13751-46250 |
2AZFE..ACR50 T=5.50,*195 |
16 | ||
| 13751-46330 |
2AZFE..ACR50 T=5.66,*195 |
16 | ||
| 13751-46300 |
2AZFE..ACR50 T=5.60,*195 |
16 | ||
| 13751-46370 |
2AZFE..ACR50 T=5.74,*195 |
16 | ||
| 13751-46360 |
2AZFE..ACR50 T=5.72,*195 |
16 | ||
| 13751-46230 |
2AZFE..ACR50 T=5.46,*195 |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90109-06381 | ||||
| 90109-08304 | ||||
| 90109-C0018 | ||||
| 90116-06063 | ||||
| 90119-10843 | ||||
| 90119-C0098 | ||||
| 90119-C0123 | ||||
| 90182-06005 | ||||
| 91621-J0612 | ||||
| 91671-80616 | ||||
