ACR50R-GFXSK (2016)
Toyota Previa/Tarago
Production
May 2016
-
Jun 2019
Engine
2AZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1605- )AERAS

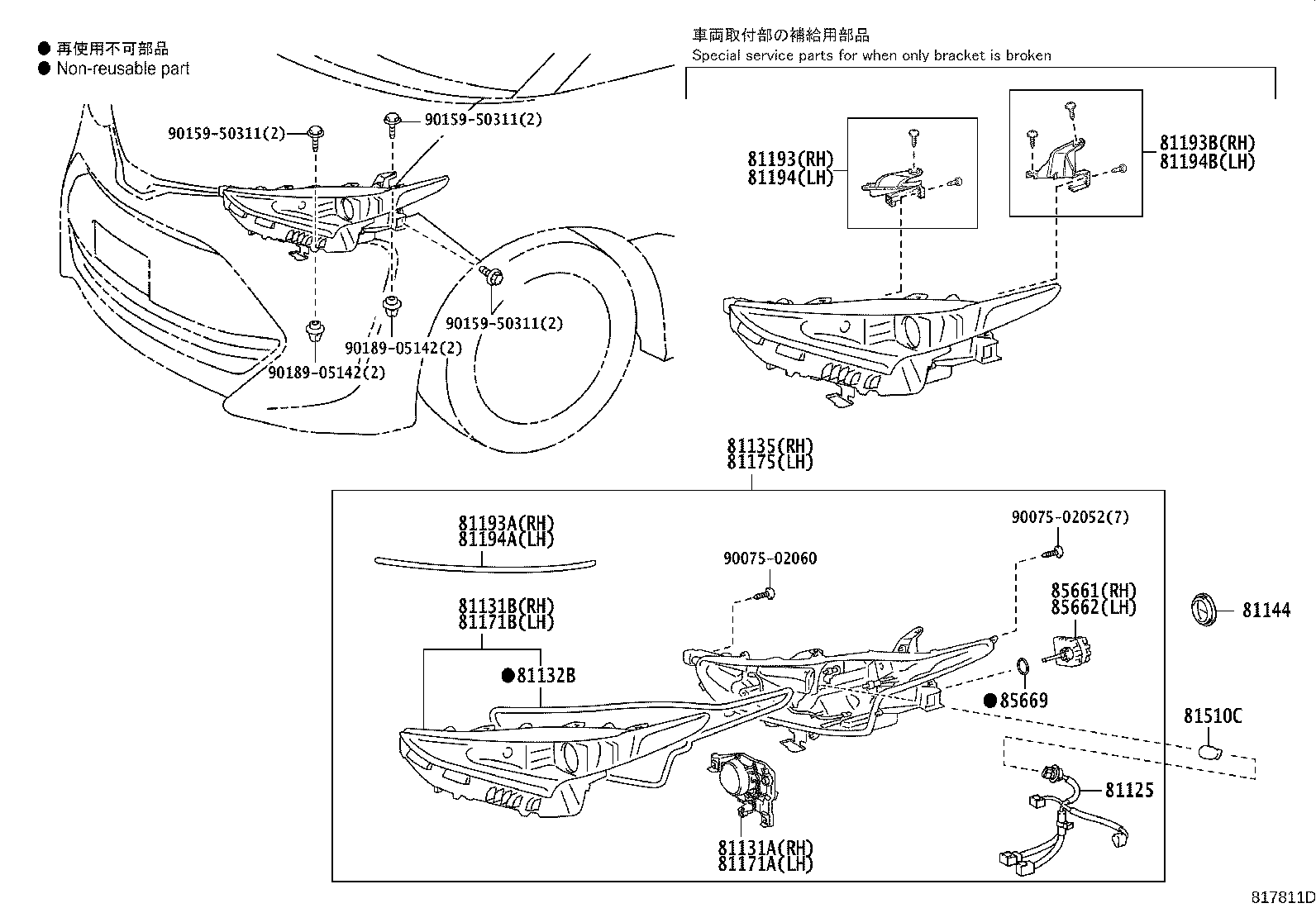

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81125 - CORD, HEADLAMP | ||||
| 81125-28A00 |
GSR50;ACR50..RHD |
2 | ||
| 81125-28G20 |
ACR50..AERAS |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-28G20 |
ACR50..AERAS |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-28G20 |
ACR50..AERAS |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-60K80 |
ACR50..AERAS |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-28G21 |
ACR50..AERAS |
1 | ||
| 81105-28G20 |
ACR50..AERAS |
1 | ||
| 81130-28A00 |
ACR50,GSR50..RHD..GEN |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ACR50,GSR50 |
2 | ||
| 81112-47380 |
ACR50..AERAS |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-28G20 |
ACR50..AERAS |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-28G20 |
ACR50..AERAS |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28A00 |
ACR50,GSR50..RHD..GEN |
1 | ||
| 81106-28G20 |
ACR50..AERAS |
1 | ||
| 81106-28G21 |
ACR50..AERAS |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28060 |
ACR50,GSR50 |
1 | ||
| 81193-28240 |
ACR50..AERAS |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-28G20 |
ACR50..AERAS |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28070 |
ACR50,GSR50 |
1 | ||
| 81193-28230 |
ACR50..AERAS |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28060 |
ACR50,GSR50 |
1 | ||
| 81194-28240 |
ACR50..AERAS |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-28G20 |
ACR50..AERAS |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28070 |
ACR50,GSR50 |
1 | ||
| 81194-28230 |
ACR50..AERAS |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSR50;ACR50..RHD 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ACR50..AERAS 12V 21W,AMBER |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
GSR50;ACR50..RHD |
1 | ||
| 85661-12020 |
ACR50..AERAS |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
GSR50;ACR50..RHD |
1 | ||
| 85661-12020 |
ACR50..AERAS |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACR50,GSR50 |
2 | ||
| 90075-99120 |
ACR50..AERAS |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
