ACR50R-GFXGK (2010)

Toyota Previa/Tarago

Production Mar 2010 - Apr 2012
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1003-1204)CVT ; (1204-1605)AERAS,DLX..GEN

Click highlighted areas on diagram

K112

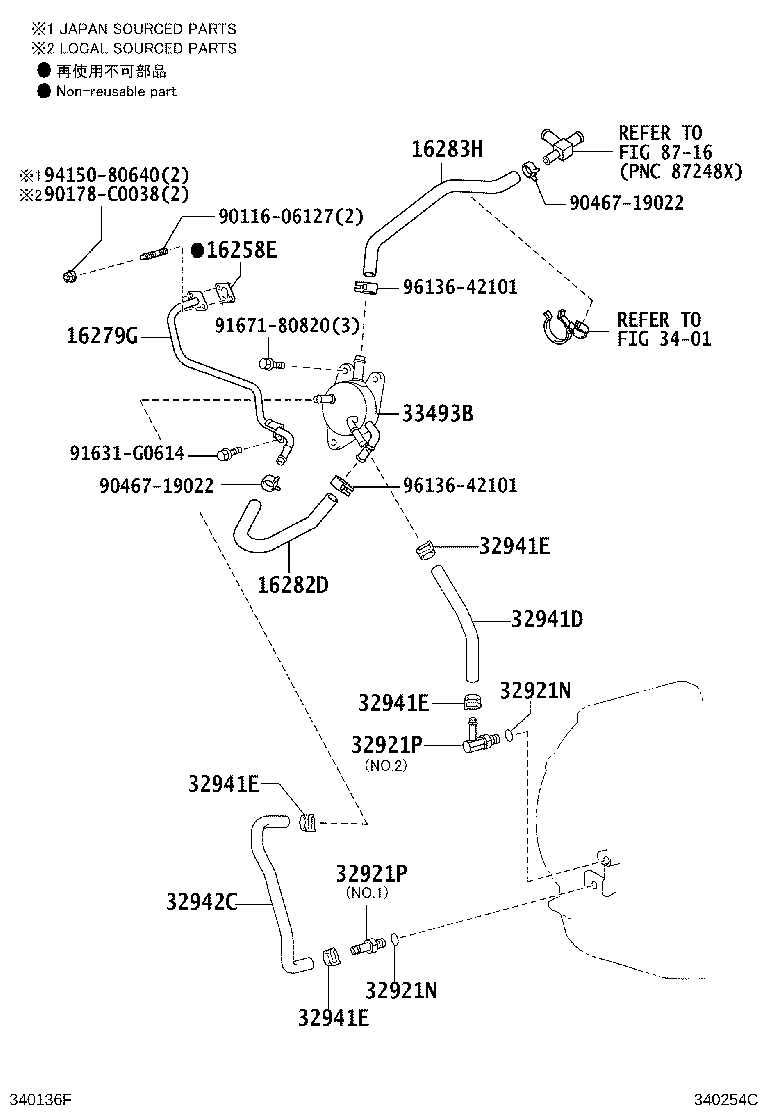

diagram 16258E 16279G 16282D 16283H 32921N 32921N 32921P 32921P 32941D 32941E 32941E 32941E 32941E 32942C 33493B 3401 8716 9011606127 90178C0038 9046719022 9046719022 91631G0614 9167180820 9415080640 9613642101 9613642101
Part # Description Qty Price
16258E - GASKET(FOR WATER BY-PASS PIPE)
16258-0H050

2AZFE..ACR50..CVT

2AZ-FE,(L),*194

 1
16258-28040

2AZFE..ACR50..CVT

*195

 1
16258-28040

2AZFE..ACR50..CVT

2AZ-FE,*195

 1
16258-28040

2AZFE..ACR50..CVT

2AZ-FE,(J),*194

 1
16279G - PIPE, WATER BY-PASS, NO.3
16279-28060

2AZFE..ACR50..CVT

2AZ-FE,*194

 1
16279-28060

2AZFE..ACR50..CVT

2AZ-FE,*195

 1
16279-28060

2AZFE..ACR50..CVT

*195

 1
16282D - HOSE, WATER BY-PASS, NO.5
16282-28100

2AZFE..ACR50..CVT

 1
16283H - HOSE, WATER BY-PASS, NO.6
16283-28120

2AZFE..ACR50..CVT

 1
32921N - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACR50..CVT

 2
32921N - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACR50..CVT

 2
32921P - UNION(FOR OIL COOLER TUBE)
90407-13009

ACR50..CVT

NO.2

 1
90404-13004

ACR50..CVT

NO.1

 1
32921P - UNION(FOR OIL COOLER TUBE)
90407-13009

ACR50..CVT

NO.2

 1
90404-13004

ACR50..CVT

NO.1

 1
32941D - HOSE, OIL COOLER INLET
90445-17100

ACR50..CVT

 1
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

ACR50..CVT

NO.1 & NO.2

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

ACR50..CVT

NO.1 & NO.2

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

ACR50..CVT

NO.1 & NO.2

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

ACR50..CVT

NO.1 & NO.2

 4
32942C - HOSE, OIL COOLER OUTLET, NO.1
32942-58030

ACR50..CVT

 1
33493B - COOLER, OIL
33493-58010

ACR50..CVT

 1
Common parts
90116-06127
90178-C0038
90467-19022
91631-G0614
91671-80820
94150-80640
96136-42101
Linked diagrams
3401
8716
