ACR50R-GFXGK (2016)

Toyota Previa/Tarago

Production May 2016 - Oct 2019
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

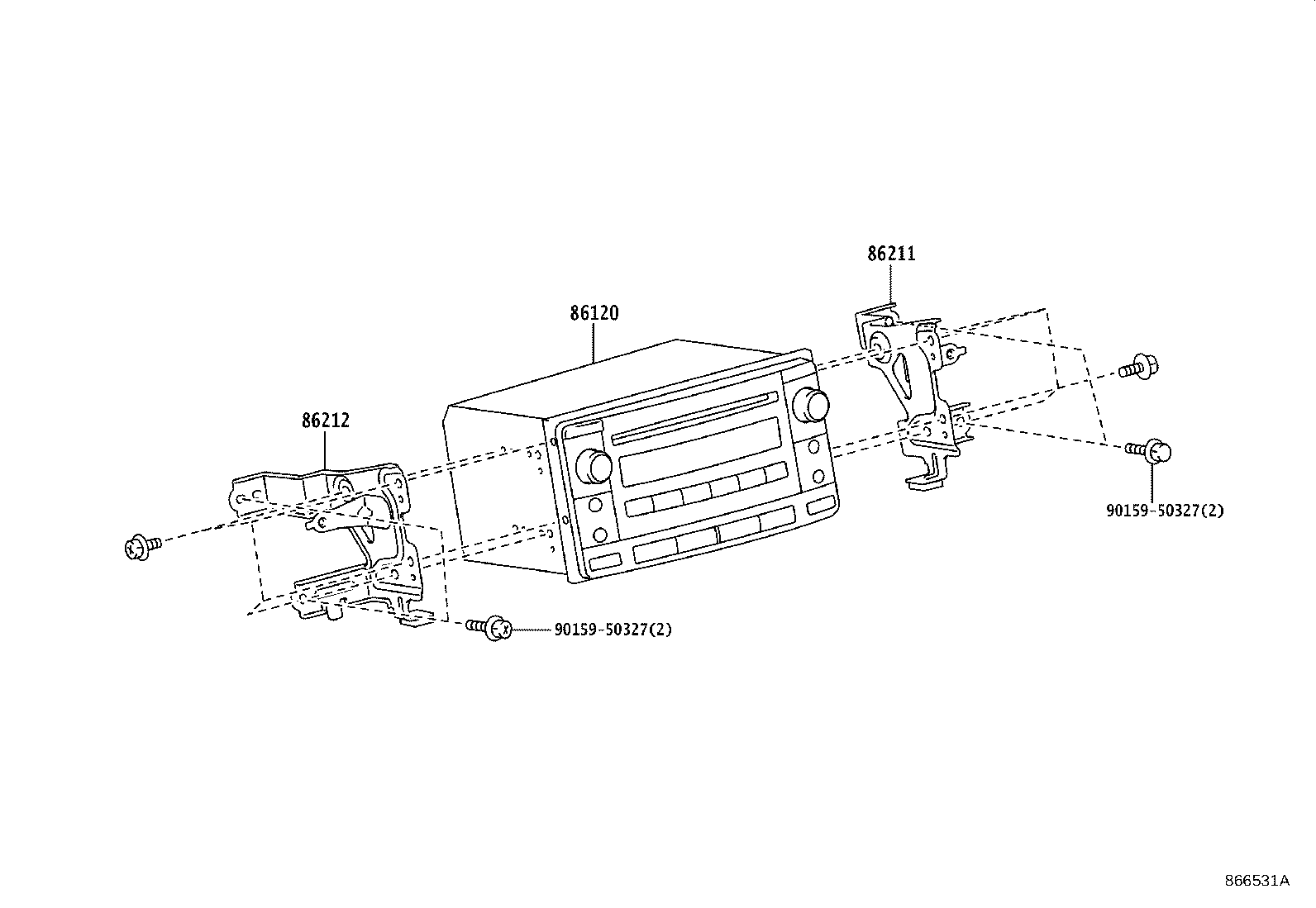

ILLUST NO. 1 OF 3(1605- )RHD

Click highlighted areas on diagram

diagram 86120 86211 86212 9015950327 9015950327
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-28560

ACR50,GSR50..RHD..GEN

FUJITSU TEN,ID=12842,AUDIO-AM/FM CD-CHANGER 6SPEAKER

 1
86120-28550

ACR50,GSR50

FUJITSU TEN,ID=12841,AUDIO-AM/FM CD 6SPEAKER

 1
86120-28601

ACR50..LHD..4FC..GEN;ACR50,GSR50..RHD..(DLX,GL)

FUJITSUTEN,ID=100111,AUDIO-AM/FM & CD & 6SPEAKER

 1
86120-52560

ACR50,GSR50

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 6SPEAKER

 1
86120-28600

GSR50..ARL;ACR50..ARL,GEN

FUJITSUTEN,ID=100111,AUDIO-AM/FM & CD & 6SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-28160

ACR50,GSR50

 1
86211-28210

ACR50,GSR50..RHD..(DLX,GL)

 1
86212 - BRACKET, RADIO, NO.2
86212-28160

ACR50,GSR50

 1
86212-28210

ACR50,GSR50..RHD..(DLX,GL)

 1
Common parts
90159-50327
