ACR50R-GFXGK (2016)
Toyota Previa/Tarago
ILLUST NO. 6 OF 8(1605- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
ACR50,GSR50..RHD |
1 | ||
| 84140-42070 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42070 |
ACR50,GSR50..RHD |
1 | ||
| 84140-42070 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-28010 |
GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84247-28010 |
ACR50,GSR50..RHD..GEN AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-28390 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-28390 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN CRUISE CONTROL-WITH |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN CRUISE CONTROL-WITH&VSC-WITH |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN CRUISE CONTROL-WITH&VSC-WITH&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN CRUISE CONTROL-WITH&VSC-WITH&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN CRUISE CONTROL-WITH&VSC-WITH&HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN CRUISE CONTROL-WITH&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN CRUISE CONTROL-WITH&VSC-WITH&HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN CRUISE CONTROL-WITH&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN CRUISE CONTROL-WITH&HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN CRUISE CONTROL-WITH&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN VSC-WITH&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN VSC-WITH&HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN CRUISE CONTROL-WITH&VSC-WITH&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN VSC-WITH&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GEN AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN VSC-WITH&HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD 6SPEAKER |
1 | ||
| 84306-52100 |
ACR50,GSR50 |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN CRUISE CONTROL-WITH&HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50,GSR50..RHD..GL..GEN HEAD LAMP-DISCHARGE + AFS&AUDIO-AM/FM CD-CHANGER 6SPEAKER |
1 | ||
| 84306-52090 |
ACR50..GCC;ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
ACR50,GSR50..RHD |
1 | ||
| 84652-28690 |
ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 84652-42132 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
ACR50,GSR50..RHD |
1 | ||
| 84652-28690 |
ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 84652-42132 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-33040 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
1 | ||
| 89245-30080 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 89245-33050 |
ACR50,GSR50..DLX,GL |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 4504 | ||||

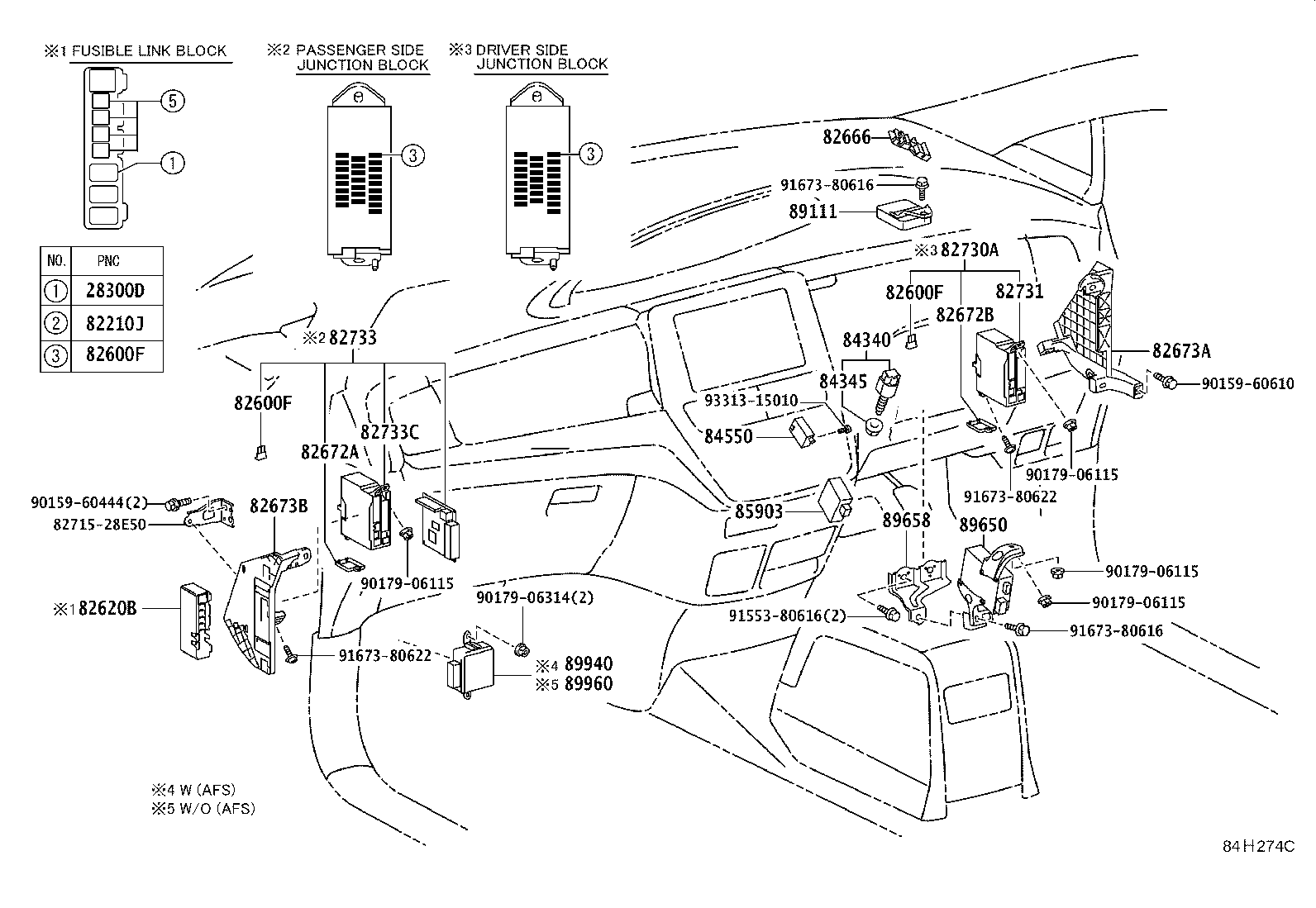

ILLUST NO. 4 OF 8(1605- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2AZFE,2GRFE..ACR50,GSR50..DLX,GL |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
ACR50,GSR50 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ACR50,GSR50 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50,GSR50 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50,GSR50 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ACR50,GSR50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ACR50,GSR50 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ACR50,GSR50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACR50,GSR50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACR50,GSR50 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ACR50,GSR50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACR50,GSR50 20A,MINI FUSE,YELLOW |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28290 |
ACR50,GSR50 |
1 | ||
| 82620-28290 |
ACR50,GSR50..DLX,GL |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-28780 |
ACR50,GSR50..RHD |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-28110 |
ACR50,GSR50..RHD |
1 | ||
| 82672-28171 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-28120 |
ACR50,GSR50..RHD |
1 | ||
| 82672-28200 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28050 |
ACR50,GSR50..RHD |
1 | ||
| 82673-28050 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-28060 |
ACR50,GSR50..RHD |
1 | ||
| 82673-28060 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-28160 |
ACR50,GSR50..RHD |
1 | ||
| 82730-28640 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82733-28190 |
ACR50,GSR50..RHD |
1 | ||
| 82733-28190 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-28300 |
ACR50..RHD..GEN SINGAPORE SPEC |
1 | ||
| 82730-28290 |
ACR50,GSR50..RHD..GEN |
1 | ||
| 82730-28300 |
ACR50,GSR50..RHD..GEN HONG KONG SPEC |
1 | ||
| 82730-28300 |
ACR50..RHD..GEN BRUNEI SPEC |
1 | ||
| 82730-28300 |
ACR50..RHD..GEN MALAYSIA SPEC |
1 | ||
| 82730-28760 |
ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 82733C - BLOCK, PASSENGER SIDE JUNCTION, W/O BODY COMPUTER | ||||
| 82731-28050 |
ACR50,GSR50..RHD |
1 | ||
| 82731-28050 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
ACR50,GSR50 TYPE B:REFER ILLUST. |
1 | ||
| 84340-69115 |
ACR50,GSR50..DLX,GL |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACR50,GSR50..DLX,GL |
1 | ||
| 84345-51010 |
ACR50,GSR50 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ACR50,GSR50 |
1 | ||
| 84550-30080 |
ACR50,GSR50..DLX,GL |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
ACR50,GSR50 |
1 | ||
| 85903-52020 |
ACR50,GSR50..DLX,GL |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-28040 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 89111-28040 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
1 | ||
| 89111-28040 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL VSC-WITH&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-28020 |
ACR50,GSR50..RHD |
1 | ||
| 89650-28250 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-28010 |
ACR50,GSR50..RHD |
1 | ||
| 89658-28010 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-28060 |
ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 89940-28010 |
GSR50..GL..ARL;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| Common parts | ||||
| 82715-28E50 | ||||
| 90159-60444 | ||||
| 90159-60610 | ||||
| 90179-06115 | ||||
| 90179-06314 | ||||
| 91553-80616 | ||||
| 91673-80616 | ||||
| 91673-80622 | ||||
| 93313-15010 | ||||

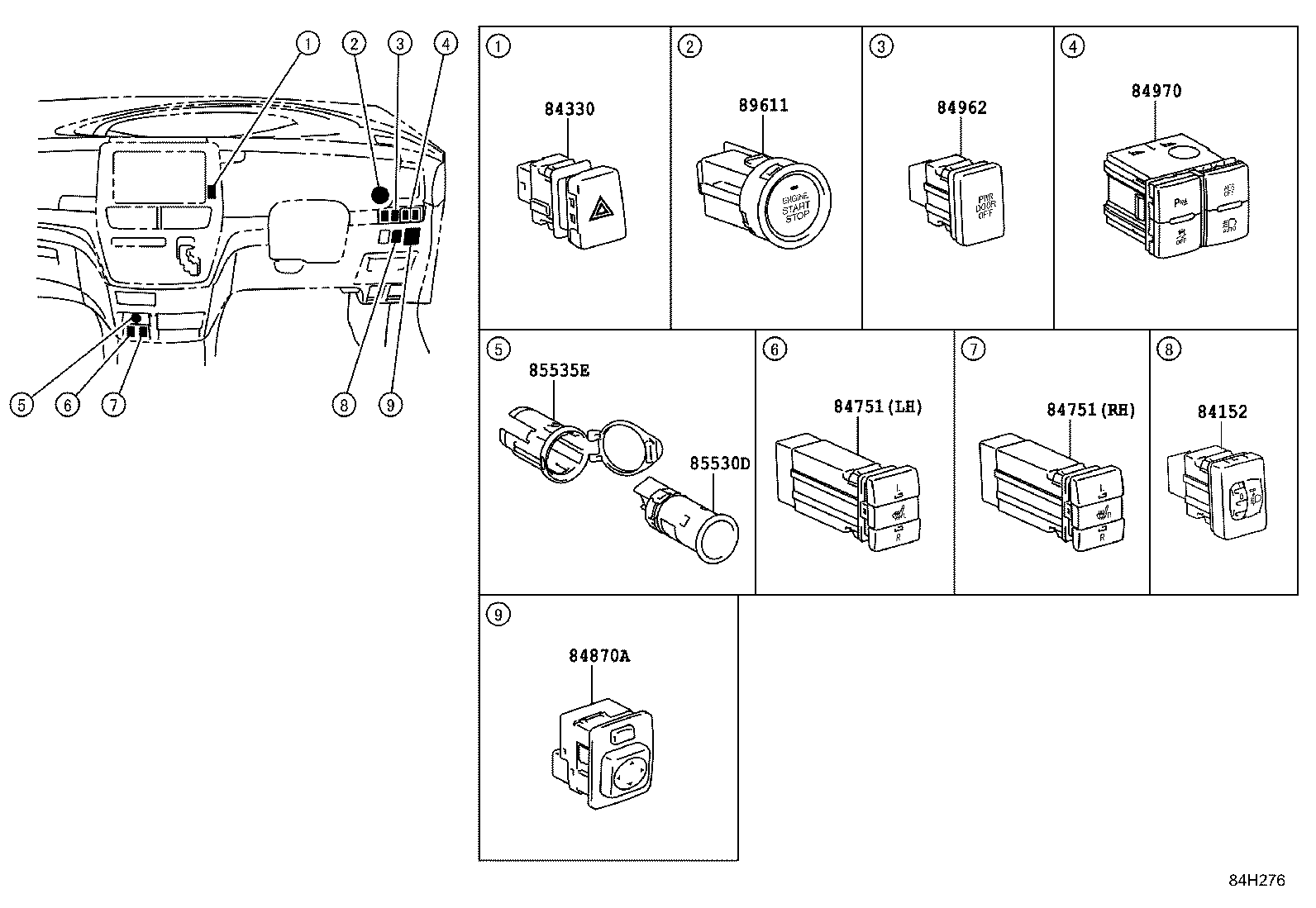

ILLUST NO. 5 OF 8(1605- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52070 |
ACR50,GSR50 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28210 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52030 |
ACR50,GSR50..GL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52030 |
ACR50,GSR50..GL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
ACR50,GSR50..GL..GEN |
1 | ||
| 84870-28090 |
ACR50..RHD..CVT..(DLX,GL)..GEN |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-28010 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 84962-28010 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 84962-58011 |
GSR50..GL..ARL;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-28080 |
GSR50..GL..ARL;ACR50..RHD..(DLX,GL)..GEN CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-28040 |
GSR50..GL..ARL;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
ACR50,GSR50 |
1 | ||
| 85530-42010 |
ACR50,GSR50..DLX,GL |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-28080C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-35021 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
