ACR50R-GFXGK (2016)
Toyota Previa/Tarago

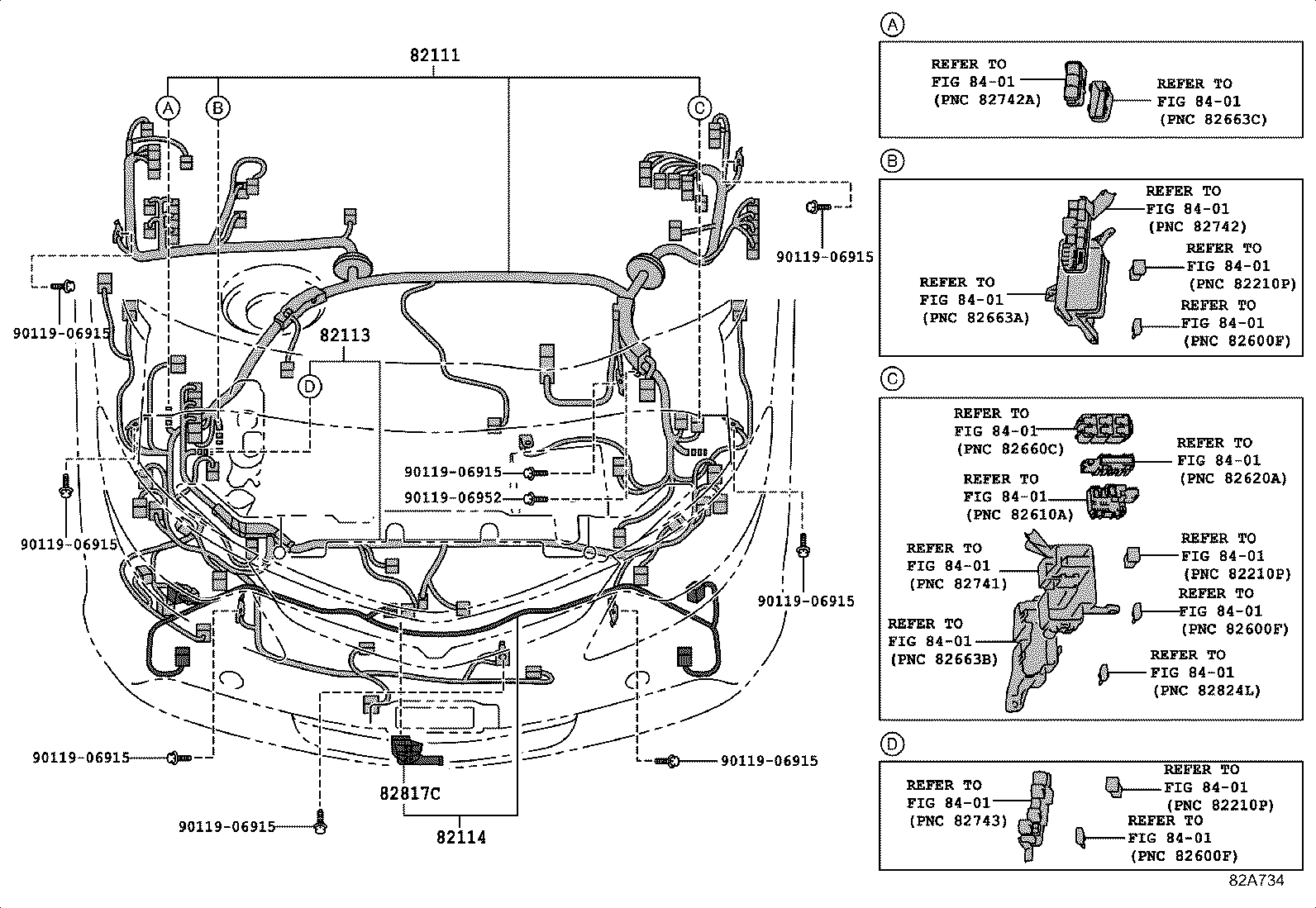

ILLUST NO. 1 OF10(1605- )RHD..DLX,GL
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28E80 |
ACR50..RHD..GEN HONG KONG SPEC |
1 | ||
| 82111-28F00 |
ACR50..RHD VSC-WITH |
1 | ||
| 82111-28E60 |
ACR50..RHD |
1 | ||
| 82111-28F20 |
ACR50..RHD..GEN HONG KONG SPEC&VSC-WITH |
1 | ||
| 82111-28F06 |
ACR50..RHD..(DLX,GL) |
1 | ||
| 82111-28E80 |
ACR50..RHD..GEN HONG KONG SPEC |
1 | ||
| 82111-28F00 |
ACR50..RHD VSC-WITH |
1 | ||
| 82111-28E60 |
ACR50..RHD |
1 | ||
| 82111-28F20 |
ACR50..RHD..GEN HONG KONG SPEC&VSC-WITH |
1 | ||
| 82111-28F06 |
ACR50..RHD..(DLX,GL) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28090 |
ACR50..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82113-28100 |
ACR50 |
1 | ||
| 82113-28074 |
ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 82113-28530 |
ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-28130 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 82114-28140 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 82114-28143 |
GSR50..GL..ARL;ACR50..LHD..4FC;ACR50..RHD..(DLX,GL) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82114-28132 |
ACR50..LHD..4FC;ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28N10 |
ACR50,GSR50..DLX,GL |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||

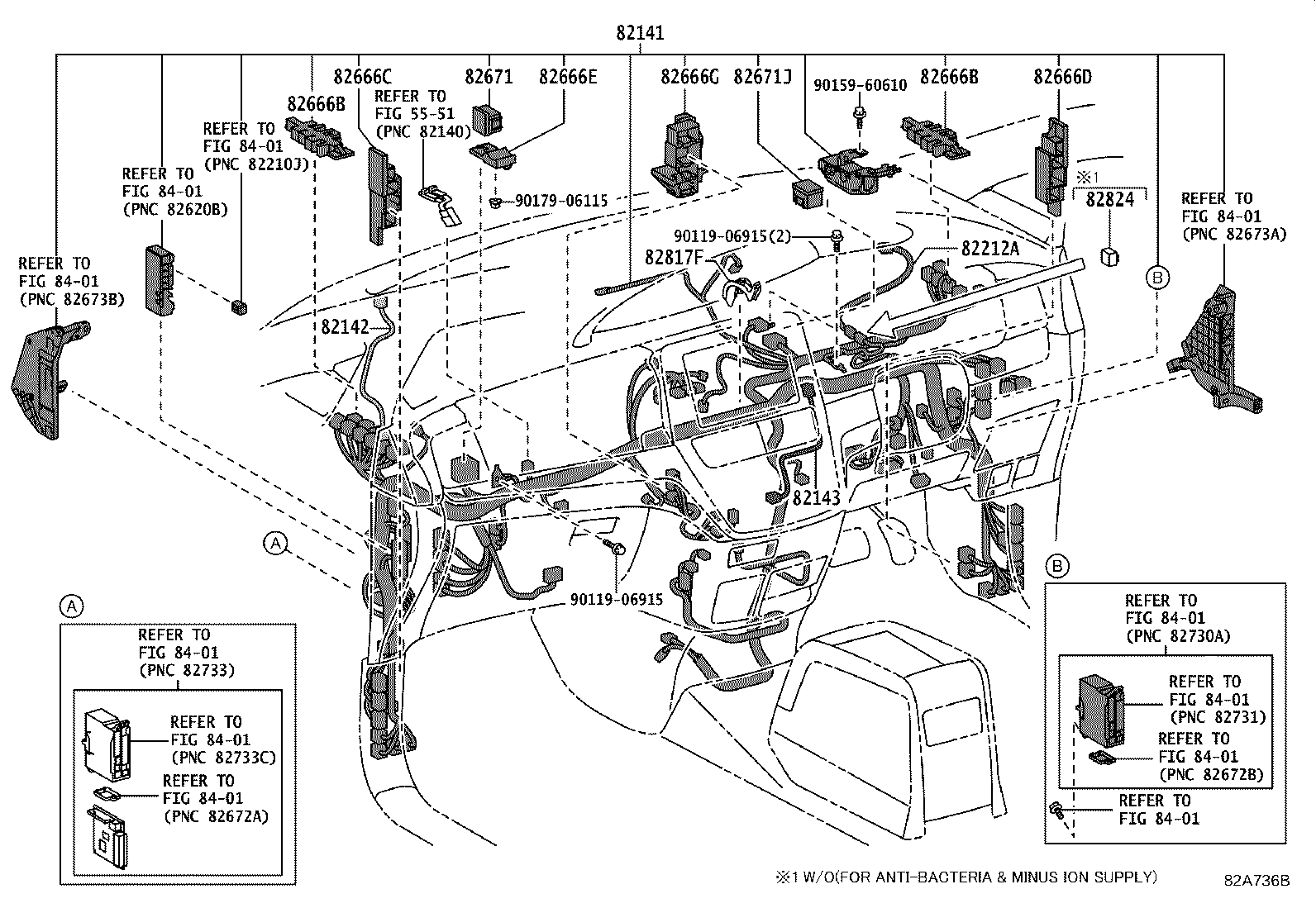

ILLUST NO. 3 OF10(1605- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-28F60 |
ACR50,GSR50..RHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82141-28F50 |
ACR50,GSR50..RHD |
1 | ||
| 82141-28N24 |
ACR50..RHD..CVT..GL |
1 | ||
| 82141-28N34 |
ACR50..RHD..CVT..GL SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE |
1 | ||
| 82141-28F60 |
ACR50,GSR50..RHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82141-28F50 |
ACR50,GSR50..RHD |
1 | ||
| 82141-28N34 |
ACR50..RHD..CVT..GL SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE |
1 | ||
| 82141-28N24 |
ACR50..RHD..CVT..GL |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28040 |
ACR50 |
1 | ||
| 82142-28042 |
ACR50,GSR50..DLX,GL |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-28030 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82212A - HARNESS, AIR CONDITIONER | ||||
| 82212-28100 |
ACR50..RHD..CVT..GL |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR50,GSR50 |
2 | ||
| 82666-28390 |
ACR50,GSR50..DLX,GL |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR50,GSR50 |
2 | ||
| 82666-28390 |
ACR50,GSR50..DLX,GL |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-28400 |
ACR50,GSR50..DLX,GL |
1 | ||
| 82666-28400 |
ACR50,GSR50 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-28410 |
ACR50,GSR50..DLX,GL |
1 | ||
| 82666-28410 |
ACR50,GSR50 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-28420 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82666-28420 |
ACR50,GSR50..RHD |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28B30 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 82666-28440 |
ACR50,GSR50..RHD |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28050 |
ACR50,GSR50 |
1 | ||
| 82671-28050 |
ACR50,GSR50..DLX,GL |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-28060 |
ACR50,GSR50 |
1 | ||
| 82671-28060 |
ACR50,GSR50..DLX,GL |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-28V10 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
