ACR50R-GFXGK (2016)
Toyota Previa/Tarago

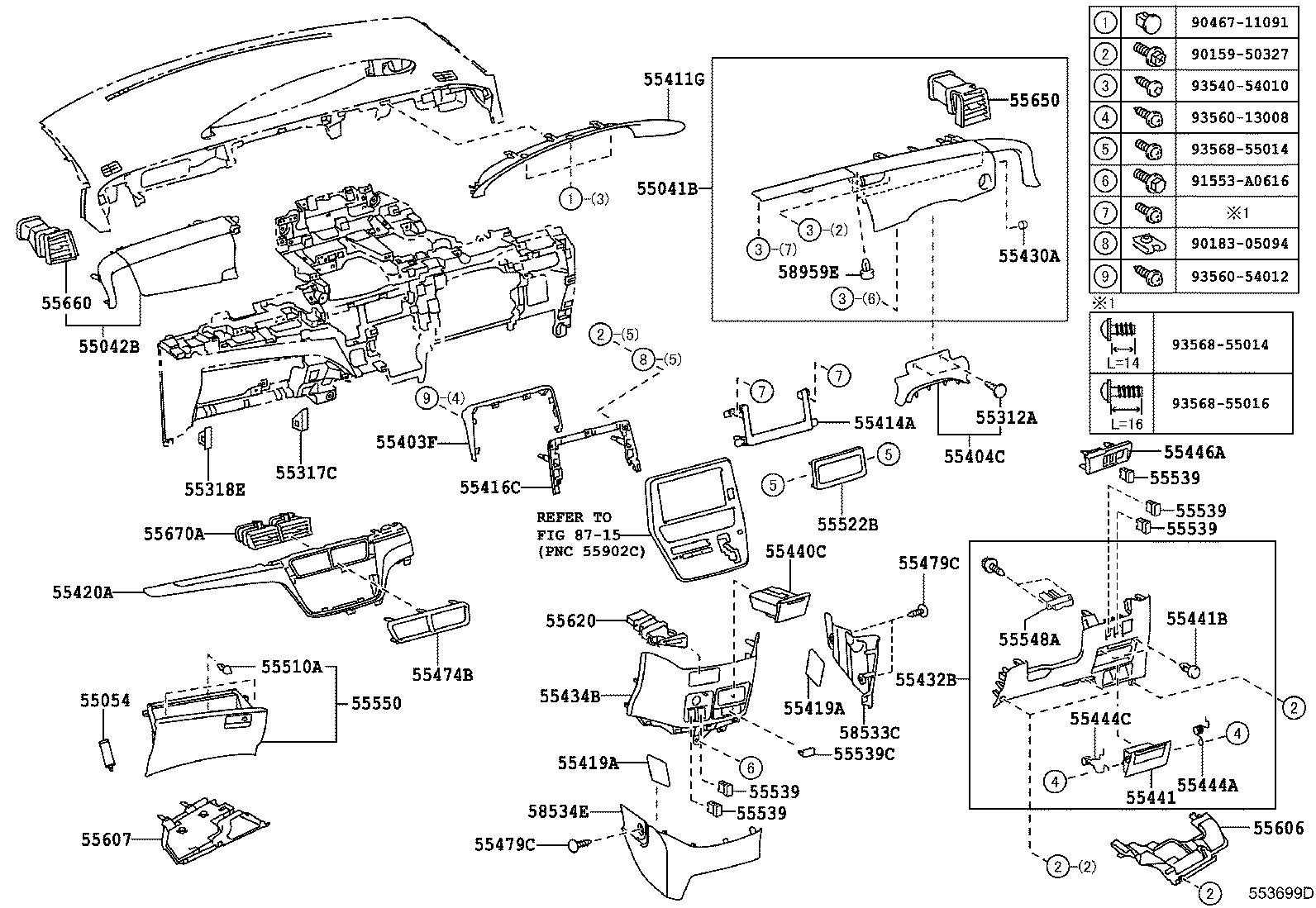

ILLUST NO. 2 OF 2(1605- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-28040E0 |
ACR50..RHD GREGE,TRIM4# |
1 | ||
| 55041-28100C3 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-28040E0 |
ACR50..RHD GREGE,TRIM4# |
1 | ||
| 55042-28090C3 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ACR50,GSR50..DLX,GL |
1 | ||
| 55054-12010 |
ACR50,GSR50 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07090E3 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
2 | ||
| 90467-08186C3 |
ACR50,GSR50..DLX,GL BLACK |
2 | ||
| 90467-08186C0 |
ACR50,GSR50 BLACK |
2 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-28060E0 |
ACR50,GSR50 GREGE,TRIM4# |
1 | ||
| 55317-28060C0 |
GSR50;ACR50..RHD..4FC;ACR50..CVT..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-28050E0 |
ACR50,GSR50 GREGE,TRIM4# |
1 | ||
| 55318-28050C0 |
GSR50;ACR50..RHD..4FC;ACR50..CVT..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-28050C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-28270 |
ACR50,GSR50..DLX,GL |
1 | ||
| 55404-28270 |
ACR50,GSR50 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-28220 |
ACR50,GSR50..RHD |
1 | ||
| 55411-28220 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-28060 |
ACR50,GSR50..RHD |
1 | ||
| 55414-28190 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-28040 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-28020 |
ACR50,GSR50 |
1 | ||
| 55419-28020 |
ACR50,GSR50..DLX,GL |
2 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-28020 |
ACR50,GSR50 |
1 | ||
| 55419-28020 |
ACR50,GSR50..DLX,GL |
2 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-28270 |
ACR50,GSR50..RHD |
1 | ||
| 55420-28370 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-28030 |
ACR50 NO.1 & NO.2 |
2 | ||
| 55430-28030 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-28060E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55480-28080E0 |
ACR50,GSR50..RHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 55480-28140C2 |
ACR50..RHD..CVT..GL SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,BLACK,TRIM2# |
1 | ||
| 55480-28130C2 |
ACR50..RHD..CVT..GL BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-28040E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55434-28100C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-28080C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-28110E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55441-28130C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ACR50,GSR50..DLX,GL |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-28210 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55444-52220 |
ACR50 |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-28130 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-28410 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-28080 |
ACR50,GSR50..RHD..GL |
1 | ||
| 55474-28070 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07090E3 |
ACR50,GSR50 GREGE,TRIM4# |
3 | ||
| 90467-07090C4 |
GSR50;ACR50..RHD..4FC;ACR50..CVT..(DLX,GL) BLACK,TRIM2# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07090E3 |
ACR50,GSR50 GREGE,TRIM4# |
3 | ||
| 90467-07090C4 |
GSR50;ACR50..RHD..4FC;ACR50..CVT..(DLX,GL) BLACK,TRIM2# |
3 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
ACR50,GSR50 |
3 | ||
| 90541-05026 |
ACR50,GSR50..DLX,GL |
3 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ACR50,GSR50 |
1 | ||
| 55522-52020 |
ACR50,GSR50..(DLX,GL)..(ARL,GEN) AUDIO-AM/FM & CD & 6SPEAKER |
1 | ||
| 55522-52020 |
ACR50,GSR50..ARL,GEN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR50,GSR50..GL;ACR50..LHD..DLX BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..RHD BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR50,GSR50..GL;ACR50..LHD..DLX BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..RHD BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR50,GSR50..GL;ACR50..LHD..DLX BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..RHD BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR50,GSR50..GL;ACR50..LHD..DLX BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..RHD BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR50,GSR50..GL;ACR50..LHD..DLX BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..GL..GCC;ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR50,GSR50..RHD BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-44010E3 |
ACR50,GSR50 GREGE,TRIM4# |
1 | ||
| 55539-28180C0 |
GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030E0 |
GSR50..RHD;ACR50..RHD..GL GREGE,TRIM4# |
1 | ||
| 55548-52030C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-28100E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55550-28100C0 |
ACR50..RHD..GL;ACR50,GSR50..ARL BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-28030C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55606-28030C0 |
ACR50,GSR50..RHD..GL BLACK,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-28010C0 |
ACR50,GSR50..RHD..GL BLACK,TRIM4# |
1 | ||
| 55607-28010C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28080E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55620-28110C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-28240E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55650-28310 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28260E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 55660-28320 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-28170 |
ACR50,GSR50..RHD..(DLX,GL) |
1 | ||
| 55670-28140 |
ACR50,GSR50..RHD |
1 | ||
| 58533C - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-28020E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 58533-28020C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-28020E0 |
ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 58534-28020C0 |
ACR50,GSR50..RHD..(DLX,GL) BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-35010 |
ACR50,GSR50..RHD..(DLX,GL) |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90183-05094 | ||||
| 90467-11091 | ||||
| 91553-A0616 | ||||
| 93540-54010 | ||||
| 93560-13008 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
