ACR50R-GFXGK (2016)

Toyota Previa/Tarago

Production May 2016 - Oct 2019
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )RHD

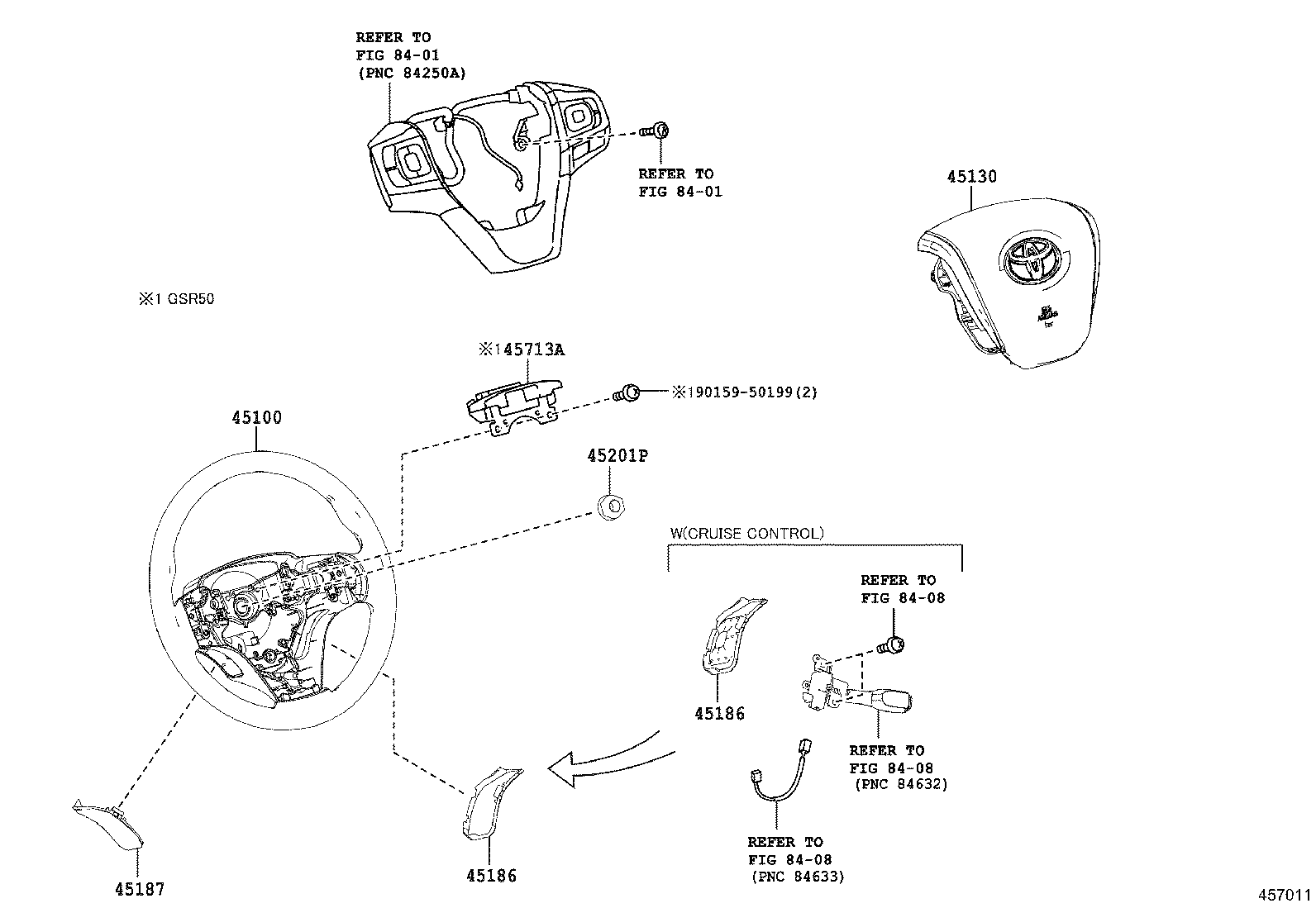

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45186 45187 45201P 45713A 8401 8401 8408 8408 8408 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-28410E2

ACR50,GSR50..GL

4-SPOKE,WOOD&LEATHER,GREGE,TRIM4#

 1
45100-48540C4

ACR50,GSR50..RHD..GL

3-SPOKE,LEATHER,BLACK & LIGHT WOOD BROWN,TRIM2#

 1
45100-48541C4

ACR50,GSR50..RHD..GL

3-SPOKE,LEATHER,BLACK & LIGHT WOOD BROWN,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-28550E0

ACR50,GSR50

GREGE,TRIM4#

 1
45130-28620C0

ACR50,GSR50..RHD..(DLX,GL)

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28040E0

GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN

CRUISE CONTROL-WITH,GREGE,TRIM4#

 1
45186-28050E0

ACR50,GSR50

GREGE,TRIM4#

 1
45186-48050C0

ACR50..RHD..GL

BLACK,TRIM2#

 1
45186-48040C0

ACR50..RHD..GL

CRUISE CONTROL-WITH,BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28040E0

GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN

CRUISE CONTROL-WITH,GREGE,TRIM4#

 1
45186-28050E0

ACR50,GSR50

GREGE,TRIM4#

 1
45186-48050C0

ACR50..RHD..GL

BLACK,TRIM2#

 1
45186-48040C0

ACR50..RHD..GL

CRUISE CONTROL-WITH,BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-48040C0

ACR50,GSR50..RHD..(DLX,GL)

BLACK,TRIM2#

 1
45187-28020E0

ACR50,GSR50

GREGE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ACR50,GSR50

 1
90179-12071

ACR50,GSR50..DLX,GL

 1
Common parts
90159-50199
Linked diagrams
8401
8408
