ACR50R-GFPGK (2012)
Toyota Previa/Tarago
ILLUST NO. 1 OF10(0601-1605)RHD

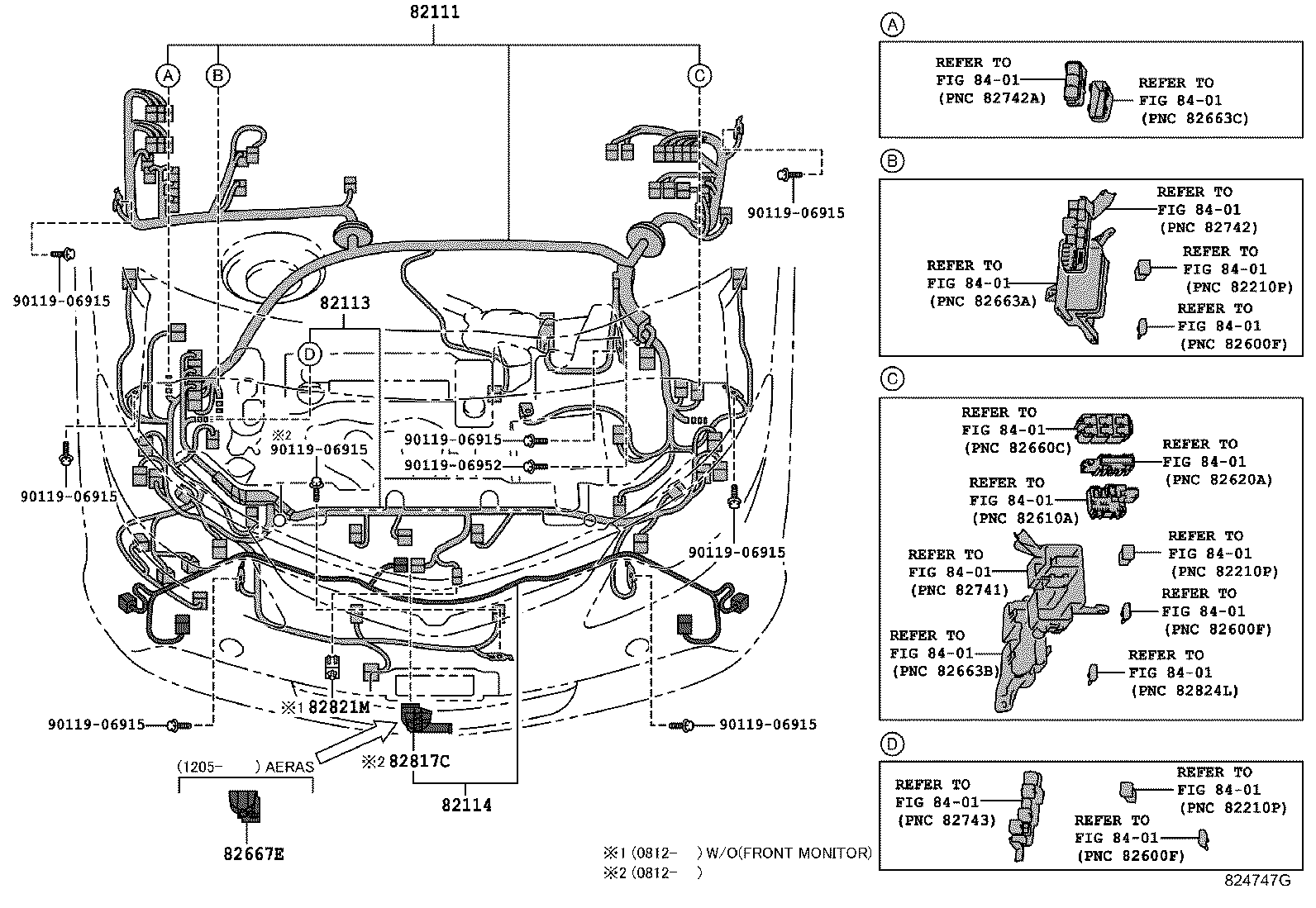

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28E80 |
ACR50..RHD..GEN HONG KONG SPEC |
1 | ||
| 82111-28F00 |
ACR50..RHD VSC-WITH |
1 | ||
| 82111-28E60 |
ACR50..RHD |
1 | ||
| 82111-28F20 |
ACR50..RHD..GEN HONG KONG SPEC&VSC-WITH |
1 | ||
| 82111-28E63 |
ACR50..RHD..GL |
1 | ||
| 82111-28E64 |
ACR50..RHD..GL |
1 | ||
| 82111-28E65 |
ACR50..RHD..4FC |
1 | ||
| 82111-28E80 |
ACR50..RHD..GEN HONG KONG SPEC |
1 | ||
| 82111-28F00 |
ACR50..RHD VSC-WITH |
1 | ||
| 82111-28E60 |
ACR50..RHD |
1 | ||
| 82111-28F20 |
ACR50..RHD..GEN HONG KONG SPEC&VSC-WITH |
1 | ||
| 82111-28E63 |
ACR50..RHD..GL |
1 | ||
| 82111-28E64 |
ACR50..RHD..GL |
1 | ||
| 82111-28E65 |
ACR50..RHD..4FC |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28090 |
ACR50..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82113-28100 |
ACR50 |
1 | ||
| 82113-28092 |
ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 82113-28093 |
ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 82113-28094 |
ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-28130 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 82114-28140 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 82114-28131 |
GSR50..ARL,GCC;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL) |
1 | ||
| 82114-28142 |
GSR50..GL..(ARL,GCC);ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL) CLEARANCE SONAR-WITH |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28N10 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-28250 |
ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0601- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28A70 |
ACR50,GSR50..RHD..GL |
1 | ||
| 82151-28A52 |
GSR50..GL..ARL;ACR50..RHD..4FC |
1 | ||
| 82151-28A51 |
ACR50,GSR50..RHD..07S |
1 | ||
| 82151-28A53 |
ACR50,GSR50..RHD..ATM..GL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28B00 |
ACR50,GSR50..RHD..GL |
1 | ||
| 82152-28A71 |
ACR50,GSR50..RHD..07S |
1 | ||
| 82152-28A73 |
ACR50,GSR50..RHD..ATM..GL |
1 | ||
| 82152-28A72 |
GSR50..GL..ARL;ACR50..RHD..4FC |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-28070 |
ACR50,GSR50..GL |
1 | ||
| 82053-28120 |
ACR50,GSR50..GL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82053-28150 |
ACR50,GSR50..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82053-28100 |
ACR50,GSR50..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82053-28101 |
ACR50..RHD..GL;ACR50..LHD..4FC..GEN |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-28100 |
ACR50,GSR50..GL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82054-28080 |
ACR50,GSR50..GL |
1 | ||
| 82054-28140 |
ACR50,GSR50..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82054-28120 |
ACR50,GSR50..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82054-28121 |
ACR50..RHD..GL;ACR50..LHD..4FC..GEN |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28460 |
ACR50,GSR50 |
1 | ||
| 82184-28462 |
GSR50..ARL;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL) |
1 | ||
| 82184-28492 |
ACR50..RHD..GL;ACR50..LHD..4FC..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06915 | ||||
| 91553-80612 | ||||
| 91553-80616 | ||||
ILLUST NO. 9 OF10(0601- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACR50 |
1 | ||
| 90980-07205 |
ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACR50 |
1 | ||
| 90980-07205 |
ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07445 |
ACR50 |
1 | ||
| 90980-07464 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07445 |
ACR50 |
1 | ||
| 90980-07464 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07451 |
ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 90980-07451 |
ACR50 |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07451 |
ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 90980-07451 |
ACR50 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0812 | ||||
| 91622-61016 | ||||
| 91671-A0612 | ||||

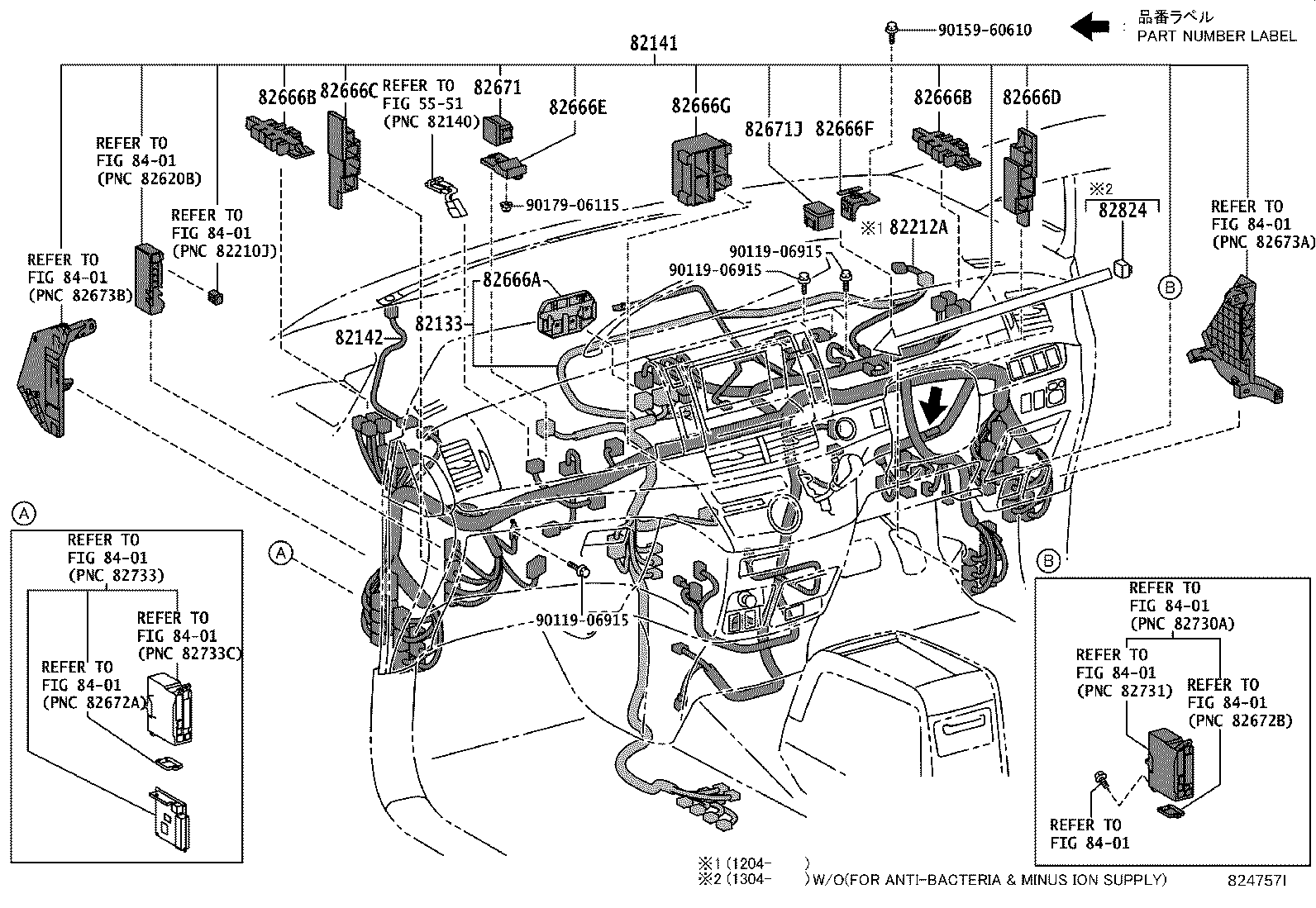

ILLUST NO. 3 OF10(0601-1605)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28630 |
ACR50,GSR50..RHD..GL AUDIO-AM/FM CD 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82133-28630 |
ACR50,GSR50..RHD..GL..GEN AUDIO-AM/FM CD-CHANGER 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-28F60 |
ACR50,GSR50..RHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82141-28F50 |
ACR50,GSR50..RHD |
1 | ||
| 82141-28N21 |
ACR50..RHD..GL |
1 | ||
| 82141-28N22 |
ACR50..RHD..GL |
1 | ||
| 82141-28N23 |
ACR50..RHD..GL |
1 | ||
| 82141-28F60 |
ACR50,GSR50..RHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82141-28F50 |
ACR50,GSR50..RHD |
1 | ||
| 82141-28N21 |
ACR50..RHD..GL |
1 | ||
| 82141-28N23 |
ACR50..RHD..GL |
1 | ||
| 82141-28N22 |
ACR50..RHD..GL |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28040 |
ACR50 |
1 | ||
| 82142-28042 |
ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
1 | ||
| 82142-28041 |
GSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-28460 |
ACR50,GSR50..GL AUDIO-AM/FM CD 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82666-28460 |
ACR50,GSR50..RHD..GL..GEN AUDIO-AM/FM CD-CHANGER 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR50,GSR50 |
2 | ||
| 82666-28390 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR50,GSR50 |
2 | ||
| 82666-28390 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-28400 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82666-28400 |
ACR50,GSR50 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-28410 |
ACR50,GSR50 |
1 | ||
| 82666-28410 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-28420 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
1 | ||
| 82666-28420 |
ACR50,GSR50..RHD |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-28430 |
ACR50,GSR50..RHD |
1 | ||
| 82666-28430 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28440 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
1 | ||
| 82666-28440 |
ACR50,GSR50..RHD |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28050 |
ACR50,GSR50 |
1 | ||
| 82671-28050 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-28060 |
ACR50,GSR50 |
1 | ||
| 82671-28060 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-28260 |
GSR50..ARL;ACR50..CVT..DLX;ACR50..RHD..4FC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
ILLUST NO. 6 OF10(0601- )

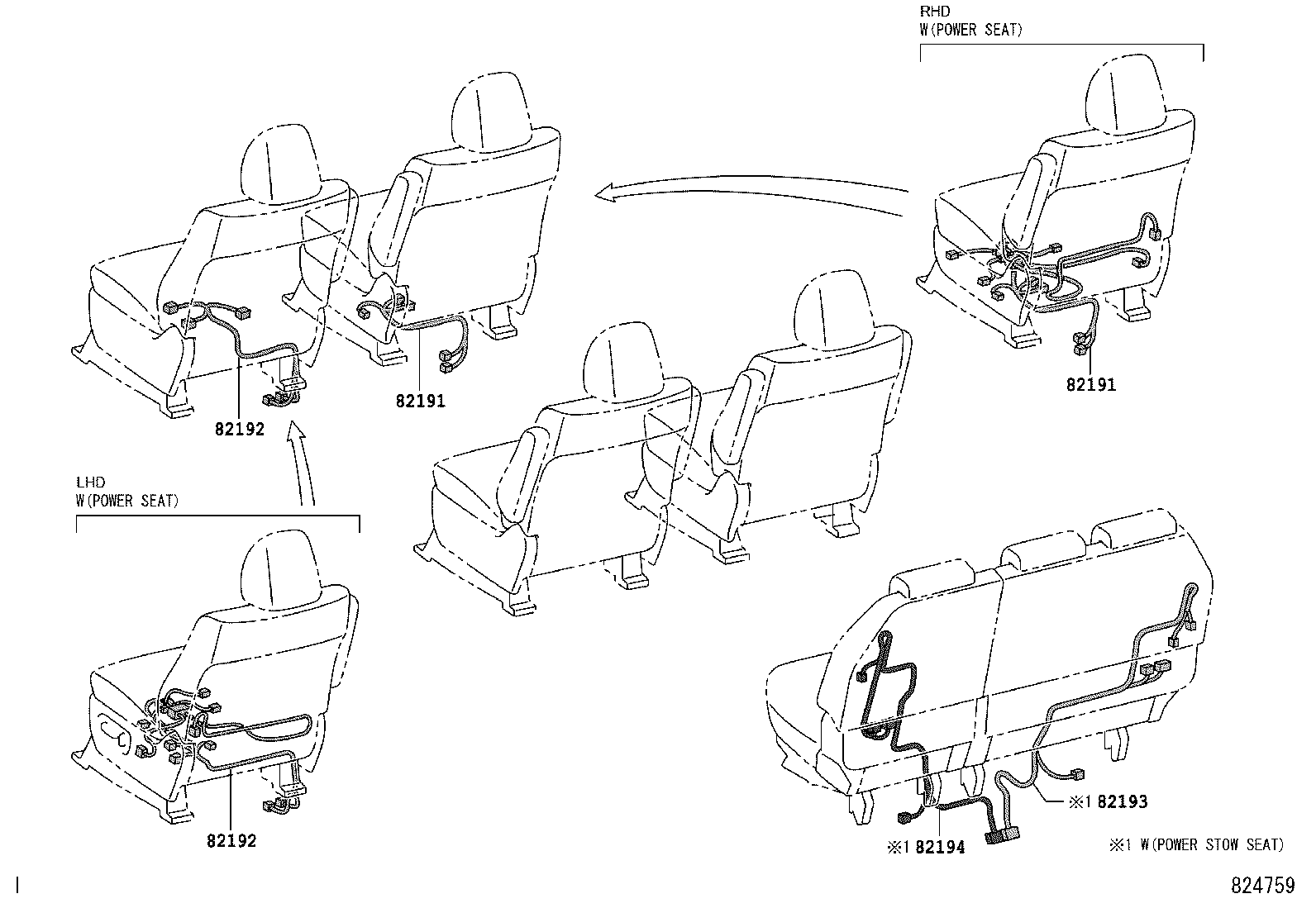

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-28050 |
ACR50,GSR50..RHD..GL |
1 | ||
| 82191-28190 |
ACR50..RHD..GL |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-28050 |
ACR50,GSR50..RHD..GL |
1 | ||
| 82191-28190 |
ACR50..RHD..GL |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-28030 |
ACR50,GSR50..RHD PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD..GL PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD..GL PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD..GL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-28030 |
ACR50,GSR50..RHD PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD..GL PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD..GL PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82192-28030 |
ACR50,GSR50..RHD..GL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||

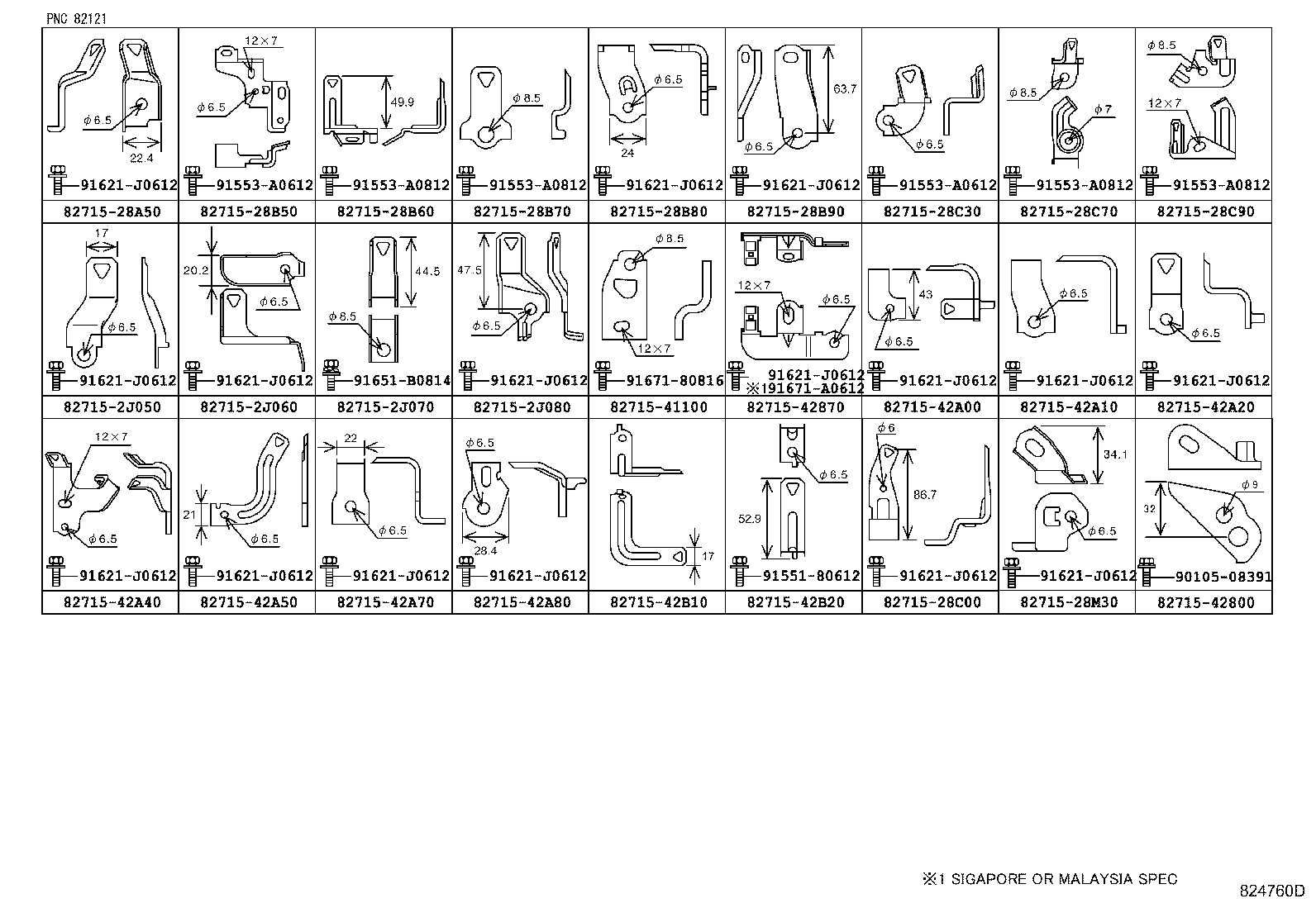

ILLUST NO. 7 OF10(0601- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-28A50 | ||||
| 82715-28B50 | ||||
| 82715-28B60 | ||||
| 82715-28B70 | ||||
| 82715-28B80 | ||||
| 82715-28B90 | ||||
| 82715-28C00 | ||||
| 82715-28C30 | ||||
| 82715-28C70 | ||||
| 82715-28C90 | ||||
| 82715-28M30 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-41100 | ||||
| 82715-42800 | ||||
| 82715-42870 | ||||
| 82715-42A00 | ||||
| 82715-42A10 | ||||
| 82715-42A20 | ||||
| 82715-42A40 | ||||
| 82715-42A50 | ||||
| 82715-42A70 | ||||
| 82715-42A80 | ||||
| 82715-42B10 | ||||
| 82715-42B20 | ||||
| 90105-08391 | ||||
| 91551-80612 | ||||
| 91553-A0612 | ||||
| 91553-A0812 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
| 91671-80816 | ||||
| 91671-A0612 | ||||
ILLUST NO. 5 OF10(0601- )
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-28G20 |
GSR50..RHD..GL;ACR50..RHD..GEN SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82161-28F50 |
ACR50,GSR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82161-28G50 |
ACR50,GSR50..RHD |
1 | ||
| 82161-28J50 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28F90 |
ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82161-28J20 |
ACR50,GSR50..RHD..GL VSC-WITH&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28G80 |
ACR50,GSR50..RHD..GL VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28J80 |
ACR50,GSR50..RHD VSC-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28F42 |
ACR50..RHD..GL |
1 | ||
| 82161-28Q70 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82161-28F34 |
ACR50..RHD..GL |
1 | ||
| 82161-28Q71 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82161-28Q72 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82161-28F35 |
ACR50..RHD..GL |
1 | ||
| 82161-28F90 |
ACR50,GSR50..RHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82161-28G80 |
ACR50,GSR50..RHD..GL VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28G20 |
GSR50..RHD..GL;ACR50..RHD..GEN SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82161-28G50 |
ACR50,GSR50..RHD |
1 | ||
| 82161-28F50 |
ACR50,GSR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82161-28J80 |
ACR50,GSR50..RHD VSC-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28J20 |
ACR50,GSR50..RHD..GL VSC-WITH&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28J50 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-28Q70 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82161-28F42 |
ACR50..RHD..GL |
1 | ||
| 82161-28F34 |
ACR50..RHD..GL |
1 | ||
| 82161-28Q71 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82161-28Q72 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82161-28F35 |
ACR50..RHD..GL |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-28C40 |
GSR50..RHD..GL;ACR50..RHD..GEN SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82162-28C50 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82162-28D30 |
ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28C60 |
ACR50,GSR50..RHD |
1 | ||
| 82162-28D20 |
ACR50,GSR50..RHD VSC-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28D10 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRSAIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28C70 |
ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
1 | ||
| 82162-28D00 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28F50 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28F60 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28E90 |
GSR50..RHD..GL;ACR50..RHD..GEN MOON ROOF-WITH |
1 | ||
| 82162-28E70 |
GSR50..RHD..GL;ACR50..RHD..GEN MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82162-28F30 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28F00 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH |
1 | ||
| 82162-28E80 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82162-28F40 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-28C42 |
ACR50..RHD..4FC..GEN |
1 | ||
| 82162-28E72 |
ACR50..RHD..4FC..GEN MOON ROOF-WITH |
1 | ||
| 82162-28C43 |
ACR50..RHD..4FC |
1 | ||
| 82162-28E73 |
ACR50..RHD..4FC MOON ROOF-WITH |
1 | ||
| 82162-28D10 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28D10 |
1 | ||
| 82162-28D00 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28D00 |
1 | ||
| 82162-28C50 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28C50 |
1 | ||
| 82162-28E70 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28E70 |
1 | ||
| 82162-28C70 |
ACR50,GSR50..RHD PART NUMBER LABEL=82162-28C70 |
1 | ||
| 82162-28D20 |
ACR50,GSR50..RHD PART NUMBER LABEL=82162-28D20 |
1 | ||
| 82162-28E90 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28E90 |
1 | ||
| 82162-28D30 |
ACR50,GSR50..RHD PART NUMBER LABEL=82162-28D30 |
1 | ||
| 82162-28C40 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28C40 |
1 | ||
| 82162-28C60 |
ACR50,GSR50..RHD PART NUMBER LABEL=82162-28C60 |
1 | ||
| 82162-28E80 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28E80 |
1 | ||
| 82162-28F50 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28F50 |
1 | ||
| 82162-28F60 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28F60 |
1 | ||
| 82162-28F40 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28F40 |
1 | ||
| 82162-28F00 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28F00 |
1 | ||
| 82162-28F30 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82162-28F30 |
1 | ||
| 82162-28C42 |
ACR50..RHD..4FC..GEN PART NUMBER LABEL=82162-28C42 |
1 | ||
| 82162-28E72 |
ACR50..RHD..4FC..GEN PART NUMBER LABEL=82162-28E72 |
1 | ||
| 82162-28C43 |
ACR50..RHD..4FC PART NUMBER LABEL=82162-28C43 |
1 | ||
| 82162-28E73 |
ACR50..RHD..4FC PART NUMBER LABEL=82162-28E73 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-28160 |
GSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28A70 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82171-28A70 |
ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
1 | ||
| 82171-28C30 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC MOON ROOF-WITH |
1 | ||
| 82171-28C90 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH |
1 | ||
| 82171-28C90 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82171-28E50 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82171-28C30 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82171-2J840 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
1 | ||
| 82171-28F10 |
ACR50,GSR50..RHD..GL COLD SPEC(BATTERY SIZE:80D26L)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&AUDIO-AM/FM CD 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28F10 |
ACR50,GSR50..RHD..GL COLD SPEC(BATTERY SIZE:80D26L)&AUDIO-AM/FM CD 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28F10 |
ACR50,GSR50..RHD..GL..GEN COLD SPEC(BATTERY SIZE:80D26L)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&AUDIO-AM/FM CD-CHANGER 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28G40 |
ACR50,GSR50..RHD..GL COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&AUDIO-AM/FM CD 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28F10 |
ACR50,GSR50..RHD..GL..GEN COLD SPEC(BATTERY SIZE:80D26L)&AUDIO-AM/FM CD-CHANGER 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28G40 |
ACR50,GSR50..RHD..GL..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&AUDIO-AM/FM CD-CHANGER 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28G40 |
ACR50,GSR50..RHD..GL COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&AUDIO-AM/FM CD 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28G40 |
ACR50,GSR50..RHD..GL..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&AUDIO-AM/FM CD-CHANGER 6SPEAKER&TELEVISION & VTR-REAR |
1 | ||
| 82171-28E53 |
ACR50..4FC..GEN;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC) |
1 | ||
| 82171-28C32 |
ACR50..LHD;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC);ACR50..RHD..4FC..GEN MOON ROOF-WITH |
1 | ||
| 82171-28C33 |
ACR50..LHD;ACR50..RHD..4FC;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC) MOON ROOF-WITH |
1 | ||
| 82171-28E54 |
ACR50..4FC..GEN;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC) |
1 | ||
| 82171-28C34 |
GSR50..GL;ACR50..4FC MOON ROOF-WITH |
1 | ||
| 82171-28E55 |
GSR50..GL;ACR50..4FC..GEN |
1 | ||
| 82171-28A70 |
ACR50,GSR50..RHD PART NUMBER LABEL=82171-28A70 |
1 | ||
| 82171-28A70 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82171-28A70 |
1 | ||
| 82171-28E50 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC PART NUMBER LABEL=82171-28E50 |
1 | ||
| 82171-28C90 |
GSR50..RHD..GL;ACR50..RHD..GEN PART NUMBER LABEL=82171-28C90 |
1 | ||
| 82171-28C30 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC PART NUMBER LABEL=82171-28C30 |
1 | ||
| 82171-28F10 |
ACR50,GSR50..RHD..GL..GEN PART NUMBER LABEL=82171-28F10 |
1 | ||
| 82171-28F10 |
ACR50,GSR50..RHD..GL PART NUMBER LABEL=82171-28F10 |
1 | ||
| 82171-2J840 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN PART NUMBER LABEL=82171-2J840 |
1 | ||
| 82171-28G40 |
ACR50,GSR50..RHD..GL PART NUMBER LABEL=82171-28G40 |
1 | ||
| 82171-28G40 |
ACR50,GSR50..RHD..GL..GEN PART NUMBER LABEL=82171-28G40 |
1 | ||
| 82171-28C32 |
ACR50..LHD;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC);ACR50..RHD..4FC..GEN PART NUMBER LABEL=82171-28C32 |
1 | ||
| 82171-28E53 |
ACR50..4FC..GEN;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC) PART NUMBER LABEL=82171-28E53 |
1 | ||
| 82171-28E54 |
ACR50..4FC..GEN;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC) PART NUMBER LABEL=82171-28E54 |
1 | ||
| 82171-28C33 |
ACR50..LHD;ACR50..RHD..4FC;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC) PART NUMBER LABEL=82171-28C33 |
1 | ||
| 82171-28C34 |
GSR50..GL;ACR50..4FC MOON ROOF-WITH |
1 | ||
| 82171-28E55 |
GSR50..GL;ACR50..4FC..GEN |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-28260 |
ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 82182-28261 |
GSR50..GL..(ARL,GCC);ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL) CLEARANCE SONAR-WITH |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-28370 |
ACR50,GSR50 |
1 | ||
| 82666-28370 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-28340 |
ACR50,GSR50..RHD..GL VSC-WITH&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28340 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28340 |
ACR50,GSR50..RHD VSC-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28340 |
ACR50,GSR50..RHD..GL VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-28360 |
ACR50..RHD..GL |
1 | ||
| 82666-28360 |
ACR50,GSR50..RHD |
1 | ||
| 82666-28360 |
ACR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28330 |
ACR50,GSR50..RHD..GL VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28330 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28330 |
ACR50,GSR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82666-28330 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28470 |
ACR50,GSR50 |
1 | ||
| 82666-28330 |
ACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28330 |
ACR50,GSR50..RHD..GL VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28330 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28330 |
ACR50,GSR50..RHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 82666-28330 |
GSR50..RHD..GL;ACR50..RHD..GEN VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28470 |
ACR50,GSR50 |
1 | ||
| 82666-28330 |
ACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-28350 |
ACR50,GSR50 |
1 | ||
| 82666-28350 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-28360 |
ACR50,GSR50 |
1 | ||
| 82666-28360 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRSAIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC VSC-WITH&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28490 |
ACR50,GSR50 |
1 | ||
| 82666-28380 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28380 |
ACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRSAIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC VSC-WITH&MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC VSC-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82666-28380 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28490 |
ACR50,GSR50 |
1 | ||
| 82666-28380 |
GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) |
1 | ||
| 82666-28380 |
ACR50..RHD..GEN;GSR50..GL..(ARL,GCC);ACR50,GSR50..LHD..ATM..GEN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||

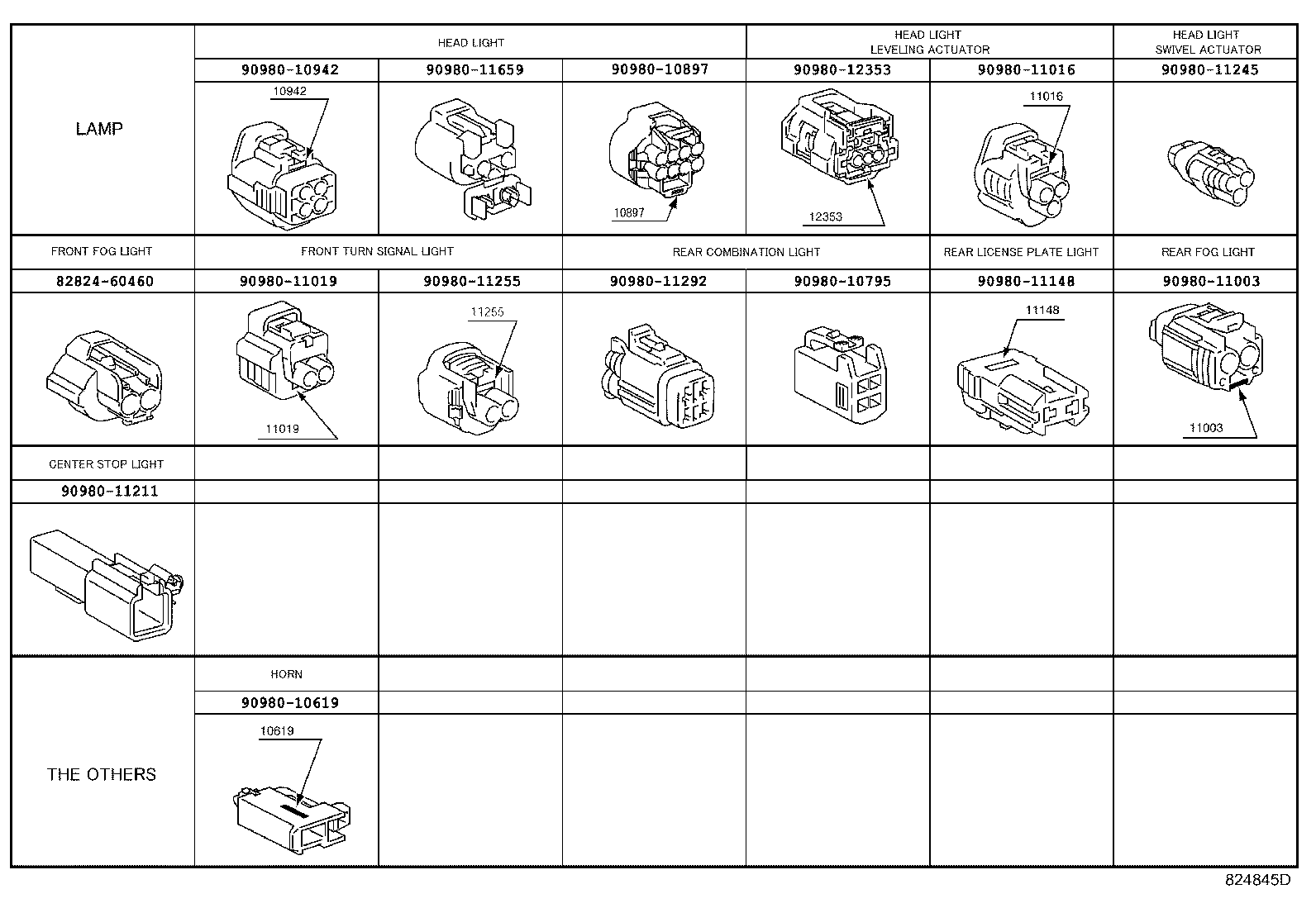

ILLUST NO.10 OF10(0601- )
CONNECTOR(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11211 | ||||
| 90980-11245 | ||||
| 90980-11255 | ||||
| 90980-11292 | ||||
| 90980-11659 | ||||
| 90980-12353 | ||||
ILLUST NO. 2 OF10(0601- )ACR50
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28A10 |
ACR50 |
1 | ||
| 82121-28A10 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 82121-58080 |
ACR50..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28550 |
ACR50 |
1 | ||
| 82122-28550 |
ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| 82122-28590 |
ACR50 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28431 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 82123-28430 |
ACR50 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-42250 |
ACR50 |
1 | ||
| 82666-42250 |
ACR50..CVT;ACR50..4FC..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0612 | ||||
| 91553-A0812 | ||||
| 91621-J0612 | ||||
ILLUST NO.10 OF10(0601- )
CONNECTOR(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-11909 | ||||
| 90980-12211 | ||||
| 90980-12225 | ||||
| 90980-12259 | ||||
| 90980-12303 | ||||
| 90980-12381 | ||||
| 90980-12382 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12495 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
| 90980-12831 | ||||

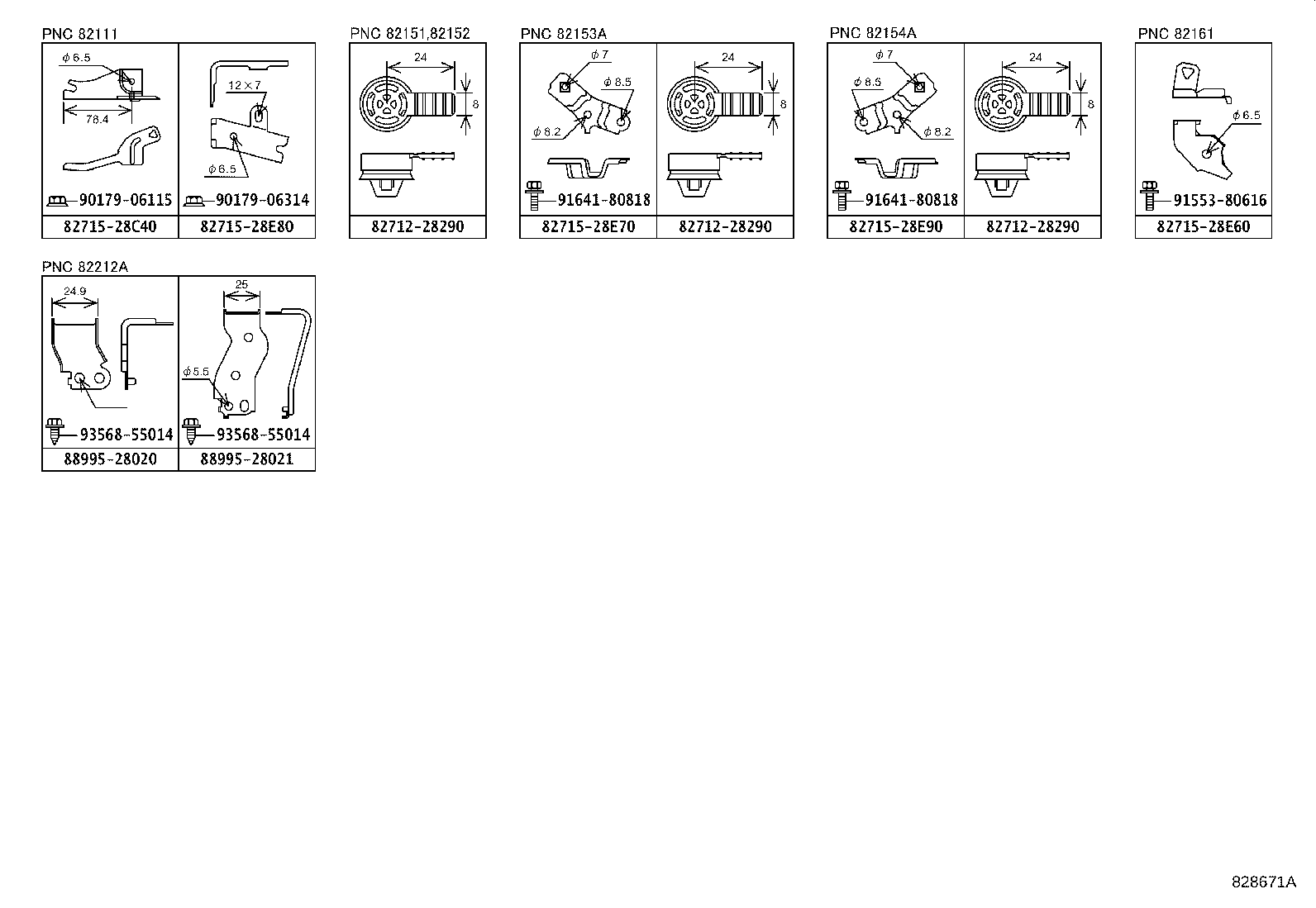

ILLUST NO. 8 OF10(0601- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-28290 | ||||
| 82715-28C40 | ||||
| 82715-28E60 | ||||
| 82715-28E70 | ||||
| 82715-28E80 | ||||
| 82715-28E90 | ||||
| 88995-28020 | ||||
| 88995-28021 | ||||
| 90179-06115 | ||||
| 90179-06314 | ||||
| 91553-80616 | ||||
| 91641-80818 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
