ACR50R-GFPGK (2012)

Toyota Previa/Tarago

Production Apr 2012 - May 2016
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

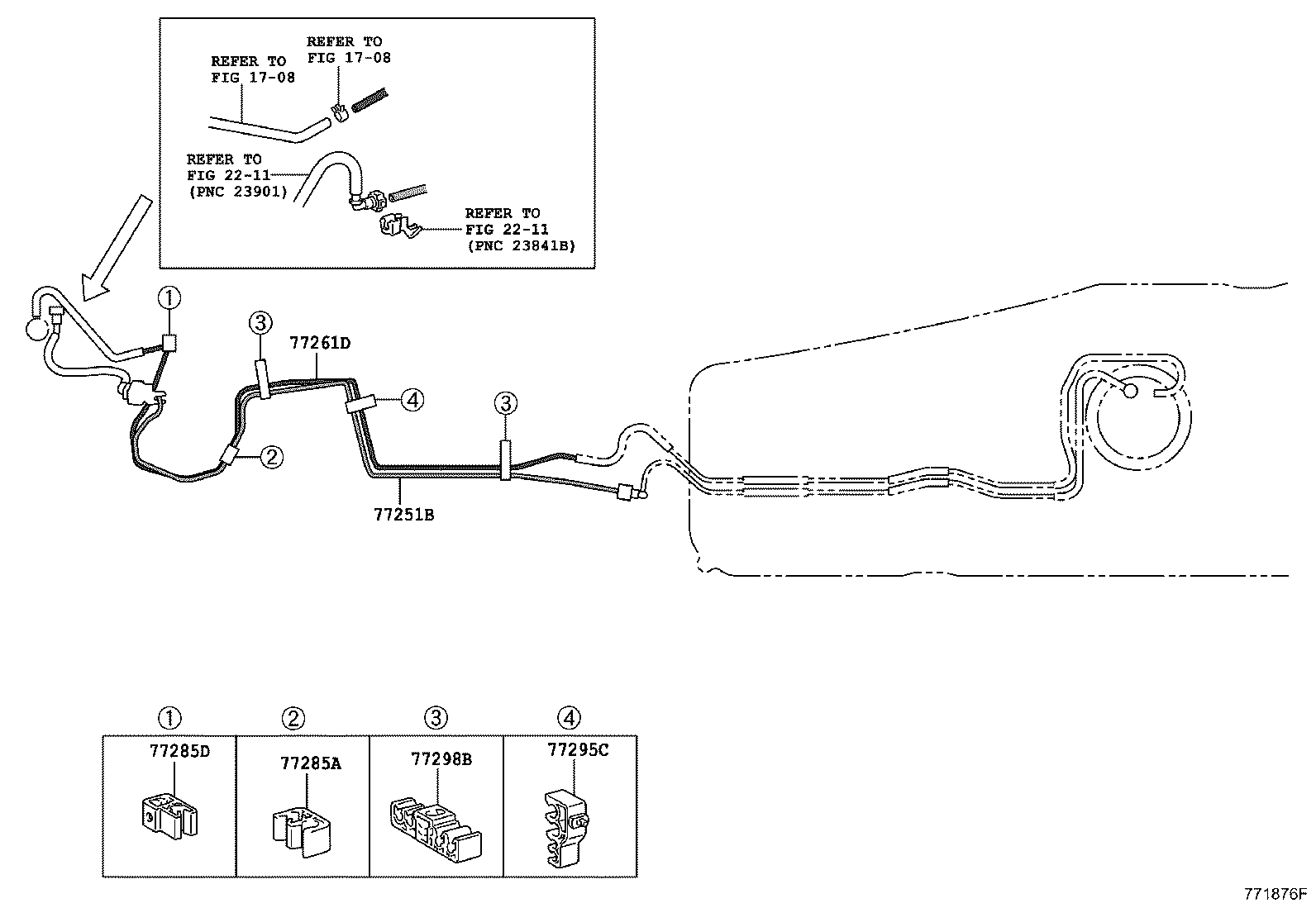

FUEL TUBE

diagram 1708 1708 2211 2211 77251B 77261D 77285A 77285D 77295C 77298B
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-28220

ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)

 1
77251-28220

ACR50,GSR50

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-28070

GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN

 1
77261-28070

ACR50,GSR50..RHD

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-42110

ACR50,GSR50

 1
77285-42110

ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52010

ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)

 1
77285-52010

ACR50,GSR50

 1
77295C - GROMMET, FUEL TUBE
77295-33020

ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)

 1
77295-33020

ACR50,GSR50

 1
77298B - CLAMP, FUEL TUBE, NO.4
77298-52070

ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)

 2
77298-52070

ACR50,GSR50

 2
